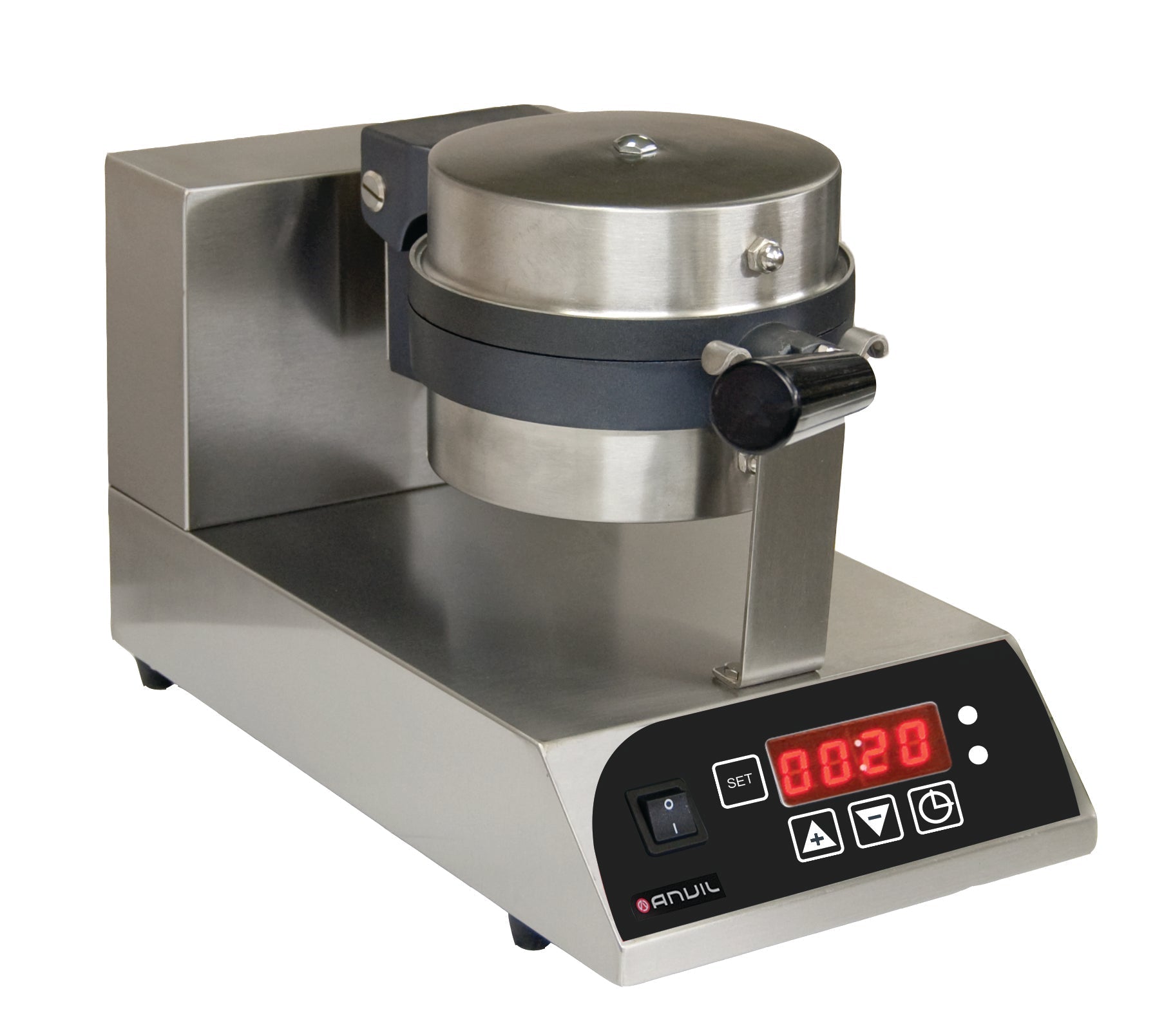

Anvil Waffle Baker Belgian Single

The Anvil WBA1001 is a single Belgian waffle baker producing a 190 mm waffle, with 2 x 500 W heating elements, a 180 degree rotating plate and programmable heat and time settings on a digital display. At 1 kW it runs from a standard 10 A outlet.

Why operators choose the ICE-WBA1001

• One iron, 1 kW, standard outlet — about 4.2 A - no electrical work at all. The double model draws 2 kW and needs two separate outlets, so if power is tight this is the one that simply plugs in
• 180 degree rotating plates — the plate flips through half a turn during the bake. That is what spreads the batter evenly through the iron and gives a Belgian waffle that is cooked through rather than dense on one side
• Programmable heat and time with a digital display — set it once and every waffle comes out the same regardless of who is on. On a product sold by appearance, consistency is the whole game
• Timer alarm with buzzer — it tells you when the waffle is done rather than relying on someone watching it during a rush
• Stainless steel construction — survives batter, sugar and daily cleaning
• 190 mm waffle diameter — the finished size - check it against your plates, boxes and packaging before ordering

Specifications

Venue suitability

The WBA1001 suits cafes, dessert bars and takeaway counters adding waffles to an existing menu. At 255 mm wide and plugging into a standard outlet it needs neither much counter nor any electrical work — note it is 515 mm deep, which is the dimension most likely to catch you out.

See the full waffle makers range or browse every Anvil model we carry.

Installation & delivery

Standard 10 A outlet at 1 kW — about 4.2 A, so no electrical work and it can share a circuit. Dimensions are recorded width x height x depth: 255 mm wide, 286 mm tall and 515 mm deep — it is twice as deep as it is wide, so measure the bench depth rather than just the frontage. Leave clearance for the plate to rotate. Our data records no weight.

Warranty terms are per product — see our warranty information page.

Frequently asked questions

Q: How big is the waffle?

190 mm in diameter. Worth checking against your plates, takeaway boxes and packaging before ordering - a waffle that does not fit the box is an expensive discovery.

Q: Why do the plates rotate?

The iron turns through 180 degrees during the bake so the batter spreads evenly through the whole mould rather than settling to the bottom. That is what gives a proper Belgian waffle - light and cooked through - instead of one that is dense underneath and pale on top.

Q: What electrical supply does it need?

A standard 10 amp outlet. At 1 kW it draws about 4.2 amps, so no electrical work is required and it can share a circuit. That is worth noting against the double model, which draws 2 kW and is supplied with two separate plugs.

Q: Should I get the single or the double?

It depends on throughput and on your power situation. The single WBA1001 has two 500 W elements, is 255 mm wide and plugs into one standard outlet. The double WBA1002 has four 500 W elements, is 520 mm wide and is supplied with two 10 amp plugs - so it needs two separate outlets, not one. Both make the same 190 mm waffle.

Q: Is it consistent between staff?

That is what the programmable heat and time settings and the timer buzzer are for. Set the programme once and the machine holds it, so the result does not depend on who is running it or on someone watching the iron during a rush.
