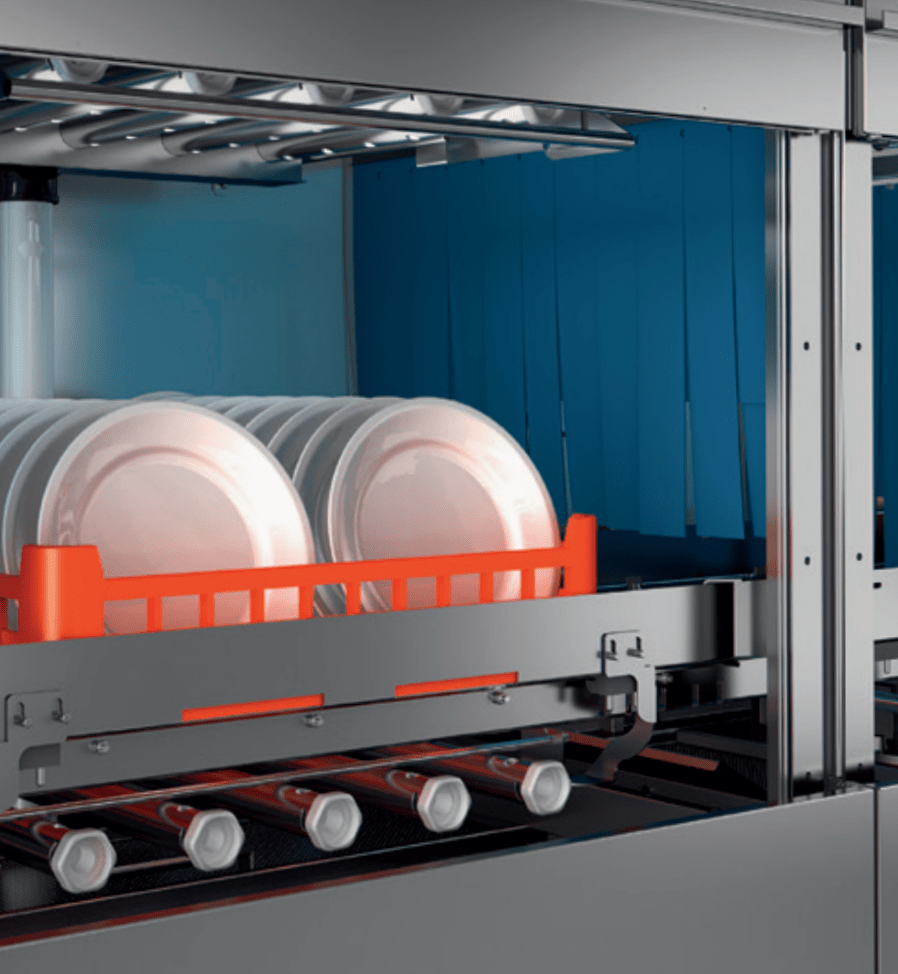

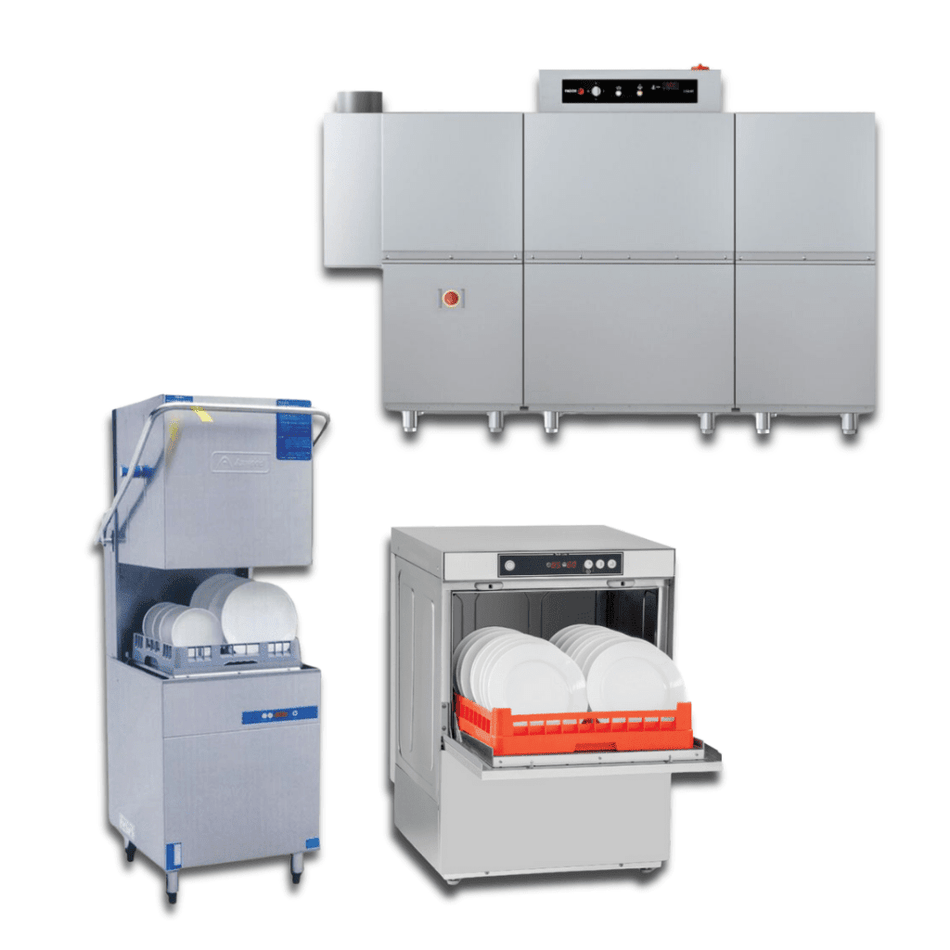

A conveyor dishwasher pulls racks continuously through wash and rinse zones, so a high-volume kitchen can keep crockery, trays and cutlery moving without loading and unloading one rack at a time. This collection covers Fagor rack conveyor dishwashers and matching drying tunnels for hotels, hospitals, canteens and large restaurants. For smaller volumes, see our pass-through dishwashers.
Fagor rack conveyor dishwashers
Sizes

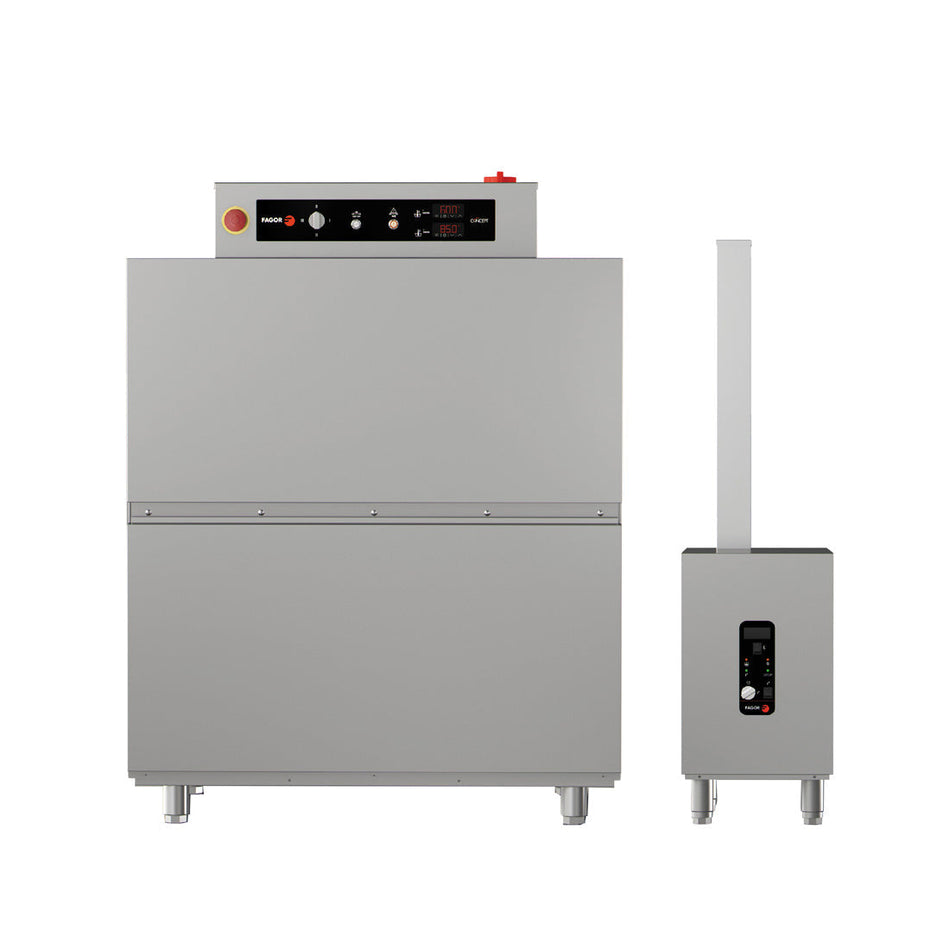

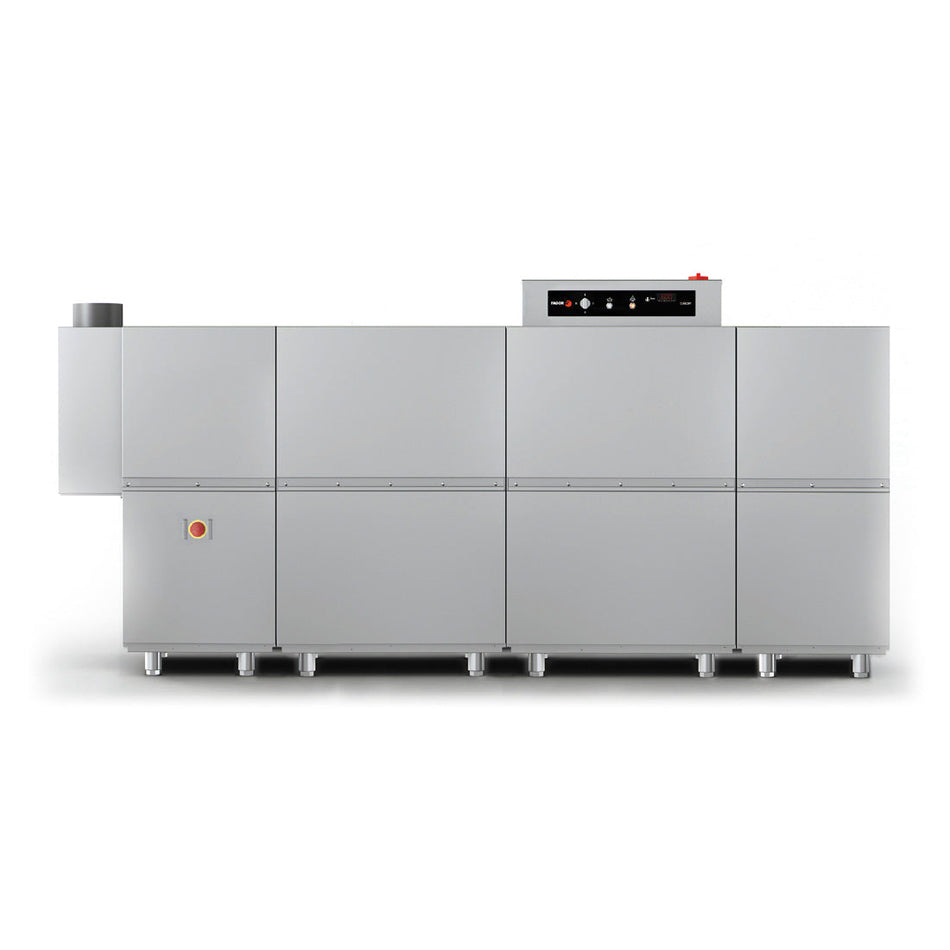

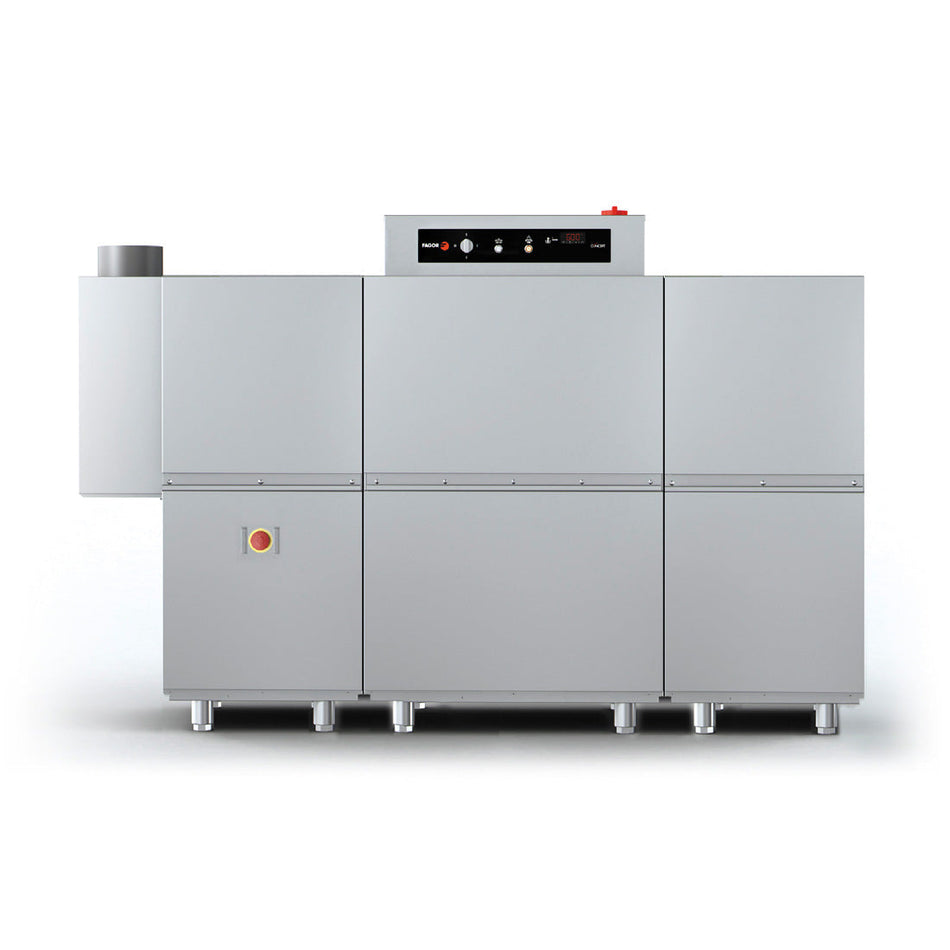

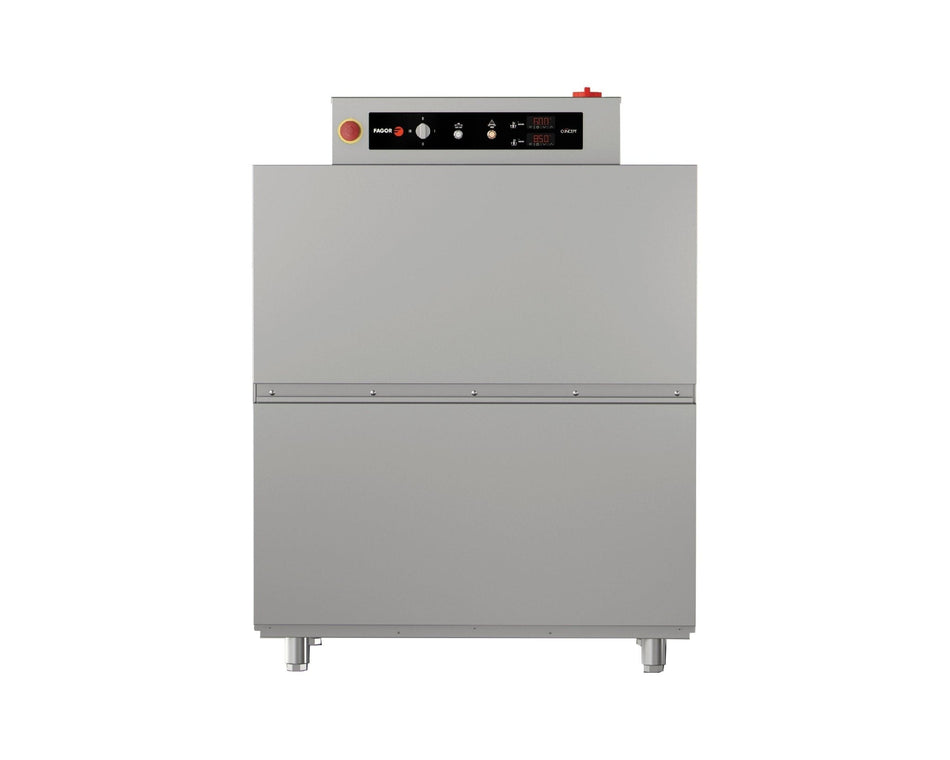

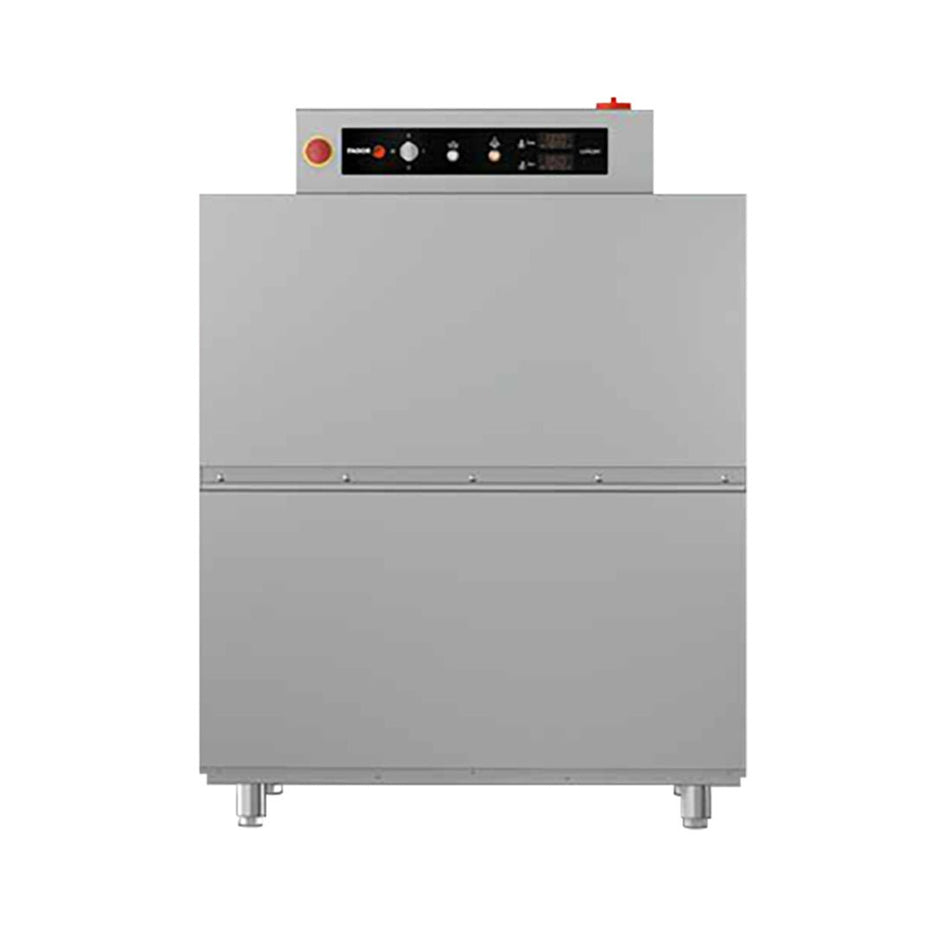

Fagor conveyor dishwashers come in four lengths: the compact CCO-120 at 1180 mm, the CCO-180 at 1750 mm, the CCO-225 at 2360 mm and the CCO-320 at 3260 mm. Longer machines have more wash and rinse zones for higher throughput; the CCO-180, CCO-225 and CCO-320 add a cold-water prewash module.
Left or right entrance
Each size comes with baskets entering from the left (ICW models) or the right (DCW models). Choose the direction that suits the flow of your wash area, from dirty side to clean side.
Drying tunnels

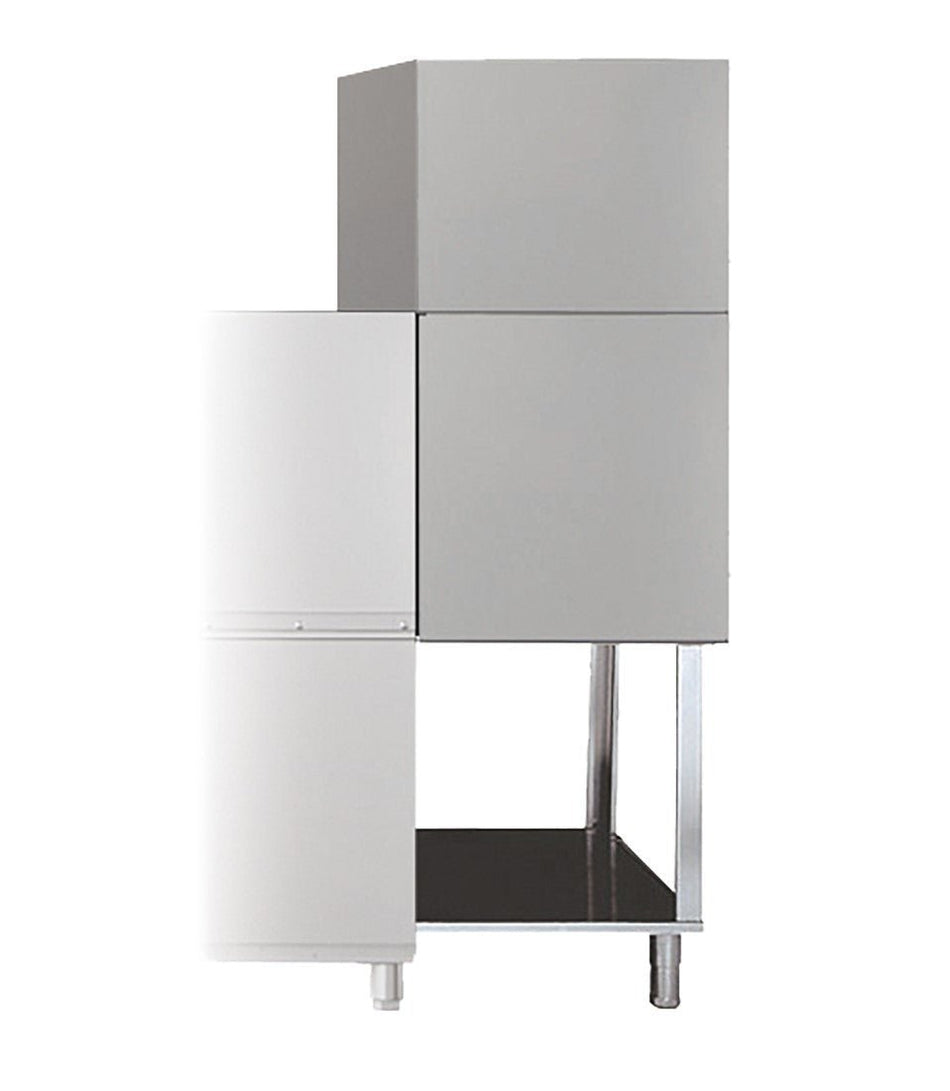

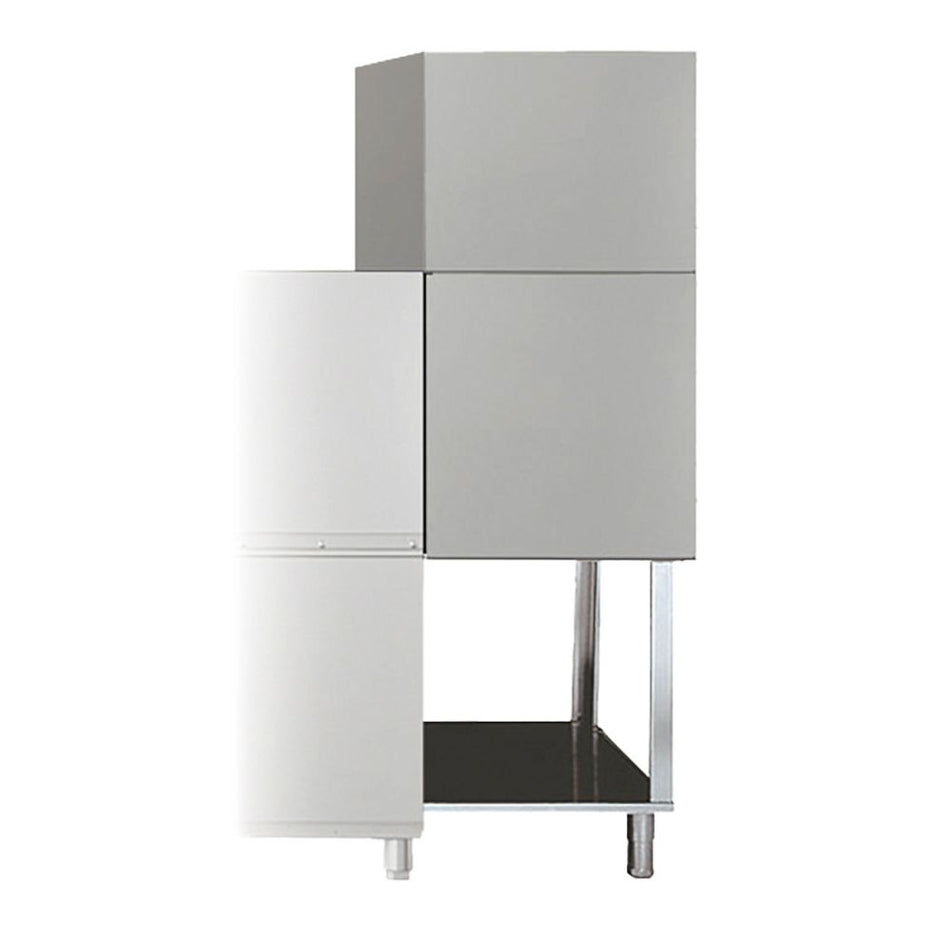

A drying tunnel fits inline at the exit to dry crockery, glassware and trays before they are stacked. The Fagor TS-COO is made for the CCO-180 and CCO-225, and the TS8-COO is the larger tunnel in the range.
Power and installation
Conveyor dishwashers are three-phase machines with high loads, from about 26.5 kW on the CCO-120ICW to 56.3 kW on the CCO-320, so they need a 415 V three-phase supply, an electrician and a plumber. Plan the water supply, drainage, exhaust and the space for baskets at each end before ordering.
-
Throughput. Size the machine to your peak rack count per hour, not your average.
-
Floor space. Allow for the machine length plus loading and exit space; exit tables and corner benches help where space is tight.
-
Direction. Confirm left or right entrance against your wash-area layout.
-
Pre-scraping. A conveyor machine works best when crockery is scraped before it enters, so plan a scraping and pre-rinse station on the loading side.

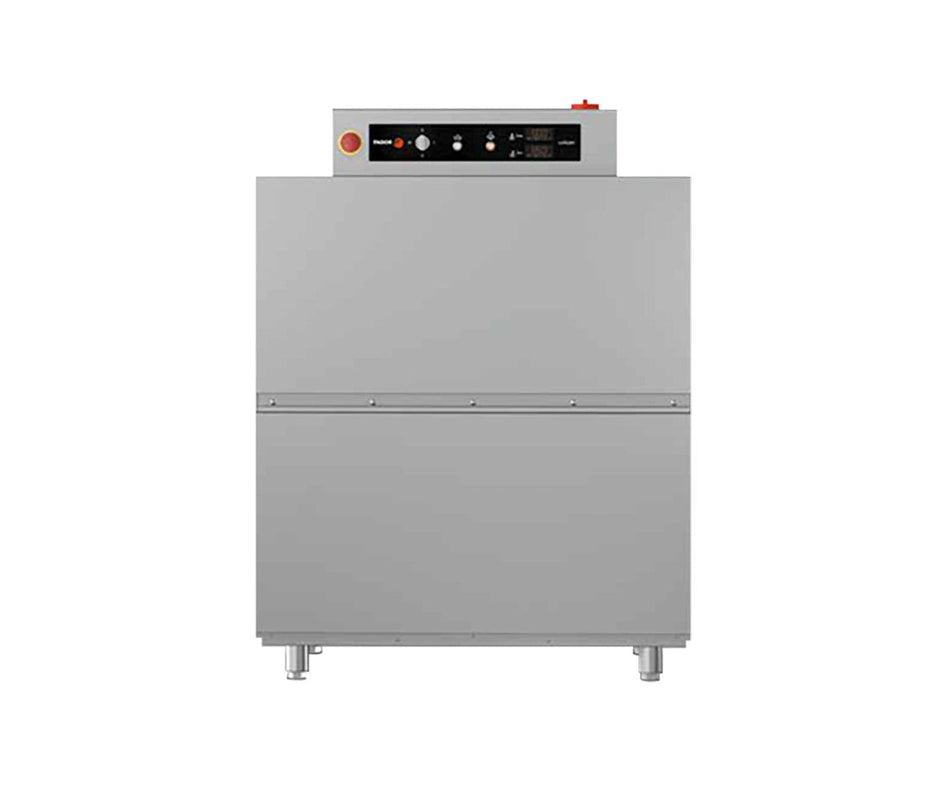

Plan the wash line with our dishwasher stands and accessories, including Fagor exit tables. Popular models include the Fagor CCO-180DCW conveyor dishwasher and the Fagor CCO-120DCW compact conveyor dishwasher.
Frequently asked questions
What is a conveyor dishwasher?
A dishwasher that moves racks continuously through wash and rinse zones, so staff load at one end and unload at the other. It suits hotels, hospitals, canteens and large restaurants.
What sizes do Fagor conveyor dishwashers come in?
Four lengths: 1180 mm (CCO-120), 1750 mm (CCO-180), 2360 mm (CCO-225) and 3260 mm (CCO-320).
What is the difference between left and right entrance models?
It is the side the baskets enter from. ICW models load from the left and DCW models from the right; choose the one that fits your wash-area layout.
Do conveyor dishwashers need three-phase power?
Yes. These Fagor machines run on 415 V three-phase power with loads from about 26.5 kW to 56.3 kW, so they need an electrician as well as a plumber.
Do I need a drying tunnel?
It is optional. A drying tunnel dries crockery and trays at the exit so they can be stacked sooner. The Fagor TS-COO suits the CCO-180 and CCO-225.
