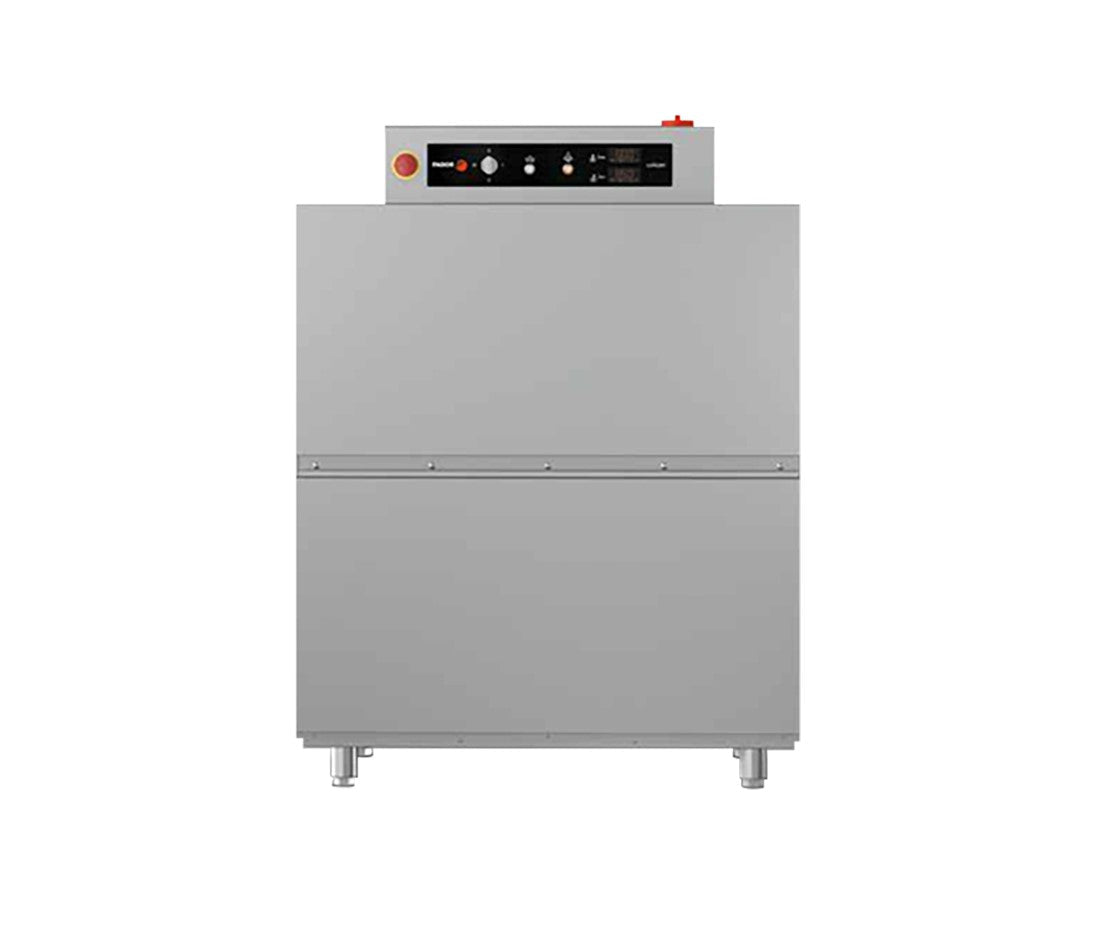

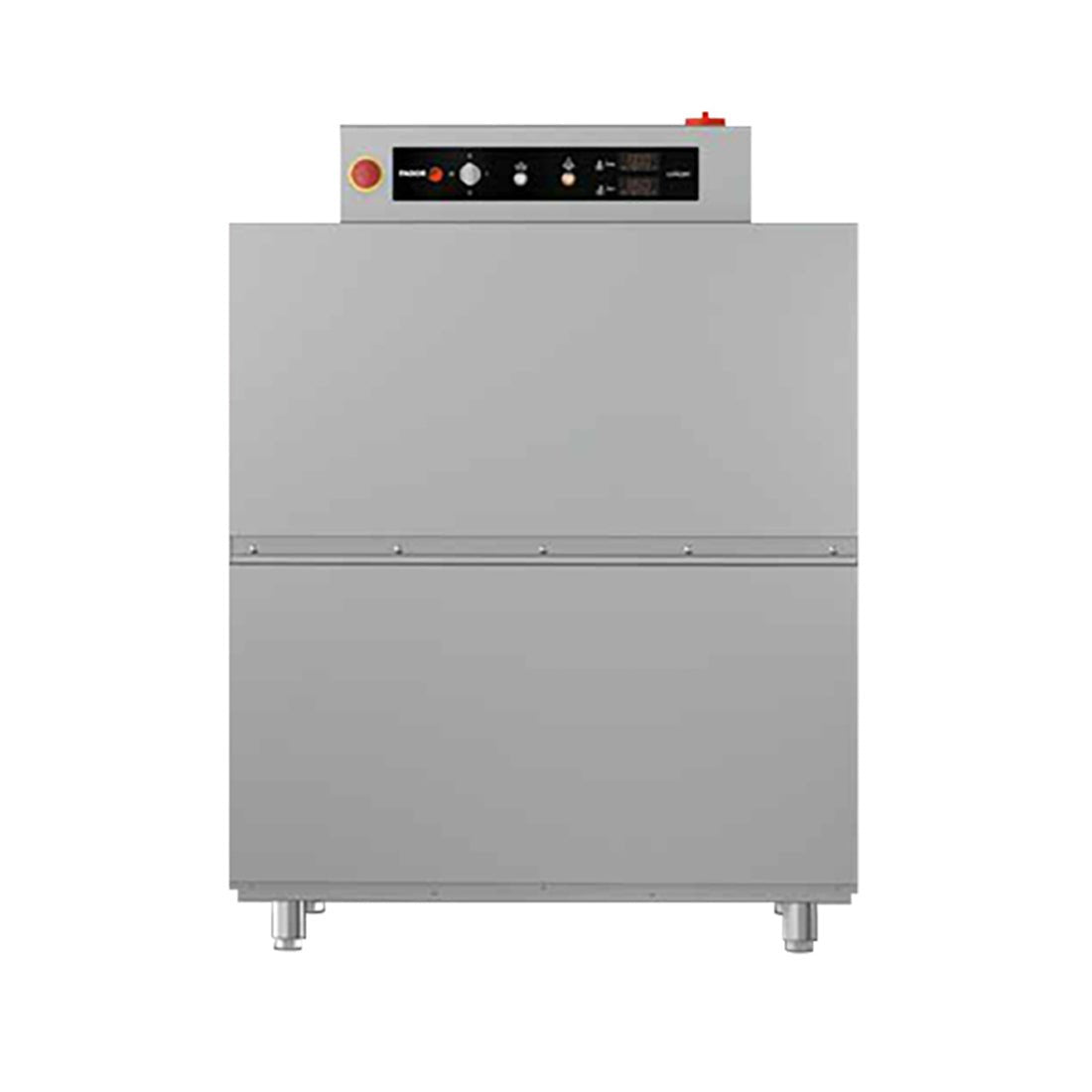

Fagor CCO-120DCW electric rack conveyor dishwasher — front view stainless steel

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Fagor Electric Conveyor Dishwasher CCO-120DCW

Name: Fagor Electric Conveyor Dishwasher CCO-120DCW
Brand: Fagor
Price: 18592.0 AUD
Availability: InStock

In stock

SKU: CCO-120DCW

$18,592.00

$18,592.00 +GST -25% ~~$24,790.00~~

Discover a lower price? Contact our team for a deal

Email 1300 000 927

From $33.71/day — for 12 months

Get approval in under 5 minutes Apply Now

Get Extra 11% OFF on Fagor! Use coupon: EXTRA11

Fast Delivery

Best Price

Australia-wide delivery

🖨️ Product Specification PDF

The Fagor CCO-120DCW is a compact rack conveyor dishwasher built for kitchens that run hard through service — hotels, clubs, large restaurants, catering operations, and institutional kitchens where a passthrough or underbench unit can't keep up. AISI-304 stainless steel throughout, with a high-power wash system, double-effect rinse, and automatic conveyor controls that push clean racks out fast enough to keep your scullery on top of volume without drowning staff.

Why operators choose the CCO-120DCW

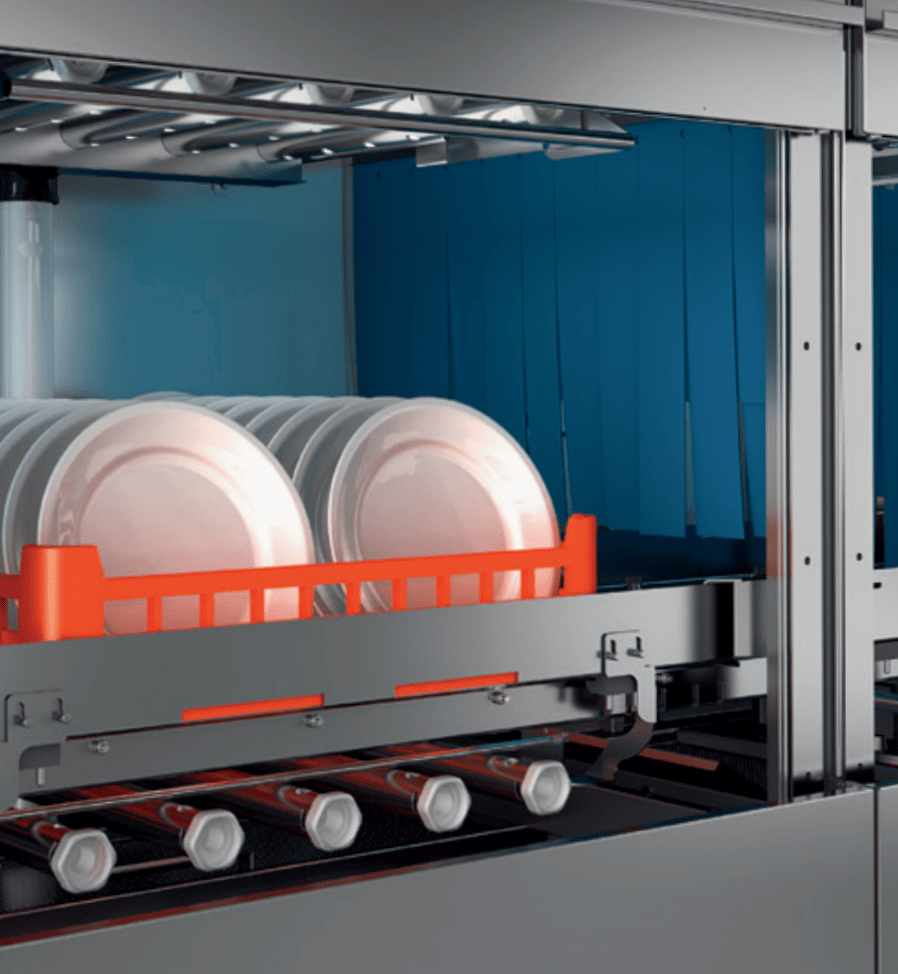

Continuous rack throughput — conveyor format keeps loaded racks moving through wash and rinse without the stop-start of door-opened units

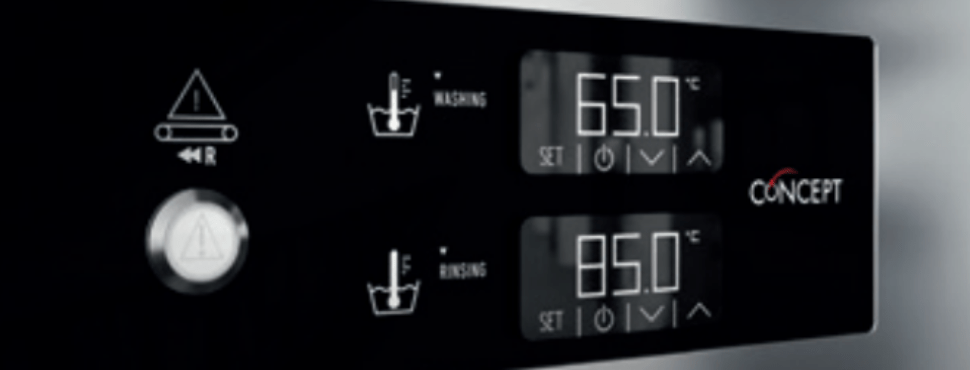

Adjustable wash temps (50–65 °C) + rinse (70–85 °C) — tune for glassware vs. heavy pot loads, sanitising rinse as standard
Three wash programs + double-effect rinse — match the cycle to the load, save water and power during quieter shifts
AISI-304 stainless steel build — food-grade, corrosion-resistant, restaurant-grade durability
Safety-first engineering — IPX4 water-ingress protection, open-door blocking, emergency stop button, safety filter on pump suction
Automatic jam detection with reverse function — if a rack snags the conveyor reverses to clear without operator intervention

Specifications

Specification	Value
Brand	Fagor
Model	CCO-120DCW
SKU	CCO-120DCW
Type	Electric rack conveyor dishwasher
Construction	AISI-304 stainless steel
Power supply	415 V, 50 Hz, three-phase
Total power	28.45 kW
Wash temperature range	50–65 °C
Rinse temperature range	70–85 °C
Wash programs	3
Rinse system	Double-effect
Washing branches	4 upper + 4 lower
Door style	Upward-opening double panel
Protection rating	IPX4
Certification	Watermark approved
Safety features	Door-open blocking, emergency stop, pump safety filter, auto-reverse
Product dimensions (W × D × H)	1180 × 790 × 1550 mm
Packed dimensions (W × D × H)	960 × 1530 × 1900 mm
Included	Plate, glass, and cutlery baskets
Warranty	24 months parts and labour

Venue suitability

Rack conveyor format suits hotels, clubs, pubs with full food service, banquet kitchens, catering operations, institutional kitchens (schools, hospitals, aged-care), and large restaurants running dinner services that overwhelm an underbench or passthrough. If your team is currently running racks through a double-chamber passthrough and struggling to clear the wash-up queue during peak service, this is the upgrade.

Installation & power requirements

The CCO-120DCW is a three-phase machine — it requires a dedicated 415 V three-phase supply, drawing 28.45 kW. A standard 10 A or 15 A single-phase outlet will not power this unit. A licensed electrician must confirm the circuit, and a licensed plumber is required for the water and drainage connections (hot and cold inlets, waste line, vent). Allow clearance for loading-side and unloading-side bench extensions. Watermark-approved for Australian plumbing.

Frequently asked questions

Q: What size kitchen is the CCO-120DCW designed for? A: Rack conveyor dishwashers like the CCO-120DCW suit kitchens with continuous wash-up demand — hotels, function venues, clubs, banquet kitchens, large restaurants, and institutional catering (schools, hospitals, aged-care). If your current passthrough is becoming a bottleneck during dinner service, a conveyor is the usual next step up.

Q: Does the CCO-120DCW run on standard Australian power? A: No — this is a three-phase commercial machine. It requires a dedicated 415 V three-phase supply and draws 28.45 kW total. It cannot run from a standard 10 A or 15 A single-phase outlet. A licensed electrician must confirm and connect the circuit.

Q: What are the installation clearances? A: The unit itself is 1180 mm wide, 790 mm deep, and 1550 mm tall. In practice, rack conveyor dishwashers need bench extensions either side — a loading bench (soiled side) and an unloading bench (clean side) — plus hot and cold water supply, waste drainage, and a ventilation allowance above for steam. A licensed plumber handles the water and drain connections; CKA can supply matching inlet and outlet benches if your scullery doesn't have them.

Q: What's included in the box? A: The machine ships with a set of baskets covering plates, glasses, and cutlery. Detergent, rinse aid, and any bench extensions are supplied separately — call our team on 1300 000 927 if you want to bundle them with the machine.

Q: What's the warranty and after-sales support? A: 24 months parts and labour from delivery — Fagor is an established commercial brand with parts support in Australia. Warranty claims are handled through our Granville NSW team; ring 1300 000 927 to open a claim.

Q: How does delivery work for a machine this size? A: The CCO-120DCW ships as a freight-class item on a pallet — packed dimensions are 960 × 1530 × 1900 mm. Delivery is to kerbside or loading dock; final positioning and installation are handled by your preferred electrician and plumber (or we can recommend trades in metro areas). Call us to confirm delivery lead time to your postcode.
