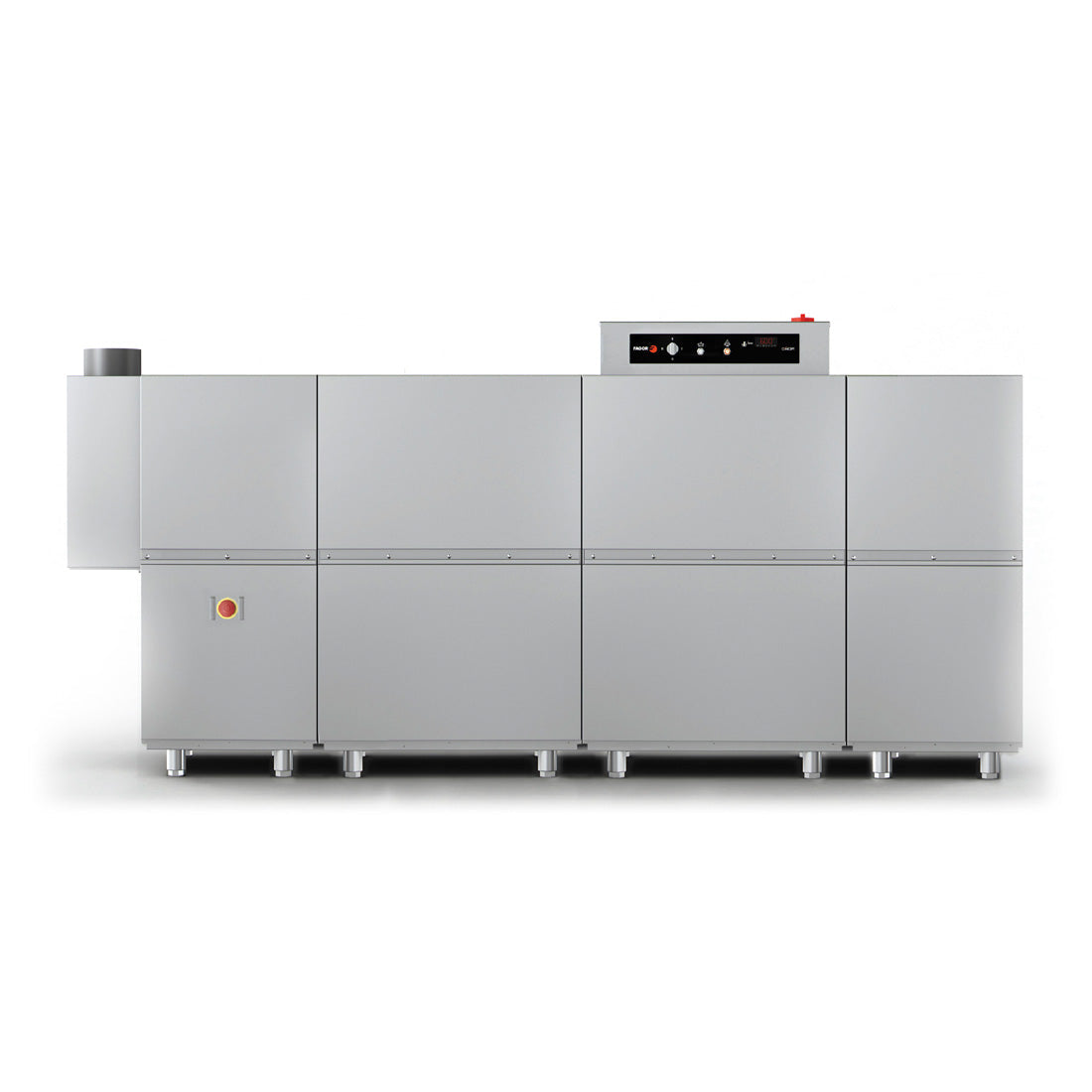

Fagor Concept Rack Conveyor Dishwasher Right Side Entrance CCO-320DCW

The Fagor CCO-320DCW is a Concept-series rack (basket) conveyor dishwasher built for high-volume warewashing in large restaurants, hotels, function centres, canteens and central production kitchens. Baskets feed in from the right-hand side and the machine pairs a cold-water prewash module with a high-power main wash, delivering up to 320 baskets per hour across three throughput settings (3260 × 790 × 1560 mm, 415V/50Hz; 56.3kW/3~N).

Why operators choose the CCO-320DCW

• Right-hand basket entrance — baskets load from the right to match your wash-up line and dirty-to-clean flow.
• Up to 320 baskets/hour — three throughput settings (127 baskets/hr (intensive), 255 baskets/hr (medium) and up to 320 baskets/hr (high capacity)) let you match speed to soil level and service volume.

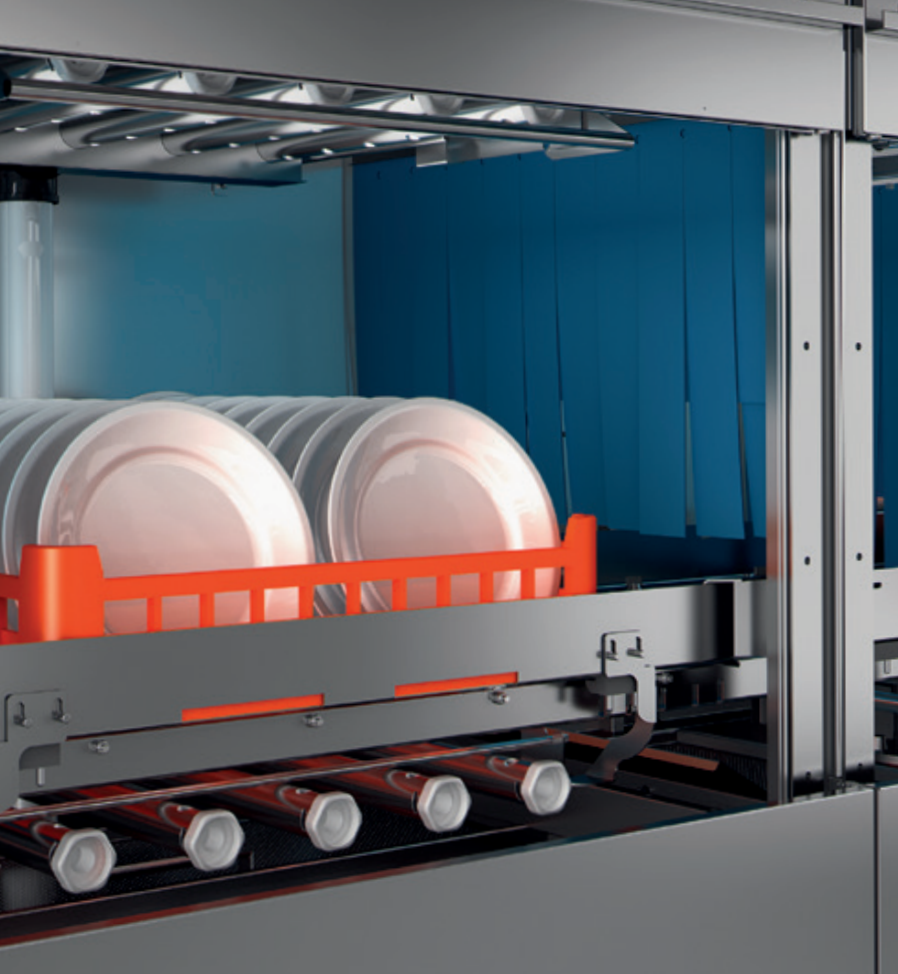

• Dedicated prewash module — a cold-water prewash section with 3 upper and 3 lower washing arms strips heavy soil before the main wash.
• High-power main wash — 5 upper and 5 lower washing arms drive consistent results at full production speed.
• Double effect rinse and pre-rinse — staged rinsing lifts wash quality while controlling water use.
• DIN 10534 compliant — the intensive setting meets the DIN 10534 warewashing standard for hygienic results.
• AISI-304 stainless construction — tanks, arms, jets, doors, boiler and conveyor built from anti-corrosion stainless steel.
• Complete basket set included — supplied with 2 base baskets, 2 plate baskets and 1 cutlery basket ready to run.

Specifications

Venue suitability

The CCO-320DCW suits large restaurants, hotels, function centres, canteens, hospitals and central production kitchens clearing high volumes of plates, glasses and trays where a pass-through machine cannot keep pace. Its right-hand entrance fits wash-up lines running dirty-side on the right; step up or down through the CCO-180 and CCO-225 to match your peak covers.

Browse the full conveyor dishwasher range or explore more Fagor commercial equipment.

Installation & delivery

The CCO-320DCW runs on a 56.3 kW 415V three-phase (3~N) supply and must be hard-wired by a licensed electrician, with a cold-water inlet and drain connection to plumbing. Allow for the packed size of 960 × 3350 × 1900 mm (W×D×H) and around 556 kg when planning access and installation. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. It is backed by a 2-year parts & labour warranty; see our warranty information for full details.

Frequently asked questions

Q: What is the difference between CCO-320ICW and CCO-320DCW? A: Both are cold-water-inlet machines with identical specifications; ICW has a left-hand basket entrance and DCW a right-hand entrance, so you choose the side that matches your wash-up line.

Q: How many baskets per hour does the CCO-320DCW wash? A: It offers three settings: 127 baskets/hr (intensive), 255 baskets/hr (medium) and up to 320 baskets/hr (high capacity).

Q: What power supply does the CCO-320DCW need? A: It requires a 415V three-phase (3~N) 50Hz supply at 56.3kW and must be hard-wired by a licensed electrician.

Q: What are the dimensions of the CCO-320DCW? A: The machine measures 3260 × 790 × 1560 mm (W×D×H) and weighs 556 kg net.

Q: Which side do baskets enter on the CCO-320DCW? A: Baskets enter from the right-hand side, so it suits a wash-up line running dirty-side on the right.

Q: What warranty does the CCO-320DCW come with? A: The CCO-320DCW is covered by a 2-year parts & labour warranty.
