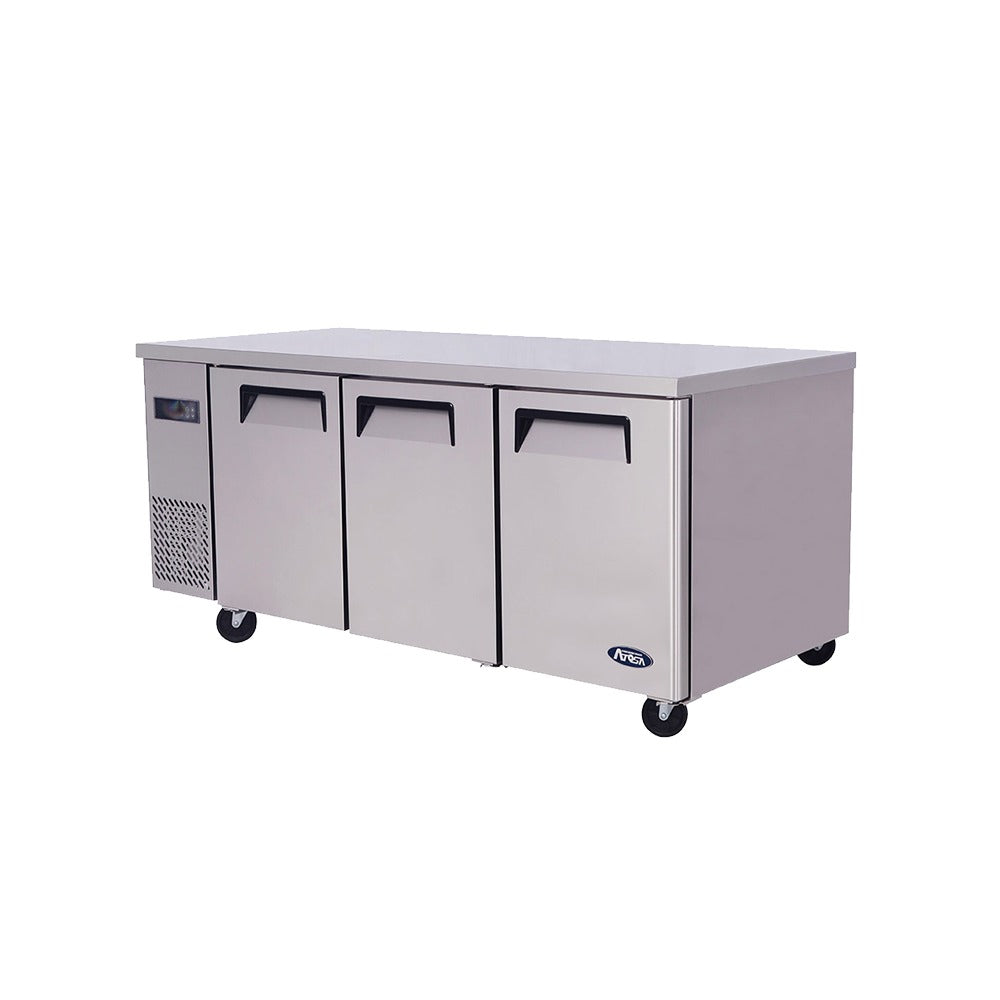

Atosa YPF9047 3 Door Undercounter Freezer 470L 1800mm 700mm Deep

The Atosa YPF9047 is a three-door undercounter freezer that puts 470 litres of frozen storage under a 1800 mm stainless steel worktop. It belongs to Atosa's 700 mm-deep compact range, standing 838 mm high on castors and holding -22 to -17 °C in kitchens running up to a 43 °C ambient.

Why operators choose the YPF9047

• 470 litres in a 1800 mm footprint — three solid doors and 3 wire shelves supplied as standard, under a bench run of 1800 mm
• 700 mm deep, not 600 — the extra 100 mm of depth over the 600 mm YPF9045 buys the larger cabinet volume at the same width and height - worth having if your benches are 700 mm deep anyway
• Rated for a 43 °C ambient — the supplier rates the range to a 43 °C working ambient, which matters on a hot cook line where the unit sits beside fryers and ranges
• Digital controller — set and read the freezer temperature at the front panel
• Castors as standard — the cabinet rolls out for cleaning behind and underneath
• 220-240 V single-phase supply — rated at 550 W; leave 100 mm of clearance for air ventilation, as the supplier specifies

Specifications

Venue suitability

An undercounter freezer earns its place on the line: frozen stock stays within reach of the cook, and the top becomes working bench. The 1800 mm three-door format suits cafes, restaurants, pubs and catering kitchens planning a 700 mm-deep bench run. The same range also comes as the YPF9027 (1200 mm, 270 L) and YPF9037 (1500 mm, 370 L), and as the YPF9042 fridge in this exact cabinet.

Compare the full range of under bench freezers, browse all commercial freezers, or see everything we carry from Atosa.

Installation & delivery

The YPF9047 stands on castors: position it, level it, and leave 100 mm of clearance for ventilation as the supplier specifies. It ships at 1854 x 754 x 867 mm and 101 kg, so check the delivery path - doorways, corridors and lifts - against that packed size before the day.

Warranty terms are per product — see our warranty information page.

Frequently asked questions

Q: How much does the Atosa YPF9047 hold?

It has a capacity of 470 litres behind three solid doors, with 3 wire shelves supplied.

Q: What is the difference between the YPF9047 and the YPF9045?

Depth. The YPF9047 is from Atosa's 700 mm-deep range; the YPF9045 is the 600 mm-deep model at the same 1800 mm width and 838 mm height. If your bench run is 700 mm deep, the YPF9047 gives you the larger cabinet.

Q: What temperature does the YPF9047 run at?

The supplier records a working range of -22 to -17 degrees C, with the unit rated for a 43 degrees C ambient.

Q: What power supply does it need?

The supplier rates it at 550 W on a 220-240 V, 50 Hz single-phase supply.

Q: Does it need clearance around it?

Yes. The supplier specifies 100 mm of clearance for air ventilation.

Q: What warranty applies?

Simco covers it for 2 years parts and labour, with a further 2 years on parts when the unit is registered online with Simco. See our warranty information page for details.
