Bonvue Chilled Angled Counter-Top Food Display 146L - CTA-146
Regular price
$1,353.00
Regular price
Sale price
$1,353.00 +GST
-32%
$1,990.00
Discover a lower price? Contact our team for a deal
Apply for Equipment Finance with Silver Chef
Get approval in under 5 minutes Apply Now
Get Extra 11% OFF on Bonvue! Use coupon:
EXTRA11
Fast Delivery
Best Price
Australia-wide delivery
Couldn't load pickup availability

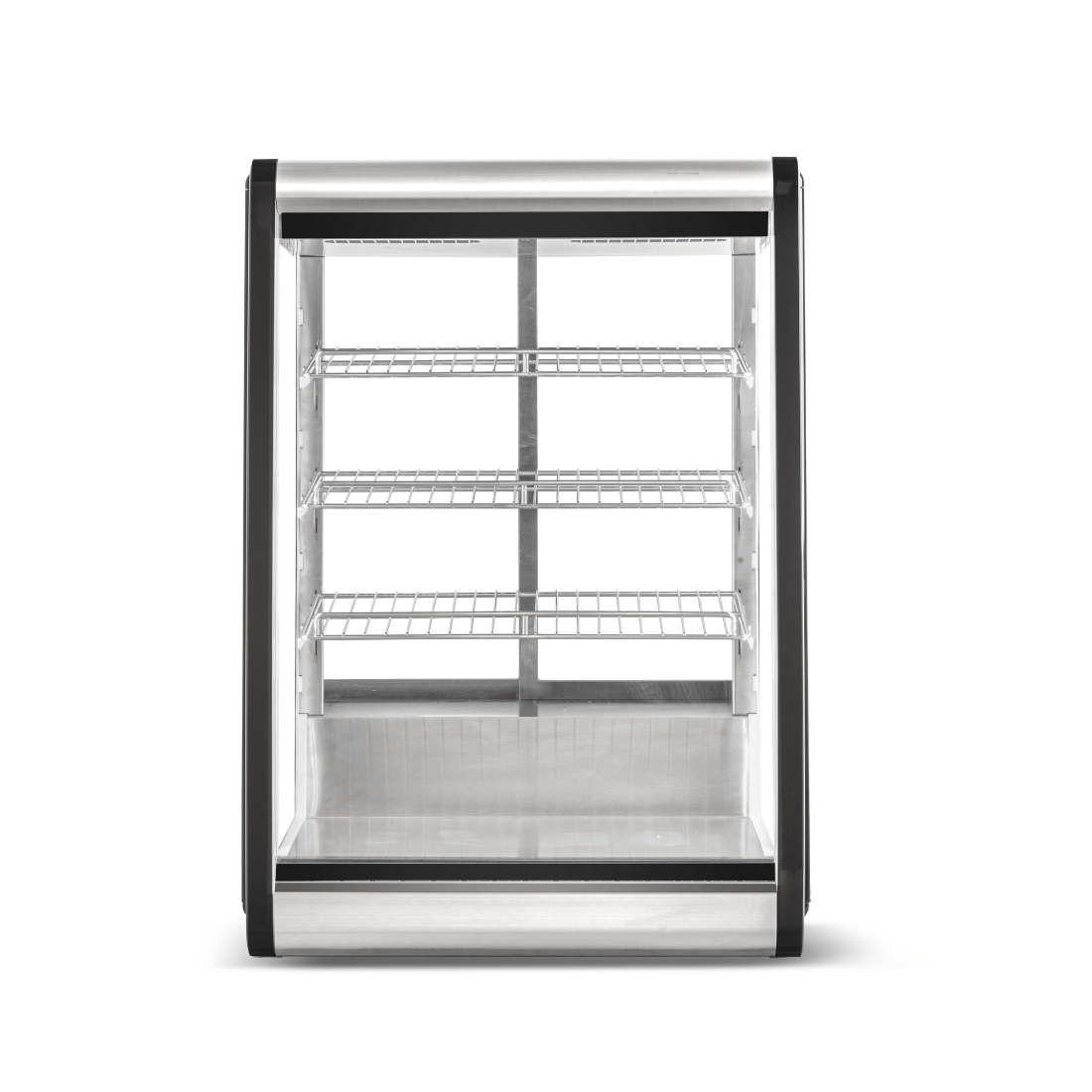

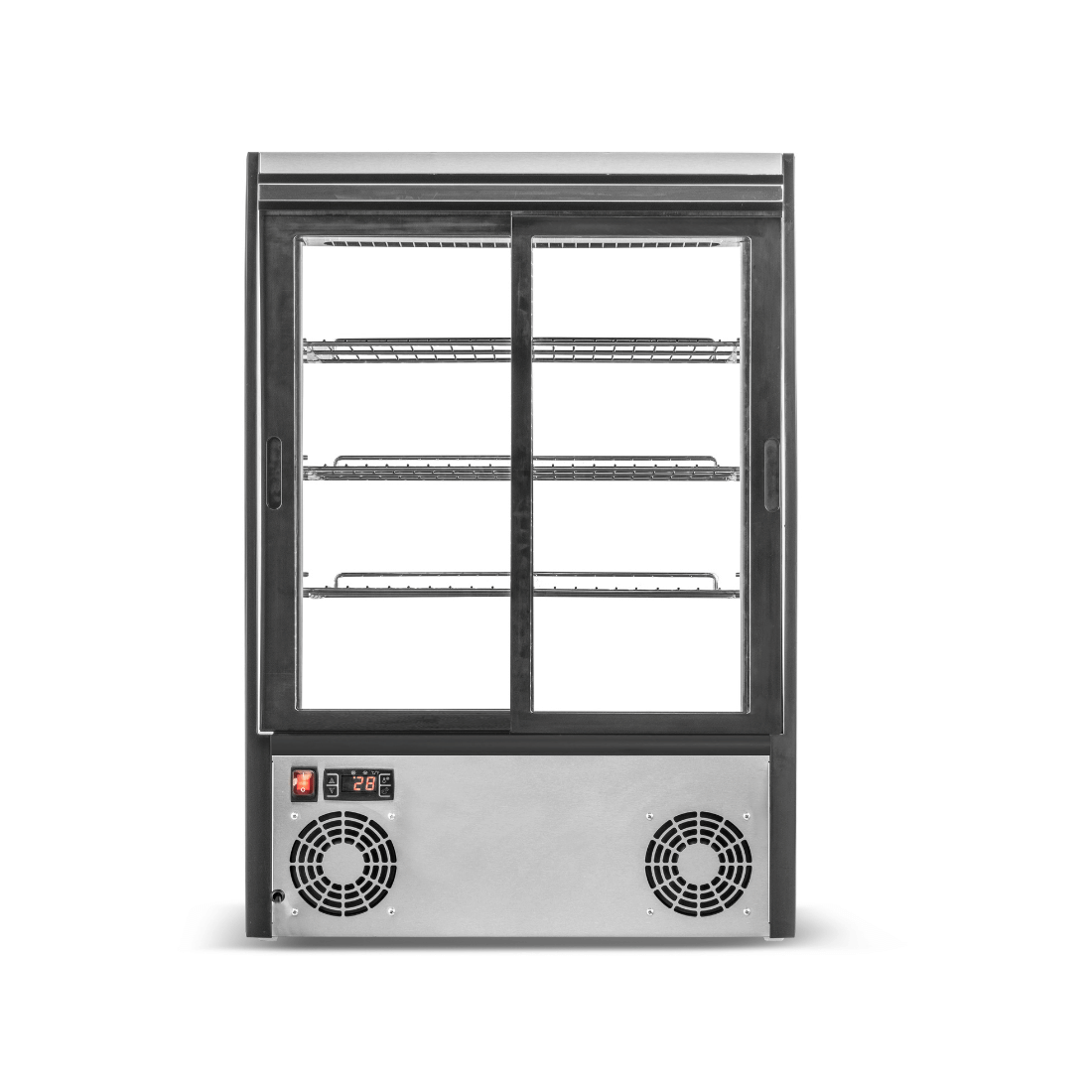

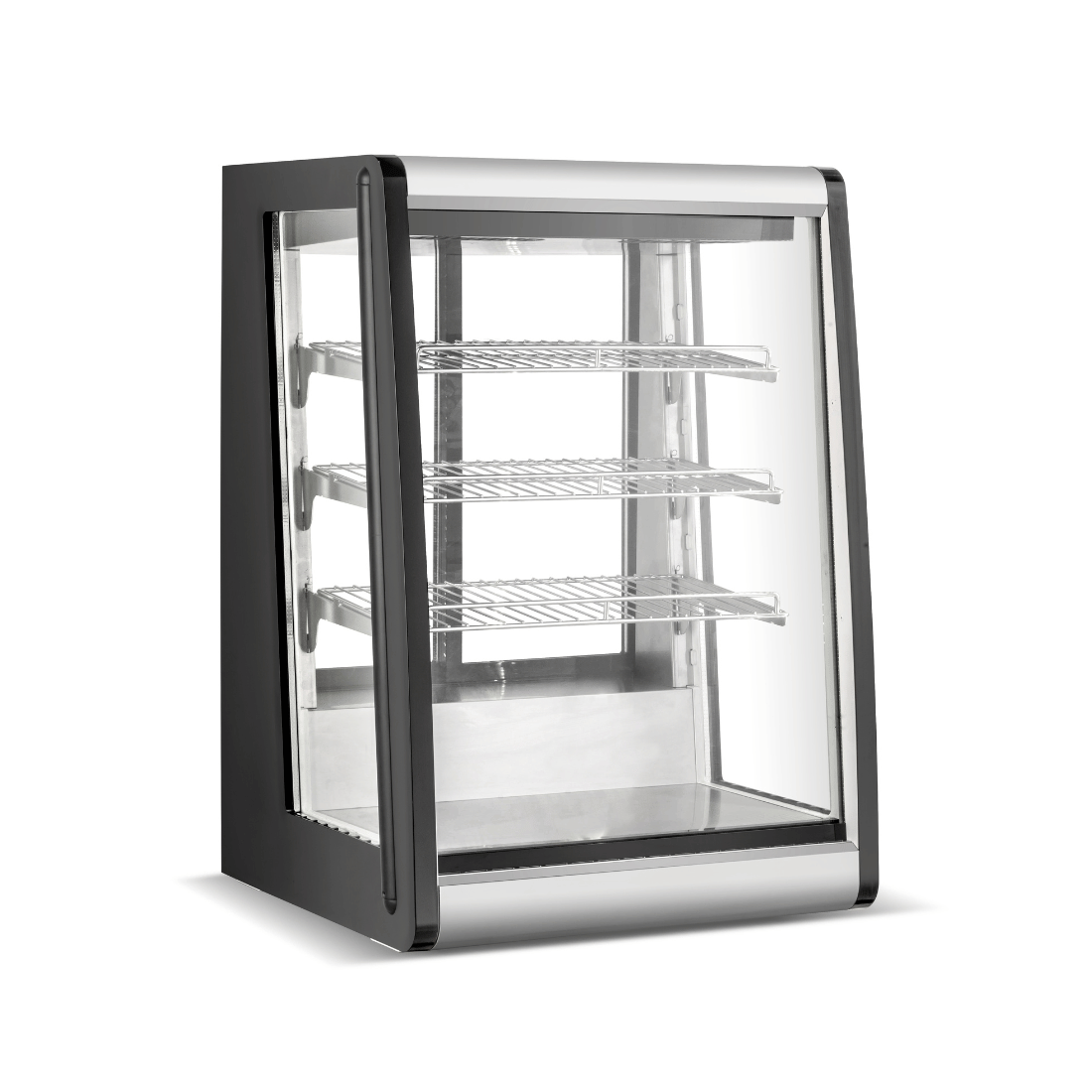

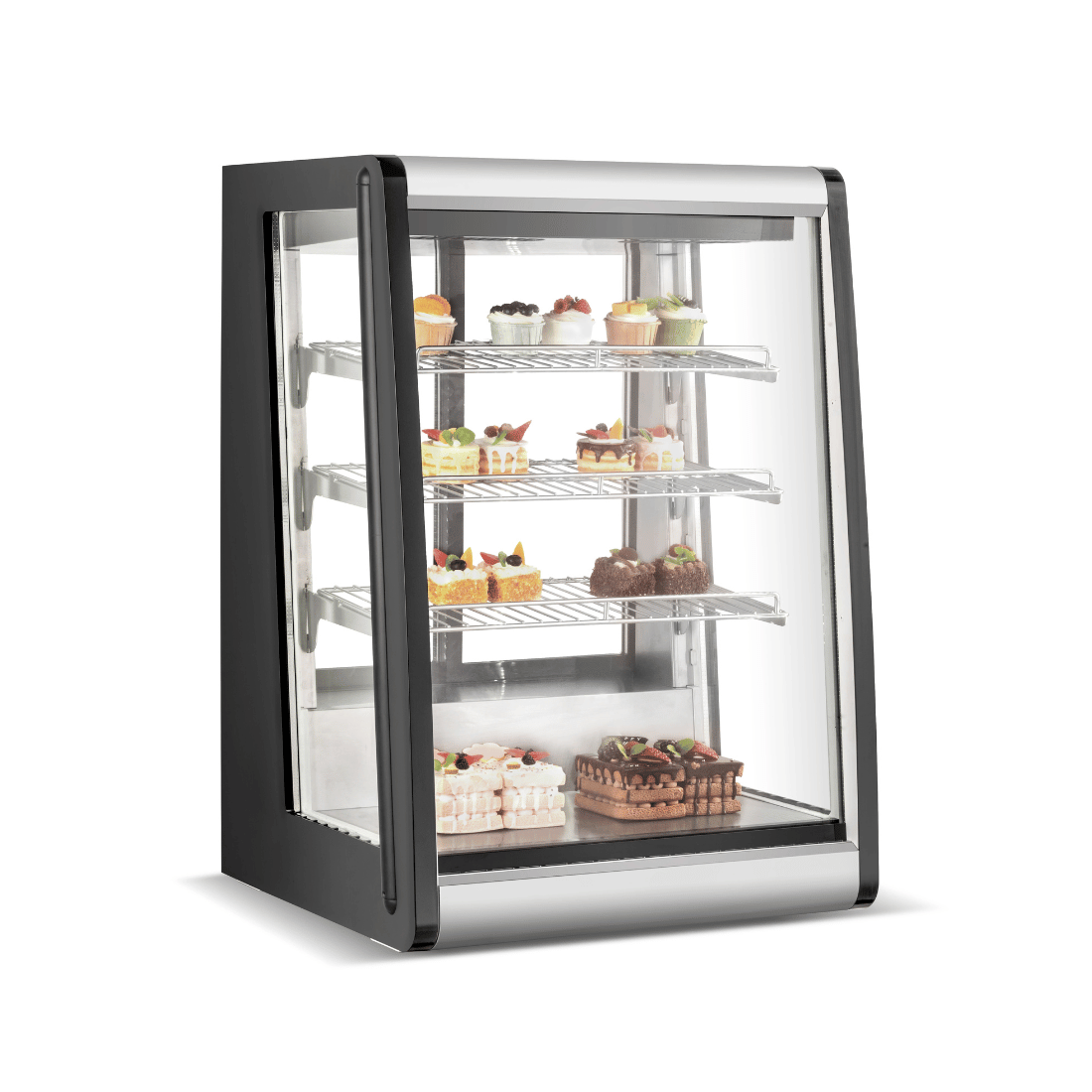

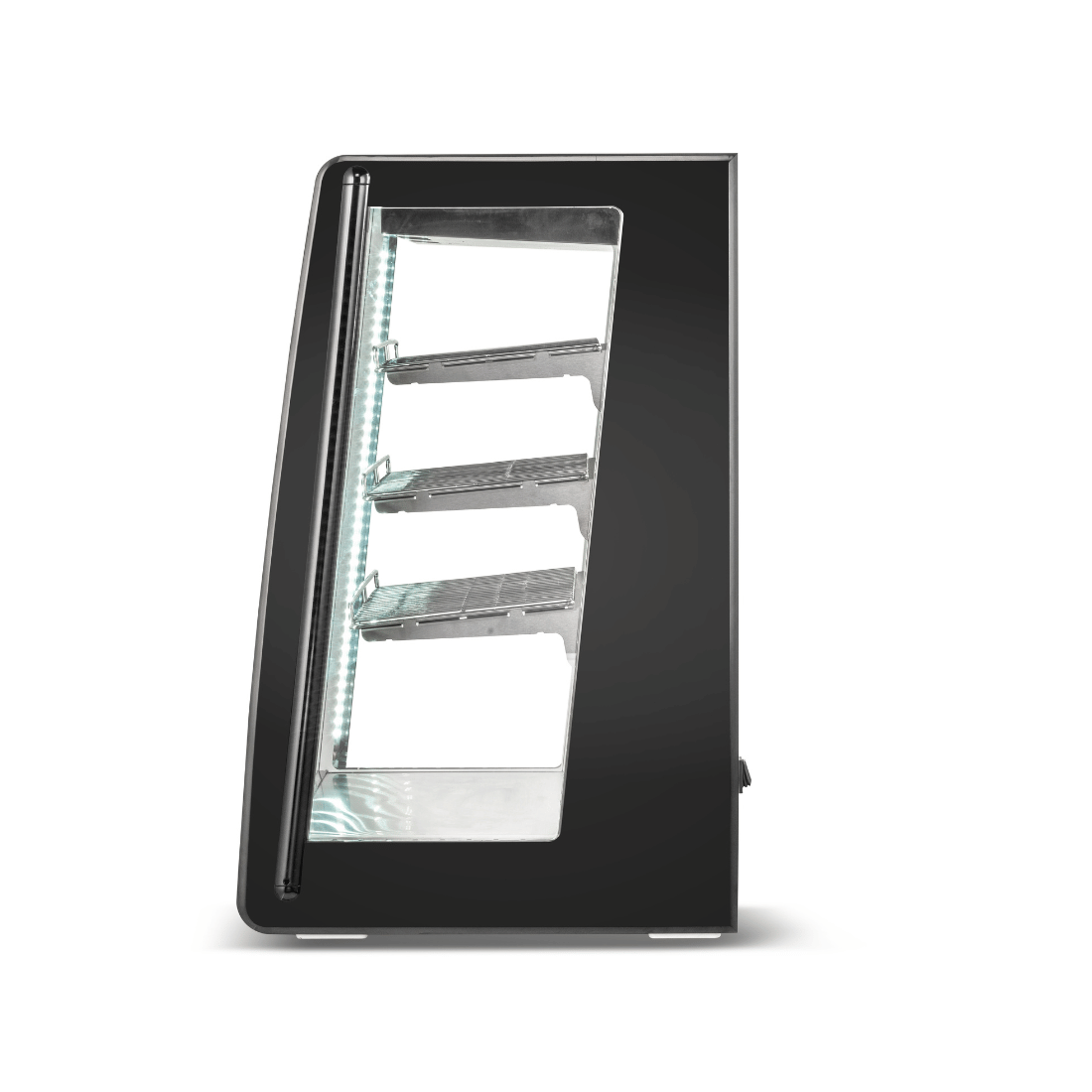

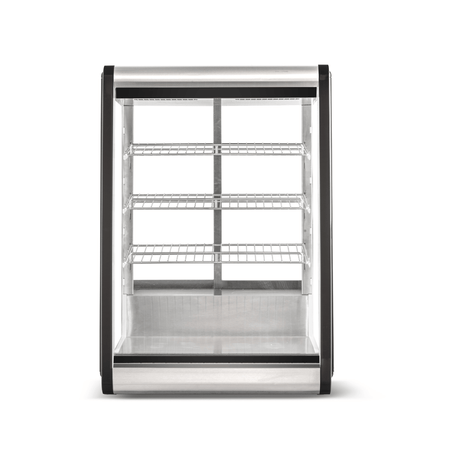

The Bonvue CTA-146 is a 146 L angled countertop chilled display that puts product at eye level rather than flat on a bench. Angled double-tempered glass and dual-sided LED lighting make a small footprint work hard, and it runs on natural R290 refrigerant with a 9/10-star GEMS energy rating.
Why operators choose the CTA-146
- 146 L across three adjustable chrome-plated shelves — re-space the display around what actually sells
- Angled glass front — presents product at eye level instead of flat, which is the whole point of an angled cabinet
- Natural R290 refrigerant, 9/10-star GEMS rating — lower running costs and a natural refrigerant rather than a high-GWP gas
- Dual-sided LED lighting — lights the product from both sides so nothing sits in shadow
- Double tempered glass — insulates the cabinet and stands up to a customer-facing position
- Two sliding doors — staff access without opening the whole cabinet to the room
Specifications
| Brand | Bonvue |
| Model / MPN | CTA-146 |
| SKU | CTA-146 |
| Type | Angled countertop chilled food display |
| Capacity | 146 L |
| Shelves | 3 adjustable, chrome plated |
| Refrigerant | R290 (natural) |
| Energy rating | 9/10-star GEMS |
| Glass | Angled, double tempered |
| Lighting | Dual-sided LED |
| Doors | 2 sliding |
| Construction | Stainless steel |
| Dimensions (W x D x H) | 615 x 560 x 874 mm |
| Net weight | 55 kg |
| Power | 240 V, 200 W, 10 A |
| Warranty | 1 year parts & labour |
Venue suitability
An angled display is chosen when counter space is tight but presentation still matters — cafes, delis, bakeries, service counters and grab-and-go stations. The CTA-146 lifts product to eye level in a 615 mm footprint, which is where a flat countertop cabinet loses out.
Compare the full range of countertop display fridges or see more from Bonvue.
Installation & delivery
It is a self-contained plug-in unit — no plumbing and no hard-wiring. Position it out of direct sun and away from heat sources, leave clearance for airflow around the condenser, and confirm the width against your counter run and doorway access before delivery. A 10 A outlet is required. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. Backed by a 1-year parts and labour warranty — see our warranty information page for full terms.
Frequently asked questions
Q: What is the capacity of the Bonvue CTA-146? A: 146 litres across three adjustable chrome-plated shelves.
Q: What refrigerant does it use? A: Natural R290, and the unit carries a 9/10-star GEMS energy rating — lower running costs than a comparable high-GWP unit.
Q: Why choose an angled display? A: The angled glass presents product at eye level rather than flat on the bench, so a small footprint still merchandises well.
Q: What are the dimensions and weight? A: It measures 615 mm wide x 560 mm deep x 874 mm high and weighs 55 kg net.
Q: What power does it need? A: 240 V drawing 200 W, on a 10 A outlet.
Q: What warranty applies? A: One year parts and labour.
- SKU CTA-146
- Product Dimensions 615(W) x 560(D) x 874(H)mm
- Packed Dimensions 630(W) x 665(D) x 950(H)mm
- Power 240V, 200W/10A
