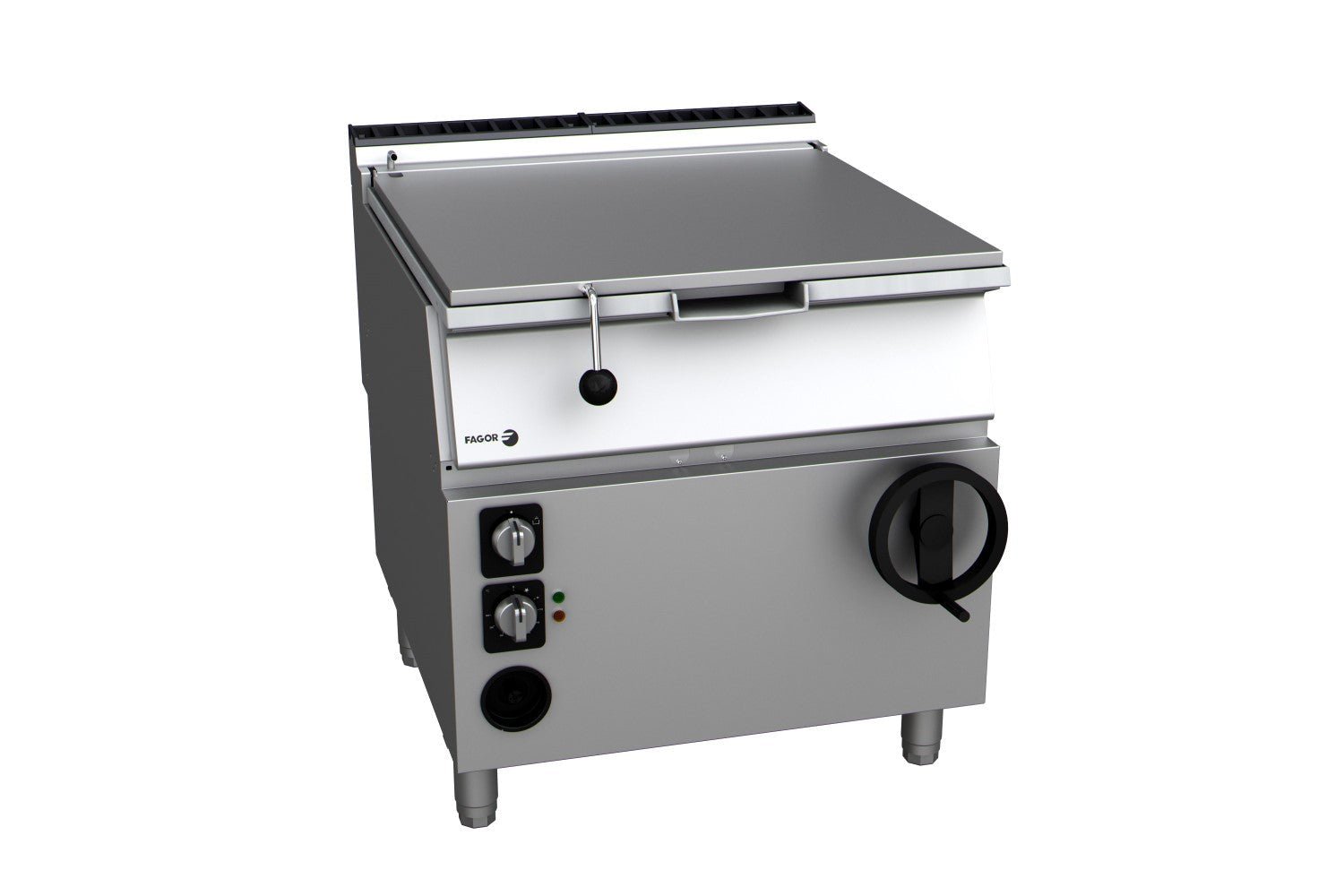

Fagor 900 Series 80L Natural Gas Crank Tilting Bratt Pan SBG9-10I

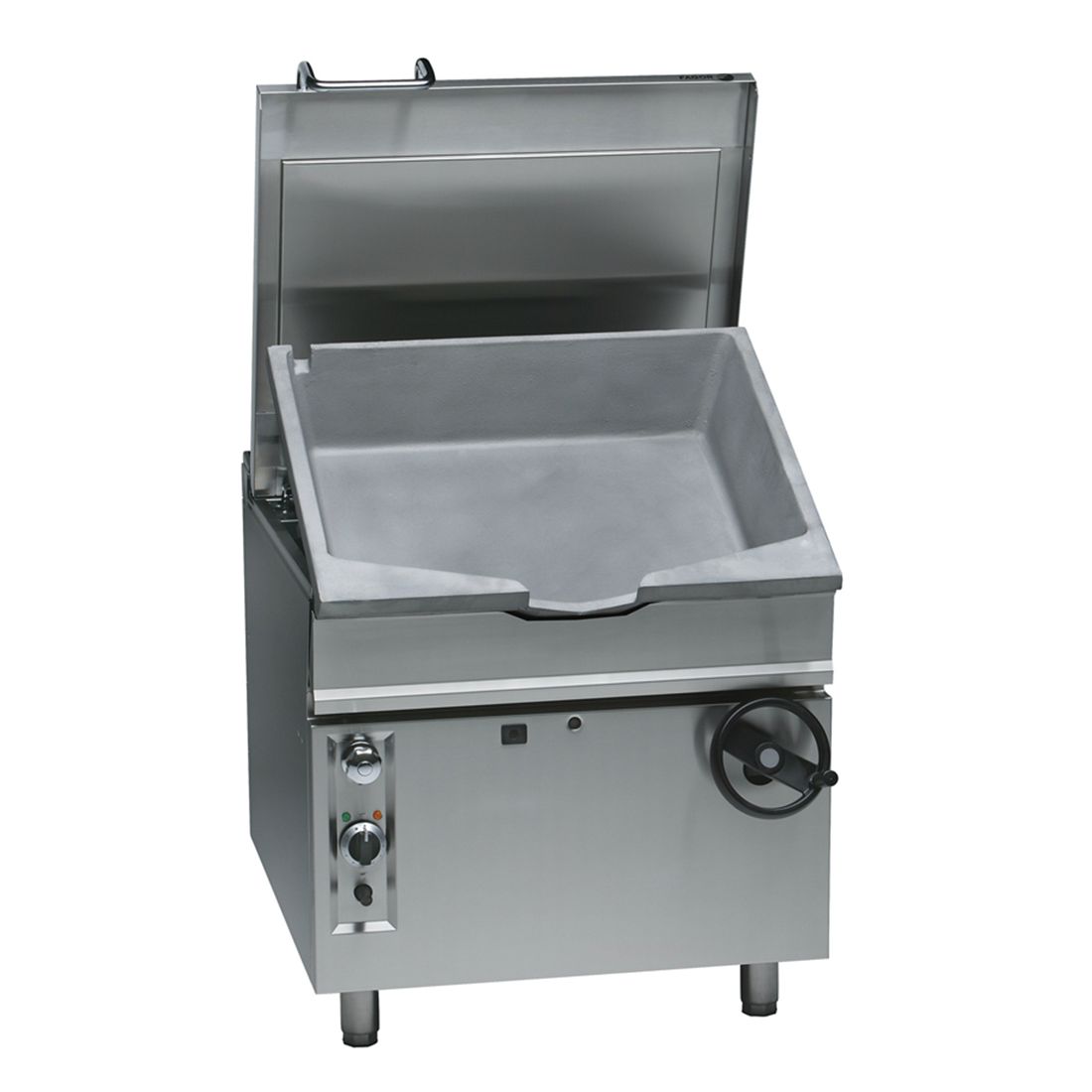

The Fagor SBG9-10I is a natural gas crank-tilting bratt pan with an 80-litre stainless steel pan, built for high-volume hotels, aged-care, catering, pubs and institutional kitchens. One multi-function unit fries, grills, boils and braises large batches, with a 66 MJ/h stainless tubular burner under a 10 mm heat-diffuser base and a 50–315°C thermostat.

Why operators choose the SBG9-10I

• 80 L tilting pan — crank-tilt to pour off stocks and sauces without lifting heavy pots.
• Four appliances in one — frying pan, fry-top, boiling pan and bain-marie, freeing bench and burner space.
• 66 MJ/h gas burner — a stainless tubular burner under a 10 mm heat-diffuser base spreads heat evenly across the pan.
• 50–315°C thermostat — solenoid-valve control with power and heating pilot lights for repeatable results.
• Counterbalanced hinged lid — opens at any angle and doubles as a benchtop when closed.
• Crank tilt with flame safety — a manual crank empties the pan and the burner cuts out when the pan is raised.

Specifications

Venue suitability

The SBG9-10I suits high-volume kitchens — hotels, aged care, catering, pubs and institutional cooking — where one pan needs to sear, simmer and braise large batches through service. If your kitchen runs three-phase electric rather than gas, the SBE9-10I is the electric equivalent of this 80 L pan.

Browse more commercial bratt pans or explore the full Fagor range.

Installation & delivery

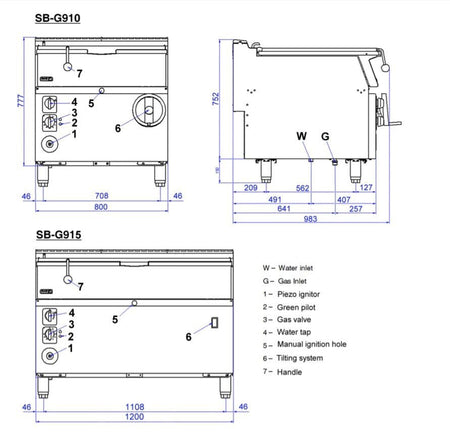

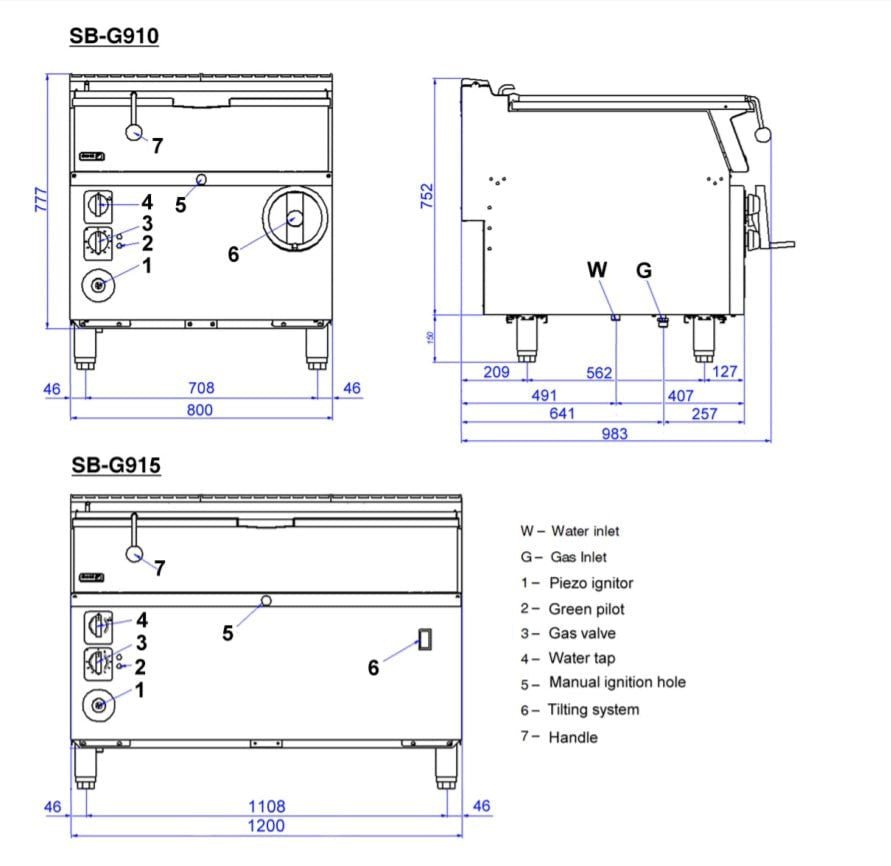

The SBG9-10I connects to natural gas and must be commissioned by a licensed gas fitter; the 230V-1+N supply powers the controls only and the unit is not supplied with a power cord and plug. It sits on height-adjustable legs (850–900 mm) and packs to 910 × 1060 × 1085 mm. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. Warranty is 2 years parts & labour plus 2 years parts only, with product registration within 14 days of invoice — see our warranty information for full details.

Frequently asked questions

Q: What is the pan capacity of the Fagor SBG9-10I? A: The pan holds 80 litres, with a 50 dm² cooking surface for large-batch frying, boiling and braising.

Q: Is the SBG9-10I gas or electric? A: It is a natural gas unit with a 66 MJ/h stainless tubular burner; a 230V-1+N electrical supply powers the controls only.

Q: Is there an electric version? A: Yes — the SBE9-10I is the electric equivalent of this 80 L bratt pan.

Q: What temperature range does it reach? A: The thermostat controls the pan base from 50°C to 315°C, with pilot lights indicating power and heating.

Q: How does the tilting mechanism work? A: A manual crank raises the pan to pour off contents, and a safety system stops the burner when the pan is raised.

Q: What warranty applies? A: 2 years parts & labour plus 2 years parts only when the product is registered within 14 days of invoice.
