Fagor 900 Series Natural Gas Single-Well Deep Fryer 20L - FG9-05
Regular price
$5,219.00
Regular price
Sale price
$5,219.00 +GST
-25%
$6,959.00
Discover a lower price? Contact our team for a deal
Apply for Equipment Finance with Silver Chef
Get approval in under 5 minutes Apply Now
Get Extra 11% OFF on Fagor! Use coupon:
EXTRA11
Fast Delivery
Best Price
Australia-wide delivery
Couldn't load pickup availability
🖨️ Product Specification PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

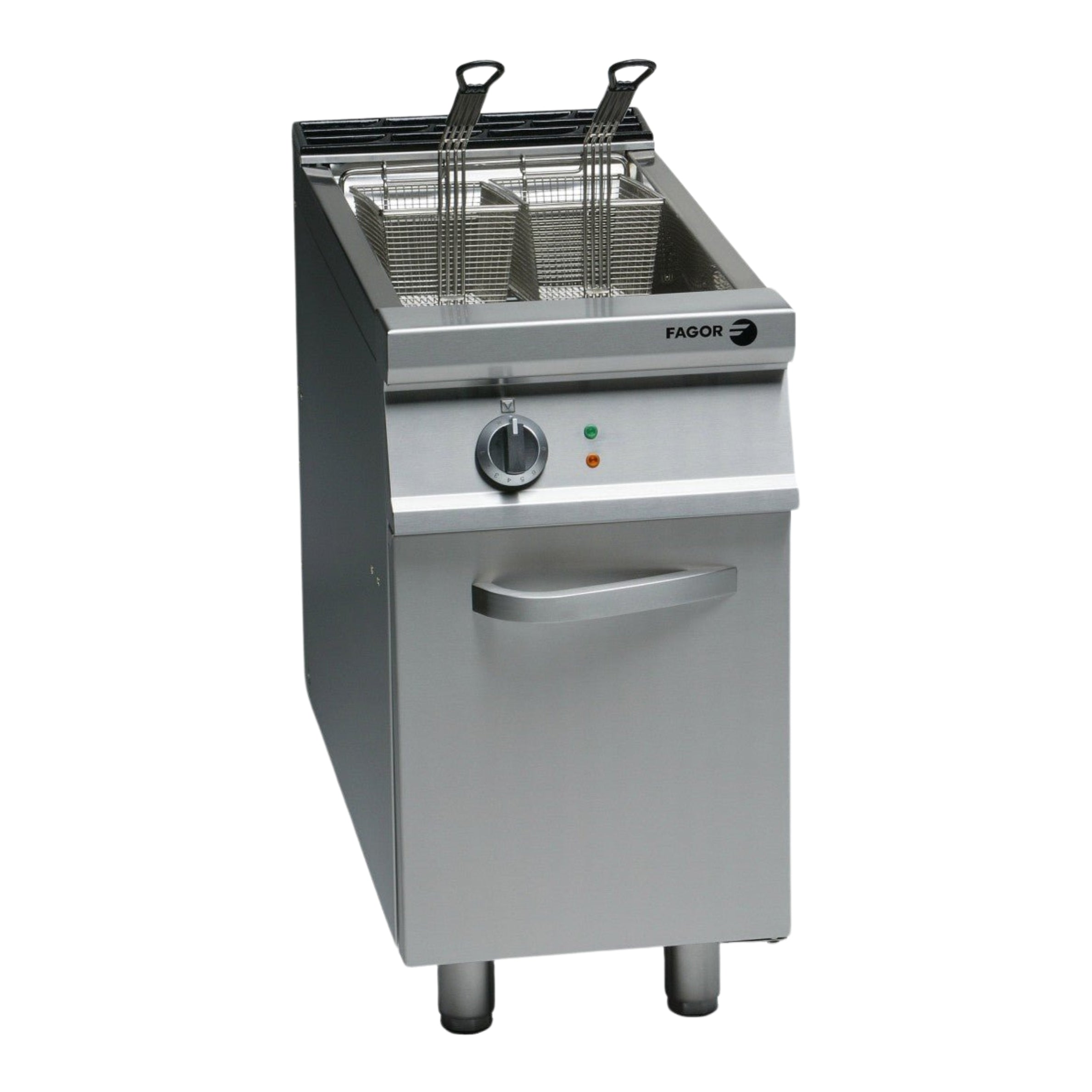

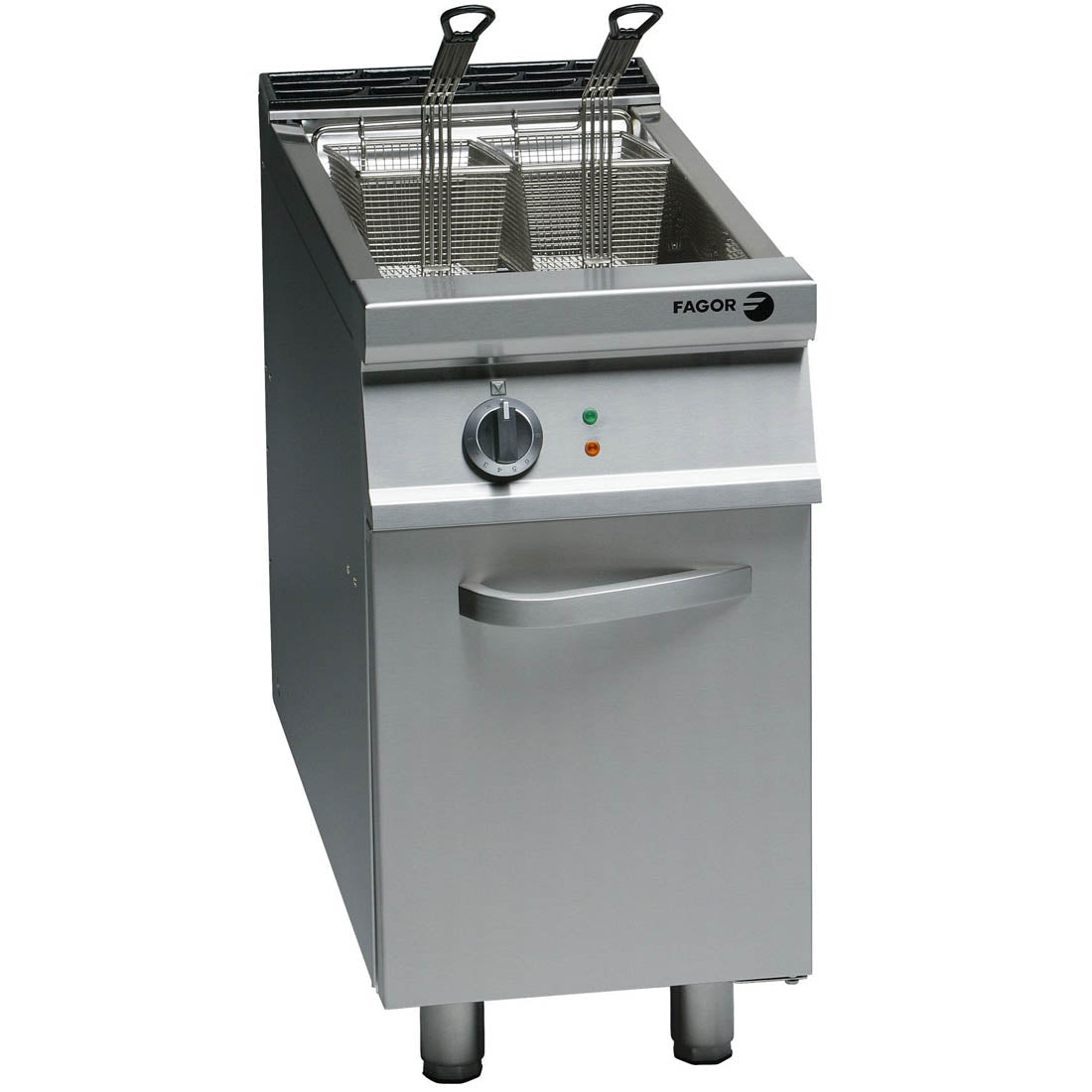

The Fagor FG9-05 is a floor-standing single-well natural gas deep fryer from the 900 Series, built for continuous frying in restaurants, pubs, takeaways and catering kitchens. One 20-litre oil well is driven by a 24 kW (87.86 MJ/h) cast iron burner with thermostatic control from 60°C to 195°C, and the fryer ships with two small baskets — or takes one large basket — to match your product mix.
Why operators choose the FG9-05
- Single 20 L oil well — one large-capacity well keeps fried output steady through a long service.
- 24 kW (87.86 MJ/h) cast iron burner — fast heat-up and quick oil recovery between baskets.
- Thermostatic control 60–195°C plus safety thermostat — set frying temperatures accurately and protect the oil from overheating.
- Automatic ignition — electromagnetic valve with pilot light and thermocouple for reliable lighting every shift.
- Basket flexibility — supplied with two small baskets (315 × 160 × 120 mm), or run one large basket (315 × 330 × 120 mm) instead.
- Drainage tap and night lids — drain the well quickly for oil changes and cover the oil out of hours.
- Height-adjustable legs (850–900 mm) — levels flush into a 900 Series cookline.
Specifications
| Brand | Fagor |
| Model / MPN | FG9-05 |
| SKU | FG9-05 |
| Type | Single-Well Natural Gas Deep Fryer (floor-standing) |
| Power type | Natural Gas |
| Gas output | 24 kW (87.86 MJ/h) |
| Oil capacity | 20 L (one well) |
| Burners | 1 (cast iron) |
| Baskets | 2 small (315 × 160 × 120 mm) or 1 large (315 × 330 × 120 mm) |
| Temperature range | 60–195°C (thermostatic, with safety thermostat) |
| Ignition | Automatic — electromagnetic valve with pilot and thermocouple |
| Material | Stainless steel |
| Dimensions (W×D×H) | 425 × 900 × 900 mm (legs adjust 850–900 mm) |
| Packed dimensions (W×D×H) | 465 × 995 × 920 mm |
| Net weight | 79 kg |
| Country of manufacture | Spain |
| Warranty | 2 years parts & labour plus 2 years parts only, with product registration within 14 days of invoice |
Venue suitability
The FG9-05 suits restaurants, pubs, takeaways and catering kitchens that need steady single-well frying capacity slotted into a modular 900 Series cookline. As a floor-standing natural gas unit it is not a benchtop fryer, and it is not suited to LPG-only or electric-only sites.
Browse the full range of commercial deep fryers or explore more Fagor equipment.
Installation & delivery
Natural gas connection and commissioning must be completed by a licensed gasfitter, and because no power cord or plug is supplied, electrical connection must be made by a qualified electrician. The fryer packs to 465 × 995 × 920 mm, so check doorway clearance ahead of delivery. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. Warranty is 2 years parts & labour plus 2 years parts only, with product registration within 14 days of invoice; see our warranty information for full details.
Frequently asked questions
Q: How much oil does the Fagor FG9-05 hold? A: The FG9-05 has a single 20-litre oil well, suited to steady high-volume frying through a long service.
Q: What baskets are included? A: It is supplied with two small baskets measuring 315 × 160 × 120 mm; a single large basket of 315 × 330 × 120 mm can be used across the well instead.
Q: What gas type does it run on and at what output? A: The FG9-05 is a natural gas fryer with a single cast iron burner delivering 24 kW (87.86 MJ/h).
Q: What temperature range does it cover? A: Thermostatic control runs from 60°C to 195°C, backed by a separate safety thermostat that protects the oil from overheating.
Q: Does the FG9-05 need professional installation? A: Yes. Gas connection and commissioning must be completed by a licensed gasfitter, and because no power cord or plug is supplied, electrical connection must be made by a qualified electrician.
Q: What warranty does the FG9-05 come with? A: It is covered by 2 years parts & labour plus 2 years parts only, with product registration within 14 days of invoice.
- SKU FG9-05
- Product Dimensions 425(W) x 900(D) x 900(H)mm
- Packed Dimensions 465(W) x 995(D) x 920(H)mm
- Power 87.86 mj./h
- Warranty
