Fagor SBE9-10I Electric Tilting Bratt Pan 80L
Regular price
$12,974.00
Regular price
Sale price
$12,974.00 +GST
-25%
$17,299.00
Get Extra 11% OFF on Fagor! Use coupon:
EXTRA11
Discover a lower price? Contact our team for a deal
Apply for Equipment Finance with Silver Chef
Get approval in under 5 minutes Apply Now
Fast Delivery
Best Price
Australia-wide delivery
Couldn't load pickup availability
Open here

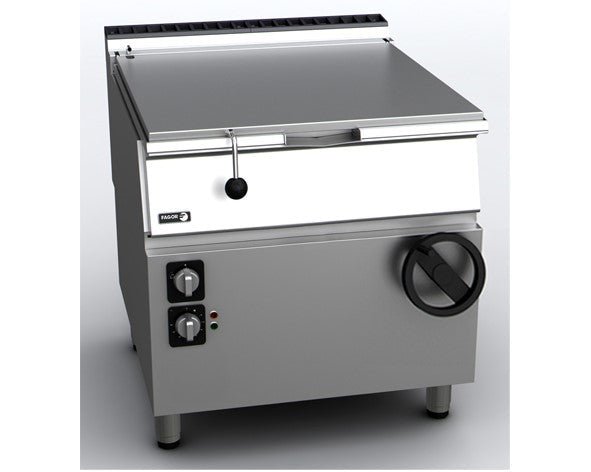

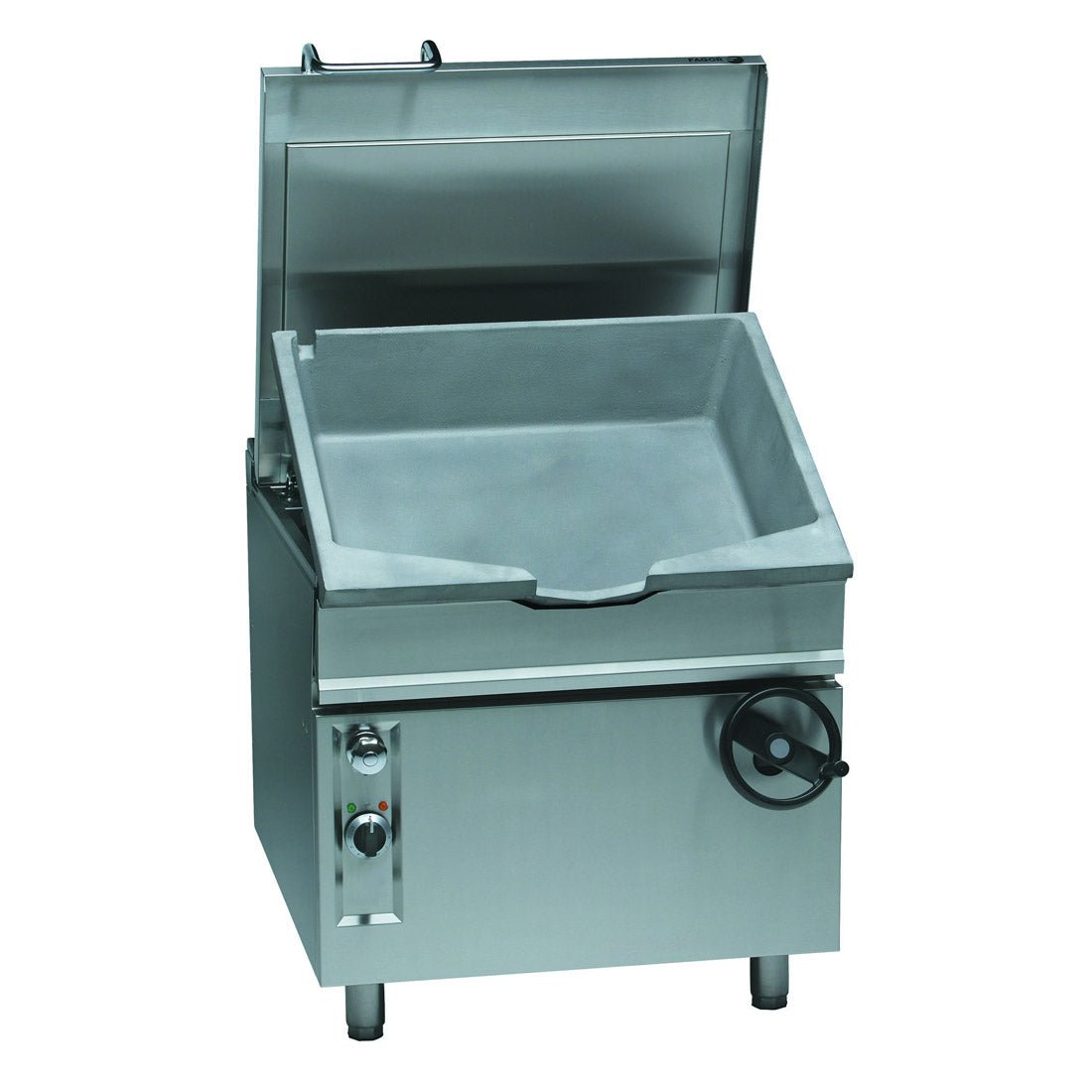

The Fagor SBE9-10I is an electric tilting bratt pan with an 80-litre stainless steel pan, built for high-output commercial kitchens, production caterers, aged-care and hospital kitchens and function venues. One multi-function unit fries, grills, boils and holds, drawing 12 kW on a 400V 3+N three-phase supply under a 50–315°C thermostat.
Why operators choose the SBE9-10I
- 80 L tilting pan — cook, then tilt to pour or empty straight into gastronorm pans without lifting.
- One pan, four jobs — frying pan, fry-top grill, direct-heat boiling pan and bain-marie in one footprint.
- 12 kW shielded elements — sealed beneath the pan base for even heat and easy cleaning.
- Thermostatic 50–315°C — from a low simmer for sauces to high heat for searing and frying.
- Counterweighted hinged lid — holds at any angle and doubles as a benchtop when closed.
- Three-phase electric — 400V 3+N supply, hard-wired for continuous production service.
Specifications
| Brand | Fagor |
| Model / MPN | SBE9-10I |
| SKU | SBE9-10I |
| Type | Electric Tilting Bratt Pan |
| Capacity | 80 L |
| Power | 12 kW |
| Electrical supply | 400V 3+N (three-phase) |
| Temperature range | 50–315°C |
| Tilt mechanism | Tilting pan with counterweighted hinged lid |
| External material | Stainless Steel |
| Packed dimensions (W×D×H) | 1040 × 900 × 1120 mm |
| Net weight | 197 kg |
| Warranty | 2 years parts & labour + 2 years parts only, with product registration within 14 days of invoice |
Venue suitability
The SBE9-10I suits busy restaurants, hotels, aged-care and hospital kitchens, function centres and central production kitchens that batch-cook braises, curries, sauces, mince and shallow-fried dishes. If your site runs on gas rather than three-phase power, the SBG9-10I is the natural-gas equivalent of this 80 L pan.
Browse more commercial bratt pans or explore the full Fagor range.
Installation & delivery
The SBE9-10I runs on a 400V 3+N three-phase supply and must be hard-wired by a licensed electrician. It is a heavy floor-standing unit that packs to 1040 × 900 × 1120 mm, so plan mechanical handling and check doorway and lift clearances before delivery. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. Warranty is 2 years parts & labour plus 2 years parts only, with product registration within 14 days of invoice — see our warranty information for full details.
Frequently asked questions
Q: What can the Fagor SBE9-10I be used for? A: It works as a frying pan, a fry-top grill, a direct-heat boiling pan and a bain-marie, so one unit covers frying, grilling, boiling, braising and holding.
Q: What is the pan capacity? A: The pan holds 80 litres, suited to bulk and batch cooking.
Q: What power supply does it need? A: It is a 12 kW electric unit running on a 400V 3+N (three-phase) supply, which must be hard-wired by a licensed electrician.
Q: Is there a gas version of this bratt pan? A: Yes — the SBG9-10I is the natural-gas equivalent of this 80 L bratt pan.
Q: How is the pan emptied? A: The pan tilts to pour out its contents, and the counterweighted hinged lid lifts clear and can be used as a benchtop when closed.
Q: What warranty applies? A: 2 years parts & labour plus 2 years parts only with product registration within 14 days of invoice.
- SKU SBE9-10I
- Packed Dimensions 1040(W) x 900(D) x 1120(H)mm
- Warranty
