Fagor Evo-Concept Glass Washer With Drain Pump And Detergent & Rinse Dispenser Cold Rinse CO-402BDD

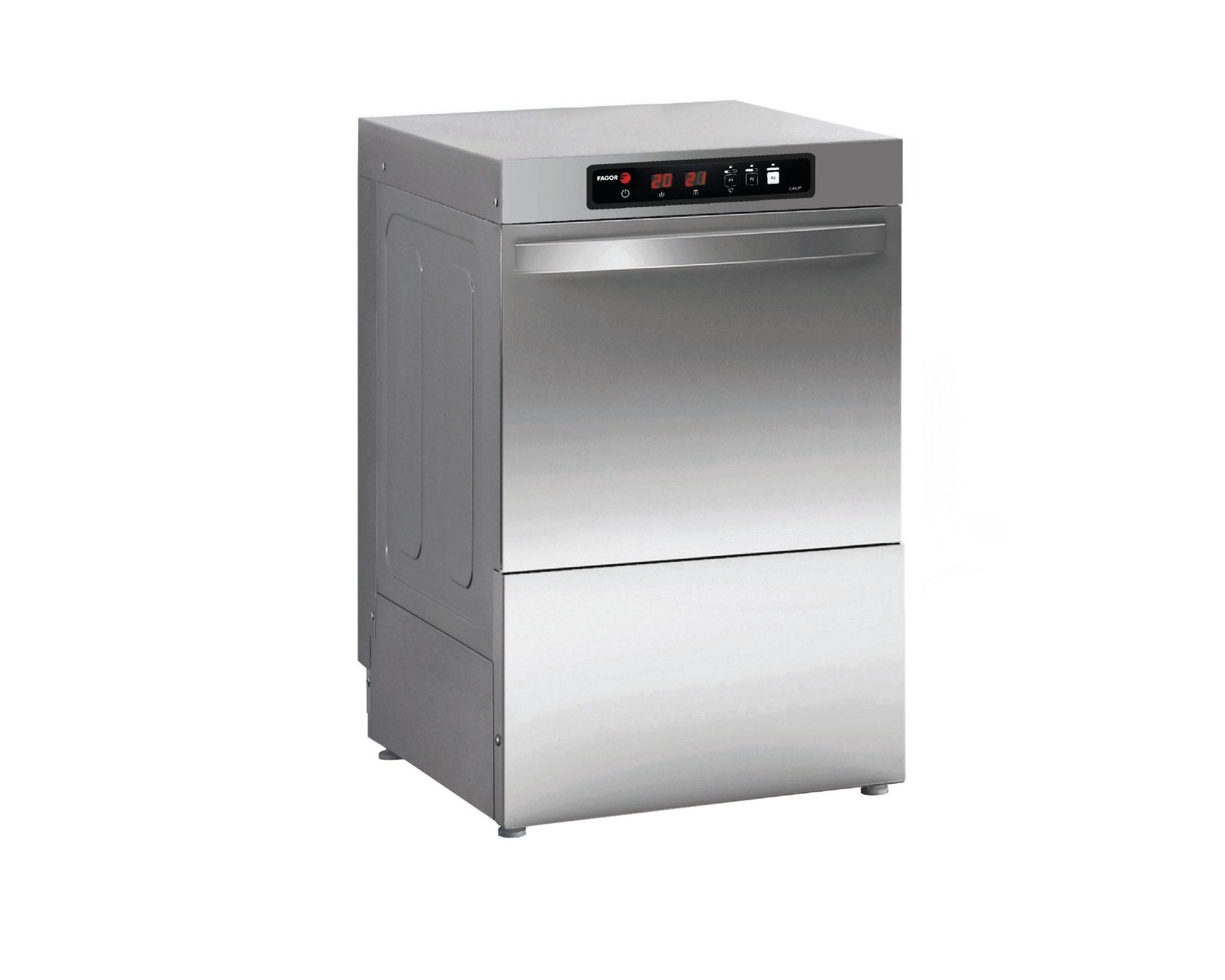

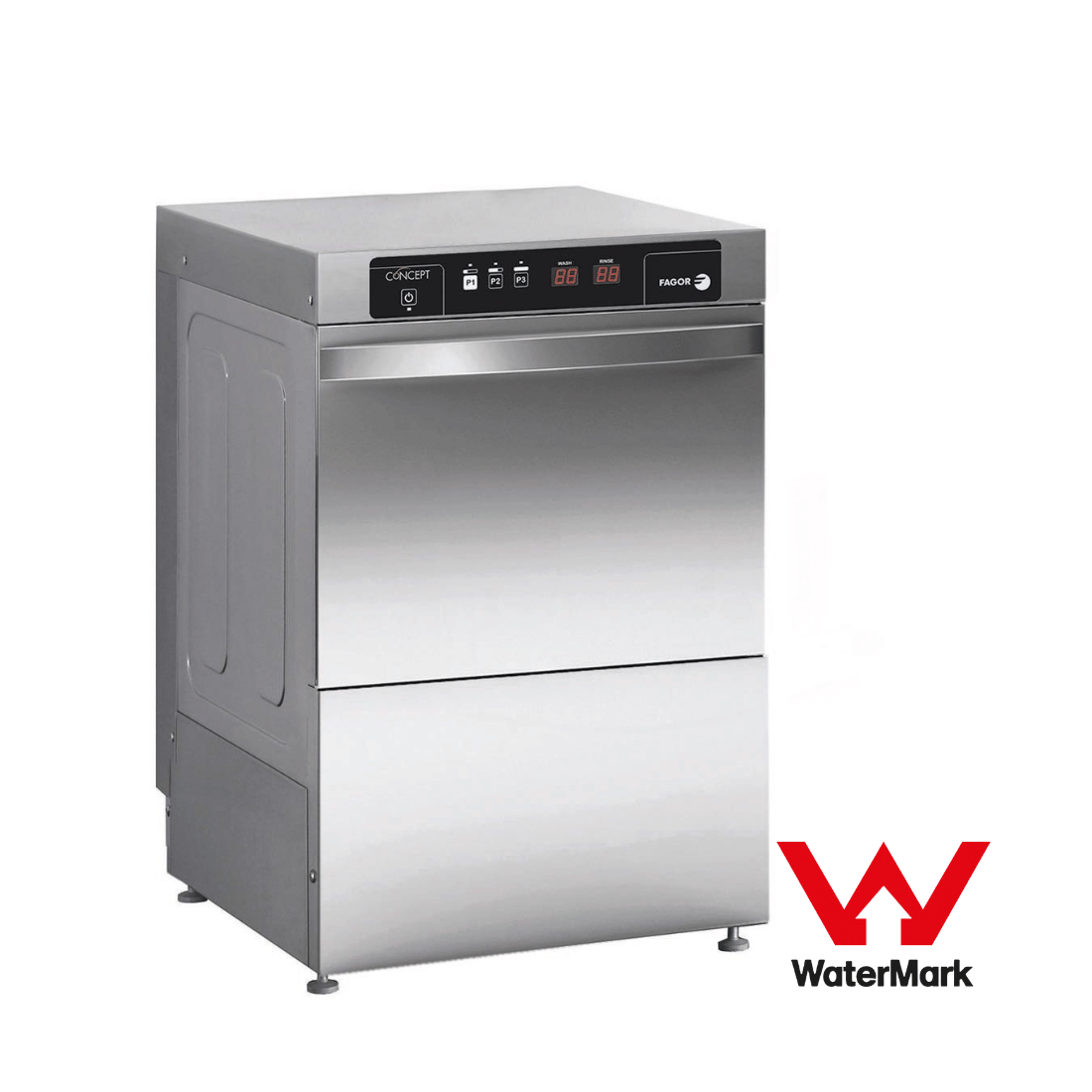

The Fagor CO-402BDD is an EVO-Concept undercounter glasswasher that clears up to 40 baskets per hour through a 400 x 400 mm rack, with a factory-fitted drain pump (B), detergent doser and rinse-aid dispenser (DD) plus a selectable cold rinse — built for bars, cafes, clubs and restaurants that need bright, dry glassware fast. It uses the EFFI-WASH hydraulic system with a 0.26 kW wash pump, draws 3.06 kW total, and fits under the bench at 470 x 520 x 720 mm.

Why operators choose the CO-402BDD

• Drain pump + dispensers fitted — the BDD build adds a 30 W drain pump, detergent doser and built-in rinse-aid dispenser from the factory.

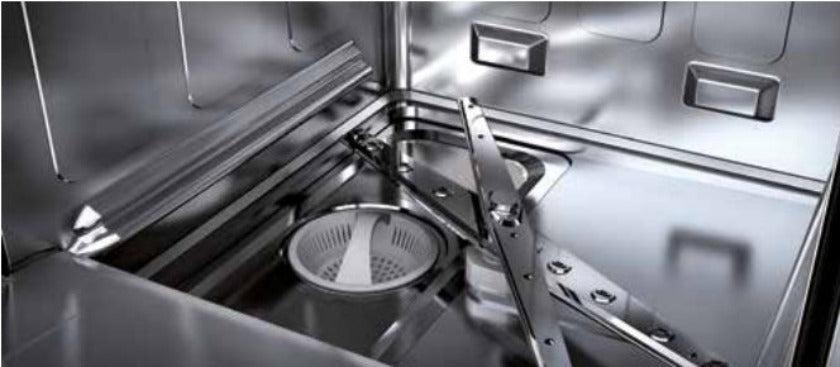

• EFFI-WASH system — optimised hydraulics with stainless steel wash arms and a 0.26 kW pump for effective, efficient washing.

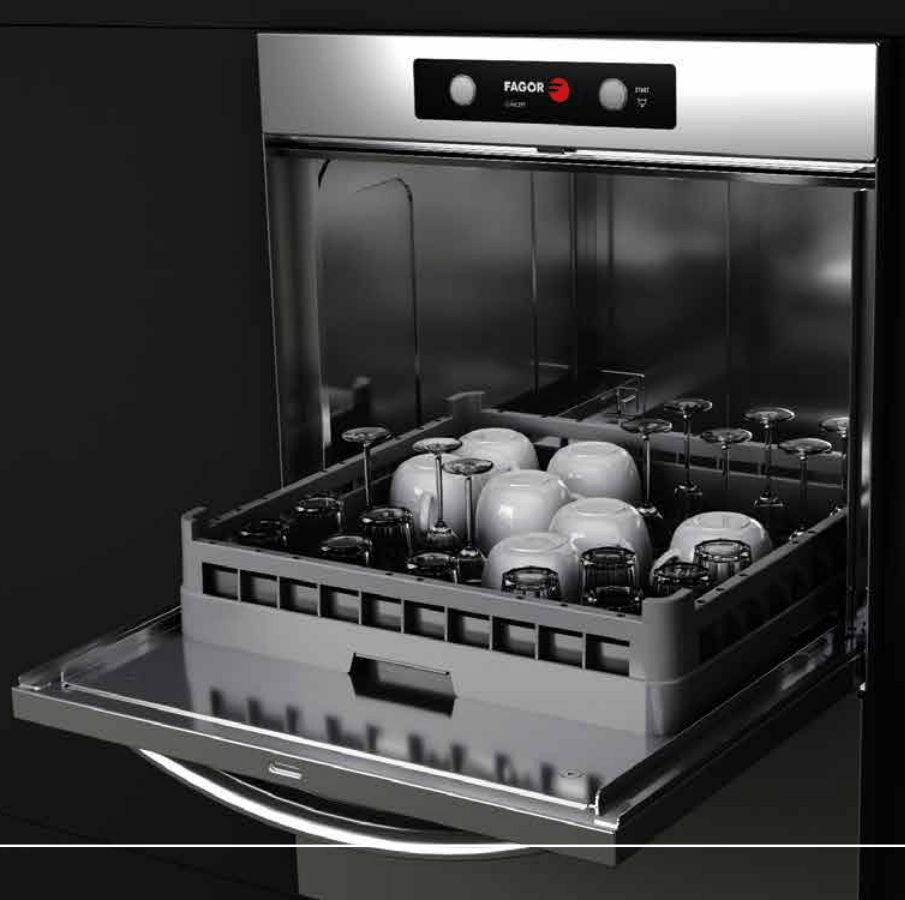

• 40 baskets/hour — steady throughput on a 400 x 400 mm rack, valid for dishes up to Ø270 mm.
• 275 mm ware clearance — clears tall glassware and larger plates from a compact undercounter body.
• Selectable cold rinse — an optional cold rinse at the end of the cycle for glassware finish.
• Precise temperatures — thermostatic control washes at 60 ºC and rinses at 90 ºC, with digital displays and safety thermostats.
• Low water use — 2.4 litres per rinse from a 13-litre tank and 4-litre boiler.
• Backed by warranty — 2 years parts & labour cover.

Specifications

Venue suitability

The CO-402BDD suits bars, cafes, clubs and restaurant service stations that need bright glassware and small-plate washing under the bench, with the drain pump and dispensers already built in for straightforward installation. Where higher throughput or a larger 500 x 500 rack is needed, step up to the Fagor iNova dishwasher range.

Browse the full commercial glasswasher range or explore more from the Fagor range.

Installation & delivery

The CO-402BDD requires a cold water inlet at around 2 bar mains pressure, a drain (a 30 W drain pump is fitted) and a 240 V power supply; connection should be completed by a licensed tradesperson where a suitable outlet is not already in place. A built-in non-return valve is fitted. Packed dimensions are 530 x 680 x 890 mm. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. Warranty is 2 years parts & labour; see our warranty information for full details.

Frequently asked questions

Q: What size ware does the CO-402BDD take? A: It uses a 400 × 400 mm rack with 275 mm ware clearance and is valid for dishes up to Ø270 mm.

Q: What does the BDD in CO-402BDD mean? A: The BDD build is factory-fitted with a drain pump (B) plus a detergent doser and rinse-aid dispenser (DD), so no separate dosing kit is needed.

Q: Does the CO-402BDD have a cold-rinse option? A: Yes. It has a selectable cold rinse at the end of the cycle for glassware finish.

Q: How much water does the CO-402BDD use? A: It uses 2.4 litres per rinse, drawing from a 13-litre tank and a 4-litre boiler.

Q: What are the dimensions of the CO-402BDD? A: The CO-402BDD measures 470 × 520 × 720 mm (W×D×H) and weighs 36 kg net.

Q: What warranty does the CO-402BDD come with? A: The CO-402BDD is covered by 2 years parts & labour warranty.
