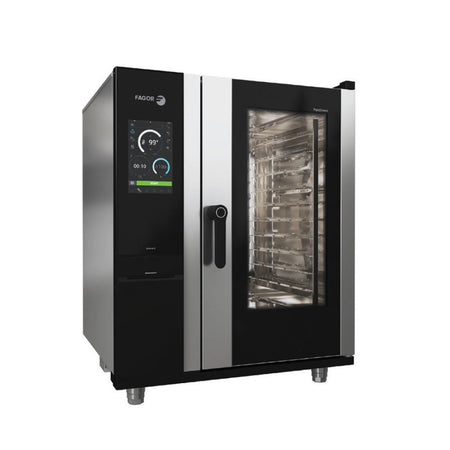

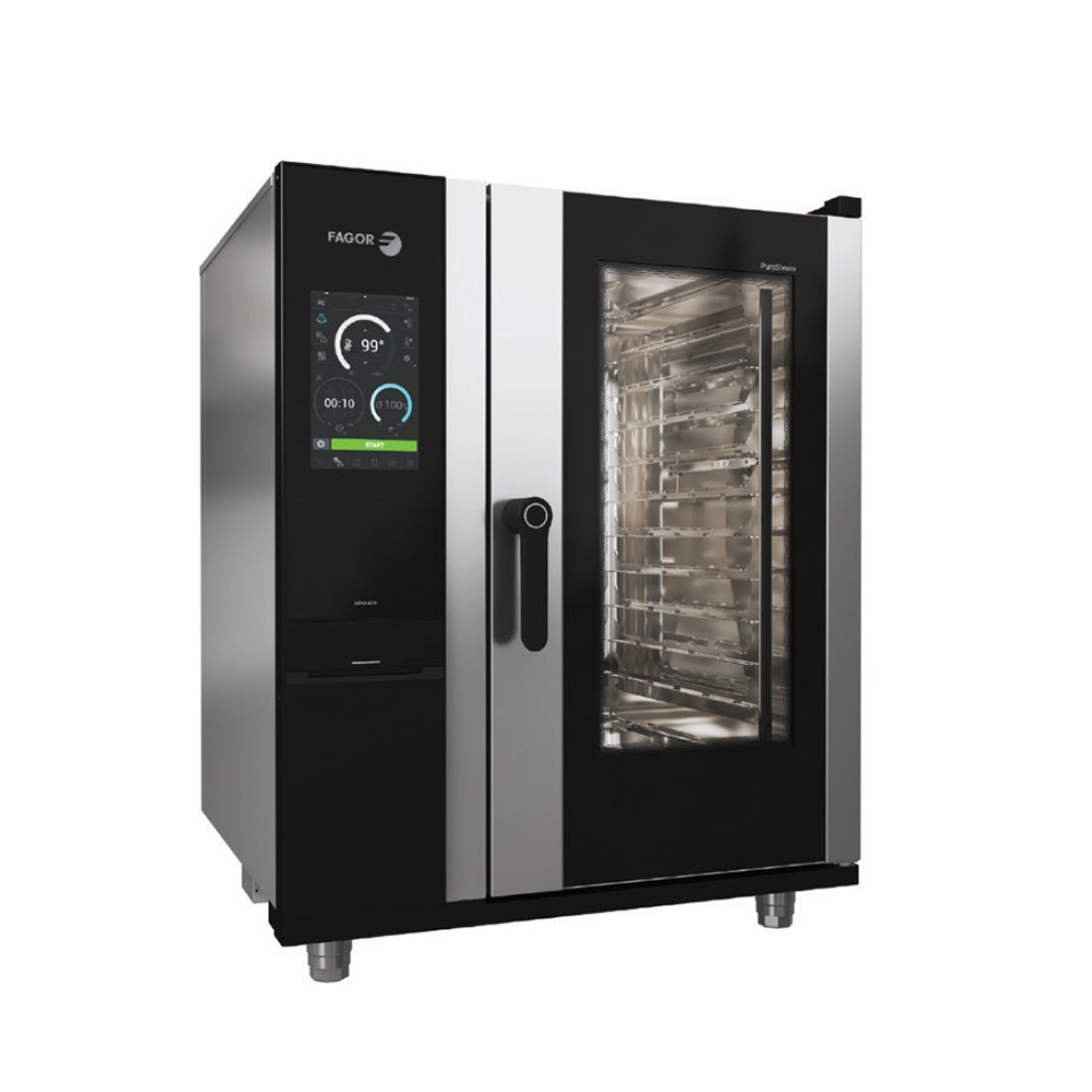

Fagor iKORE Advanced Boiler 10 Tray Electric Combi Oven APW-101ERLWS

The Fagor APW-101ERLWS is a 10-tray electric combi steam oven engineered for high-output restaurants, hotels, function venues and central production kitchens that need consistent steam, convection and combination cooking. It holds 10 × 1/1 GN trays, runs on 415V 18.6kW three-phase power, and combines a boiler steam system with a 10.1-inch touchscreen and fully automatic iWashing for repeatable results at volume.

Why operators choose the APW-101ERLWS

• 10 × 1/1 GN capacity — batch-cooks 10 GN trays per cycle for steaming, roasting, baking and regeneration (trays not included).
• Boiler steam system — generates fast, saturated steam from cold for precise steaming, poaching and proving.
• 415V, 18.6kW, 3-phase + neutral — electric operation suits kitchens without a gas connection and keeps the cookline simple to hard-wire.
• iClima humidity control — a direct sensor measures and regulates chamber humidity to within 1% for repeatable browning, crust and yield.
• 10.1-inch touchscreen with iCooking — smart cooking processes self-adjust and stay editable mid-cycle, so output holds regardless of who is on the pass.
• 200 preset, culinary-tested recipes — plus unlimited 9-stage recipe storage, so menu standards transfer straight to the line.
• iWashing automatic clean — a built-in detergent tank runs unattended wash cycles, cutting labour and protecting hygiene at close.
• HACCP data output — built-in record system for food-safety documentation across shifts.

Specifications

Venue suitability

The ten-tray capacity and boiler steam make the APW-101ERLWS well suited to busy restaurants, hotels, function venues and central production kitchens running structured, high-volume service. iCooking automation and HACCP recording suit operations that need repeatable results and food-safety documentation across multiple operators. As a 415V three-phase electric unit, it is less suited to small sites without three-phase supply. For smaller sites the 6-tray APW-061ERLWS covers the same features in a compact footprint, while the 20-tray APW-201ERLWS scales up for banqueting; a gas version is available as the APW-101GRLWS.

Browse the full range of combi steam ovens or see every Fagor unit we stock to compare tray counts and configurations.

Installation & delivery

This oven requires a 415V, 18.6kW, 3-phase + neutral supply and should be hard-wired by a licensed electrician, with a water supply and drainage connected for the boiler and iWashing system, plus clearance for the door swing and rear servicing. Allow for its packed size of 953 x 980 x 1340 mm. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. It is backed by a 2 year parts & labour warranty; see our warranty information page for full details.

Frequently asked questions

Q: Is the APW-101ERLWS gas or electric? A: It is fully electric, running on a 415V, 18.6kW, 3-phase + neutral supply, and must be hard-wired by a licensed electrician. There is no gas connection, so it suits kitchens without a gas line.

Q: How many trays does the APW-101ERLWS hold? A: It holds 10 x 1/1 GN trays per cycle, suited to medium-to-large kitchens. Pans and trays are not included and are ordered separately to suit your menu.

Q: What cooking modes does the APW-101ERLWS offer? A: Five modes: Low-temperature steam 30–98°C, steam 99°C, super steam 100–130°C, mixed 30–300°C and convection 30–300°C, plus DeltaT cooking and functions including sous vide, regeneration, overnight cooking, fermentation, pasteurisation and dehydration.

Q: Does the APW-101ERLWS clean itself? A: Yes. The iWashing system runs a fully automatic wash cycle from a built-in detergent tank, cleaning the chamber unattended and helping the kitchen meet hygiene standards at close.

Q: How does the APW-101ERLWS control steam and humidity? A: It uses a dedicated steam boiler for fast, saturated steam, and the iClima system measures chamber humidity directly with a sensor and regulates it to within 1% for consistent steaming, baking and roasting.

Q: What warranty does the APW-101ERLWS come with? A: It is covered by a 2 year parts and labour warranty. See our warranty information page for full details, and note that warranty cover varies by product.
