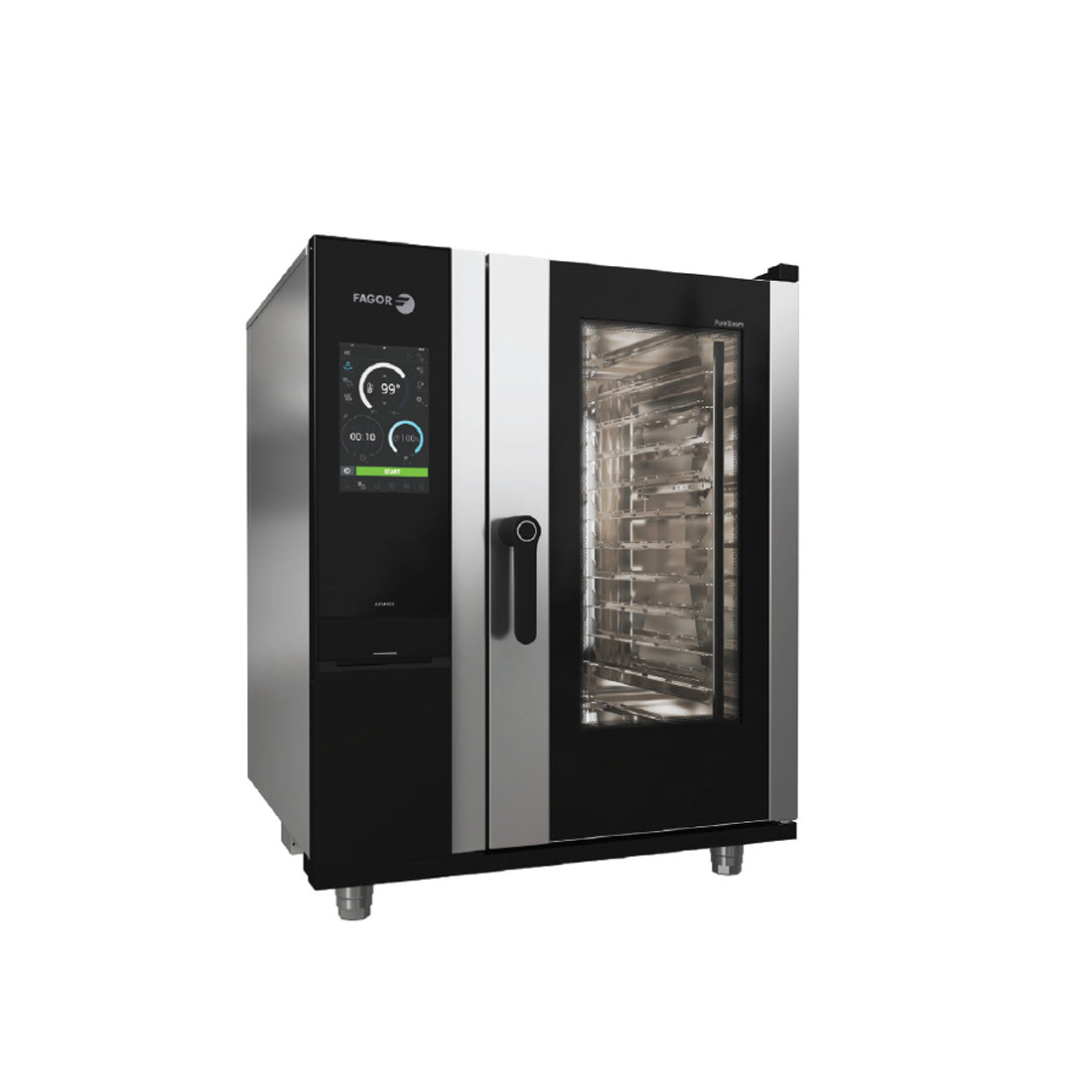

Fagor Ikore 10 Tray Advanced Boiler Gas Combi Oven APW-101GRLWS

The Fagor APW-101GRLWS is a 10-tray gas combi steam oven for medium-to-large restaurants, hotels, function venues and central production kitchens that steam, roast and bake across service. It holds 10 × 1/1 GN trays, runs on natural gas or LPG at 64.8 MJ/h with a boiler steam system, and is driven by a 10.1-inch touchscreen with iCooking automatic adjustment and fully automatic iWashing.

Why operators choose the APW-101GRLWS

• 10 × 1/1 GN capacity — batch-cooks 10 GN trays per cycle for steaming, roasting, baking and regeneration (trays not included).
• Boiler steam system — generates fast, saturated steam from cold for precise steaming, poaching and proving.
• Natural gas or LPG, 64.8 MJ/h — high gas input with rapid heat recovery for back-to-back roasting and steaming.
• iClima humidity control — a direct sensor measures and regulates chamber humidity to within 1% for repeatable browning, crust and yield.
• 10.1-inch touchscreen with iCooking — smart cooking processes self-adjust and stay editable mid-cycle, so output holds regardless of who is on the pass.
• 200 preset, culinary-tested recipes — plus unlimited 9-stage recipe storage, so menu standards transfer straight to the line.
• iWashing automatic clean — a built-in detergent tank runs unattended wash cycles, cutting labour and protecting hygiene at close.
• HACCP data output — built-in record system for food-safety documentation across shifts.

Specifications

Venue suitability

The ten-tray capacity and boiler steam make the APW-101GRLWS well suited to busy restaurants, hotels, function venues and central production kitchens running structured, high-volume service. iCooking automation and HACCP recording suit operations that need repeatable results and food-safety documentation across multiple operators. It is oversized for a small cafe or tight takeaway, where a 6-tray unit fits better. An electric version of the same 10-tray oven is available as the APW-101ERLWS, and the gas range scales up to the 20-tray APW-201GRLWS for higher-volume kitchens.

Browse the full range of combi steam ovens or see every Fagor unit we stock to compare tray counts and configurations.

Installation & delivery

This is a gas appliance (natural gas or LPG, 64.8 MJ/h, 3/4-inch regulator) that also needs a 0.83 kW, 10 A electrical supply, so connection must be completed by a licensed gasfitter and a qualified electrician, with a water supply and drainage for the boiler and iWashing system. Allow for its packed size of 1055 x 980 x 1340 mm. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. It is backed by a 2 year parts & labour warranty; see our warranty information page for full details.

Frequently asked questions

Q: Does the APW-101GRLWS run on natural gas or LPG? A: Both. The oven is configured for natural gas or LPG, consumes 64.8 MJ/h through a 3/4-inch regulator, and also needs a 0.83 kW, 10 A electrical supply for the controls, fans and boiler.

Q: How many trays does the APW-101GRLWS hold? A: It holds 10 x 1/1 GN trays per cycle, suited to medium-to-large kitchens. Pans and trays are not included and are ordered separately to suit your menu.

Q: What cooking modes does the APW-101GRLWS offer? A: Five modes: Low-temperature steam 30–98°C, steam 99°C, super steam 100–130°C, mixed 30–300°C and convection 30–300°C, plus DeltaT cooking and functions including sous vide, regeneration, overnight cooking, fermentation, pasteurisation and dehydration.

Q: Does the APW-101GRLWS clean itself? A: Yes. The iWashing system runs a fully automatic wash cycle from a built-in detergent tank, cleaning the chamber unattended and helping the kitchen meet hygiene standards at close.

Q: How does the APW-101GRLWS control steam and humidity? A: It uses a dedicated steam boiler for fast, saturated steam, and the iClima system measures chamber humidity directly with a sensor and regulates it to within 1% for consistent steaming, baking and roasting.

Q: What warranty does the APW-101GRLWS come with? A: It is covered by a 2 year parts and labour warranty. See our warranty information page for full details, and note that warranty cover varies by product.
