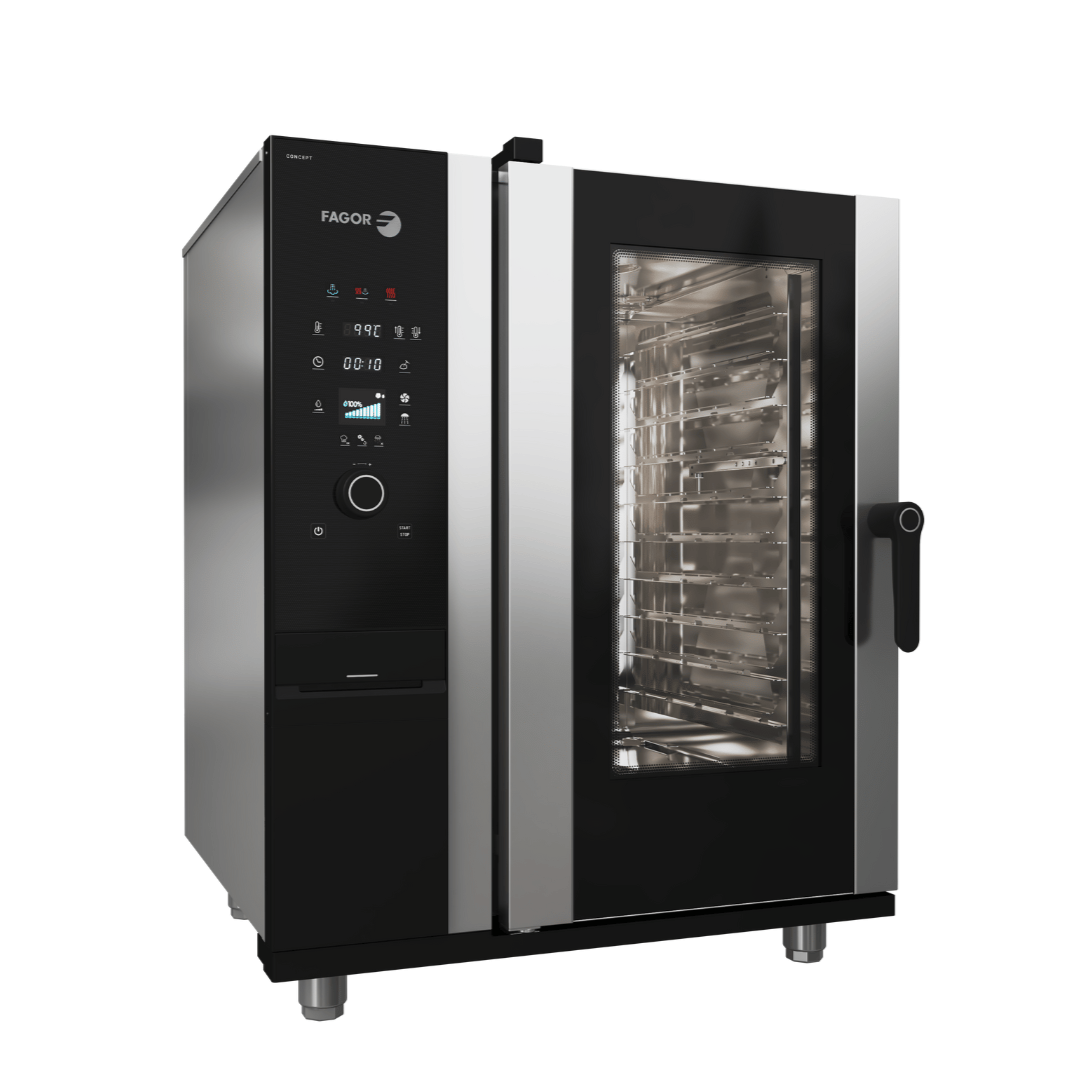

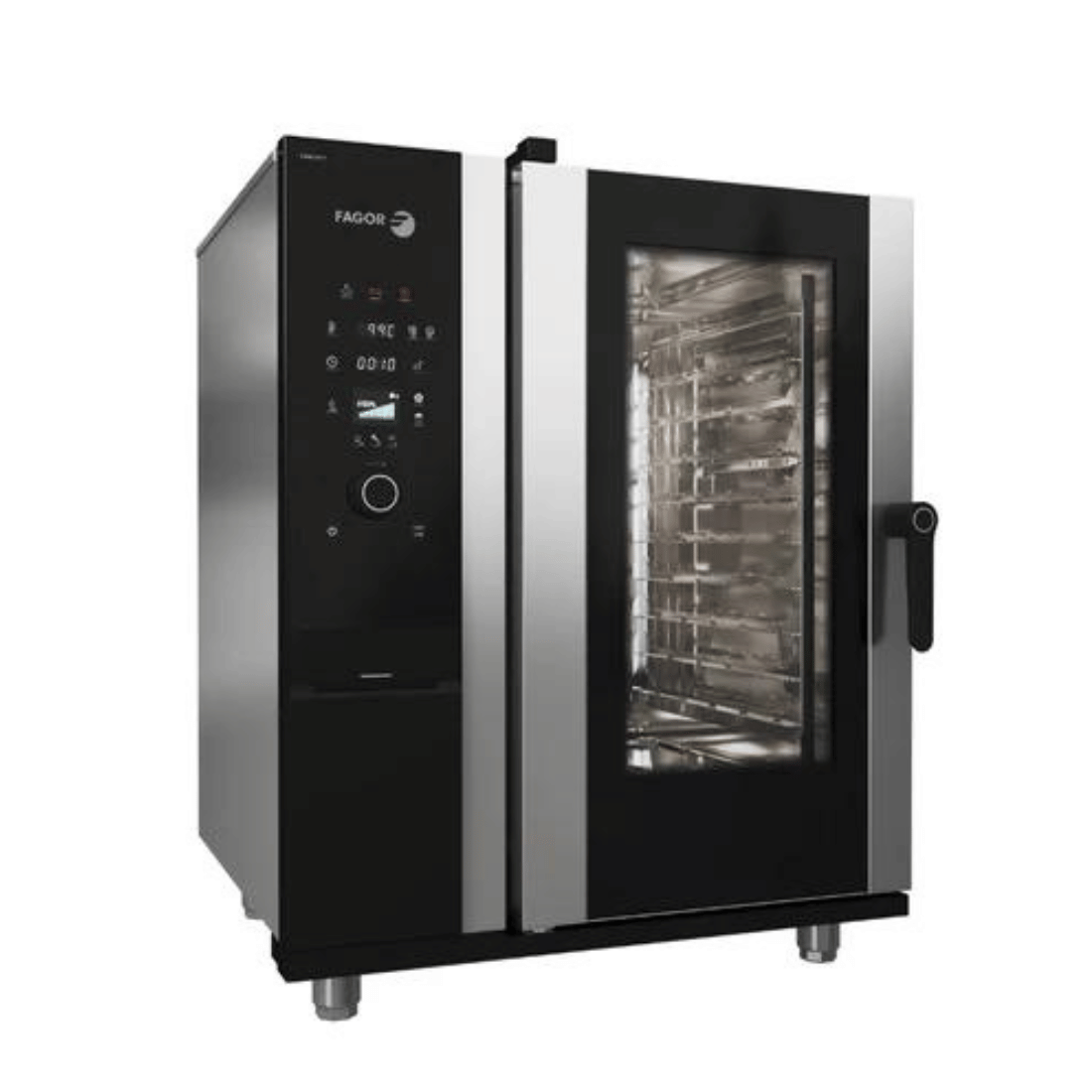

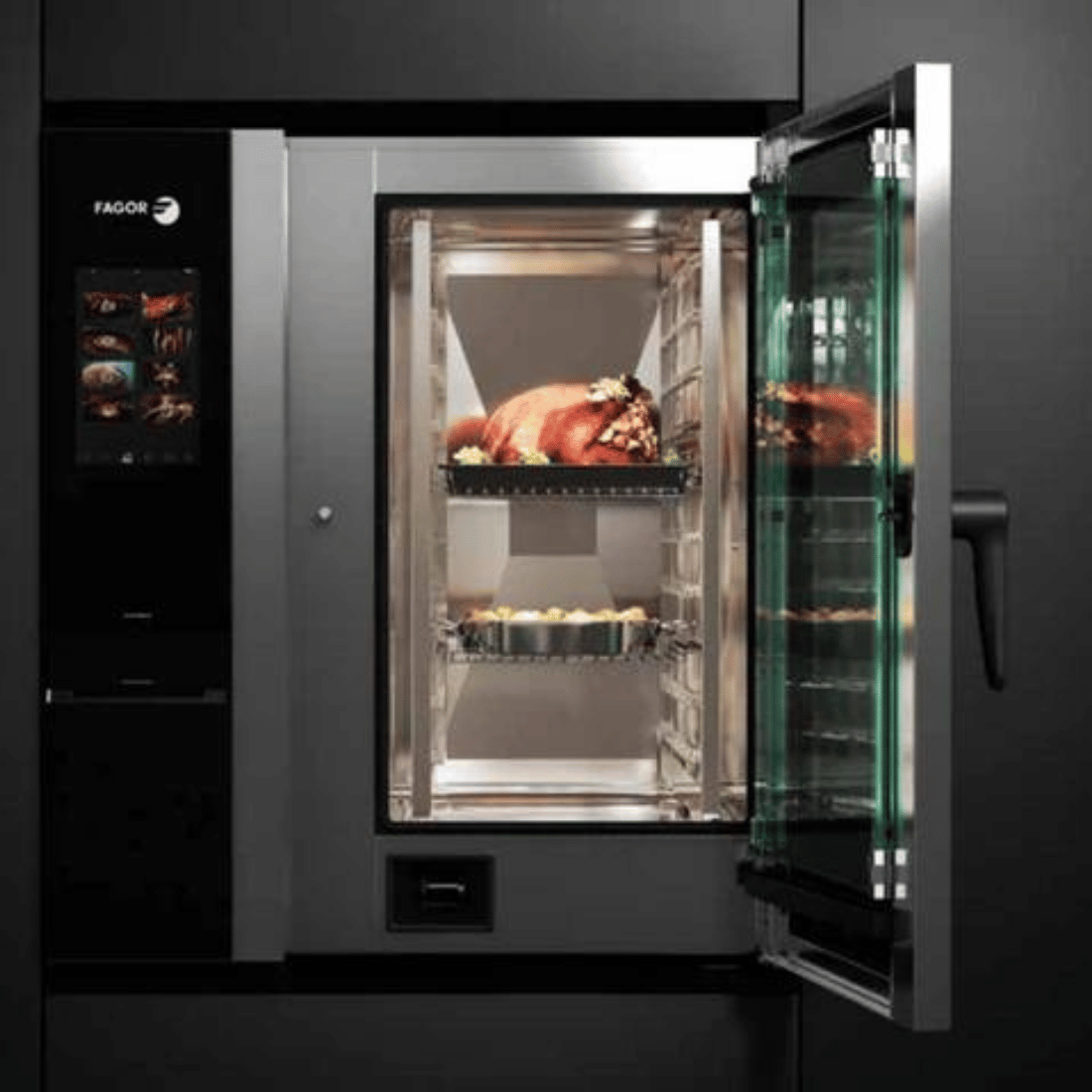

Fagor iKORE Concept 10-Tray Electric Combi Oven CW-101ELLWS

The Fagor iKORE Concept CW-101ELLWS is a 10-tray electric combi oven built for high-output professional kitchens that need precise, repeatable steam and convection cooking. It runs on a 415V/50Hz three-phase 18.6kW supply, holds 10 GN 1/1 trays, and combines Clima direct-humidity control with an auto liquid wash cycle across five cooking modes. The left-opening door suits restaurants, hotels, catering operations and function kitchens running high covers.

Why operators choose the CW-101ELLWS

• 10 x GN 1/1 tray capacity — batch-cooks proteins, vegetables and bakery items in volume for restaurants, hotels and catering kitchens
• 415V 18.6kW three-phase power — rapid heat-up and recovery to hold service pace through peak periods
• Clima direct-humidity control — direct humidity measurement with 10% regulation steps for consistent, reliable results
• Five cooking modes — low-temperature steam, steam, super steam, mixed and convection cover roasting, baking, steaming and regeneration in one unit
• 100 pre-set programs — stores 9-stage recipes so staff cook to the same standard every time
• Auto liquid wash — automated cleaning cycle reduces labour and keeps the cavity hygienic between services
• Air and water cool-down — rapid cabinet cooling lets the kitchen switch between hot and delicate tasks quickly
• Left-opening door — left-hinged glass door suits kitchens where the swing needs to clear to the left

Specifications

Venue suitability

The CW-101ELLWS suits busy restaurants, hotels, catering operations, aged-care and function kitchens that run high covers and need consistent steam and convection output from one unit. It is less suited to small cafes or low-volume sites, where a compact 6-tray or bench-top convection oven would be more economical on space and power.

Browse the full range of combi steam ovens or explore the complete Fagor range to compare capacities and configurations.

Installation & delivery

This is a three-phase 415V appliance and must be hardwired by a licensed electrician, with a water connection and drainage to suit the steam and wash systems. Allow clearance for the left-opening door and around the cabinet for ventilation and servicing; packed dimensions are 953 x 980 x 1340 mm. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. The CW-101ELLWS is backed by a 2 Years Parts and Labour warranty; see our warranty information for full details.

Frequently asked questions

Q: How many trays does the Fagor CW-101ELLWS hold? A: It holds 10 GN 1/1 trays, giving high batch capacity for proteins, vegetables and bakery items in restaurants, hotels and catering kitchens running high covers.

Q: What power supply does this combi oven need? A: It runs on a 415V/50Hz three-phase supply and draws 18.6kW (3N). It must be hardwired by a licensed electrician and cannot run from a standard single-phase outlet.

Q: What cooking modes does it offer? A: Five modes: low-temperature steam, steam, super steam, mixed and convection. Combined with Clima humidity control, this covers roasting, baking, steaming and regeneration.

Q: Does it have a self-cleaning function? A: Yes. The auto liquid wash cycle cleans the cavity automatically, cutting manual labour between services.

Q: Which way does the door open? A: The CW-101ELLWS has a left-opening door, so allow clearance to the left of the unit when planning the install.

Q: What warranty does the CW-101ELLWS come with? A: It is covered by a 2 Years Parts and Labour warranty covering both components and on-site labour for the stated period.
