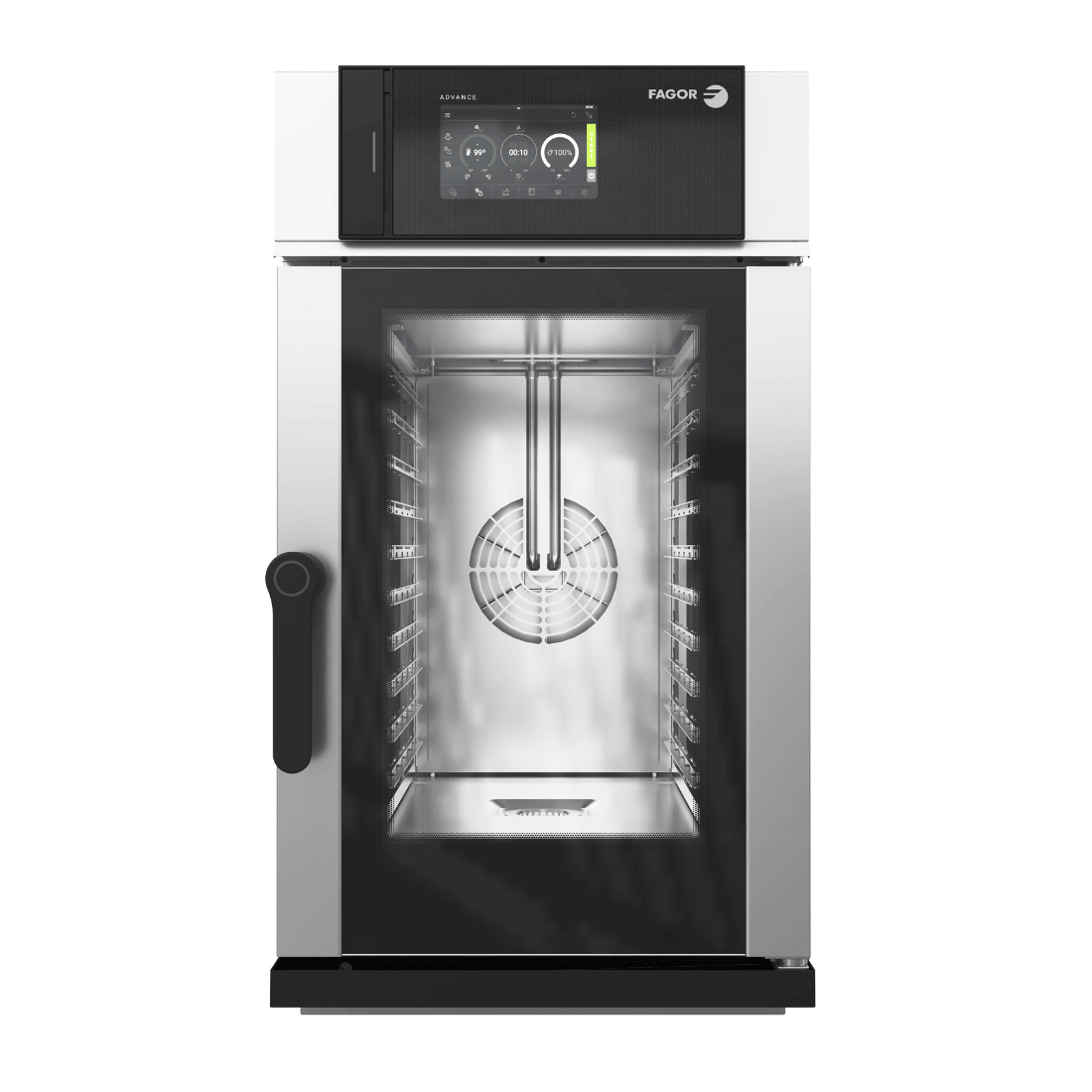

Fagor Ikore Kompact Advance Compact Ovens K-AW-101ESWR

The Fagor iKore Kompact Advance K-AW-101ESWR is a 10-tray electric combi oven that combines direct-steam, mixed and convection cooking in a slim 530mm-wide cabinet for high-output kitchens. It runs on a 415V three-phase 12.4kW supply, holds 10 GN 1/1 trays, and pairs real-humidity control accurate to 1% with a 10.1-inch touchscreen and FagorKonnect connectivity for restaurants, hotels and catering lines.

Why operators choose the K-AW-101ESWR

• 10 x GN 1/1 capacity in a 530mm cabinet — high-output combi cooking that fits kitchens short on bench and floor space
• 415V 12.4kW three-phase power — electric operation with no gas connection required on site
• Direct steam generation — instant steam on demand without waiting for a boiler to come up to temperature
• Real-humidity control to 1% accuracy — precise climate management for consistent results across roasting, baking and steaming
• Internal multipoint core probe — accurate core-temperature cooking for even results on large or delicate items
• 10.1" TFT capacitive touchscreen — intelligent cooking processes with owner-customised interface and user/password control
• FagorKonnect connectivity — Ethernet, Wi-Fi and USB with HACCP data logging for compliance and remote oversight
• Solid wash cleaning system — efficient built-in cleaning keeps the chamber hygienic between services
• Optional left or right door hinge — specify the hinge side to suit your kitchen layout

Specifications

Venue suitability

The K-AW-101ESWR suits busy restaurants, hotels, catering operations and function kitchens that want 10-tray combi output in a slim 530mm footprint. Its direct-steam system and precise humidity control suit varied high-cover menus and cook-chill regeneration. It is less suited to very small cafes, where the compact 6-tray K-AW-061ESWR fits the load and floor space better.

Browse the full range of combi steam ovens or explore the complete Fagor range to compare capacities and configurations.

Installation & delivery

This combi oven requires a 415V three-phase supply and must be hardwired and commissioned by a licensed electrician, with a water connection and drainage to suit the direct-steam and wash systems. The hinge side is specified to order, so confirm layout before ordering; packed dimensions are 579 x 918 x 1107 mm. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. The K-AW-101ESWR is backed by a 2 Years Parts and Labour warranty; see our warranty information for full details.

Frequently asked questions

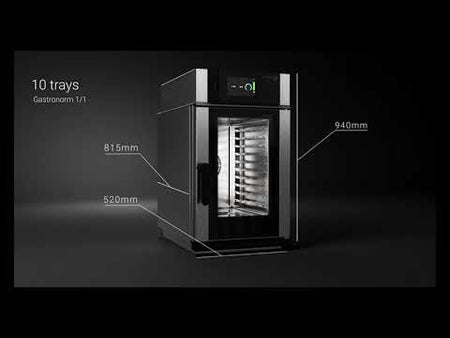

Q: How many trays does the Fagor K-AW-101ESWR hold? A: It holds 10 GN 1/1 trays in a slim 530mm-wide cabinet, giving high-output combi capability for restaurants, hotels and catering kitchens where space is tight.

Q: What power supply does the K-AW-101ESWR need? A: It runs on a 415V three-phase (3N) supply rated at 12.4kW and must be hardwired by a licensed electrician, so confirm three-phase power is available at the installation point.

Q: Does the K-AW-101ESWR use a boiler or direct steam? A: It uses direct steam generation, producing steam on demand without waiting for a boiler to heat up.

Q: How does the K-AW-101ESWR compare to the 6-tray K-AW-061ESWR? A: Both share the same 530mm-wide cabinet, direct steam and 10.1-inch touchscreen; the 101 holds 10 GN 1/1 trays on 12.4kW versus the 061's 6 trays on 7.4kW.

Q: Is the K-AW-101ESWR connectable for HACCP? A: Yes. It is compatible with FagorKonnect and supports Ethernet, Wi-Fi and USB connectivity with HACCP data logging.

Q: What warranty does the K-AW-101ESWR come with? A: It is covered by a 2 Years Parts and Labour warranty covering both components and on-site labour for the stated period.
