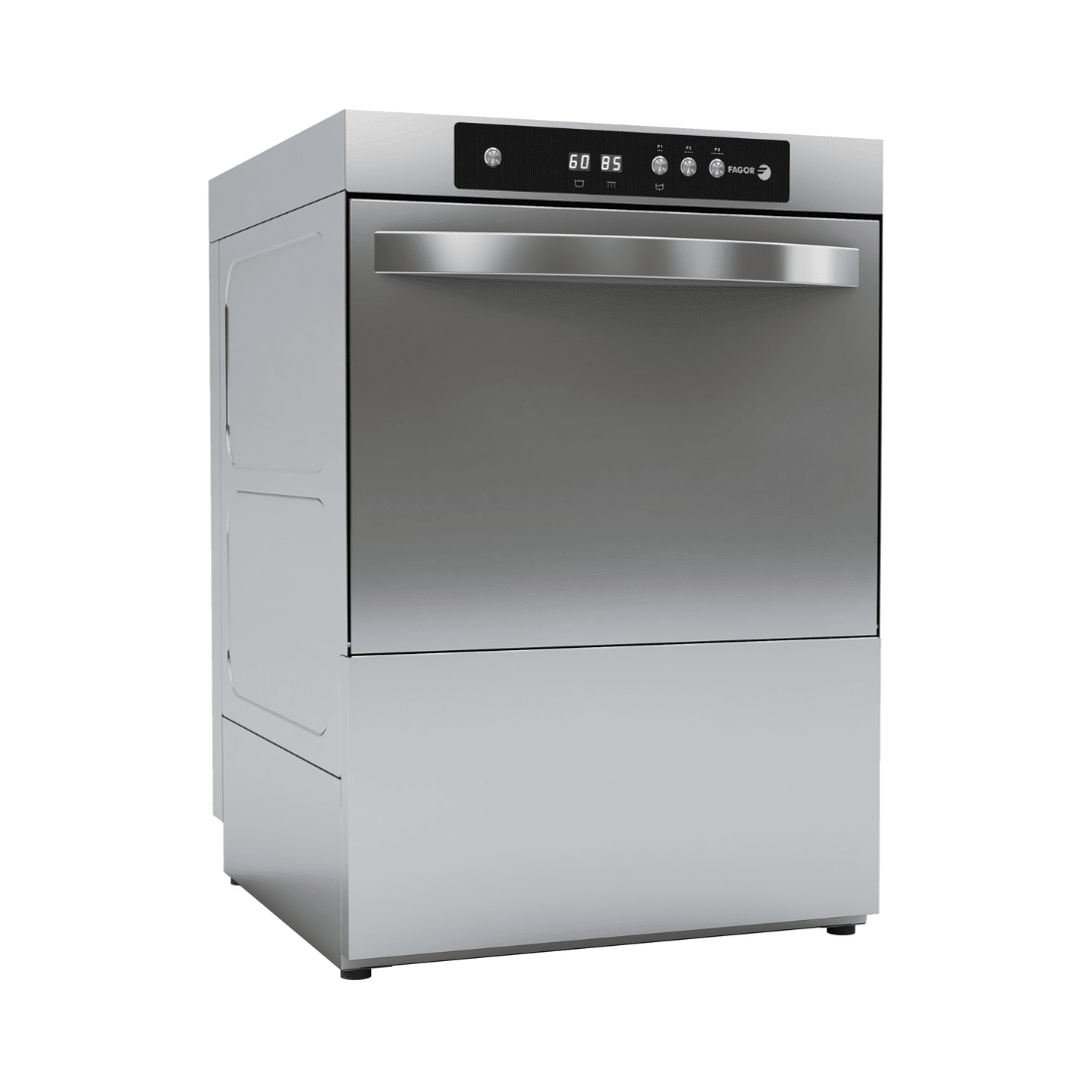

Fagor Inova Concept Front Loading Dishwasher WUC-502TBD

The Fagor WUC-502TBD is a front-loading undercounter commercial dishwasher from the iNova Concept range, clearing up to 40 baskets per hour through a 500 x 500 mm rack while fitting neatly under a standard bench — built for cafes, bars, small restaurants and back-of-house wash points. It runs on a standard 240 V single-phase 15 A supply, uses just 2.2 litres per cycle, and pairs twin 680 W wash pumps with a triple-stage filtration system.

Why operators choose the WUC-502TBD

• Fits under the bench — front-loading undercounter design at 576 x 605 x 835 mm for tight wash areas.
• 240 V 15 A single-phase — runs on a standard single-phase supply, no three-phase wiring required.
• 40 baskets/hour — steady throughput on a 500 x 500 mm rack with 385 mm ware clearance.
• Twin 680 W wash pumps — dual-flow wash with double rotating AISI-304 wash and rinse arms.
• Triple-stage filtration — keeps wash water cleaner across a busy service.
• Low water use — 2.2 litres per cycle from a 20-litre wash tank and 7-litre rinse boiler.
• Soundproofed double-skin door — heat-resistant and quieter, with electronic control and two-digit LED displays.
• Backed by warranty — 2 years parts & labour cover.

Specifications

Venue suitability

The WUC-502TBD suits cafes, bars, small restaurants and back-of-house wash points that need reliable dishwashing under a standard bench without three-phase power. Where throughput is higher and a tall lift-up hood is needed for trays and large plates, the hood-type WHC-502TBD is the step up in the same iNova Concept range.

Browse the full commercial dishwasher range or explore more from the Fagor range.

Installation & delivery

The WUC-502TBD requires a cold water inlet, a drain (a 40 W drain pump is fitted) and a 240 V 15 A single-phase power point; a 15 A outlet should be fitted by a licensed electrician if one is not already in place. Packed dimensions are 600 x 745 x 1030 mm. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. Warranty is 2 years parts & labour; see our warranty information for full details.

Frequently asked questions

Q: Is the WUC-502TBD an undercounter dishwasher? A: Yes. The WUC-502TBD is a front-loading undercounter dishwasher that fits under a standard bench at 576 × 605 × 835 mm.

Q: How many baskets can the WUC-502TBD wash per hour? A: It clears up to 40 baskets per hour using a 500 × 500 mm rack.

Q: What power supply does the WUC-502TBD need? A: It runs on a standard 240 V 15 A single-phase supply (3.48 kW), so no three-phase wiring is required.

Q: How is the WUC-502TBD different from the WHC-502TBD? A: The WUC-502TBD is a front-loading undercounter machine with 385 mm clearance on a 240 V 15 A single-phase supply, while the WHC-502TBD is a hood-type pass-through machine with 450 mm clearance on a three-phase supply.

Q: How much water does the WUC-502TBD use? A: It uses 2.2 litres per cycle, drawing from a 20-litre wash tank and a 7-litre rinse boiler.

Q: What warranty does the WUC-502TBD come with? A: The WUC-502TBD is covered by 2 years parts & labour warranty.
