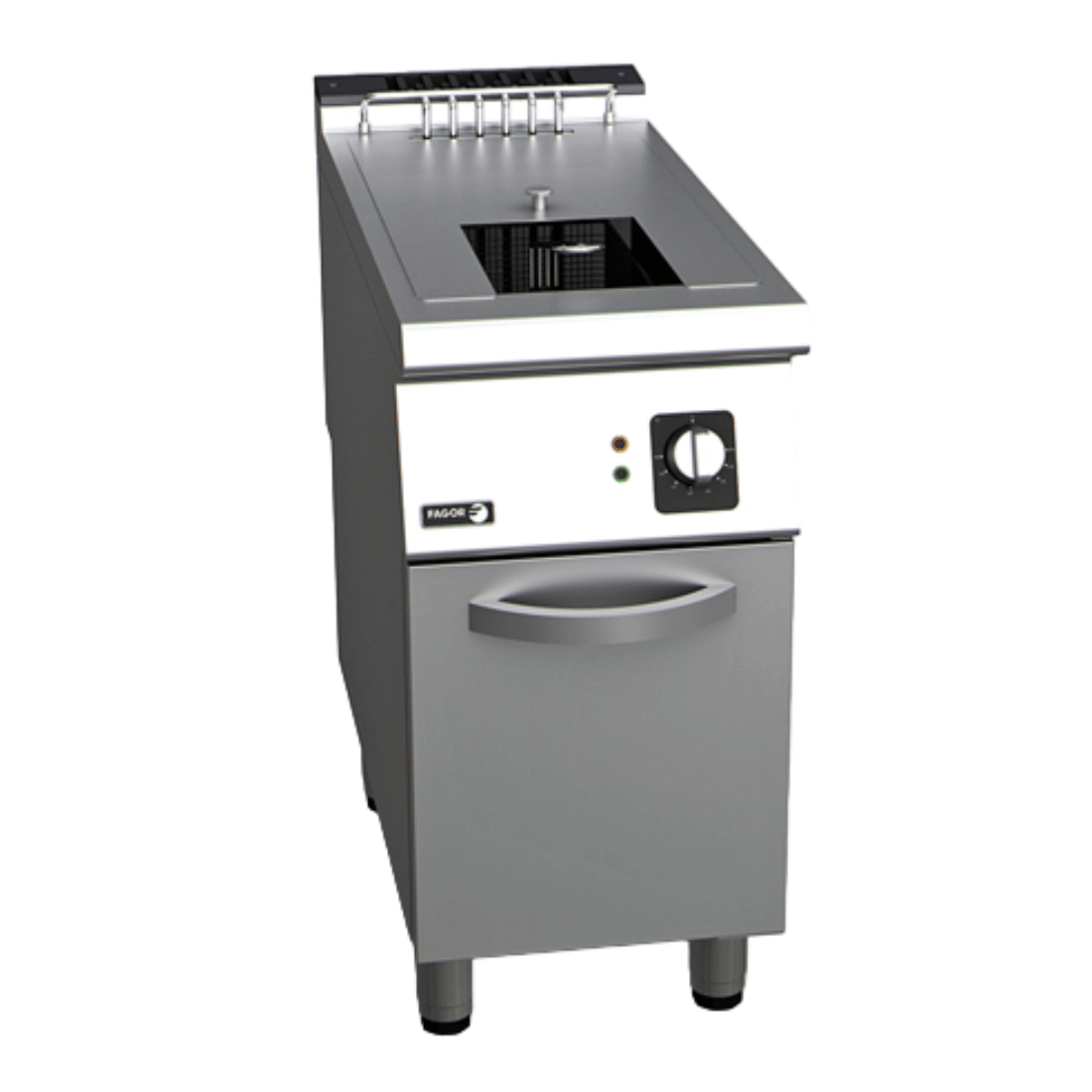

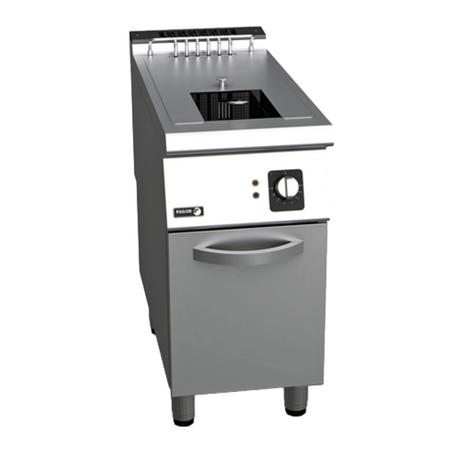

Fagor Kore 900 Electric Fryer with 1x21L Tank and 2 Baskets F-E9121

The Fagor F-E9121 is a freestanding Kore 900 single-tank electric deep fryer built around one 21 litre oil well and two baskets, giving dedicated fry stations in pubs, QSRs and fish & chip shops high single-product throughput from a slim 400mm-wide footprint. An 18kW element set on a 415V three-phase supply keeps recovery fast as baskets rotate back-to-back, with thermostatic 60–200°C control and 2mm AISI-304 stainless steel construction (400 × 930 × 850mm, 75kg net).

Why operators choose the F-E9121

• Large 21L single well — enough oil volume to hold temperature under back-to-back loads of one product line.
• Two baskets on one well — stage or split loads so a fresh basket drops while the last one drains.
• 18kW three-phase heating — a strong power-to-litre ratio recovers oil temperature quickly between baskets.
• Slim 400mm footprint — half the width of the twin-tank Kore 900 fryers, so it slots into a tight cookline.
• Cold-zone well — sediment collects below the heating elements, preserving oil quality and extending oil life.
• Swivelling AISI-304 elements and ball-valve drain — elements pivot more than 90° for cleaning and the well empties through a high-temperature ball valve.
• IPX5 wash-down build — the tank is stamped into a 2mm AISI-304 top with robot-welded, polished joints and hidden screws.

Specifications

Venue suitability

The F-E9121 suits chip-led venues — pubs, takeaways, QSRs and fish & chip shops — that fry one product line hard and want a full 21 litre well behind it, and its 400mm width makes it the pick for tight cooklines. It is not the right unit for menus that need allergen or flavour separation across two oils; that job belongs to a twin-tank model.

Browse more commercial deep fryers or explore the full Fagor range.

Installation & delivery

The F-E9121 draws 18kW on a 415V three-phase (3~N) supply and must be hard-wired by a licensed electrician. The crate measures 1022 × 440 × 1255mm at 75kg net — the slim pack fits standard doorways more easily than the twin-tank units, but still confirm access on delivery day. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. Warranty is 2 years parts & labour plus 2 years parts only, with product registration within 14 days of invoice; see our warranty information for full details.

Frequently asked questions

Q: How much oil does the Fagor F-E9121 hold? A: It has a single 21 litre oil well served by two frying baskets.

Q: Why does a single-tank fryer come with two baskets? A: The 21 litre well is wide enough to run two baskets at once, so you can stage loads — dropping a fresh basket while the previous one drains — and keep one product line moving continuously.

Q: What power supply does the F-E9121 need? A: It draws 18kW on a 415V three-phase (3~N) supply, installed by a licensed electrician.

Q: Do I need the single-tank F-E9121 or a twin-tank Kore 900? A: Pick the F-E9121 for maximum output on a single product line from a 400mm footprint. If you need two oils — for allergen separation or chips plus proteins — choose the twin-tank F-E9215 (2 x 15 litres) or F-E9221 (2 x 21 litres). For lighter single-tank duty there is the 15 litre F-E9115.

Q: How easy is the F-E9121 to clean? A: The AISI-304 heating elements swivel more than 90° for full access to the well, the tank is stamped into the top with no exposed joints, and the cold zone plus ball-valve drain make oil changes straightforward. It carries an IPX5 water-protection rating.

Q: What warranty comes with the F-E9121? A: It is covered by 2 years parts & labour plus 2 years parts only, with product registration within 14 days of invoice.
