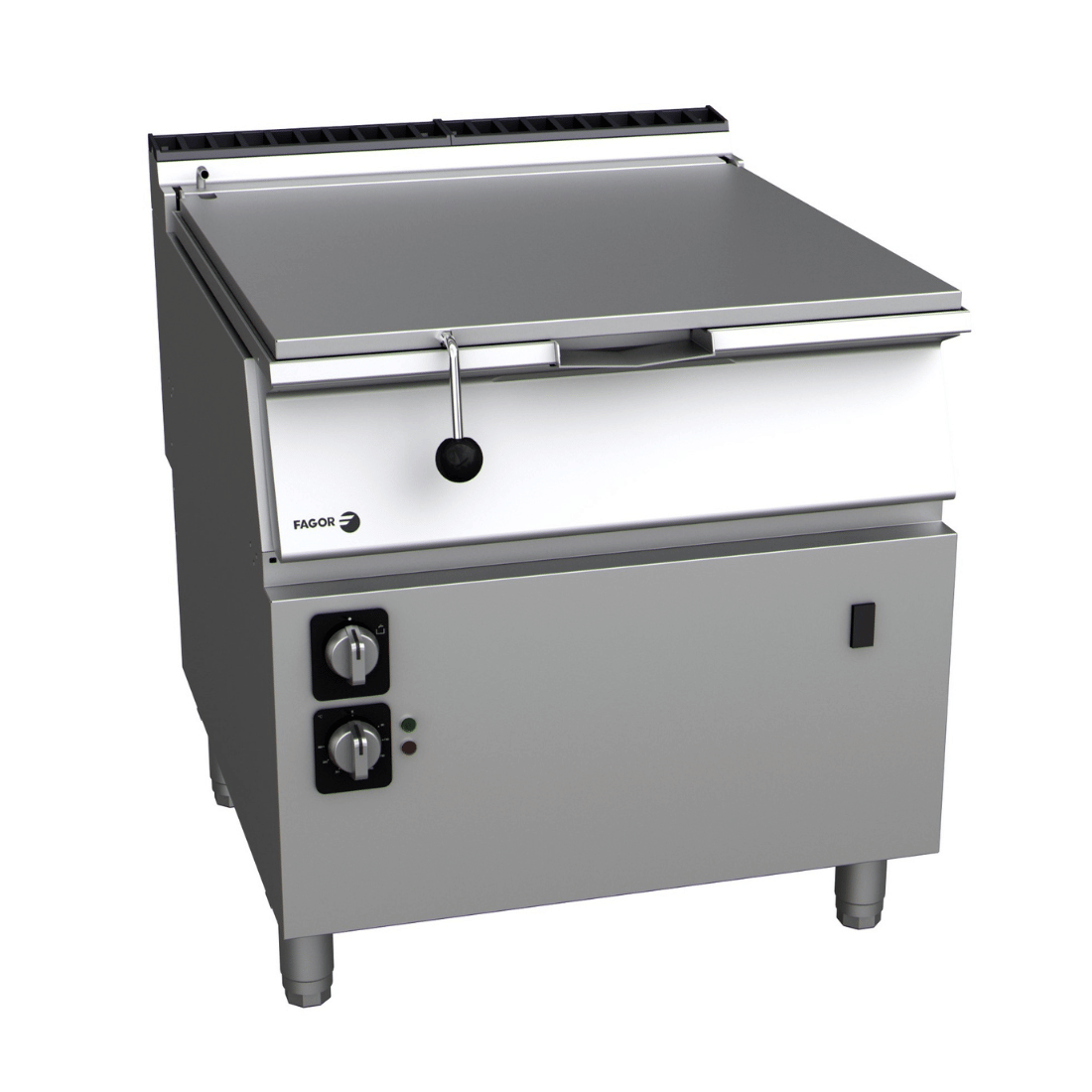

Fagor Kore 900 Series Electric 90L Bratt Pan - SB-E910IM

The Fagor SB-E910IM is an electric tilting bratt pan from the Kore 900 series, built for hotels, caterers, aged-care and central production kitchens that braise, sear, shallow-fry and bulk-cook from a single unit. A 90-litre stainless steel pan on a 10 mm base is heated by shielded stainless elements, with a 50–310 °C thermostat and a motorised tilt that raises the pan to vertical for complete emptying.

Why operators choose the SB-E910IM

• 90 L stainless steel pan — one large pan braises, stews, boils and shallow-fries in bulk across service.
• Electric 15 kW heating — shielded stainless elements in the base give even, controllable heat with no gas connection.
• Motorised tilt to vertical — the pan powers up to vertical for complete, hands-free emptying and fast clean-down.
• 50–310 °C thermostat — one pan covers gentle holding through to hard searing on a single dial.
• 10 mm stainless base — the thick base holds temperature and spreads heat evenly across the whole pan.
• Rounded corners, wide opening — no sharp edges and an open profile make loading, unloading and cleaning faster.
• Micro switch and IPX5 — heating cuts out when the pan is raised, and the IPX5 build withstands wash-down.
• 4-year warranty cover — 2 years parts & labour plus 2 years parts only with product registration.

Specifications

Venue suitability

The SB-E910IM suits hotels, function venues, aged-care, contract caterers and central production kitchens that batch-cook braises, stews, sauces and shallow-fried dishes and prefer an all-electric cookline with no gas connection. Gas sites wanting the same 90-litre pan can choose the motorised SB-G910IM or the manual-crank SB-G910I instead.

Browse the full range of commercial bratt pans or see the rest of the Fagor cooking range.

Installation & delivery

This is an electric appliance on a 415V three-phase supply (15 kW) and must be hard-wired and commissioned by a licensed electrician to AS/NZS standards. It ships at 1022 × 840 × 1255 mm packed. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. Warranty is 2 years parts & labour plus 2 years parts only when the product is registered within 14 days of invoice; see our warranty information for full details.

Frequently asked questions

Q: Is the SB-E910IM gas or electric? A: It is fully electric, running on a 415V three-phase supply at 15 kW with shielded stainless heating elements in the base — no gas connection needed.

Q: What is the pan capacity? A: The stainless steel pan holds 90 litres, on a 10 mm-thick base for even heat.

Q: Does the pan tilt automatically? A: Yes. A motorised tilt raises the pan to vertical for complete, hands-free emptying, and a micro switch halts heating when the pan is raised.

Q: What temperature range does it reach? A: The pan base is thermostatically controlled from 50 to 310 °C, so it covers gentle holding through to hard searing.

Q: What electrical supply does it need? A: A 415V three-phase supply rated for 15 kW, hard-wired by a licensed electrician.

Q: What warranty does it come with? A: It is covered by 2 years parts & labour plus 2 years parts only when the product is registered within 14 days of invoice.
