Fagor Pre-Rinsing Sink Bench W/ Introductor Of Baskets MCFD-1000D

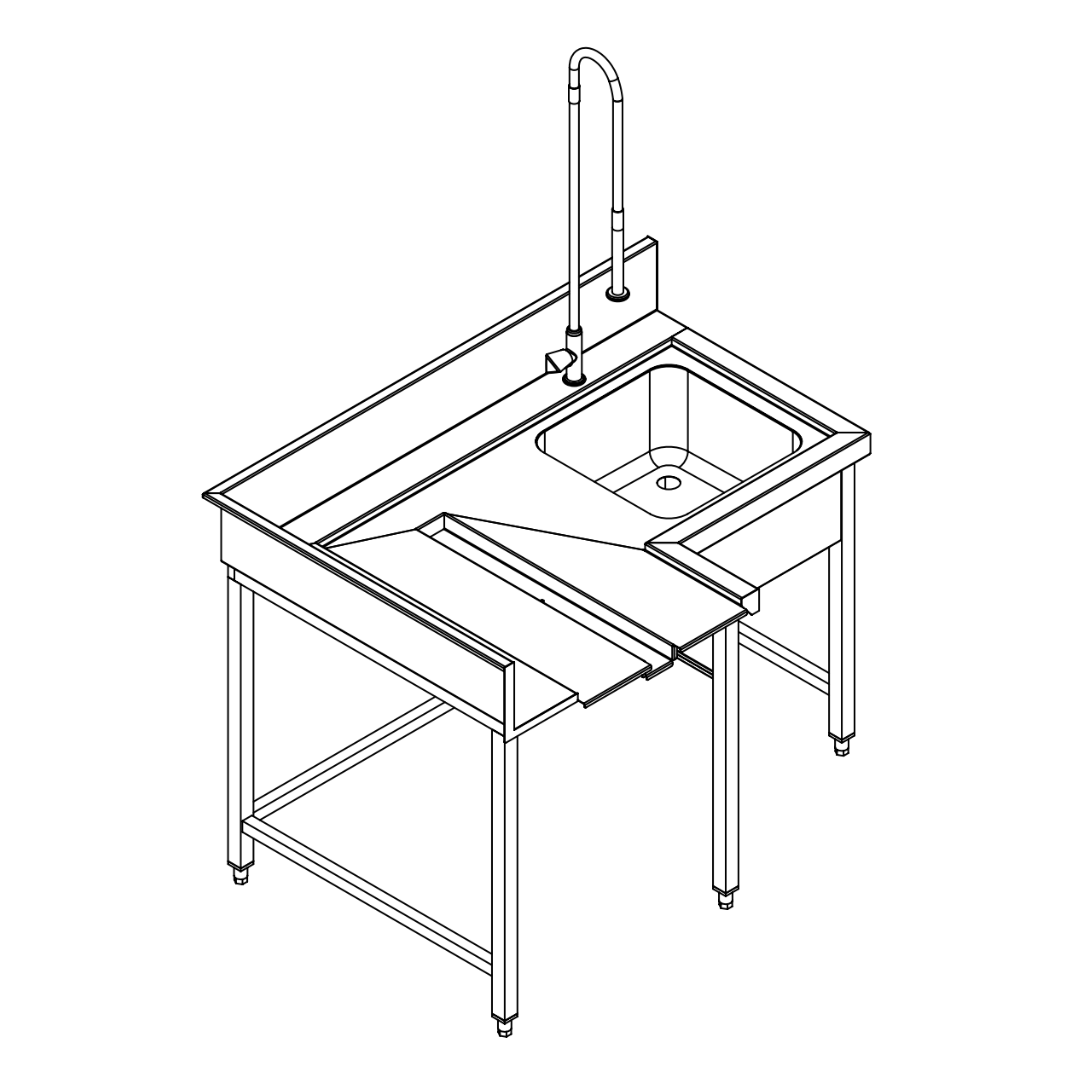

The Fagor MCFD-1000D is a stainless steel pre-rinsing sink bench with a corner basket introductor, built to feed 500 × 500 mm racks into a Fagor CCO rack conveyor dishwasher in busy restaurant, café, hotel and institutional wash-ups. The introductor is set in the left corner (1450 mm wide overall), with a 450 × 450 mm pre-rinse sink, flexible shower tap and height-adjustable AISI-304 legs.

Why operators choose the MCFD-1000D

• Feeds a Fagor CCO conveyor line — the basket introductor pushes 500 × 500 mm racks into the dishwasher using the conveyor's own advancement system.
• Left-corner configuration — the introductor is placed at the left for wash lines that load from that side — see the MCFD-1000I for the right-corner version.
• Integrated pre-rinse sink — a 450 × 450 mm sink with flexible shower tap clears heavy soil before racks enter the machine.
• AISI-304 stainless throughout — 18/10 stainless top with 40 × 40 mm square tubular legs resists corrosion across a wet wash area.
• Height-adjustable legs — level the bench to your dishwasher and floor.
• Deep anti-drip profiles — folded edges with a lower lip contain splash and wipe down fast.
• Seamless top — no holes on the surface for hygienic cleaning.
• 2-year parts & labour warranty — commercial-grade cover.

Specifications

Venue suitability

The MCFD-1000D suits medium-to-large restaurants, cafés, hotels and institutional kitchens running a Fagor CCO rack conveyor dishwasher, where staff need a dedicated pre-rinse and basket-loading station at the machine's left-hand feed. Pair it with the MCFD-1000I when your wash line loads from the other side.

Browse the full single-sink dishwasher & sink bench range or explore the complete Fagor commercial range.

Installation & delivery

The MCFD-1000D connects to a 3/4" cold-water inlet and a floor waste/drain, and couples to the infeed of your Fagor CCO conveyor dishwasher; final plumbing should be completed by a licensed plumber. It ships in a 1510 × 800 × 1230 mm carton at 80 kg. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. Backed by a 2-year parts & labour warranty; see our warranty information for full details.

Frequently asked questions

Q: What does the MCFD-1000D connect to? A: It is a pre-rinsing sink bench with a corner basket introductor designed to feed 500 × 500 mm racks into a Fagor CCO rack conveyor dishwasher.

Q: What is the difference between the MCFD-1000D and MCFD-1000I? A: The MCFD-1000D is configured for left-corner placement (1450 mm wide) and the MCFD-1000I for right-corner placement (1660 mm wide); choose the side that matches your wash line.

Q: What size baskets does it take? A: It is designed for 500 × 500 mm dishwashing baskets.

Q: What are the dimensions of the MCFD-1000D? A: It measures 1450 × 1000 × 900 mm (W×D×H) and weighs 80 kg net.

Q: What water and drainage does it need? A: A 3/4" water inlet and a 30 × 25 drain; final connection should be carried out by a licensed plumber.

Q: What warranty does the MCFD-1000D come with? A: 2 years parts & labour.
