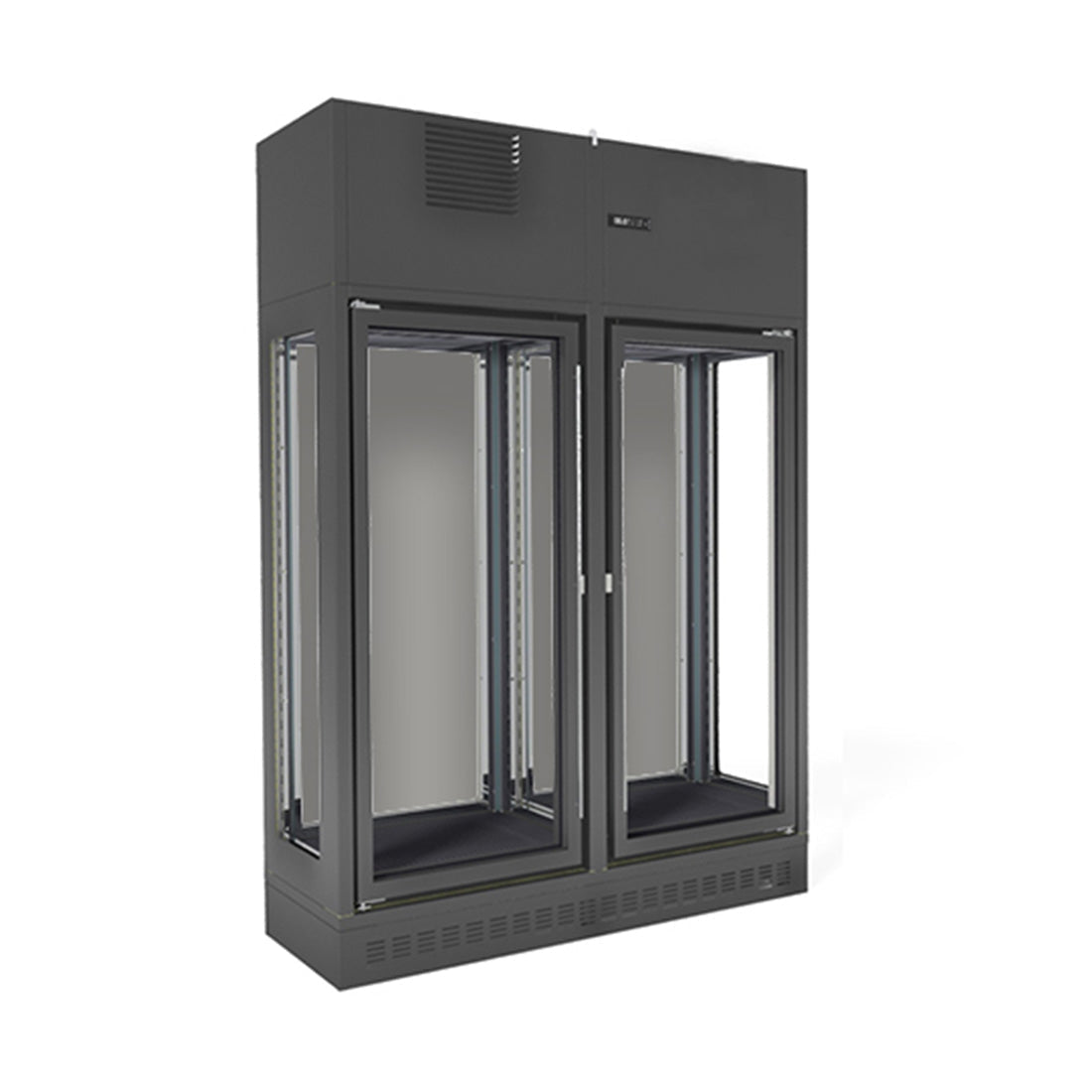

Fagor Single Zone 2 Doors Black Wall-Mounted Wine Cellar FWC-2302-1WB

The Fagor FWC-2302-1WB is a commercial single-zone wine cellar built to store and display up to 126 bottles across 18 shelves, finished in black Colorbond with double-glazed hinged glass doors. It is the wall-mounted configuration, designed to sit flush against a wall for a built-in look along a service line, suited to restaurants, hotels, bars and cellar doors that merchandise wine as part of the experience. Key figures: 126-bottle capacity, a single temperature zone (4–18°C), 1697 mm wide and a 15A supply.

Why operators choose the FWC-2302-1WB

• 126-bottle capacity — 18 shelves hold seven bottles each, so a two-single-door cabinet merchandises a full list.
• Single-zone control — an independent digital thermostat keeps one set point from 4–18°C to hold your whole collection at one steady serving or cellaring temperature.
• Wall-Mounted installation — this model is the wall-mounted version of the range, so it drops into the spot you have planned for it.
• Ventilated refrigeration — forced-air cooling keeps temperature even from top shelf to bottom in a busy venue.
• Double-glazed glass doors — heated glass and frames resist condensation so the display stays clear for service.
• Remote-adjustable LED lighting — perimeter LEDs light every bottle and are set from a remote control.
• Drain-free operation — a collection tray with automatic evaporation means no plumbed drain is required.
• Rated to 40°C ambient — holds temperature in warm Australian venues, drawing 240V on a 15A supply.

Specifications

Venue suitability

The FWC-2302-1WB suits restaurants, hotels, wine bars, function centres and cellar doors that store and present wine on the floor. With a 126-bottle capacity it works as a full two-door display wall, and the wall-mounted format means it sits neatly against a wall. The matching central version (FWC-2302-1CB) covers the opposite layout if your floor plan changes.

Browse the full commercial wine fridges range or see the complete Fagor line-up for matching refrigeration.

Installation & delivery

The FWC-2302-1WB is a self-contained, plug-in unit — it runs on 240V from a dedicated 15 amp outlet and needs no plumbed drain, thanks to automatic evaporation of defrost water. Allow clear airflow around the cabinet for the ventilated condenser and site it out of direct sun; it is rated to hold temperature in ambient conditions up to 40°C. It ships packed at 800 × 2685 × 1840 mm and weighs 583 kg net, so plan access and final positioning before delivery. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. Warranty is 2 years parts & labour plus 2 years parts-only, with product registration within 14 days of invoice; see our warranty information for full details.

Frequently asked questions

Q: How many bottles does the FWC-2302-1WB hold? A: The FWC-2302-1WB holds up to 126 bottles across 18 shelves (seven bottles per shelf).

Q: Is the FWC-2302-1WB single or dual zone? A: The FWC-2302-1WB is a single-zone cellar with one independent thermostat set anywhere from 4 to 18°C. If you need to store reds and whites at different temperatures, the dual-zone FWC-2302-2WB covers that.

Q: What is the difference between the Central and Wall-Mounted versions? A: The FWC-2302-1WB is the wall-mounted configuration; the central equivalent is the FWC-2302-1CB. The cabinets share the same capacity, temperature range and finish — the difference is how they are positioned in the room.

Q: What temperature range does the FWC-2302-1WB cover? A: It operates across 4 to 18°C and is rated to hold temperature in ambient conditions up to 40°C.

Q: What power supply does the FWC-2302-1WB need? A: It runs on 240V from a dedicated 15 amp outlet and is self-contained with no drain required.

Q: What warranty comes with the FWC-2302-1WB? A: It is covered by 2 years parts & labour plus 2 years parts-only, with product registration within 14 days of invoice.
