Fagor Stainless Steel Corner Bench W/ Introduction Of Baskets By The Right Side E-90D

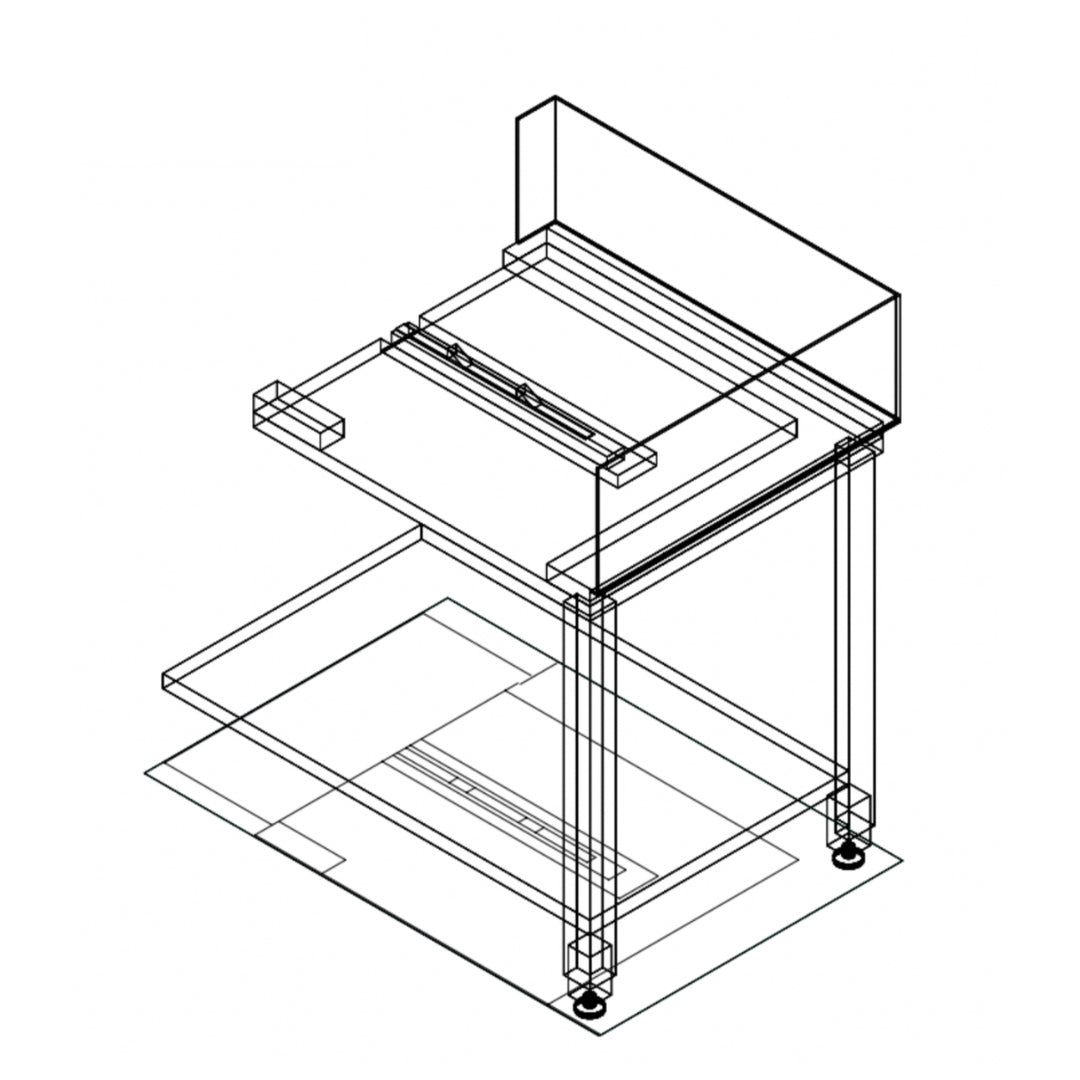

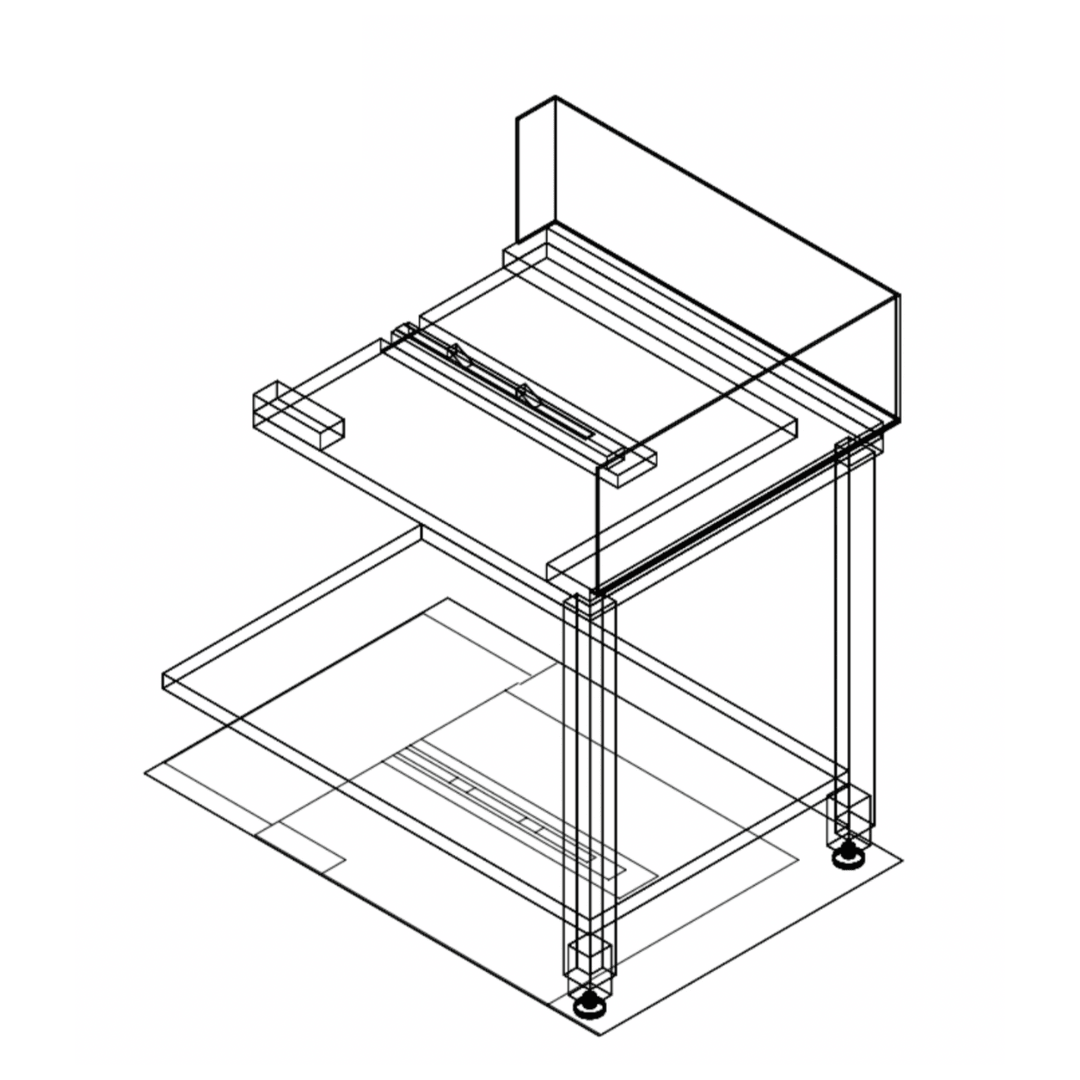

The Fagor E-90D is a stainless steel 90° corner bench with a right-side basket introductor, used to turn a Fagor CCO rack conveyor dishwasher line through a right angle and feed 500 × 500 mm racks in automatically. Drag nails driven by the dishwasher's own conveyor pull each basket in, with anti-splash at the entry and a lower storage shelf (790 × 690 × 850 mm, 15 kg net).

Why operators choose the E-90D

• 90° corner infeed — turns the wash line through a right angle where floor space is tight.
• Right-side introduction — feeds baskets from the right — see the E-90I for the left-side version.
• Automatic basket drag — drag nails are activated by the dishwasher's conveyor to pull racks in without manual pushing.
• Anti-splash entry — contains water at the infeed for a cleaner, drier floor.
• AISI-304 stainless (18/10) — corrosion-resistant top with 40 × 40 mm square tubular adjustable legs.
• Lower storage shelf — keeps spare racks and supplies within reach.
• Height-adjustable legs — level the bench to your machine and floor.
• 2-year parts & labour warranty — commercial-grade cover.

Specifications

Venue suitability

The E-90D suits restaurants, hotels, function centres and institutional kitchens running a Fagor CCO rack conveyor dishwasher where the wash line has to turn a corner and staff want baskets fed in automatically from the right. Pair it with the E-90I when your line turns the other way.

Browse more dishwasher stands & accessories or explore the full Fagor commercial range.

Installation & delivery

The E-90D arrives ready to position and couple to the infeed of your Fagor CCO conveyor dishwasher; no power or plumbing connection is required for the bench itself. Set it in place, level the adjustable legs and align it to the conveyor drag. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. Backed by a 2-year parts & labour warranty; see our warranty information for full details.

Frequently asked questions

Q: What does the E-90D do? A: It is a 90° corner bench that turns a Fagor CCO rack conveyor dishwasher line through a right angle and feeds 500 × 500 mm baskets in automatically from the right side.

Q: What is the difference between the E-90D and E-90I? A: The E-90D introduces baskets from the right side and the E-90I from the left side; choose the one that matches which way your wash line turns.

Q: Does the E-90D need power or plumbing? A: No — the bench itself needs no power or plumbing; baskets are dragged in by the dishwasher's own conveyor mechanism.

Q: What are the dimensions of the E-90D? A: It measures 790 × 690 × 850 mm (W×D×H) and weighs 15 kg net.

Q: What size baskets does it take? A: It is designed for 500 × 500 mm dishwashing baskets.

Q: What warranty does the E-90D come with? A: 2 years parts & labour.
