FED-X Chef Base Refrigerated Drawer Bench 184L XCB-36

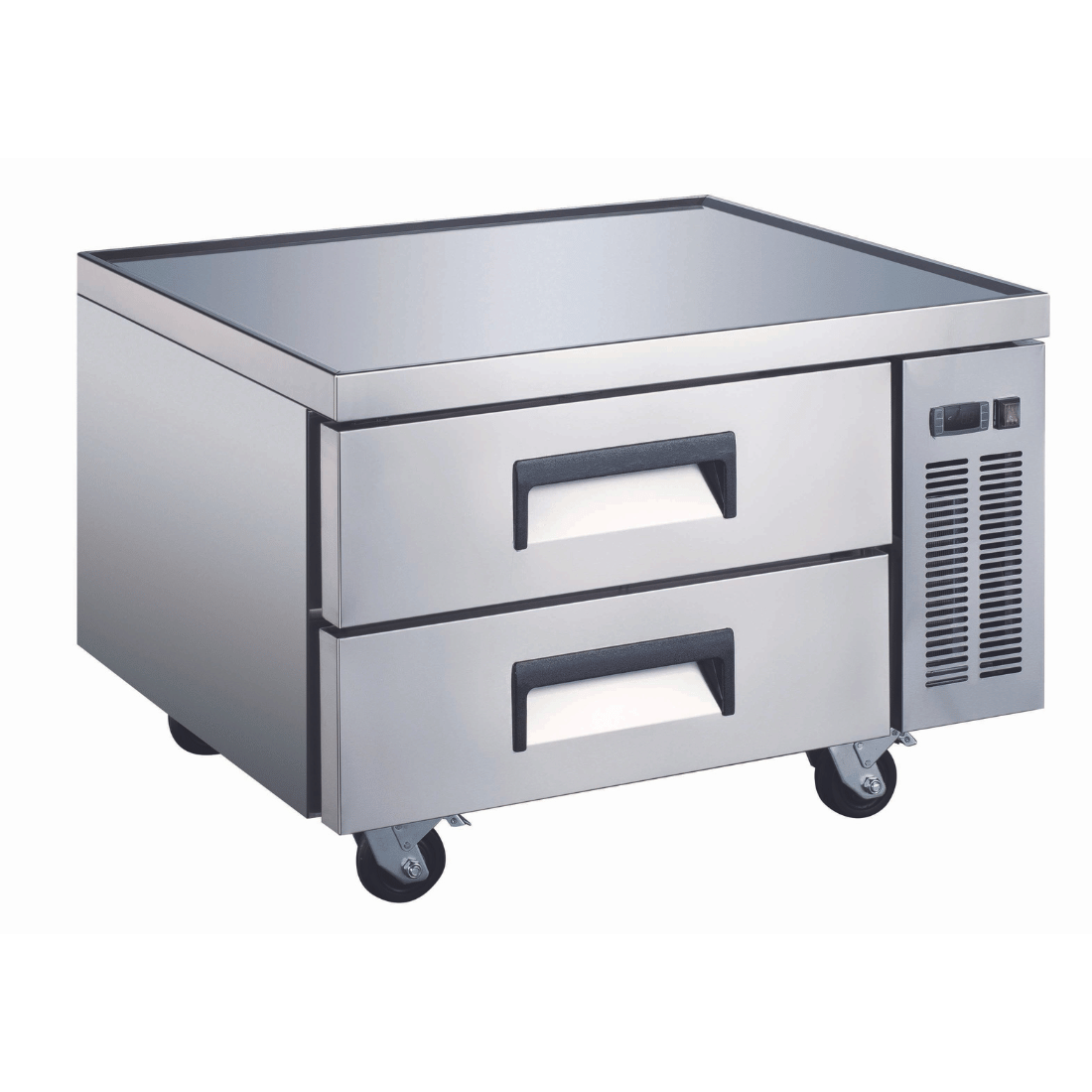

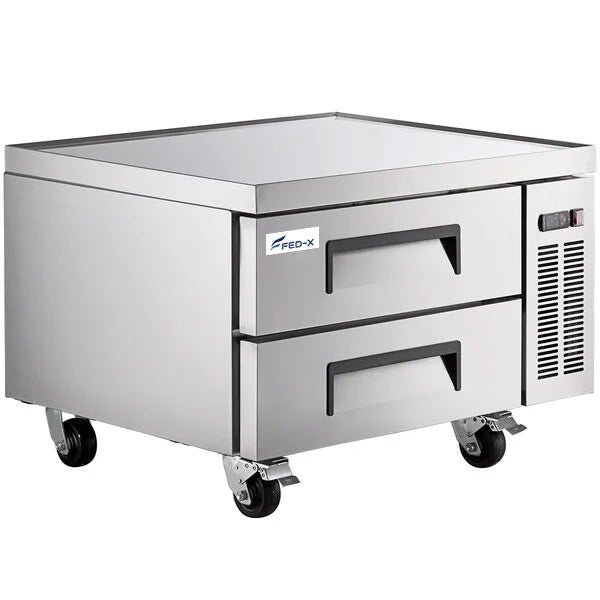

The FED-X XCB-36 is a chef base refrigerated drawer bench that puts 184L of chilled ingredient storage in two drawers under a load-bearing worktop, built to sit beneath countertop cooking equipment in busy kitchens. It holds -1 to +5°C on a 240V/10A supply, is tropicalised for Australian conditions, and combines a raised-edge stainless top with Austrian Fulterer drawer runners for durable, everyday use.

Why operators choose the XCB-36

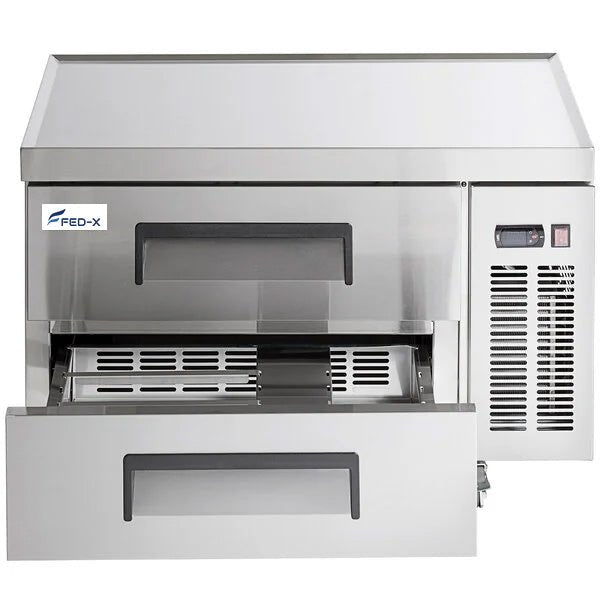

• 184L gross / 162L net in two drawers — Keeps cold ingredients directly under the cook line for fast service
• Load-bearing raised-edge top — Supports countertop cooking equipment while containing spills
• Austrian Fulterer drawer runners — Smooth, reliable drawer action built for heavy daily use
• Tropicalised for Australian conditions — Holds -1 to +5°C reliably in ambients up to 32°C
• GN pan compatible drawers — Take gastronorm pans (sold separately) in flexible configurations
• Fan-forced evaporator cooling — Rapid recovery and even temperature across both drawers
• Removable magnetic drawer gaskets — Lift out for quick cleaning and easy maintenance

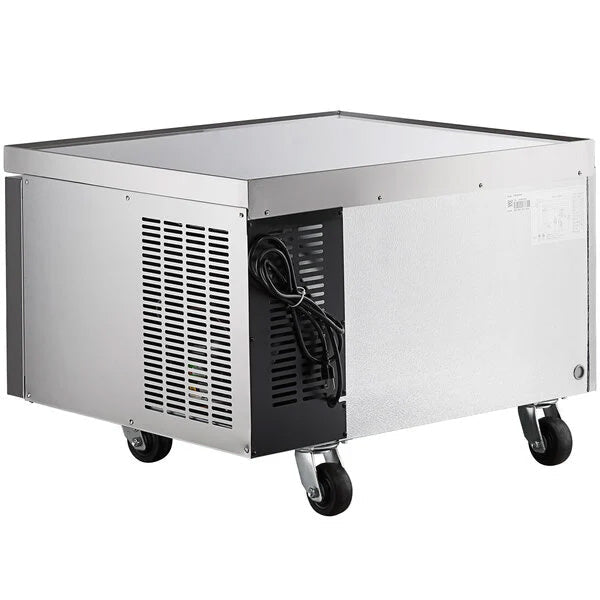

• Heavy-duty castors with front brakes — Move the unit for cleaning, then lock it in position

Specifications

Venue suitability

The XCB-36 suits commercial kitchens, food trucks and cook lines that run countertop chargrills, griddles or salamanders and want chilled ingredients directly underneath. Its load-bearing top is designed to carry cooking equipment; it needs GN pans (sold separately) to portion the drawer contents.

Compare it with the rest of our Drawer Fridges or see the full FED-X range.

Installation & delivery

Plugs into a standard 240V/10A single-phase power point (396W), so no special wiring is required. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. Warranty terms are set out on our warranty information page.

Frequently asked questions

Q: What is the capacity of the XCB-36? A: It provides 184L gross and 162L net of chilled storage across two drawers.

Q: What temperature range does it hold? A: It runs at -1 to +5°C and is tropicalised for ambients up to 32°C.

Q: How many drawers does it have? A: Two drawers, each compatible with gastronorm (GN) pans, which are sold separately.

Q: What are the dimensions? A: 924mm wide × 816mm deep × 658mm high; packed size is 886 × 990 × 724 mm.

Q: Can it support cooking equipment on top? A: Yes — the raised-edge top is load-bearing and designed to sit under countertop cooking equipment.

Q: What power supply does it need? A: A standard 240V/10A single-phase point (396W).

Q: Is it easy to move and clean? A: Yes — it has heavy-duty castors with front brakes and removable magnetic drawer gaskets for cleaning.

Q: What warranty is included? A: 2 years parts and labour plus 2 years parts only when registered within 14 days of invoice.
