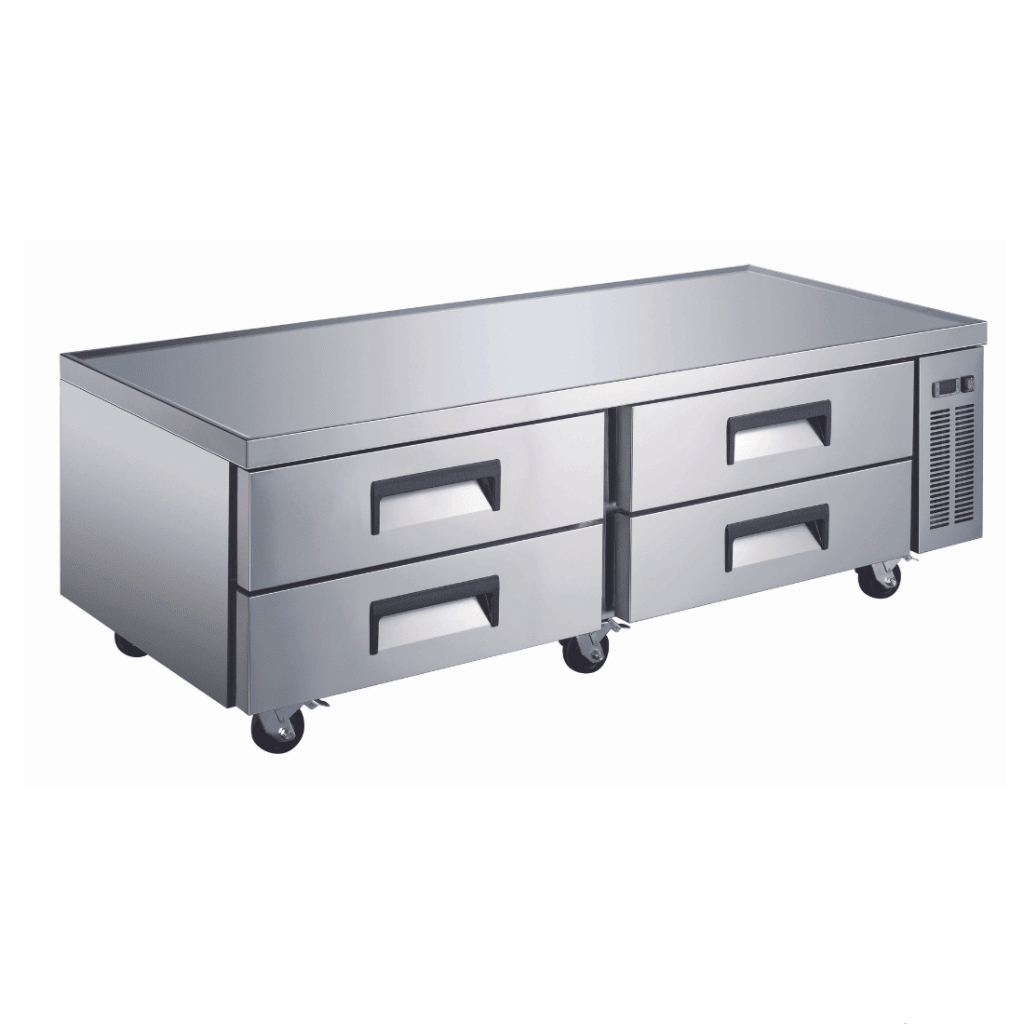

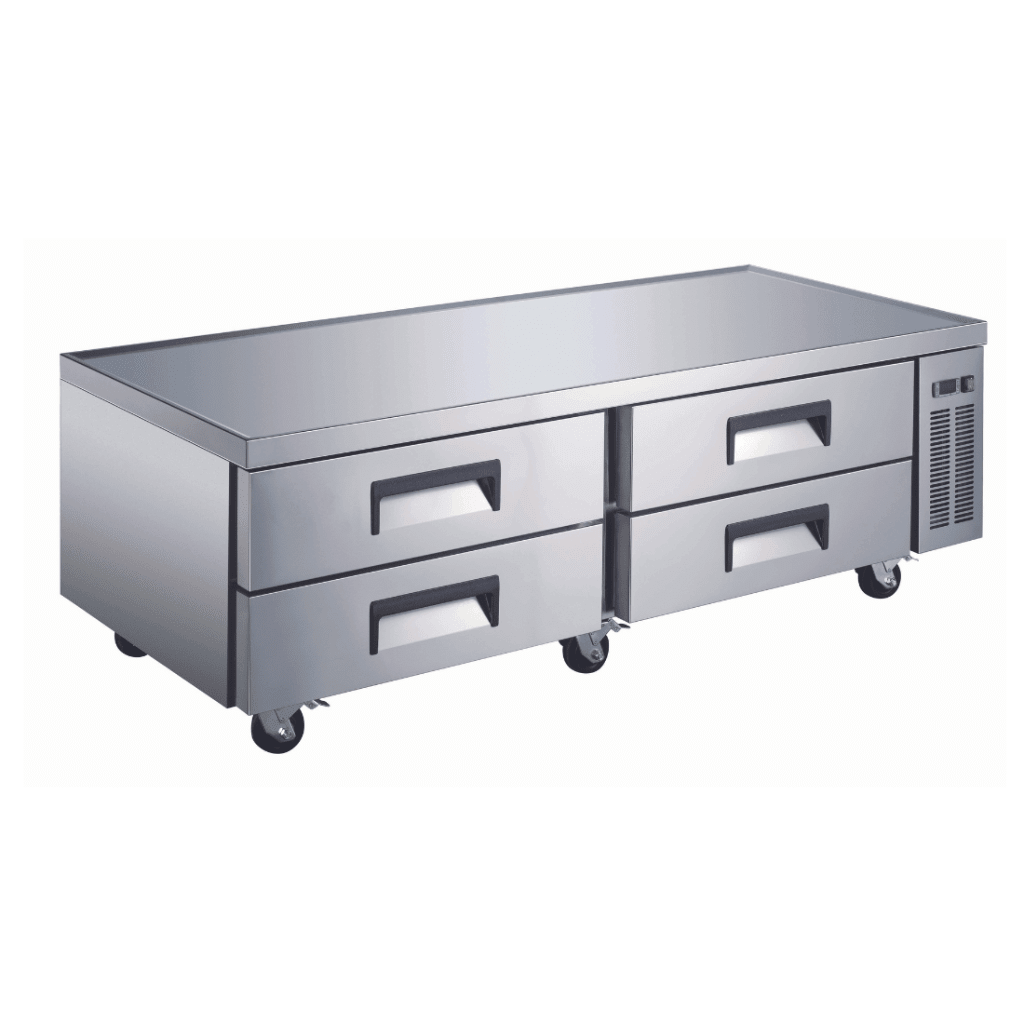

FED-X Chef Base Refrigerated Drawer Bench 453L XCB-72

The FED-X XCB-72 is a refrigerated chef base drawer bench that puts 450 L gross / 385 L net of cold ingredient storage directly beneath your cookline, built for busy commercial kitchens and cookline fit-outs. It holds -1°C to +5°C across 4 drawers on Austrian Fulterer heavy-duty runners, with a stainless steel body and fan-forced cooling. Designed to carry Gasmax and other benchtop cooking equipment on top, it turns otherwise dead space under the cooktop into food-safe prep storage.

Why operators choose the XCB-72

• Refrigerated chef base design — sits directly under Gasmax and other benchtop cooking lines so cold ingredients stay within arm's reach of the cookline
• 4 refrigerated drawers — hold GN pans of prepped ingredients at safe temperature through long service periods
• Austrian Fulterer drawer runners — give smooth, heavy-duty drawer travel that stands up to constant commercial use
• -1°C to +5°C range — keeps proteins and prep cold and food-safe even under a hot cookline
• Fan-forced evaporator cooling — recovers temperature quickly after drawers are opened during peak service
• Stainless steel body with rounded corners — wipes down fast and meets commercial hygiene standards
• Heavy-duty castors with front brakes — let the base roll out for cleaning then lock firmly in place
• Tropicalised for Australian conditions — runs reliably in ambient temperatures up to 32°C

Specifications

Venue suitability

The XCB-72 suits busy commercial kitchens, food trucks and cookline fit-outs where under-bench cold storage keeps prep within reach of the cooktop above it. Its 1838mm width and 4 drawers make it well matched to venues building a modular cooking suite. It is less suited to sites needing tall upright storage or shelved bulk refrigeration.

Browse the full range in our Drawer Fridges collection or see every model in the FED-X range.

Installation & delivery

Plugs into a standard 10A single-phase outlet and rolls into place on locking castors. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. Warranty is 2 years parts and labour plus 2 years parts only when the unit is registered within 14 days of invoice; see our warranty information for full details.

Frequently asked questions

Q: What are the dimensions of the XCB-72? A: The XCB-72 measures 1838(W) x 816(D) x 658(H) mm and is packed at 1908(W) x 886(D) x 725(H) mm.

Q: What is the capacity of the XCB-72? A: It offers 450 L gross / 385 L net of refrigerated storage across 4 drawers.

Q: What temperature range does it hold? A: It holds -1°C to +5°C and is rated for ambient temperatures up to 32°C at 65% relative humidity.

Q: What power supply does it need? A: It runs on 240V, 660W, 10A from a standard single-phase outlet.

Q: Does it come with GN pans? A: No. The base is GN pan compatible but pans are sold separately, letting you configure the drawers to suit your prep.

Q: What warranty does the XCB-72 include? A: It is covered by 2 years parts and labour plus a further 2 years parts only when the unit is registered within 14 days of invoice.
