FED-X S/S Four Drawer Sandwich Counter XSS7C13S2V-4D

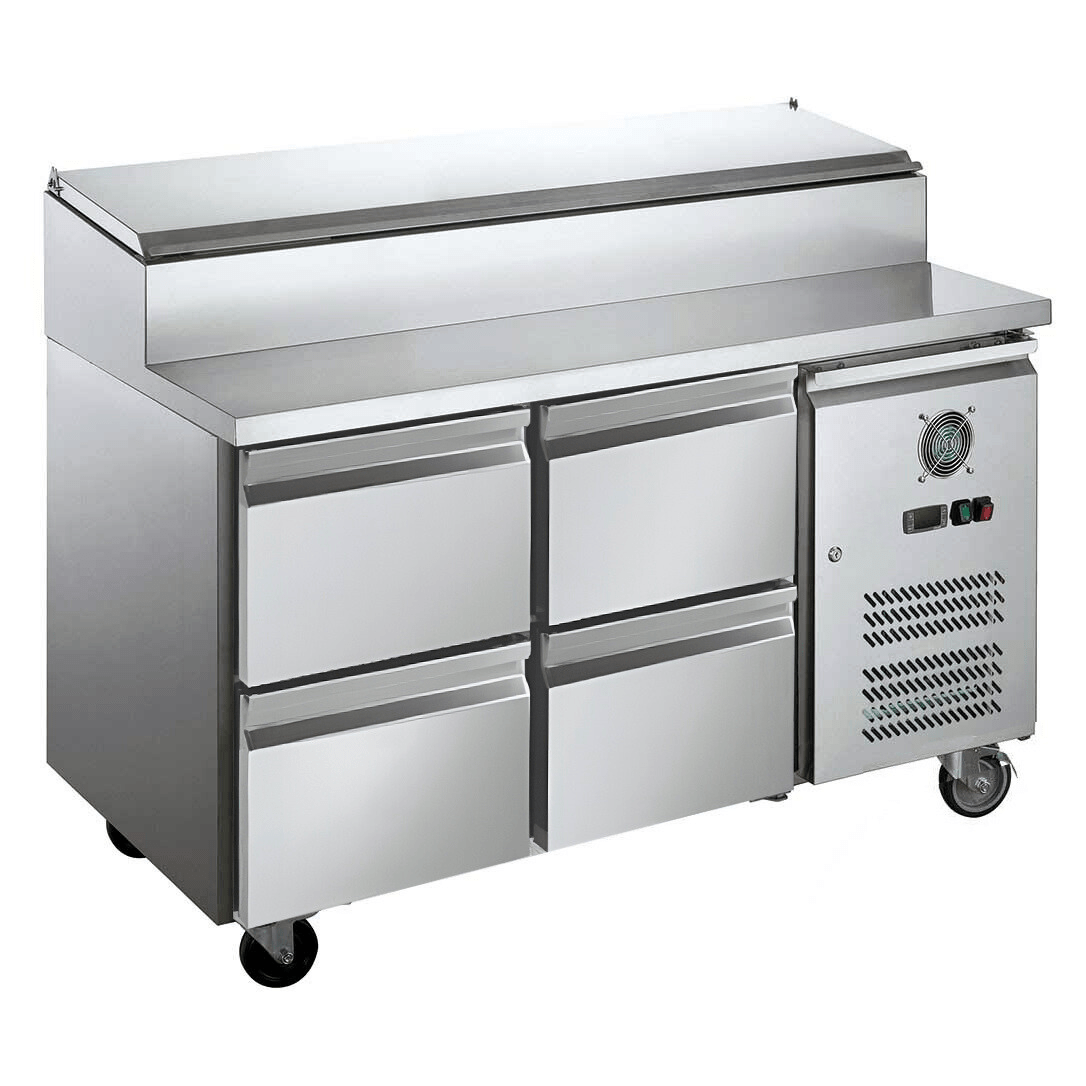

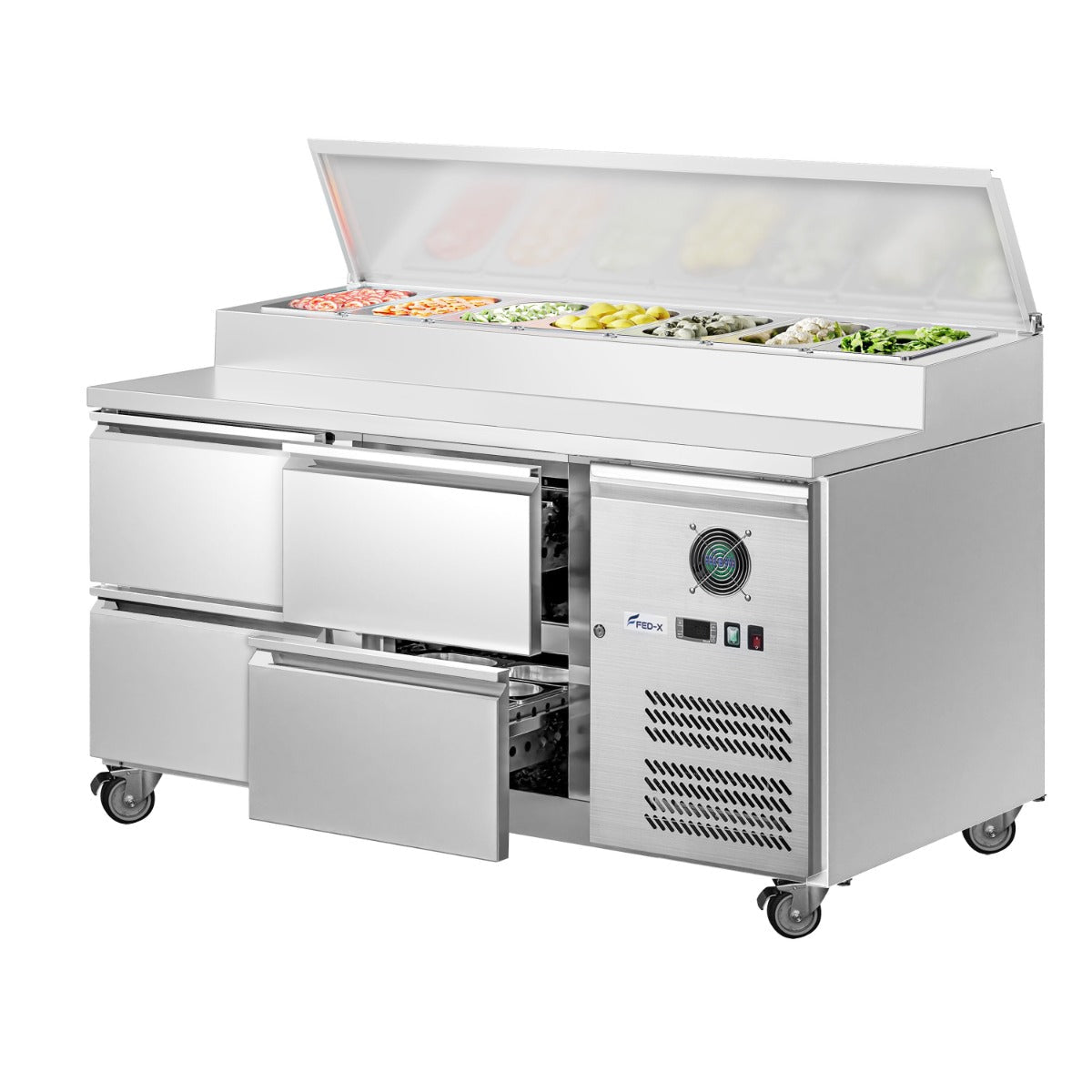

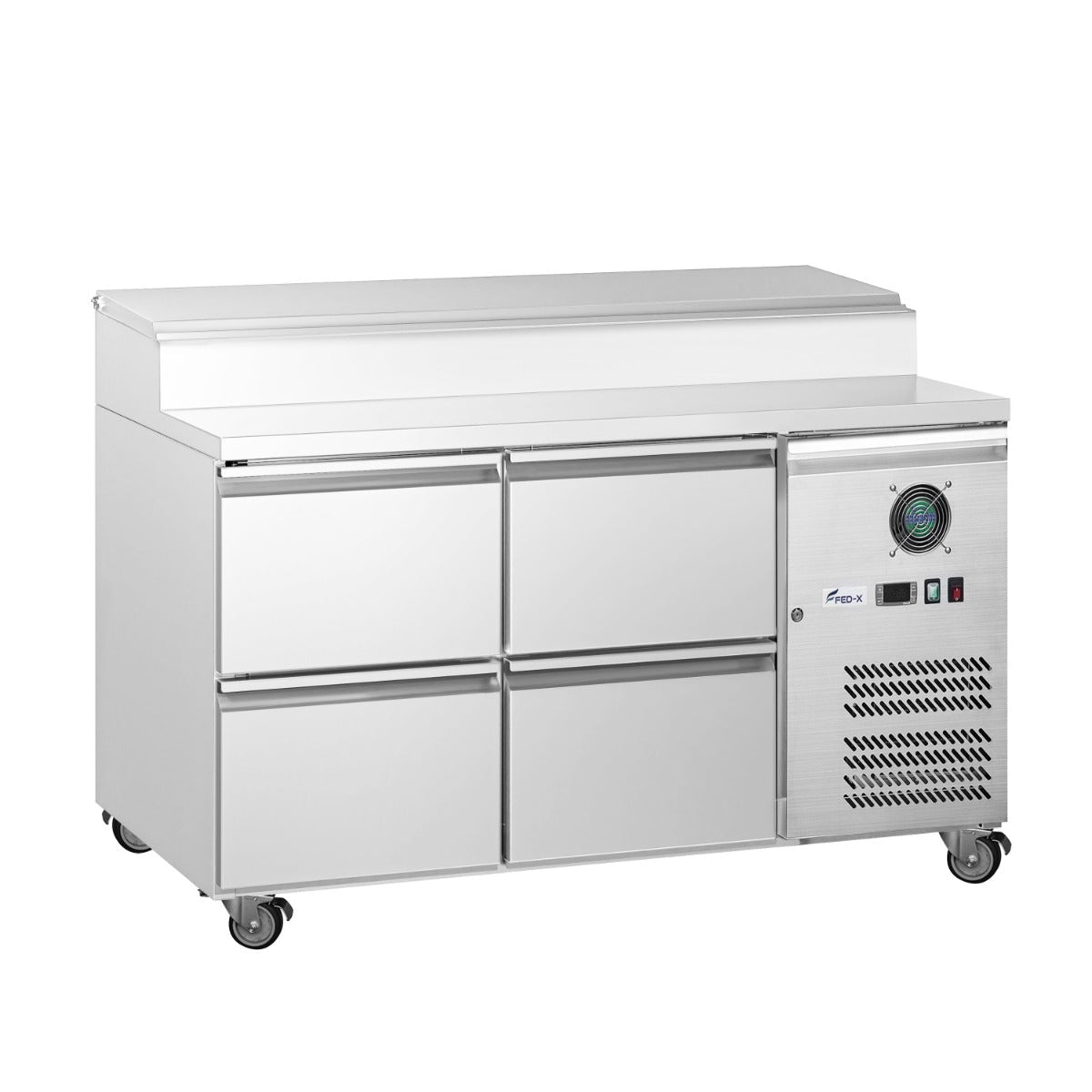

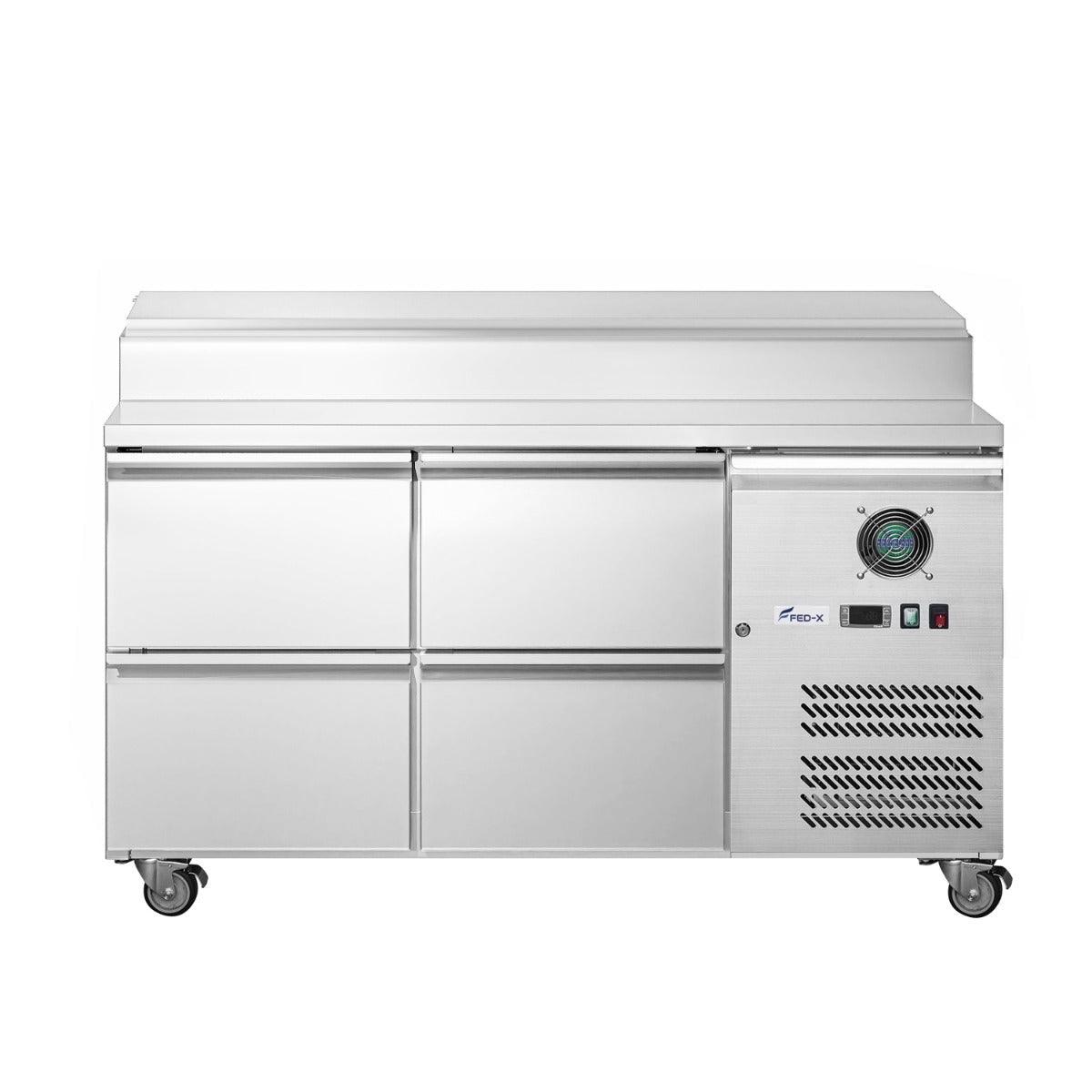

The FED-X XSS7C13S2V-4D is a stainless steel four-drawer sandwich and salad prep counter that chills toppings at the assembly point while giving drawer storage below, built for sandwich bars, cafes, delis and takeaway kitchens. It holds 282L gross and 259L net, takes 7 x GN1/3 pans up to 150mm deep in the top and runs +2 to +8°C on fan-forced cooling with R290 refrigerant. The chilled display top holds temperature for up to 4 hours from a pre-chilled state.

Why operators choose the XSS7C13S2V-4D

• 7 x GN1/3 pan prep top — chilled toppings ready at the point of assembly for fast service
• Four heavy-duty drawers — organised refrigerated storage for backup product below the prep top
• Fan-forced cooling, +2 to +8°C — even temperature so garnishes and fillings stay safe
• Display top holds temp up to 4 hours — keeps product safe through service even during brief power interruptions
• R290 natural refrigerant — low-GWP refrigerant with efficient running costs
• Stainless steel interior and exterior — hygienic, easy to clean and hard-wearing
• Tropicalised for Australian conditions — reliable performance in ambient temperatures up to 43°C
• Heavy-duty braked castors — roll the unit out for cleaning, then lock it in place

Specifications

Venue suitability

With a 7 x GN1/3 chilled prep top and four refrigerated drawers below, the XSS7C13S2V-4D suits sandwich bars, cafes, delis and takeaway kitchens that build made-to-order rolls, wraps and salads and need backup stock close to hand. It is less suited to operations needing a large over-shelf display, where a dedicated salad or noodle bar is a better fit.

Compare more options in our salad bar fridges range or browse the full FED-X lineup.

Installation & delivery

The XSS7C13S2V-4D runs on a standard 240V single-phase supply drawing 320W at 10A, and moves on heavy-duty braked castors for positioning in the prep line. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. Warranty terms are covered in full on our warranty information page.

Frequently asked questions

Q: How many pans does the XSS7C13S2V-4D hold? A: The prep top takes 7 x GN1/3 pans up to 150mm deep, with four refrigerated drawers below.

Q: What is the capacity? A: It holds 282L gross and 259L net.

Q: What temperature range does it hold? A: It operates from +2 to +8°C using fan-forced cooling.

Q: How long does the display top stay cold? A: The display top can hold temperature for up to 4 hours from a pre-chilled state.

Q: What are the external dimensions? A: 1360mm wide x 700mm deep x 1406mm high; packed it measures 1390 x 730 x 1160mm.

Q: What power supply does it need? A: A standard 240V single-phase outlet; it draws 320W at 10A.

Q: What warranty is included? A: 2 years parts and labour, plus a further 2 years parts only when you register within 14 days of invoice.
