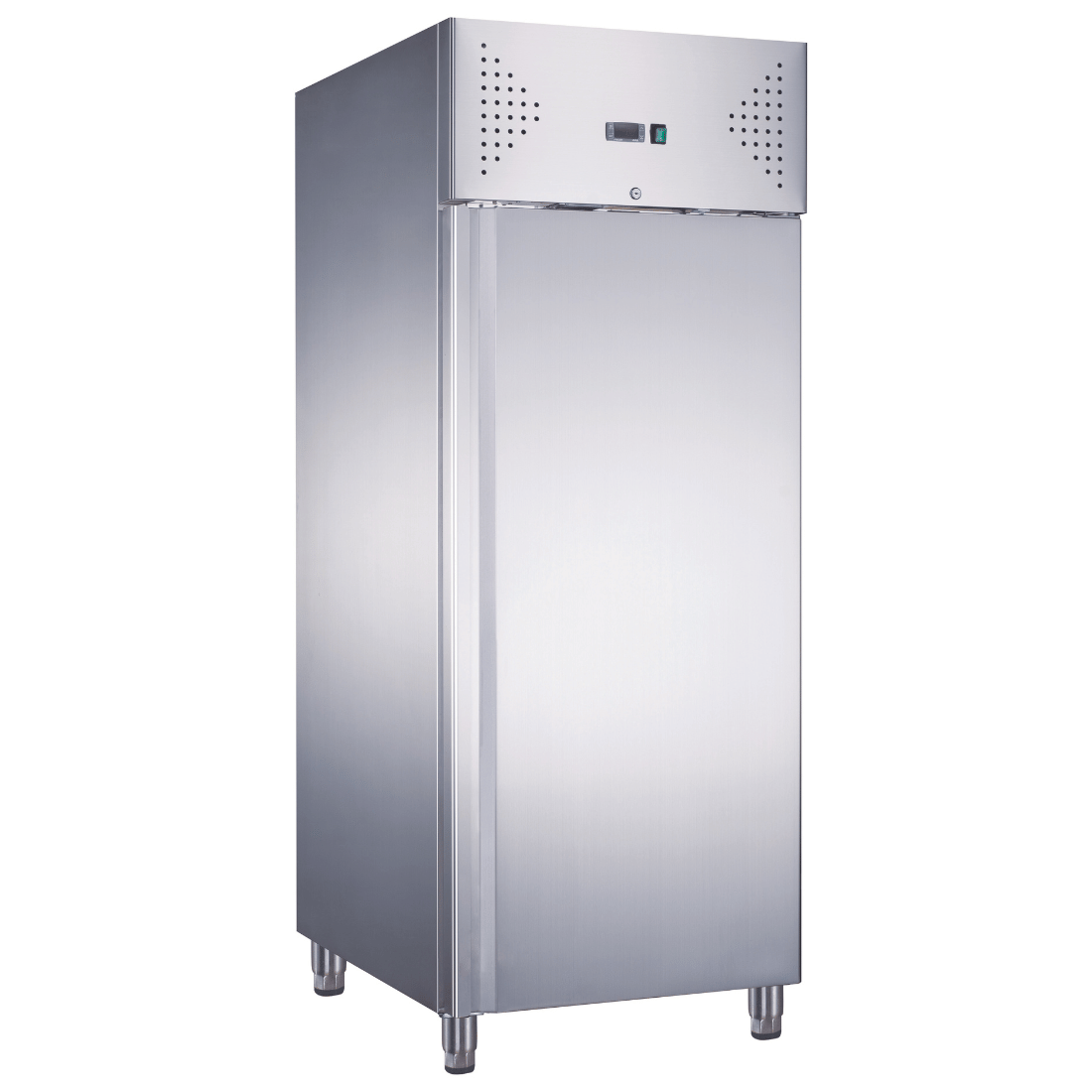

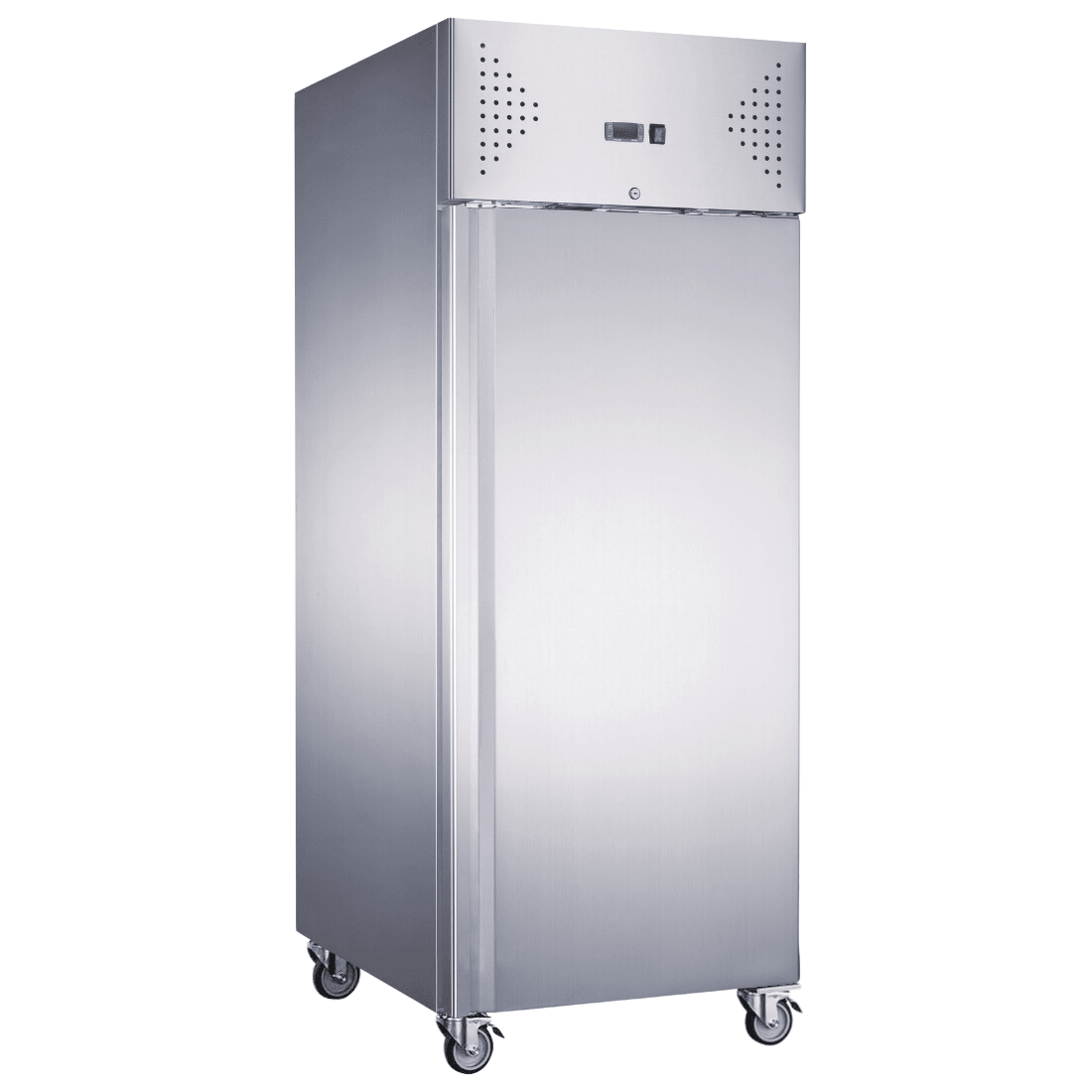

FED-X Bakery Chiller Cabinet - XPA800TN

The FED-X XPA800TN is a bakery chiller cabinet that holds 737L of chilled product across 10 full-size 600×800mm trays at -2 to +5°C, built for bakeries, patisseries and high-volume kitchens. It runs on a 240V/10A supply, uses R290 refrigerant with fan-forced cooling and a Dixell digital controller, and pairs a self-closing reversible door with all-stainless construction for demanding tray-based workflows.

Why operators choose the XPA800TN

• 10 × 600×800mm tray capacity — Chills full bakery trays and GN-compatible pans in one 737L cabinet
• Fan-forced cooling — Distributes -2 to +5°C evenly for consistent chilling across every tray
• Dixell digital controls & readout — Precise temperature setting and monitoring for bakery work
• R290 natural refrigerant — Low-GWP eco-friendly refrigerant with efficient performance
• Reversible self-closing door — Hands-free closing that suits busy tray-in, tray-out workflows
• Stainless steel interior & exterior — Hard-wearing, hygienic and easy to clean
• Internal LED lighting — Keeps the cabinet interior visible during loading
• Automatic defrost — Reduces manual maintenance in a high-use environment
• 60mm CFC-free insulation — Holds temperature efficiently at up to 43°C ambient

Specifications

Venue suitability

The XPA800TN suits bakeries, patisseries, pastry sections and high-volume kitchens that work in full 600×800mm trays and need reliable chilling to -2 to +5°C. Its 43°C ambient rating means it copes with hot bakery environments; it is a chiller, not a prover or hot holding cabinet, so it is not suited to warm dough proving.

Compare it with the rest of our Bakery Equipment or see the full FED-X range.

Installation & delivery

Plugs into a standard 240V/10A single-phase power point (295W), so no special wiring is required. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. Warranty terms are set out on our warranty information page.

Frequently asked questions

Q: What is the capacity of the XPA800TN? A: It offers 737L gross and 612L net, holding up to 10 full-size 600×800mm trays.

Q: What temperature range does it hold? A: It operates at -2 to +5°C, making it a chiller for cold storage of bakery product.

Q: Is the XPA800TN a chiller or a prover? A: It is a refrigerated bakery chiller cabinet running at -2 to +5°C; it is not a warm dough prover.

Q: What tray size does it take? A: Full-size 600mm × 800mm bakery trays, with 10 adjustable positions.

Q: What are the dimensions? A: 740mm wide × 990mm deep × 2010mm high; packed size is 1015 × 765 × 2070 mm.

Q: What power supply does it need? A: A standard 240V/10A single-phase point (295W).

Q: What refrigerant and controller does it use? A: R290 natural refrigerant with a Dixell digital controller and fan-forced cooling.

Q: What warranty is included? A: 2 years parts and labour plus 2 years parts only when registered within 14 days of invoice.
