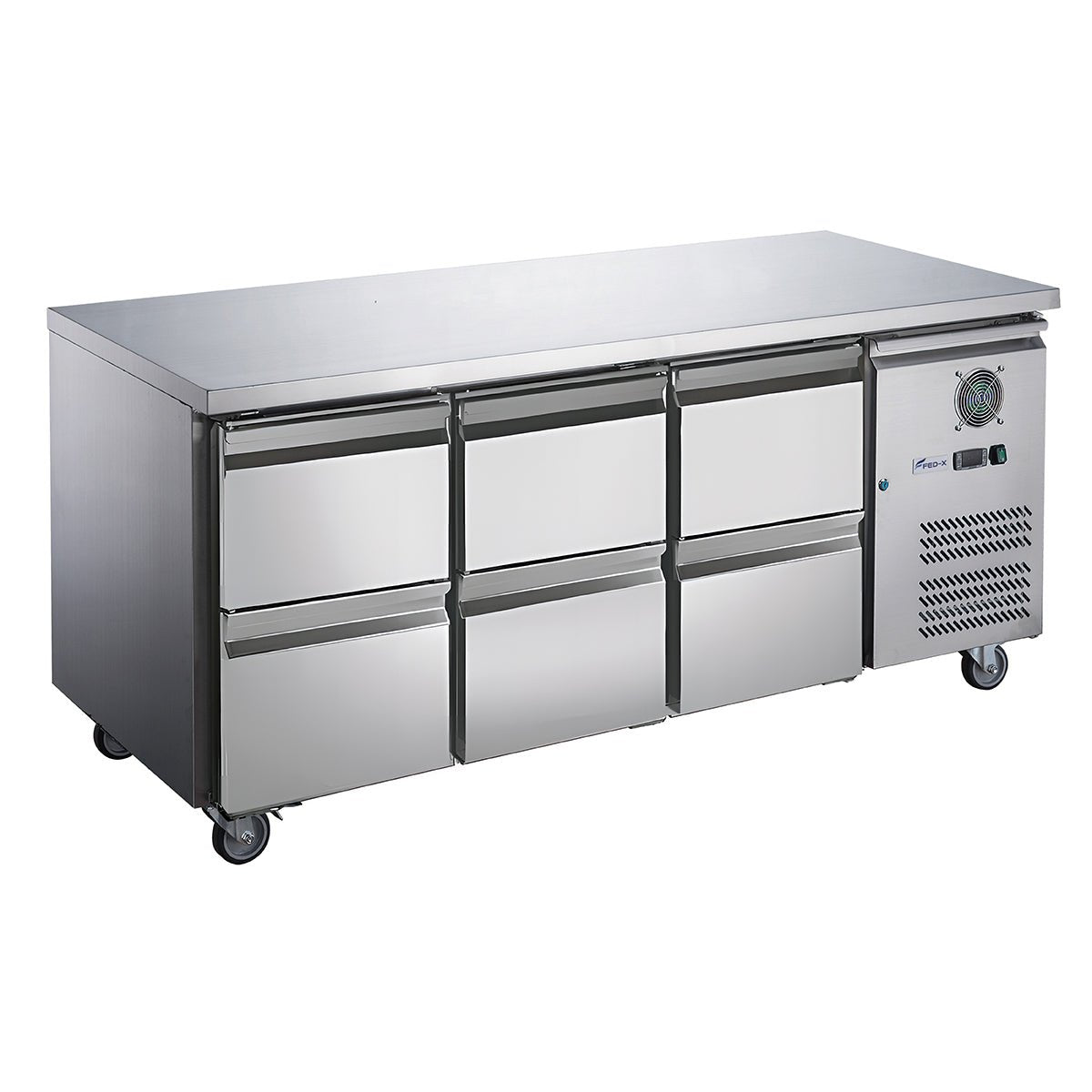

FED-X XUB7C18S3D six-drawer under bench fridge — front view in stainless steel

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

FED-X S/S Six-Drawer Under-Bench Fridge 417L - XUB7C18S3D

Name: FED-X S/S Six-Drawer Under-Bench Fridge 417L - XUB7C18S3D
Brand: FED-X
SKU: XUB7C18S3D
Price: 3186.00 AUD
Availability: InStock

In stock

SKU: XUB7C18S3D

$3,186.00

$3,186.00 +GST -40% ~~$5,310.00~~

Get Extra 11% OFF on FED-X! Use coupon: EXTRA11

Discover a lower price? Contact our team for a deal

Email 1300 000 927

From $5.78/day — for 12 months

Get approval in under 5 minutes Apply Now

Fast Delivery

Best Price

Australia-wide delivery

The FED-X XUB7C18S3D is a stainless steel under-bench fridge configured with six heavy-duty GN1/2 drawers - built for cook-lines, prep stations, and sandwich sections where fast drawer access beats swing-door fridges for speed of service. Tropicalised for Australian conditions and running on R290 natural refrigerant, it pairs commercial-grade components with a generous 417 L of chilled storage in a single-piece 1795 mm footprint.

Key features

6 x GN1/2 drawers - fastest access pattern for a busy cook-line or sandwich section
417 L gross capacity, -2 to +8 °C - holds meat, fish, dairy, or pre-prepped product safely
Tropicalised to 43 °C / 60% RH - performs reliably in hot Australian kitchens
R290 natural refrigerant - low-GWP, energy-efficient, future-proof against refrigerant phase-outs
Premium components - Embraco/Secop compressor, Dixell digital controller, Ebm-papst evaporator and condenser fans
10 A plug (240 V, 230 W, 1.3 A draw) - no electrician required for a standard install
Heavy-duty castors with front brakes - roll into position, lock for service; rated to sit flush against a wall

Specifications

Brand	FED-X
Type	Under-bench drawer fridge
Configuration	6 x GN1/2 heavy-duty drawers
Gross capacity	417 L
Temperature range	-2 to +8 °C
Max ambient	43 °C at 60% RH (tropicalised)
Refrigerant	R290
Cooling	Fan-forced
Compressor	Embraco / Secop
Controller	Dixell digital
Insulation	60 mm CFC/HFC-free foam
Construction	Stainless steel (interior + exterior), rounded corners
External dimensions (W x D x H)	1795 x 700 x 850 mm
Internal dimensions (W x D x H)	1234 x 580 x 564 mm
Packed dimensions (W x D x H)	1825 x 730 x 910 mm
Net weight	121 kg
Power	240 V, 230 W, 1.3 A (10 A plug)
Country of manufacture	China
Warranty	2 years parts & labour, plus 2 years parts only with registration within 14 days of invoice

Venue suitability

Built for restaurants, pubs, sandwich shops, cook-chill kitchens, and catering venues running a cook-line or prep section where fast drawer access beats a swing-door fridge. The GN1/2 drawer format fits standard gastronorm pans and insert runners for line-cook efficiency. Commercial finance is available through SilverChef for eligible ABN holders.

Installation notes

Plugs into a standard 10 A outlet - no special circuit or electrician required for a standard retrofit install. Allow 50-100 mm clearance above for condenser venting (rear-wall mount is fine; the unit is rated to sit flush against a wall) and floor clearance for the drawer runners to fully extend.

Frequently asked questions

How is a drawer fridge different from a standard under-bench fridge?

Drawers replace swing doors. Cooks on a busy line pull a drawer open with one hand - no full door swing and no lost space in front of the unit - and GN1/2 pans drop straight in. It is a faster service pattern for prep-heavy sections.

Does it run on standard Australian power?

Yes - a 10 A plug at 240 V, 230 W, 1.3 A draw. No special circuit or electrician is required for a standard retrofit install.

What does "tropicalised" mean?

The unit is rated to run in up to 43 °C ambient at 60% relative humidity, covering hot Australian kitchens, rooftop installs, and non-air-conditioned service areas. Non-tropicalised fridges often de-rate above 32 °C.

What refrigerant does it use?

R290 (propane), a natural refrigerant with very low global warming potential. It is the industry standard for new commercial fridges and is not affected by the HFC phase-down schedule.

What warranty does it come with?

2 years parts and labour as standard, plus 2 years parts only when you register within 14 days of invoice. Parts are supported through our Granville NSW showroom. See our warranty information page for full terms.
