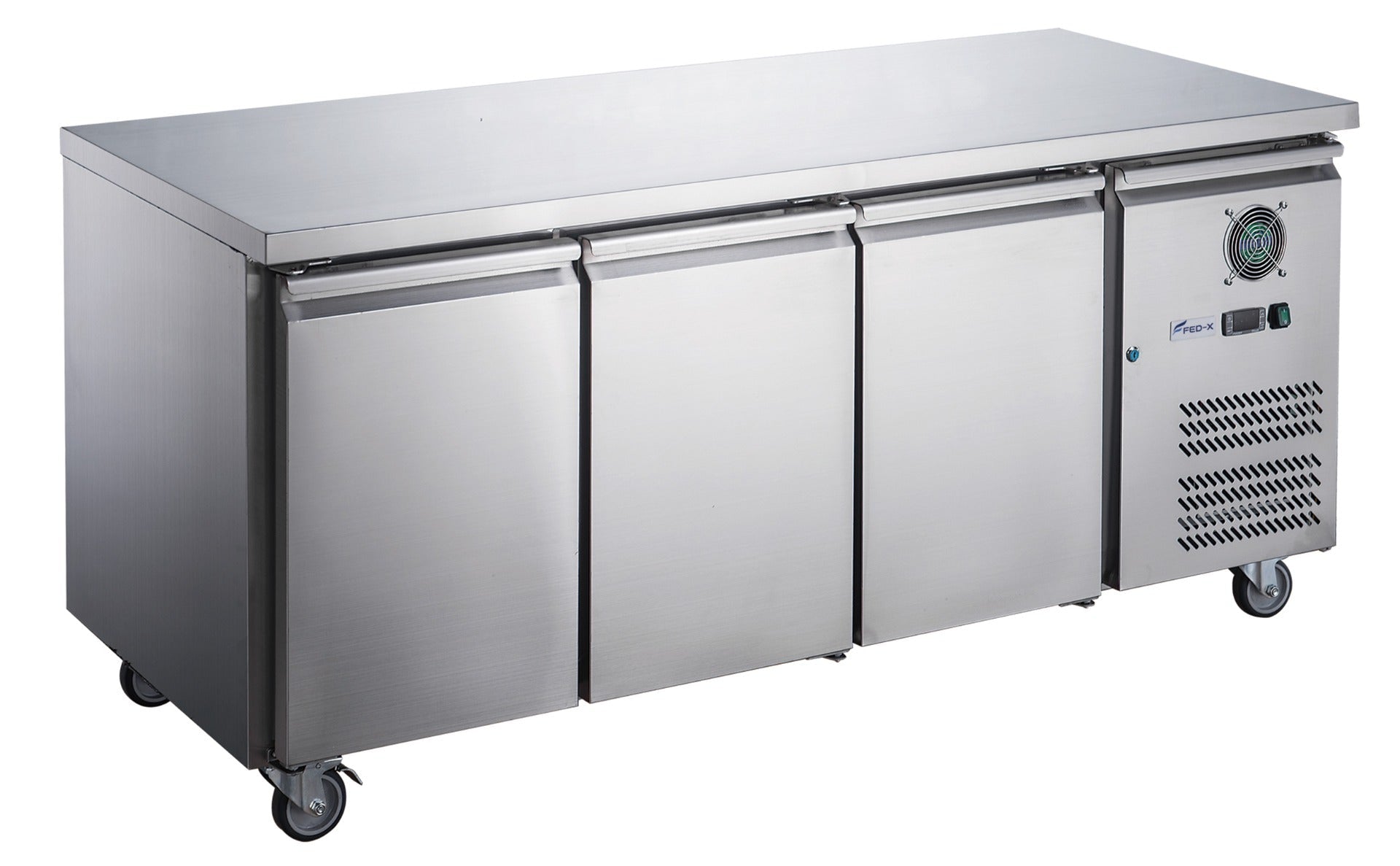

FED-X XUB7F18S3V three-door underbench freezer — front view, doors closed

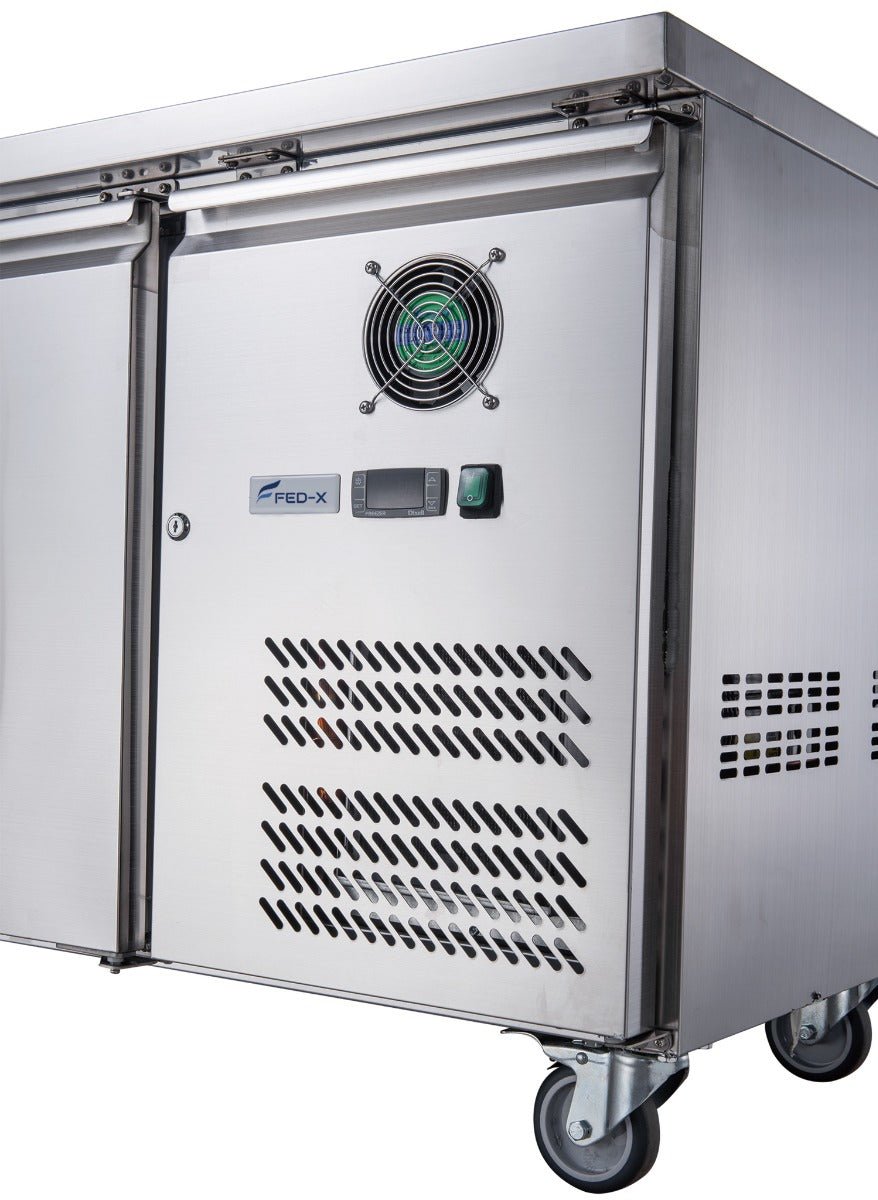

FED-X XUB7F18S3V three-door underbench freezer — stainless steel exterior and controls

FED-X XUB7F18S3V three-door underbench freezer — interior shelving and layout

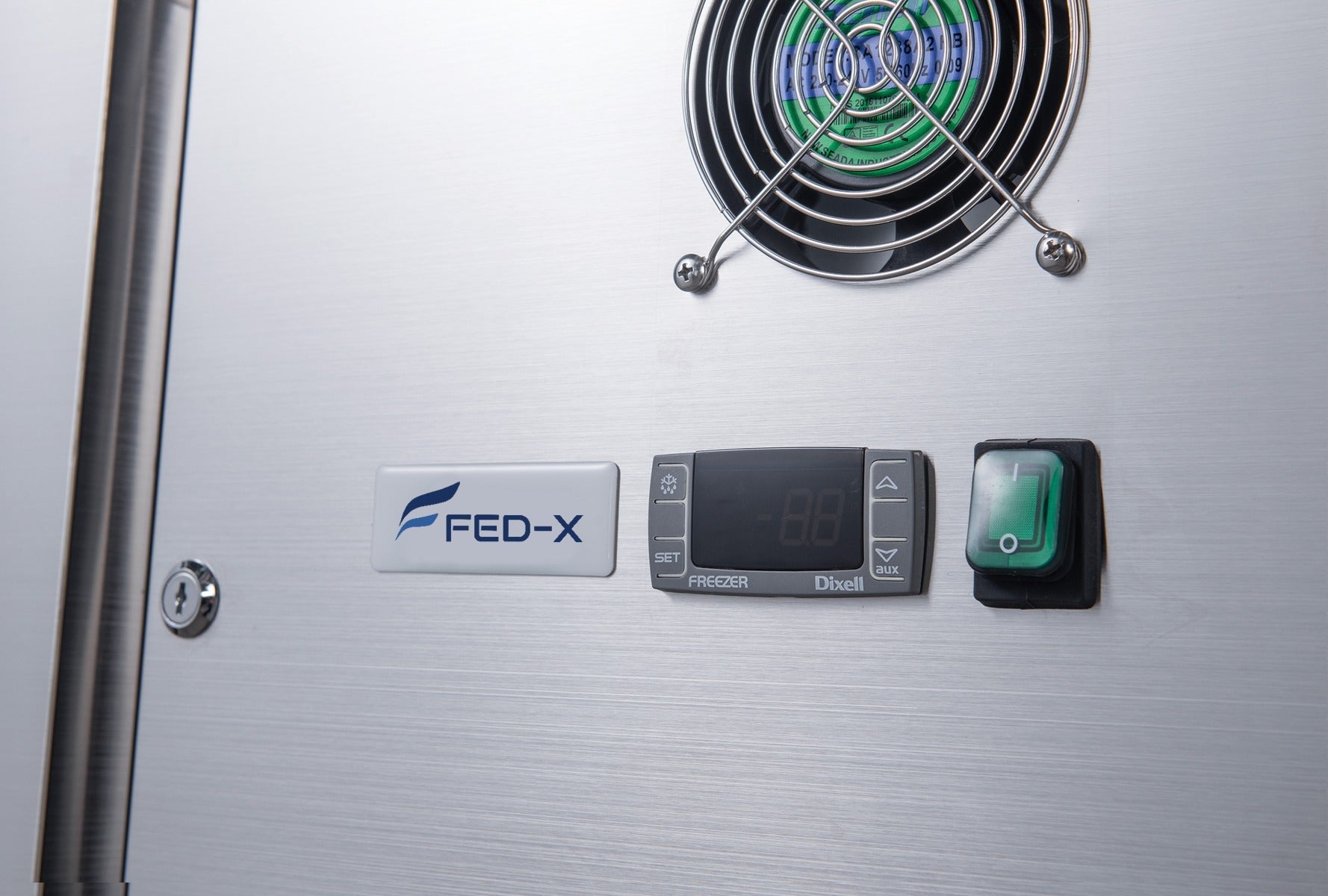

FED-X XUB7F18S3V three-door underbench freezer — digital temperature controller

FED-X XUB7F18S3V three-door underbench freezer — heavy-duty braked castors

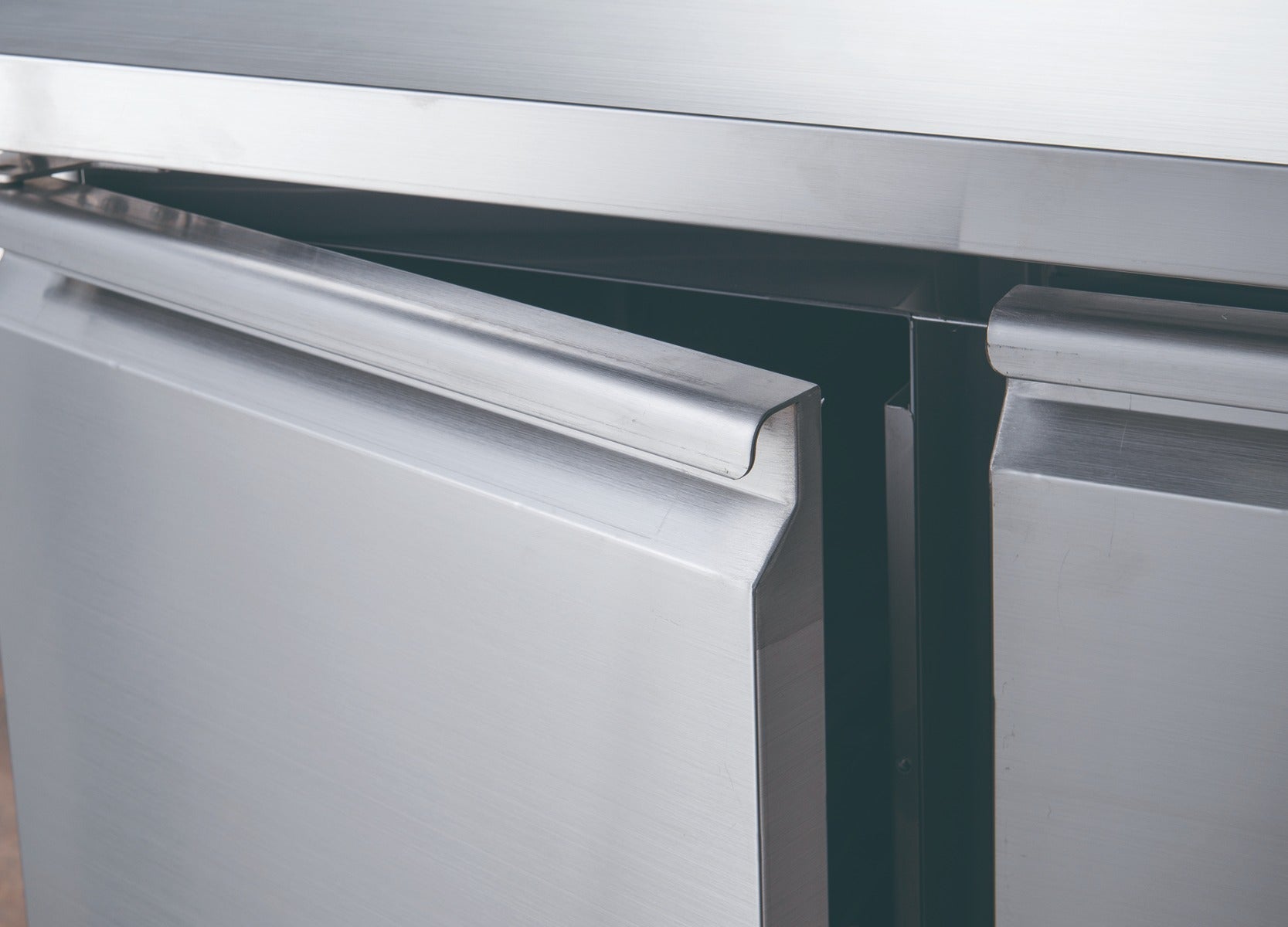

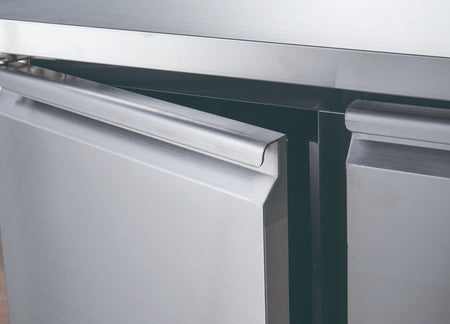

FED-X XUB7F18S3V three-door underbench freezer — door seal and handle detail

FED-X XUB7F18S3V three-door underbench freezer — loaded with stock

FED-X XUB7F18S3V three-door underbench freezer — cabinet detail

FED-X XUB7F18S3V three-door underbench freezer — rear and compressor housing

FED-X XUB7F18S3V three-door underbench freezer — GN pan compatibility

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

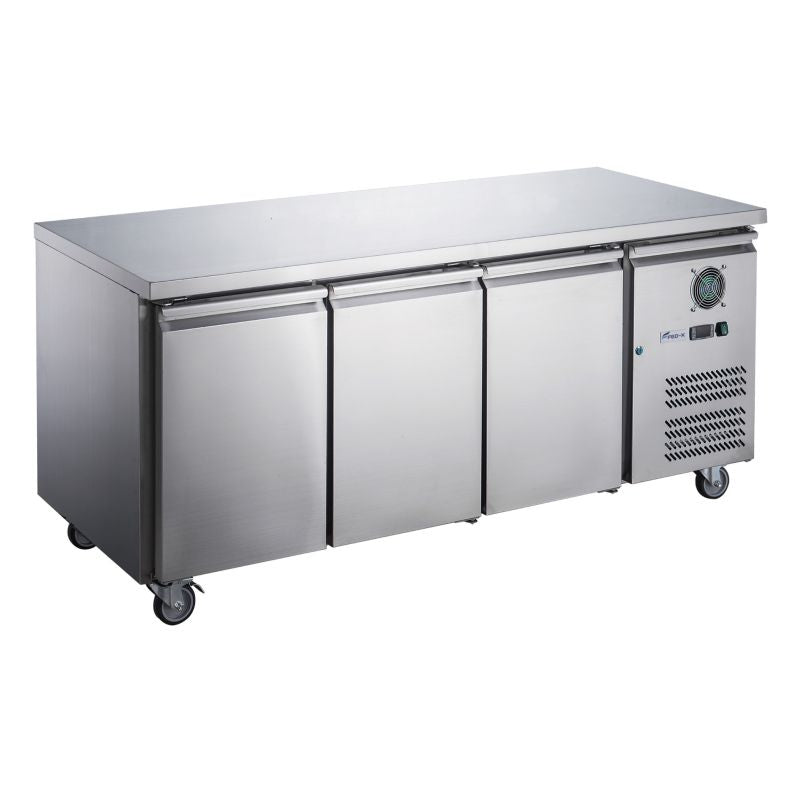

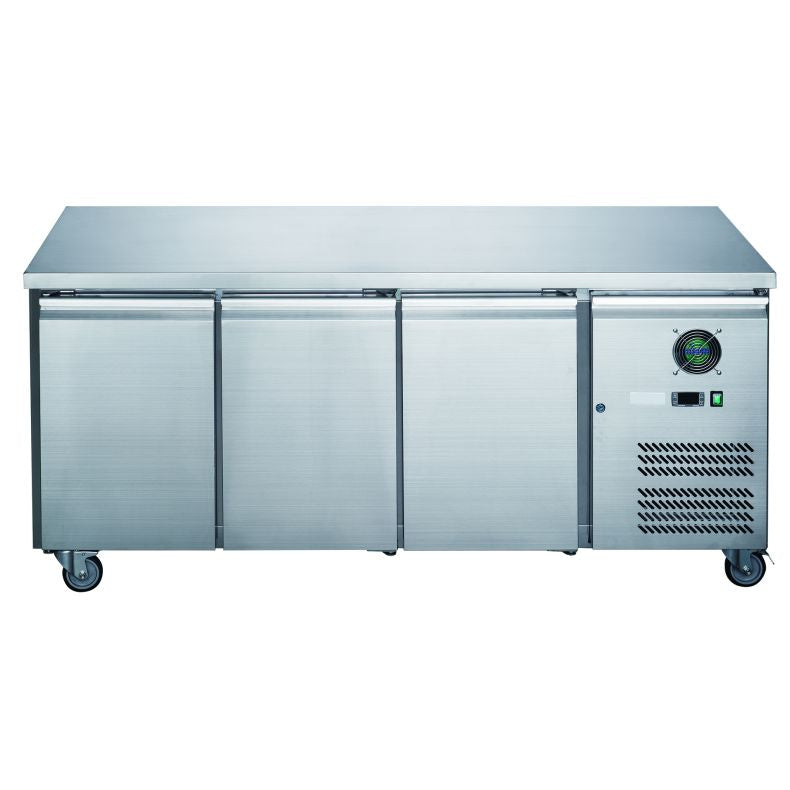

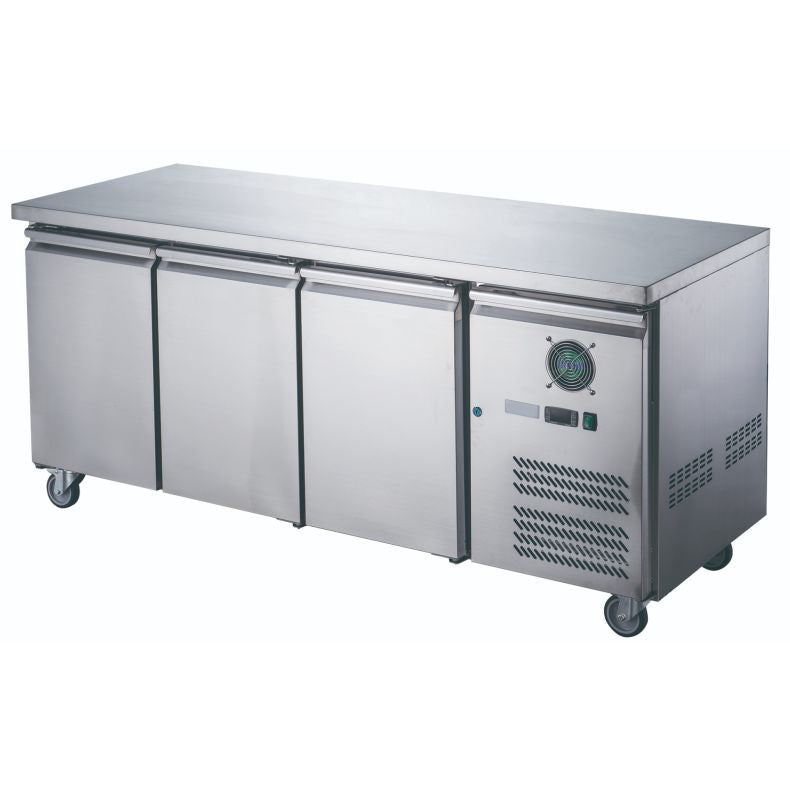

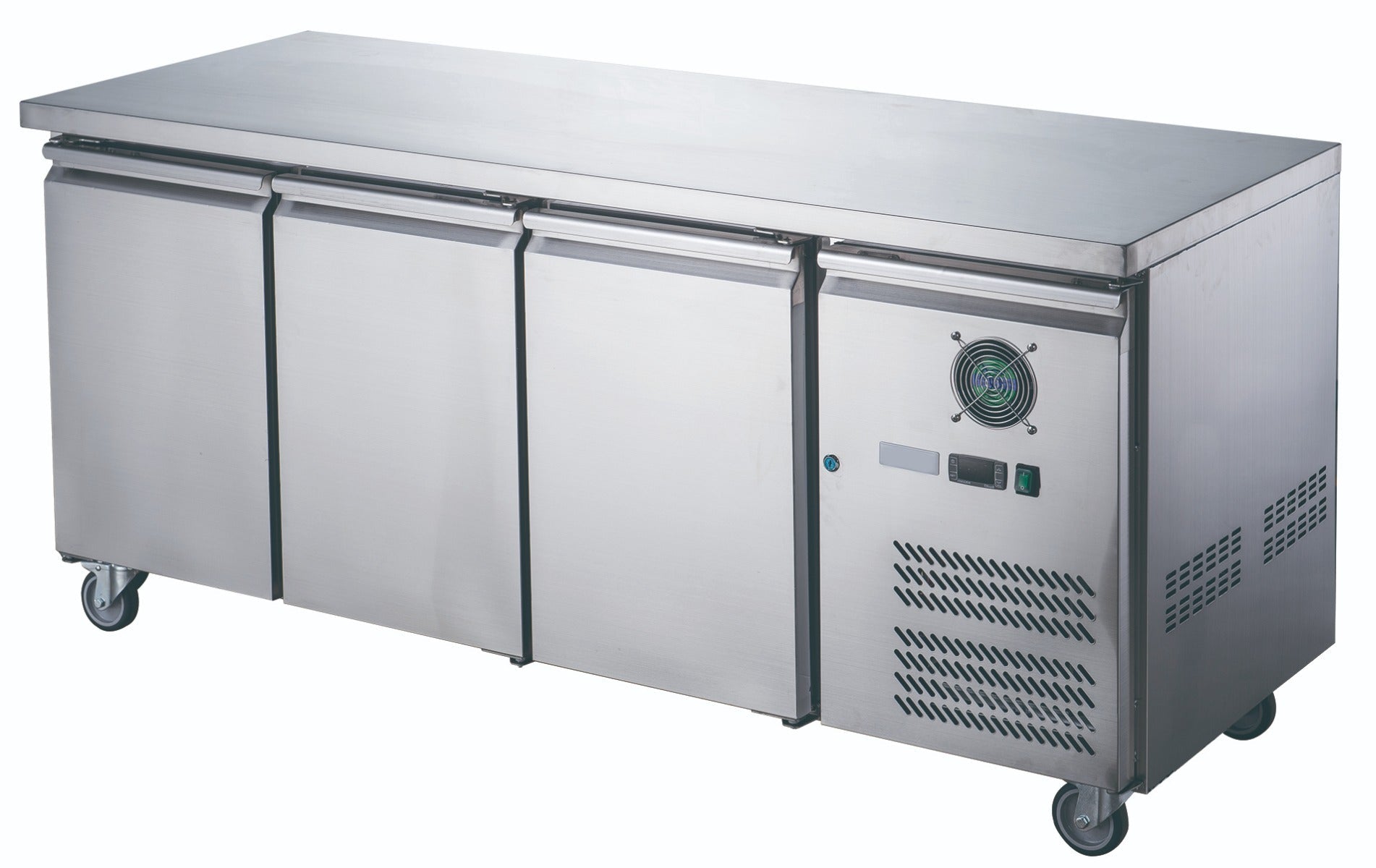

FED-X S/S Three Door Bench Freezer XUB7F18S3V

In stock

SKU: XUB7F18S3V

$2,448.00

$2,448.00 +GST -40% ~~$4,080.00~~

Discover a lower price? Contact our team for a deal

Email 1300 000 927

From $4.44/day — for 12 months

Get approval in under 5 minutes Apply Now

Get Extra 11% OFF on FED-X! Use coupon: EXTRA11

Fast Delivery

Best Price

Australia-wide delivery

🖨️ Product Specification PDF

The FED-X XUB7F18S3V is a three-door underbench freezer that puts high-capacity frozen storage under the bench at standard counter height, built for under-counter prep lines and similar high-turnover venues. It offers 417 L gross capacity (311 L net usable), holds -18 to -22°C and stands 1795 × 700 × 850 mm, all in an easy-clean stainless steel cabinet. Fan-forced cooling and eco R290 refrigerant keep temperatures even and running costs down.

Why operators choose the XUB7F18S3V

417 L gross / 311 L net — holds a full service without crowding the cabinet
-18 to -22°C range — freezes and holds stock hard-frozen
Fan-forced cooling — even temperatures top to bottom with no warm spots
Eco R290 refrigerant — efficient running and a low environmental footprint
304-grade stainless steel — wipe-clean interior and exterior built for commercial use
Doors — three self-closing doors with heavy-duty magnetic seals
Shelving — one GN1/1-compatible shelf per door, additional shelf sets available

Specifications

Brand	FED-X
Model / MPN	XUB7F18S3V
SKU	XUB7F18S3V
Type	Underbench Freezer
Gross capacity	417 L
Net capacity	311 L
Operating temperature	-18 to -22°C
Power	240 V, 560 W, 3.4 A
Cooling	Fan-forced
Refrigerant	R290

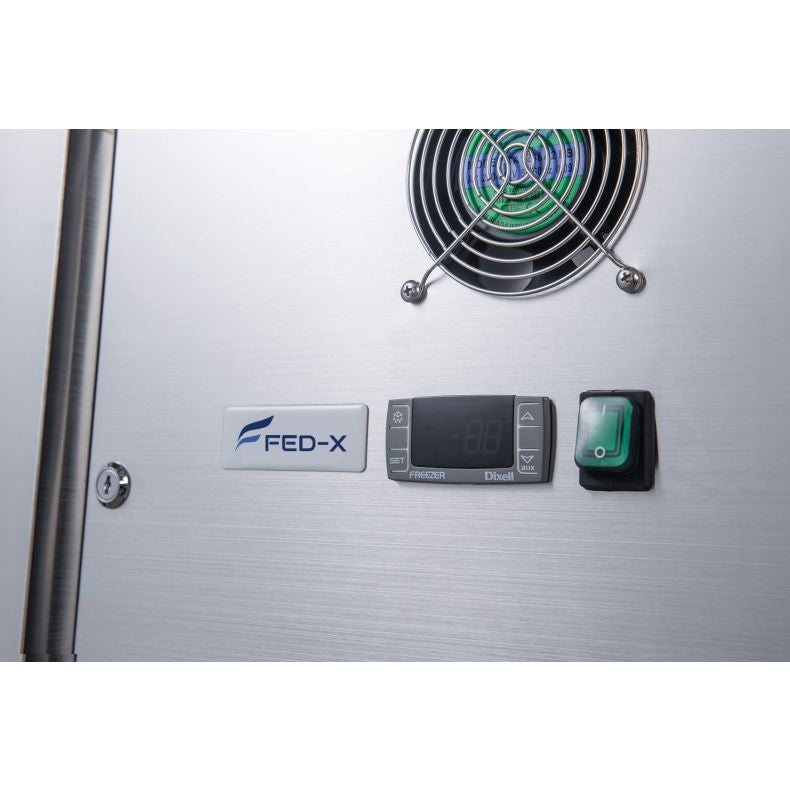

Controller	Dixell digital

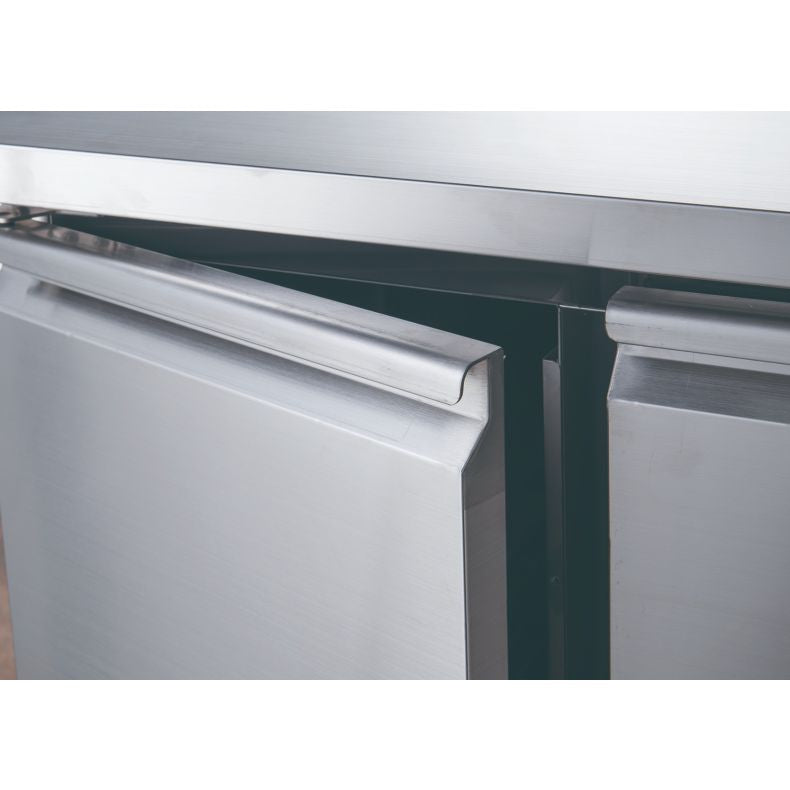

Doors	Three self-closing doors with heavy-duty magnetic seals
Shelving	One GN1/1-compatible shelf per door, additional shelf sets available
External dimensions (W×D×H)	1795 × 700 × 850 mm
Internal dimensions (W×D×H)	1234 × 580 × 564 mm
Packed dimensions (W×D×H)	1825 × 730 × 910 mm
Net weight	146 kg
Material	Stainless steel interior and exterior
Warranty	2 years parts & labour plus 2 years parts only (register within 14 days of invoice)

Venue suitability

Its 417 L capacity and 1795 × 700 × 850 mm footprint suit under-counter prep lines, bars and busy kitchens that need bench-height frozen storage. At 700 mm deep it needs a deeper run than the 600 mm model.

Compare it with our full range of underbench freezers or browse the wider FED-X range.

Installation & delivery

The XUB7F18S3V runs on a standard 240 V 10 amp power point (240 V, 560 W, 3.4 A) and arrives ready to plug in on heavy-duty braked castors; allow it to stand before switching on. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. It is backed by a manufacturer warranty — see our warranty information for full terms.

Frequently asked questions

Q: What are the dimensions of the XUB7F18S3V? A: The FED-X XUB7F18S3V measures 1795 × 700 × 850 mm (W×D×H) externally, with an internal capacity of 1234 × 580 × 564 mm. Packed for transport it is 1825 × 730 × 910 mm.

Q: How much can the XUB7F18S3V hold? A: It offers 417 L of gross capacity and 311 L of net usable storage.

Q: What temperature does the XUB7F18S3V run at? A: It operates at -18 to -22°C, suitable for Australian commercial kitchens.

Q: What power supply does the XUB7F18S3V need? A: It runs on 240 V, 560 W, 3.4 A and plugs into a standard 240 V 10 amp power point — no special wiring required.

Q: What refrigerant and cooling system does it use? A: The XUB7F18S3V uses eco-friendly R290 refrigerant with a fan-forced cooling system for even temperatures throughout the cabinet.

Q: Is the XUB7F18S3V made from stainless steel? A: Yes — it has a stainless steel interior and exterior with rounded corners for easy cleaning, and weighs 146 kg.

Q: What warranty does the XUB7F18S3V come with? A: It is covered by 2 years parts and labour plus 2 years parts only, provided the product is registered within 14 days of invoice.
