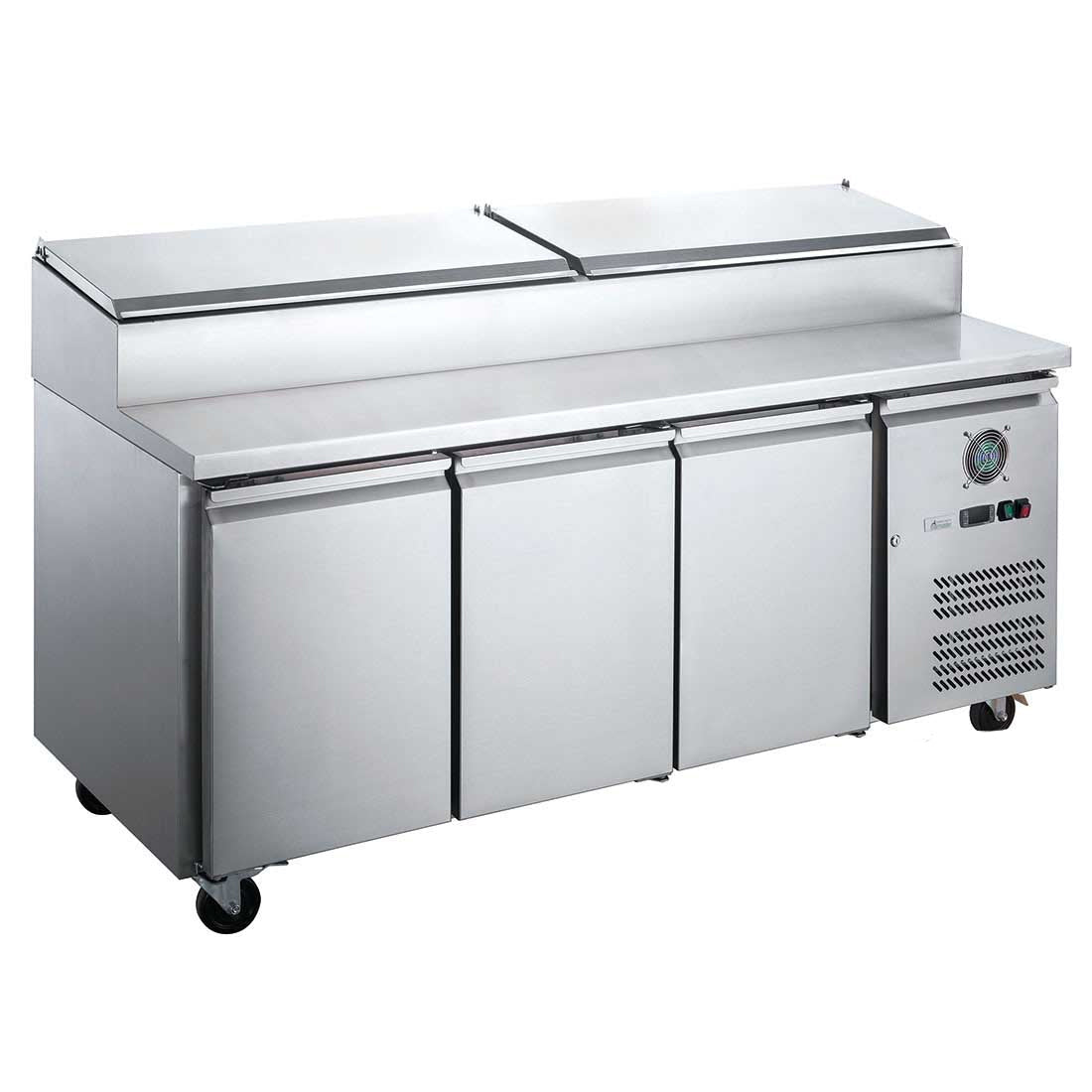

FED-X XSS8C20S3V three door sandwich counter — front view

FED-X XSS8C20S3V three door sandwich counter — angled view of the refrigerated prep top

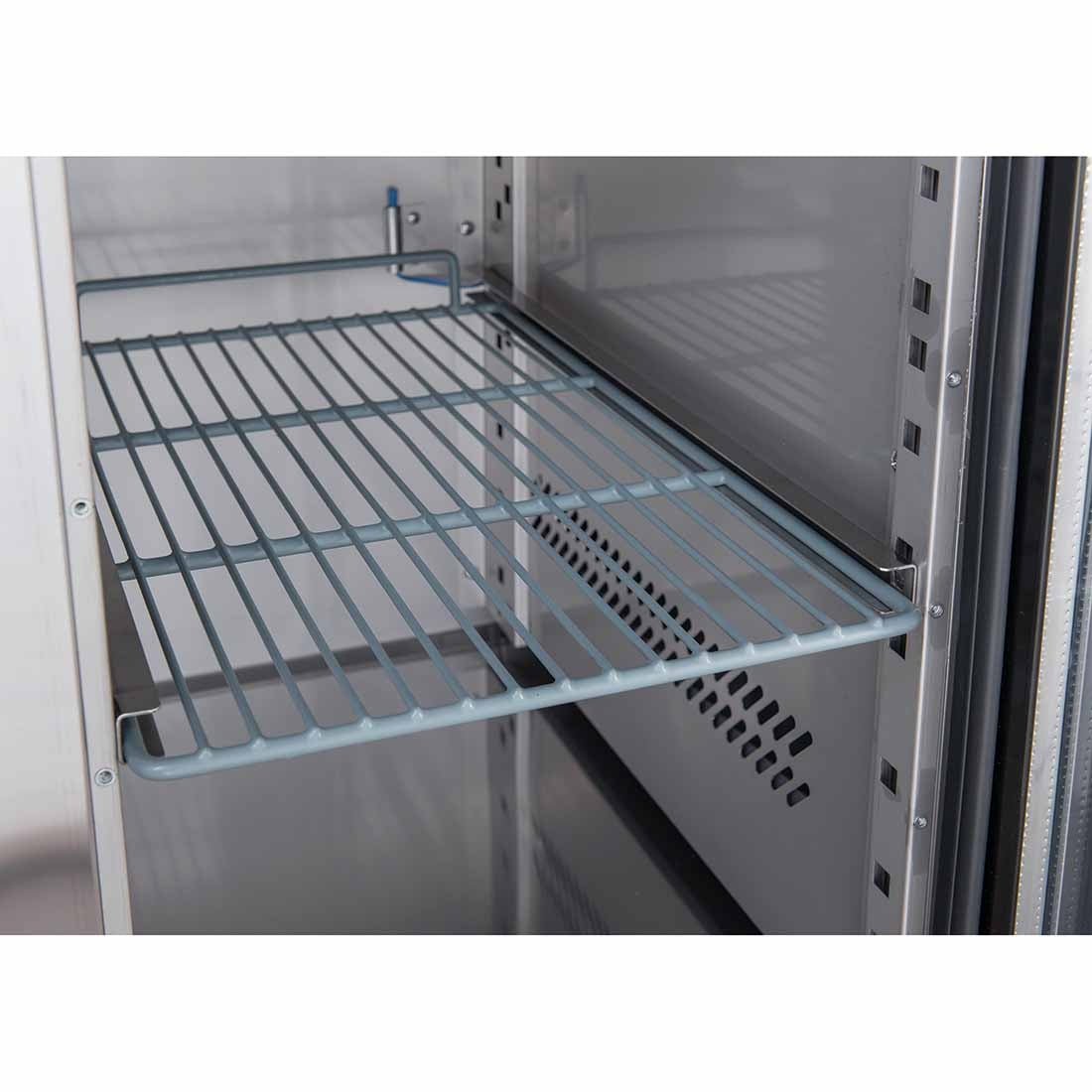

FED-X XSS8C20S3V three door sandwich counter — doors open showing the stainless steel interior

FED-X XSS8C20S3V three door sandwich counter — GN pan prep well layout

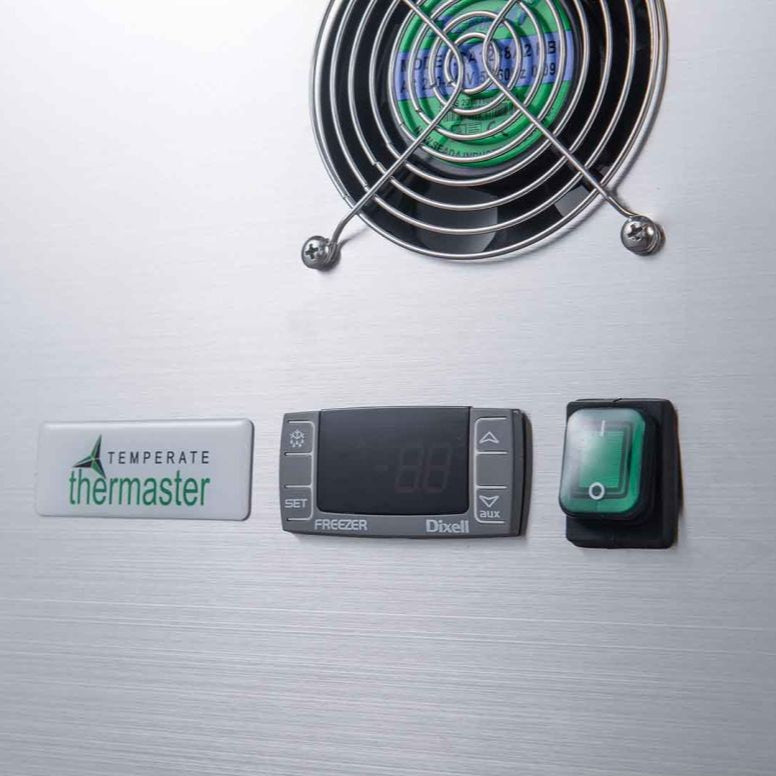

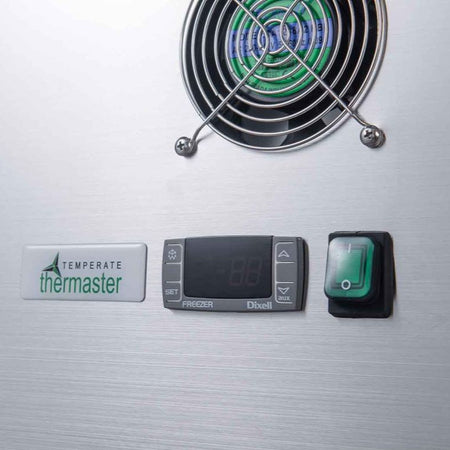

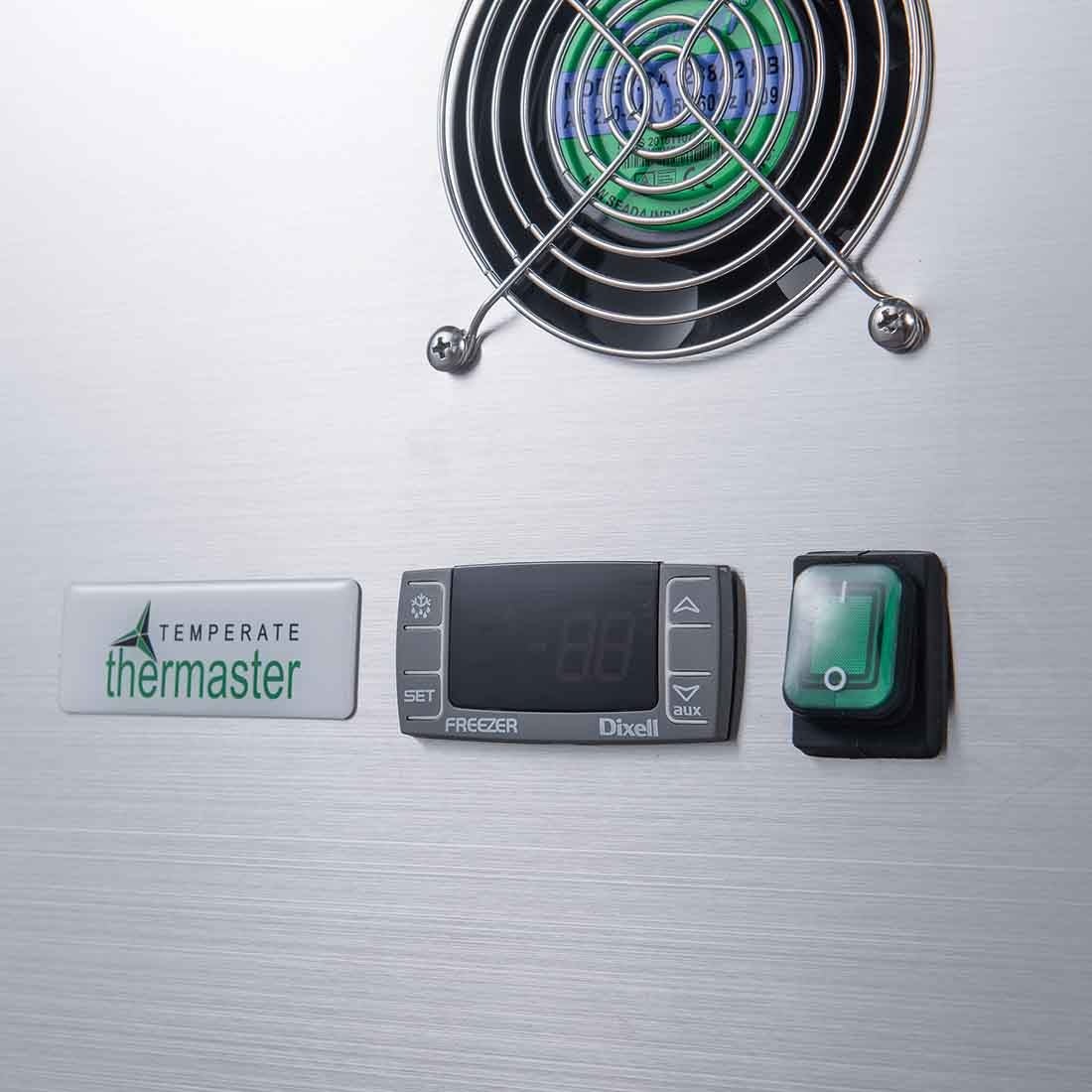

FED-X XSS8C20S3V three door sandwich counter — digital temperature controller close-up

FED-X XSS8C20S3V three door sandwich counter — cutting board and pan rail detail

FED-X XSS8C20S3V three door sandwich counter — heavy-duty castors and base detail

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

FED-X S/S Three Door Sandwich Counter XSS8C20S3V

Name: FED-X S/S Three Door Sandwich Counter XSS8C20S3V
Brand: FED-X
SKU: XSS8C20S3V
Price: 2874.00 AUD
Availability: InStock

In stock

SKU: XSS8C20S3V

$2,874.00

$2,874.00 +GST -40% ~~$4,790.00~~

Get Extra 11% OFF on FED-X! Use coupon: EXTRA11

Discover a lower price? Contact our team for a deal

Email 1300 000 927

From $5.21/day — for 12 months

Get approval in under 5 minutes Apply Now

Fast Delivery

Best Price

Australia-wide delivery

The FED-X XSS8C20S3V is a three-door refrigerated sandwich and salad prep counter that chills prep-top ingredients up top and holds cold stock in the cabinet below, built for sandwich bars, salad counters, pizza kitchens and cafes. It delivers +2°C to +8°C fan-forced cooling, runs on a 240V, 50Hz, 10A, 320W single-phase supply and packs 580L of refrigerated storage into a full stainless steel, 2020mm-wide body. Tropicalised for Australian conditions and running on low-GWP R290 natural refrigerant for efficient everyday performance.

Why operators choose the XSS8C20S3V

3 solid doors plus a refrigerated GN prep top - heavy-duty magnetic seals hold temperature and cut running costs through a busy service.
Fan-forced cooling - even temperature front to back so stock at the rear keeps as well as stock at the door.
Full stainless steel construction - rounded internal corners wipe down fast and stand up to daily commercial cleaning.
R290 natural refrigerant - efficient, low-GWP cooling that meets current Australian energy expectations.
Refrigerated GN prep top (1/3 GN pans up to 150mm deep) - keeps toppings and fillings chilled right at the make line.

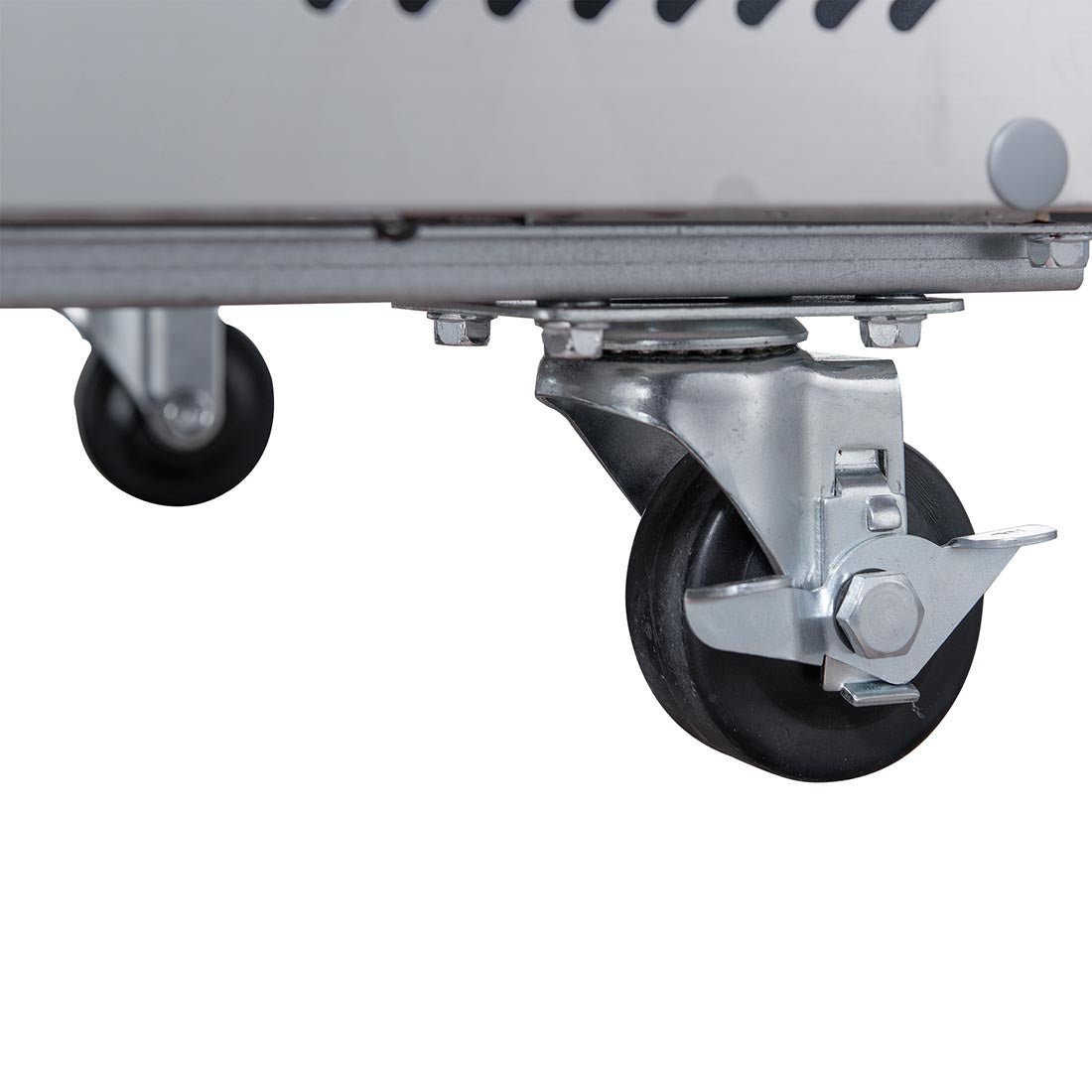

Heavy-duty castors with front brakes - roll it out for cleaning, then lock it firmly in place.

Specifications

Brand	FED-X
Model / MPN	XSS8C20S3V
Type	Salad/Noodle/Sandwich Prep Bar Fridge
Capacity	580L
Power	240V, 50Hz, 10A, 320W
External dimensions (W×D×H)	2020 (W) x 800 (D) x 1406 (H) mm
Internal dimensions (W×D×H)	1459 x 680 x 564 mm
Packed dimensions (W×D×H)	2055 (W) x 730 (D) x 1160 (H) mm
Net weight	150 kg
Exterior / interior	Stainless steel
Operating temperature	+2°C to +8°C
Rated ambient	up to 43°C (60% RH)
Prep top	1/3 GN pans up to 150mm deep
Refrigerant	R290 (natural hydrocarbon)
Doors	3 solid doors plus a refrigerated GN prep top
Country of manufacture	China
Warranty	2 Years Parts & Labour, plus 2 Years Parts Only when registered within 14 days of invoice

Venue suitability

The XSS8C20S3V suits sandwich bars, salad counters, pizza kitchens and cafes where staff build to order from a chilled GN prep top while keeping backup stock in the cabinet below. Its 2020mm width fits a dedicated make line. It is less suited to sites needing frozen storage or a flat, uninterrupted bench, where an underbench fridge or freezer is a better fit. Compare it with the rest of our salad & sandwich prep fridges or explore the full FED-X range.

Installation & delivery

The XSS8C20S3V runs on a standard 240V, 50Hz, 10A, 320W single-phase supply and plugs into a regular commercial power point, so no special wiring is required. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. SilverChef finance is available for approved commercial buyers. See our warranty information for full terms.

Frequently asked questions

What are the dimensions of the FED-X XSS8C20S3V?

It measures 2020 (W) x 800 (D) x 1406 (H) mm externally, 1459 x 680 x 564 mm internally, and ships packed at 2055 (W) x 730 (D) x 1160 (H) mm.

What temperature and refrigerant does the XSS8C20S3V use?

It runs at +2°C to +8°C with fan-forced cooling on low-GWP R290 natural refrigerant, and is rated for ambient conditions up to 43°C (60% RH).

What power supply does the XSS8C20S3V need?

A standard 240V, 50Hz, 10A, 320W single-phase supply, so it plugs into a regular commercial power point with no special wiring.

How much can the XSS8C20S3V hold and what pans does the prep top take?

It offers 580L of refrigerated storage below, and the prep top is built for 1/3 GN pans up to 150mm deep to keep toppings and fillings chilled at the make line.

What warranty does the XSS8C20S3V come with?

2 years parts and labour, plus a further 2 years parts only when you register the product within 14 days of invoice. See our warranty information page for full terms.
