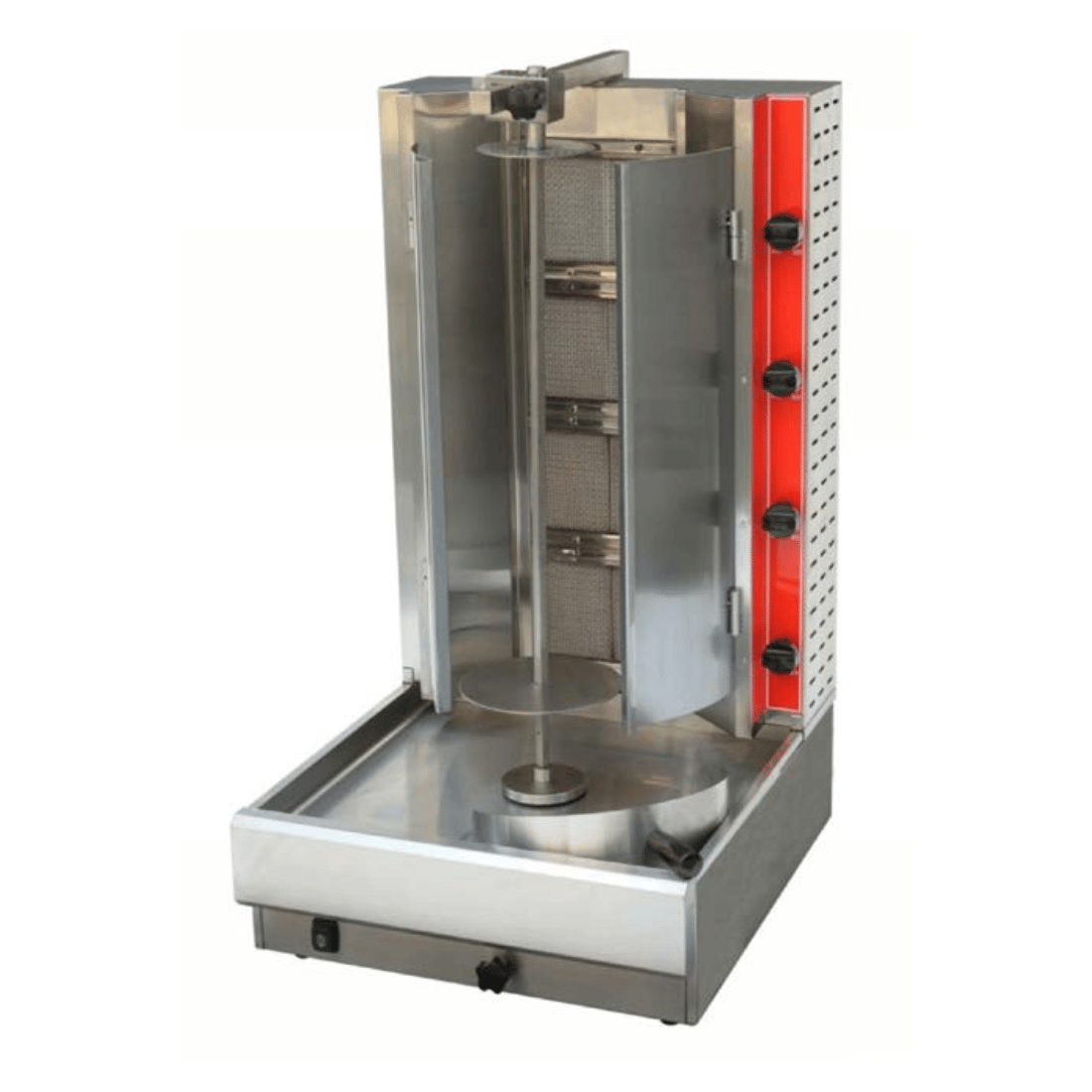

GasMax KB-4 Semi-Automatic 4 Burner NG Kebab Machine 45kg
Regular price
$1,691.00
Regular price
Sale price
$1,691.00 +GST
-15%
$1,990.00
Discover a lower price? Contact our team for a deal
Apply for Equipment Finance with Silver Chef
Get approval in under 5 minutes Apply Now
Get Extra 11% OFF on Gasmax! Use coupon:
EXTRA11
Fast Delivery
Best Price
Australia-wide delivery
Couldn't load pickup availability
Open here
The GasMax KB-4 is a semi-automatic 4 burner kebab machine sold in two factory builds — natural gas (KB-4) and LPG (KB-4LPG) — for cooking doner kebabs, gyros, shawarma and tacos al pastor on a rotating vertical spit. Four infrared ceramic burners push even, intense heat across a 45 kg meat stack on a 711 mm spit, keeping the meat succulent inside with a crisp carved edge for kebab shops, takeaways, food trucks and busy cafes.
Why operators choose the KB-4 series
- Four infrared ceramic burners — even, intense heat up the full meat stack, each burner with its own control.
- 45 kg spit capacity — carries a full day of trade through lunch and dinner peaks.
- Adjustable cooking spit — vary the distance between spit and burners for precise control over the cook.
- Stainless steel heat shields on both sides — hold consistent cooking temperatures and protect surrounding benches.
- Main burner pilot — instant ignition for a quick start-up at the top of service.
- Heavy-duty spit motor on a 10A plug — plugs into a standard outlet, no hard-wiring required.
- 3/4" NPT rear gas connection with regulator — a straightforward connection for a licensed gasfitter at fit-out.
Specifications
| Brand | GasMax |
| Model / MPN | KB-4 (natural gas; LPG build: KB-4LPG) |
| Type | Semi-automatic kebab machine (vertical broiler) |
| Power Type | Natural Gas |
| Gas Output | 52 MJ/h |
| Burners | 4 × infrared ceramic |
| Control Knobs | 4 |
| Spit Capacity | 45 kg |
| Spit Length | 711 mm |
| Electrical | 10A plug |
| Gas Connection | 3/4" NPT rear, with gas regulator |
| Dimensions (W x D x H) | 537 x 639 x 1013 mm |
| Packed Dimensions (W x D x H) | 650 x 780 x 1200 mm |
| Net Weight | 39 kg |
| Packed Weight | 45 kg |
| Material | Stainless steel |
| Warranty | 2 years parts & labour + 2 years parts only, with product registration within 14 days of invoice |
Venue suitability
Both builds suit kebab shops, Mediterranean and Middle Eastern takeaways, food trucks and busy cafes running continuous vertical-broiler service, with the LPG KB-4LPG the natural pick for mobile and bottled-gas sites. As a semi-automatic machine an operator manages carving and spit position through service, so it is less suited to venues wanting a fully unattended cook. Browse more kebab grills & knives or explore the full GasMax range.
Installation & delivery
The KB-4 connects to mains natural gas and the KB-4LPG to bottled or reticulated LPG via the 3/4" NPT rear connection with supplied gas regulator; both builds must be connected and commissioned by a licensed gasfitter, while the spit motor simply plugs into a standard 10A outlet. The machine packs to 650 x 780 x 1200 mm at 45 kg (39 kg net), so it moves through standard doorways on a trolley. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide, and equipment finance is available through SilverChef. Warranty is 2 years parts & labour plus 2 years parts only with product registration within 14 days of invoice — see our warranty information page for full details.
Frequently asked questions
Natural gas or LPG — which do I order?
Order the KB-4 if your site runs mains natural gas, or the KB-4LPG for bottled or reticulated LPG. They are separate factory builds — a licensed gasfitter cannot convert one to the other — so confirm your site's gas supply before ordering.
How much meat does it hold?
The vertical spit carries up to 45 kg of meat on a 711 mm adjustable spit, suiting steady high-volume kebab and gyros service.
What is the gas output?
The natural gas KB-4 is rated at 52 MJ/h across four infrared ceramic burners, each with its own control. The LPG KB-4LPG build carries its own factory rating — contact our team to confirm the figure for your site.
Does it need an electrical connection?
Yes — the spit motor runs from a standard 10A plug alongside the gas connection, so no hard-wiring is required.
What warranty does it come with?
The KB-4 is covered by 2 years parts & labour plus 2 years parts only, with product registration within 14 days of invoice.
- SKU KB-4
- Product Dimensions 537(W) x 639(D) x 1013(H)mm
- Packed Dimensions 650(W) x 780(D) x 1200(H)mm
- Power 10A plug
- Warranty
