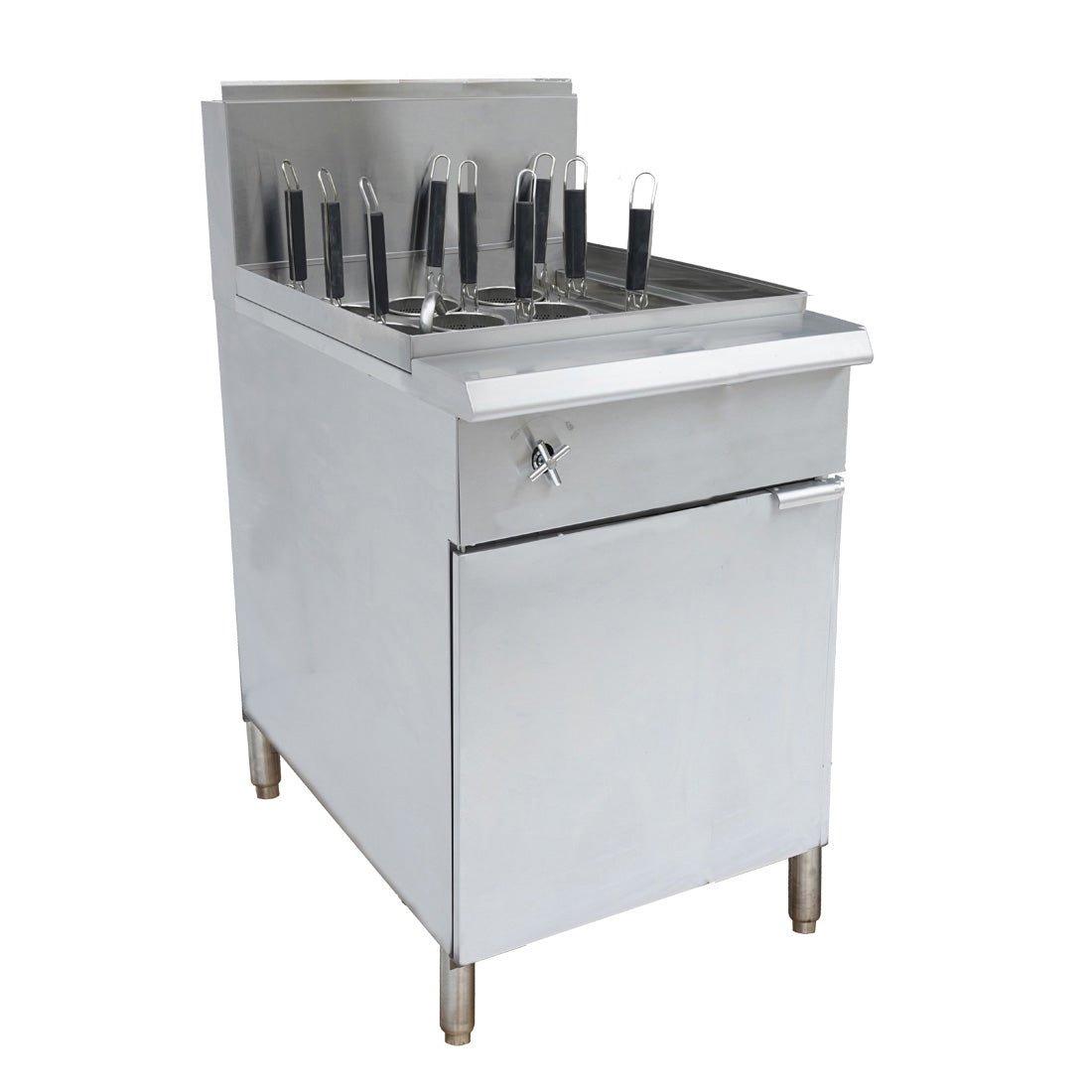

GasMax V-Pan 9-Basket Gas Pasta and Noodle Cooker 34L PC150-9

The PC150-9 is a freestanding gas pasta and noodle cooker with a 34 litre tank and nine baskets, rated at 150 MJ/h. The V-pan tank shape and the water-purifying overflow are what let it run continuously through service - starch is carried off rather than building up in the water. It is a gas appliance and must be installed by a licensed gasfitter.

Why operators choose the PC150-9

• 34 L tank, nine Ø125 x 132 mm baskets - nine baskets is a production line rather than a single section - it lets you hold several pasta shapes and cook times running at once
• 150 MJ/h gas output - the burner rating is what gives recovery between drops; a cooker that cannot recover turns the second basket into a slower cook than the first
• Water-purifying overflow system - carries starch off the surface instead of letting it concentrate, so the water stays usable through a long service
• 304 stainless steel tank - note the 6-basket PC150-6 in this range specifies a 316 tank; each page states its own recorded grade
• Prompt-response thermostat - fast temperature recovery after a drop
• Millivolt control valve with standby pilot - starts without an electrical supply - a millivolt system generates its own control voltage from the pilot
• Open-pot design with 1/4 inch full-port drain - drains and cleans out properly at the end of service, which is the job everyone skips on a hard-to-drain pot
• Stainless steel front and sides, 6 inch legs - wash-down construction with clearance underneath
• 1/2 inch NPT rear gas connection, front water inlet - connections placed for a back-to-wall install with the water inlet reachable from the front

Specifications

Venue suitability

The PC150-9 suits high-volume pasta and noodle service - Italian and Asian kitchens, food courts and function catering running several shapes and cook times at once. If nine baskets is more line than you need, the 6-basket PC150-6 in the same range runs a 27 L tank in a 401 mm body against this one's 571 mm.

See the full gas pasta cooker range.

Installation & delivery

This is a gas appliance and must be installed and commissioned by a licensed gasfitter - it is not a plug-in unit. It needs a 1/2 inch NPT rear natural gas connection and a water supply to the front-positioned inlet, plus drainage for the 1/4 inch full-port drain. Confirm the available gas supply capacity before ordering: at 150 MJ/h this is a substantial load. Extraction requirements are set by your local regulations and the appliance mix under the canopy - confirm with your mechanical contractor.

Warranty terms vary by product - see our warranty information page for full details.

Frequently asked questions

Q: Why does this page not state a thermostat range?

Because the range recorded against this product is not credible for a pasta cooker. The source states 93 to 204 degrees C, an "open stainless steel fryer pot with cold zone" and a 232 degrees C hi-limit. Water boils at 100 degrees C, so a 204 degrees C water thermostat is not possible, and "fryer pot" and "cold zone" are deep-fryer features. The 6-basket PC150-6 in the same range carries none of those three lines. Rather than publish figures that belong to a different appliance, we have left them out - ask us and we will confirm the real control range.

Q: How many baskets and what size?

Nine baskets, each 125 mm in diameter and 132 mm deep. That is the whole reason to choose this over the 6-basket model - you can run several shapes and cook times at the same time.

Q: What gas supply does it need?

Natural gas at 150 MJ/h through a 1/2 inch NPT rear connection. That is a substantial load, so have your gasfitter confirm the available supply capacity before you order, not after delivery.

Q: Is the tank the same grade as the 6-basket model?

No, and we publish what each one records. This 9-basket unit records a 304 stainless tank; the 6-basket PC150-6 records 316. 316 has better corrosion resistance. We state each product's own recorded grade rather than assuming the range is uniform.

Q: Does it need electricity?

The control system is millivolt with a standby pilot, which generates its own control voltage from the pilot flame, so the cooker itself does not depend on an electrical supply to run.

Q: What warranty does it carry?

We are not stating one, because we cannot source it. The supplier record for this model carries no warranty field at all, and the warranty duration held against it on our side is a unit with no number. The description we inherited did quote a term, but it is word-for-word the standard Thermaster warranty text sitting on a GasMax product, so we do not treat it as this appliance's own term. Please ask us and we will confirm it with the supplier before you order. Terms vary by product - see our warranty information page.

Q: What does the water-purifying overflow actually do?

Starch comes out of pasta into the water and concentrates as service goes on, which makes the water cloudy and the product gummy. The overflow carries the starch-heavy surface water away so the tank stays usable for longer between changes.
