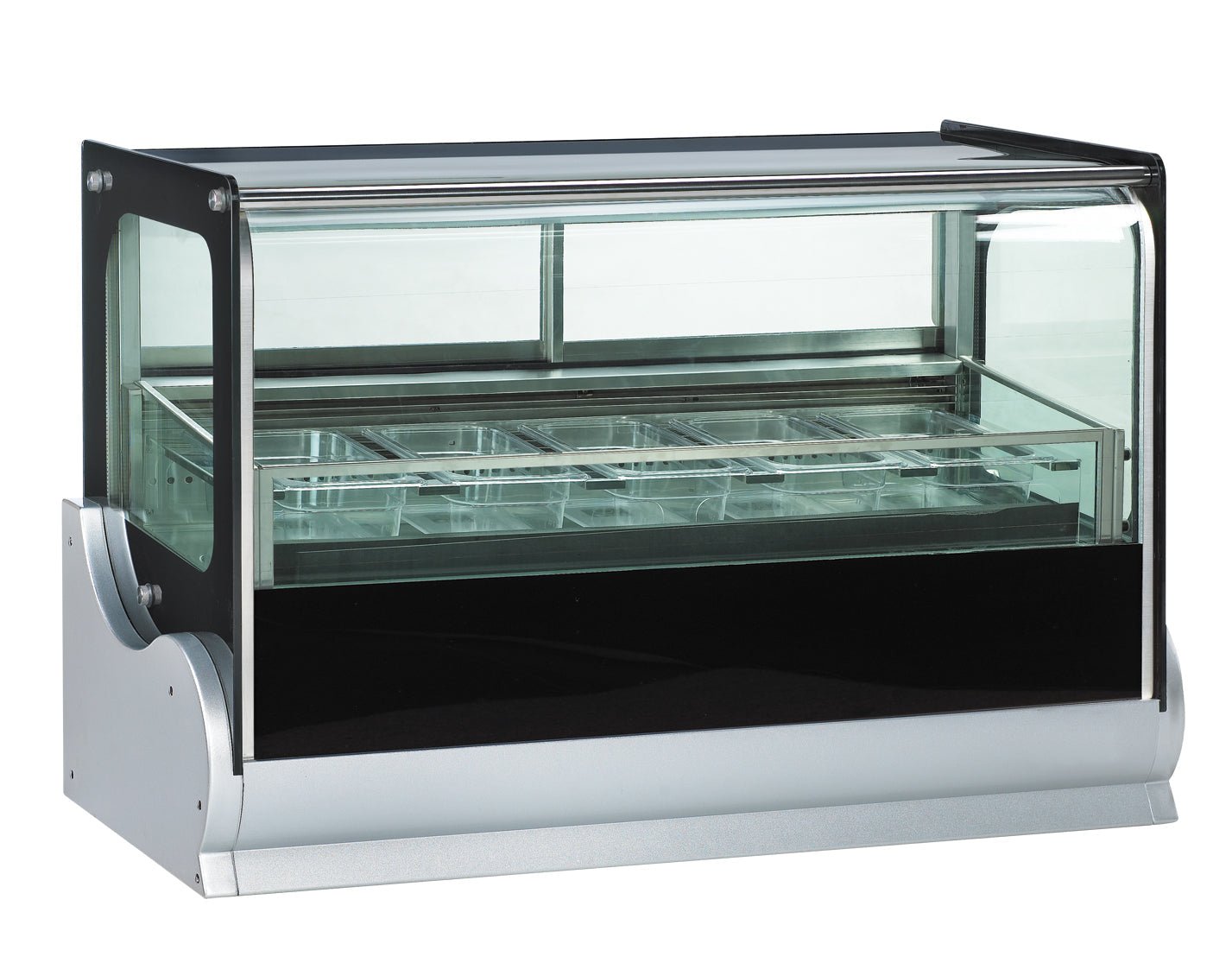

Anvil Countertop Ice-Cream Display 190Lt DSI0540

The Anvil DSI0540 is a 190 litre countertop ice cream display taking 5 x 1/3-size GN pans, 100 mm deep — and 5 clear polycarbonate pans are supplied with it, so it works on day one. It has heated front glass, auto defrost, a 304 stainless steel body and LED strip lighting. It is rated to a 30 °C ambient.

Why operators choose the ICE-DSI0540

• 5 pans are supplied, not sold separately — clear polycarbonate 1/3-size GN pans, 100 mm deep, included with the cabinet. On a display that is useless without them, that is worth knowing before you order pans as well
• Suits scooped or pre-packed ice cream — the source names both. A 100 mm-deep 1/3 GN pan takes a scooping tub or holds pre-packed product, so the same cabinet covers either model of service
• Heated front glass — stops the customer-facing pane fogging. On a freezer display in a warm room, condensation on the front glass is what hides the product
• Rated to 30 degrees C ambient — note this is LOWER than the 32 degrees C carried by the Anvil cold showcases in the same countertop range. A freezer works harder than a fridge, and this is the figure to check against your room
• Grade 304 stainless steel — the food-grade stainless that survives spills and cleaning
• Auto defrost — it defrosts itself on a cycle rather than needing to be shut down and cleared
• LED strip lighting — ice cream sells on appearance and colour, and LED is what shows it

Specifications

Venue suitability

This display suits cafes, dessert bars, takeaway counters and venues adding scooped or pre-packed ice cream to a counter. At 1200 mm wide and 790 mm tall it sits on a bench; the range also runs 900, 1200 and 1500 mm, with pan count rising from 4 to 5 to 7.

See the full display freezers range or browse every Anvil model we carry.

Installation & delivery

240 V at 0.49 kW — about 2.0 A, so a standard outlet, though a dedicated circuit is worth it on any refrigeration that runs continuously. Dimensions are recorded width x height x depth: 1200 x 790 x 540 mm. Check the 30 °C ambient rating against your room — it is lower than the 32 °C on the cold showcases in the same range, and a freezer in a hot kitchen or a sunlit window will struggle. Leave clear airflow around the condenser. Our data records no weight.

Warranty terms are per product — see our warranty information page.

Frequently asked questions

Q: Are the pans included?

Yes - 5 clear polycarbonate 1/3-size GN pans, 100 mm deep, are supplied with the cabinet. That matters because a display freezer without pans cannot be put into service, and it means you are not ordering them separately.

Q: Can I use it for pre-packed ice cream as well as scooping?

Yes. The source names both uses, and the 100 mm pan depth suits either - a scooping tub sits in the pan, or you stack pre-packed product in it. If you switch between the two seasonally, one cabinet covers both.

Q: What ambient temperature is it rated to?

30 degrees C. Worth flagging that this is lower than the 32 degrees C carried by the Anvil cold showcases in the same countertop range - a freezer has to work considerably harder than a fridge, so the tolerance is tighter. Keep it out of direct sun and away from cooking equipment.

Q: How do the sizes compare?

Three widths: 900 mm holds 4 pans at 140 L, 1200 mm holds 5 at 190 L, and 1500 mm holds 7 at 240 L. Note the pan count is not proportional - the 1500 mm model gains two pans over the 1200 mm, not one - so if pan count drives your decision, check it rather than assuming it scales with width.

Q: What warranty does it carry?

12 months. Worth knowing that this is shorter than the 2 years parts and labour on the Anvil cold showcases and cake displays in the same range - the cover is not uniform across the brand, so read it per product.
