Anvil Flat Top Griddle 400Mm

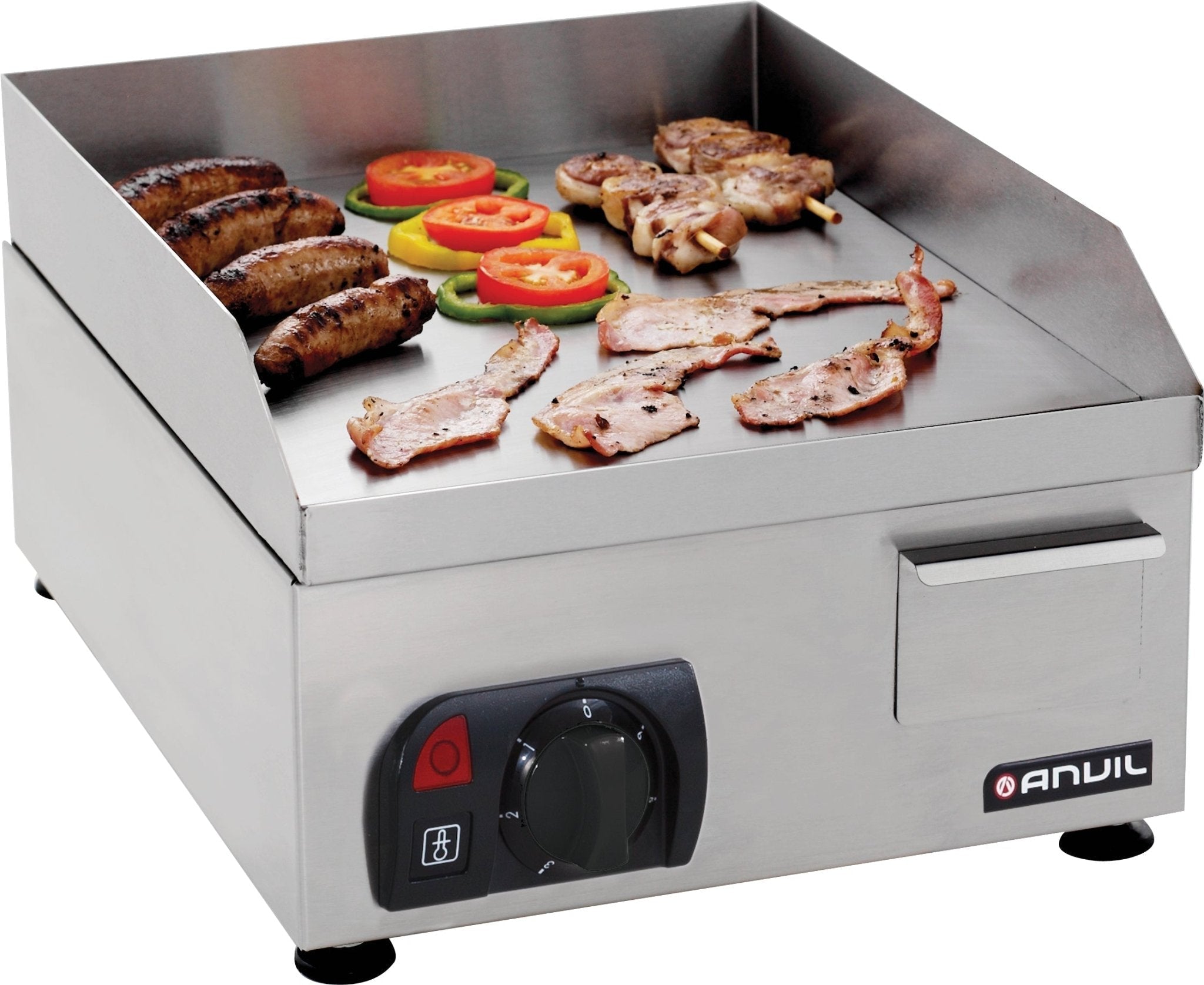

The Anvil FTA0400 is a flat top griddle with a 355 x 420 mm cooking surface on a 10 mm thick plate, fully welded to the base. 240 V at 2 kW. Our record gives no amperage for this model — see Installation and delivery.

Why operators choose the ICE-FTA0400

• 10 mm thick cooking plate — thickness is what a griddle is really bought on. A thick plate holds its heat when cold product hits it, so the second batch cooks like the first instead of stewing on a plate that has dropped 40 degrees
• 355 x 420 mm cooking surface — the usable area, which is what to plan a service around rather than the external width
• Fully welded plate-to-base — no seam along the join for fat to work into, which is the joint that fails first on a cheaper griddle
• Bottom-mounted grease collection pan — it draws out from underneath rather than having to be lifted over a hot plate at the end of service
• Top splash guard to take the wear a griddle gets from the equipment beside it
• Fast start-up and high output for a continuous line
• Warranty is 2 years parts and 1 year labour — the two halves run for different periods, so in the second year the part is covered and the technician's time is not
• The FTA0600 is the wider plate — 605 x 420 mm at 3 kW on a recorded 15 amp supply

Specifications

Venue suitability

A flat top griddle suits burger bars, cafes, clubs, breakfast services and any line cooking to order — eggs, bacon, onions, patties and toasted sandwiches all come off the same plate. At 470 mm deep it takes a standard bench.

Compare the rest of the Anvil range, or browse our benchtop electric griddles and griddles.

Installation & delivery

Dimensions are recorded width x height x depth: 373 x 241 x 470 mm — note the Anvil order puts height second, so the last figure is the depth, and the 241 mm is how tall it stands on the bench. No weight is recorded. A griddle radiates and vents, so leave clearance behind and above it and check your extraction covers the position. No amperage is recorded for this model. At 240 V, 2 kW draws about 8.3 A, which would sit inside a standard 10 amp circuit — but that is our arithmetic rather than a rating the supplier has stated, so have your electrician confirm the circuit before installation.

Warranty terms are per product — see our warranty information page.

Frequently asked questions

Q: What circuit does it need?

Here is exactly what we hold and what we do not. Our record gives 240 V and 2 kW but no amperage. Two kilowatts at 240 volts works out at about 8.3 amps, which would sit inside a standard 10 amp circuit - but that is our arithmetic, not a rating the supplier has stated, so we are not going to print "10 amp" as if it were recorded. Have your electrician confirm the circuit, and note its larger sibling the FTA0600 does record 15 amp.

Q: Why does plate thickness matter?

It is the single thing that separates a griddle that works from one that frustrates. A 10 mm plate stores heat, so when cold product lands on it the surface temperature barely moves and the food sears. A thin plate drops temperature immediately and the food stews in its own liquid instead.

Q: How big is the actual cooking area?

355 x 420 mm. That is the usable surface, and it is the figure to plan a service around - the 373 mm external width includes the body around the plate.

Q: How does it compare to the FTA0600?

Plate size and supply. This is 355 x 420 mm at 2 kW; the FTA0600 is 605 x 420 mm at 3 kW and does record a 15 amp requirement. Both use the same 10 mm plate, the same bottom-mounted grease pan and the same 470 mm depth, so the choice is how much line you need to cover at once.

Q: What is the manufacturer code?

Our records disagree slightly. The specification field records FTA0400, matching the SKU, while the description records it as FTA0400-ICE with a suffix. We publish FTA0400 and have flagged the other value - the same suffix pattern appears on other Anvil products, so it looks systematic rather than a one-off.
