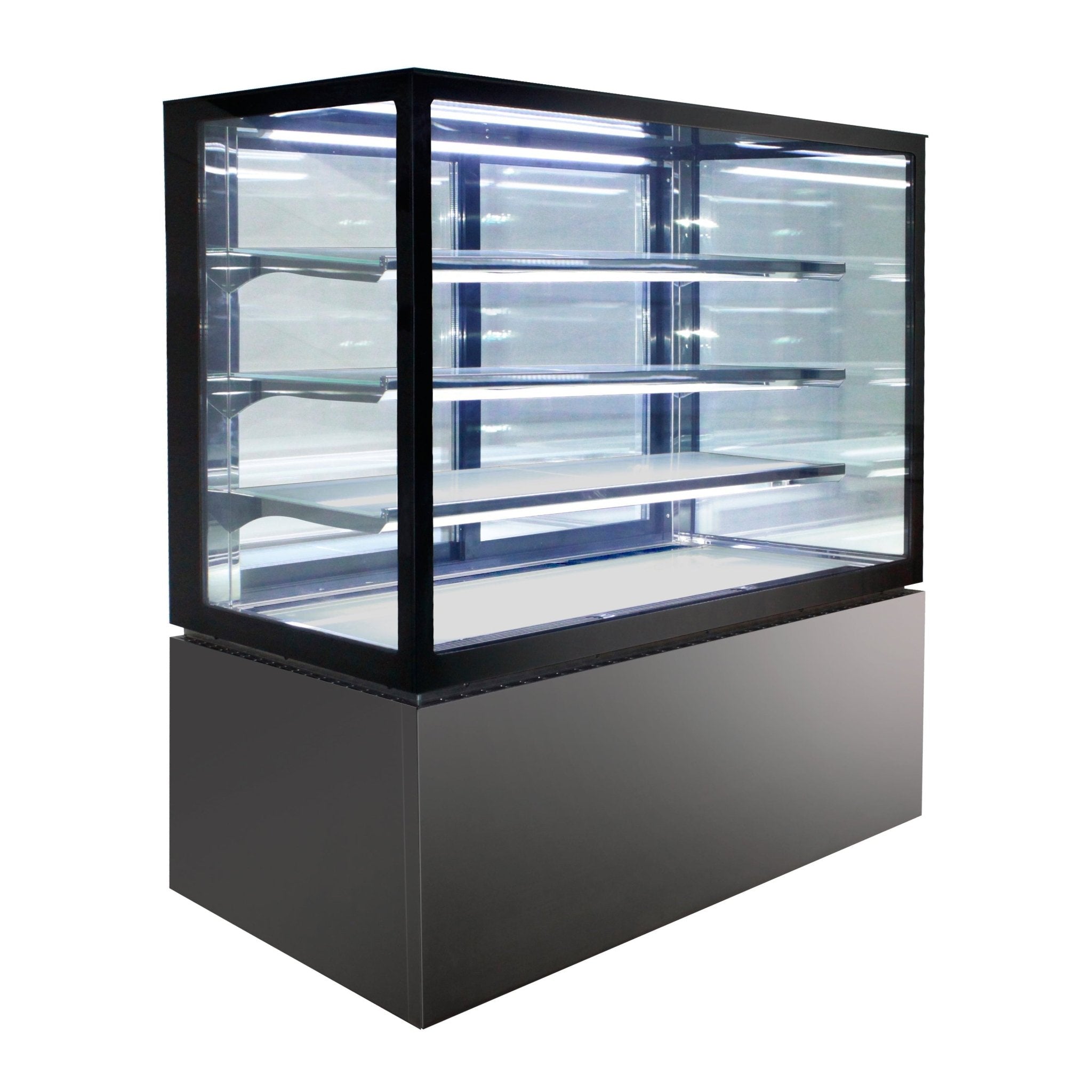

Anvil 4 Tier Cake Display 1200mm NDSV4740

The Anvil NDSV4740 is a 1200 mm 4-tier cake display fridge holding 480 litres, with 3 frosted glass shelves over a stainless steel base shelf. It runs 2 to 8 °C and is rated to a 32 °C ambient at 82% relative humidity. Its ITO heated glass on the front, top and sides is what keeps the cabinet clear in a humid room — and it can also be run as an ambient display by switching the lights on and the cooling off.

Why operators choose the ICE-NDSV4740

• 3 frosted glass shelves plus a stainless steel base shelf — the 4-tier format. Across the range the tier count changes what you can merchandise: more tiers means more product in the same footprint, fewer tiers means more headroom per shelf for tall cakes and gateaux
• ITO heated glass on the front, top AND sides — heated glass is what stops condensation forming on the inside of the panels. Without it a chilled display fogs up in a humid room and the product you are selling on appearance becomes invisible - which on a cake cabinet defeats the entire purpose
• It can be run as an ambient display with the lights on only — a genuinely useful second mode. Turn the refrigeration off and the lighting on and the same cabinet displays product that should not be chilled - chocolate, pastries, bread - without buying a second unit
• Rated to 32 degrees C ambient at 82% relative humidity — the humidity half of that rating is the part that matters and is usually missing. A display rated only on temperature can still struggle in a humid room; 82% RH is a demanding figure and it is what the heated glass exists to cope with
• Black brushed 304 stainless body with removable front and side panels — the panels come off, which is what makes the cabinet cleanable behind rather than only in front
• Removable condenser filter — the single most-skipped maintenance item on refrigerated display. Making it removable is what determines whether it actually gets cleaned - and a blocked condenser is the usual cause of a display that stops holding temperature
• Ventilated cooling with auto defrost — air-circulated cooling for even temperature through the cabinet, defrosting itself on a cycle
• Cool white LED strip lighting — the light the product is seen under. Cool white is the standard choice for cakes and patisserie

Specifications

Venue suitability

This cabinet suits patisseries, bakeries, cafes and delis merchandising cakes and desserts. The 1200 mm width is one of 900, 1200, 1500 and 1800 mm in the 4-tier format — and because the depth (680 mm) and height (1350 mm) are the same across every width in this format, moving up or down a size only changes your frontage.

See the full cake display fridges range or browse every Anvil model we carry.

Installation & delivery

240 V at 1.1 kW — roughly 4.6 A, so a standard outlet, though we would recommend a dedicated circuit for any refrigerated display that runs continuously. Dimensions are recorded width x height x depth: 1200 x 1350 x 680 mm. Leave clear airflow around the condenser and keep the cabinet out of direct sun and away from a doorway draught — the 32 °C at 82% RH rating is generous but it is still a limit. Our data records no weight. Clean the removable condenser filter on a schedule; a blocked filter is the most common reason a display stops holding temperature.

Warranty terms are per product — see our warranty information page.

Frequently asked questions

Q: What does the heated glass actually do?

It stops condensation forming on the inside of the panels. A chilled cabinet in a warm, humid room fogs up, and on a cake display that is fatal - customers buy what they can see. The ITO heating runs through the front, top and side glass, which is also why the cabinet can be rated to 82% relative humidity rather than temperature alone.

Q: Can I use it without refrigeration?

Yes, and it is a genuinely useful option. Turn the cooling off and the lights on and it works as an ambient display - for chocolate, pastries, breads or anything that should not be chilled. It means one cabinet can change role seasonally or through the day rather than sitting idle.

Q: What is the difference between the tier formats?

Shelving and height, not footprint. The 3-tier holds two glass shelves in a 1,200 mm-high cabinet, the 4-tier holds three in a 1,350 mm cabinet, and the Jewellery format holds one in a 1,000 mm cabinet. All share the same 680 mm depth. More tiers means more product in the same floor space; fewer tiers means more headroom per shelf for tall cakes. This is the 4-tier model.

Q: What size options are there?

This format comes in 900, 1200, 1500 and 1800 mm. Depth and height are identical across all of them, so the only thing that changes is frontage and capacity - this one holds 480 litres.

Q: What warranty does it carry?

Two years parts and labour, recorded as a Double Gold Star warranty. That is a genuinely strong term for refrigerated display - note that the countertop ice-cream displays in the same Anvil range carry only 12 months, so the cover is not uniform across the brand.
