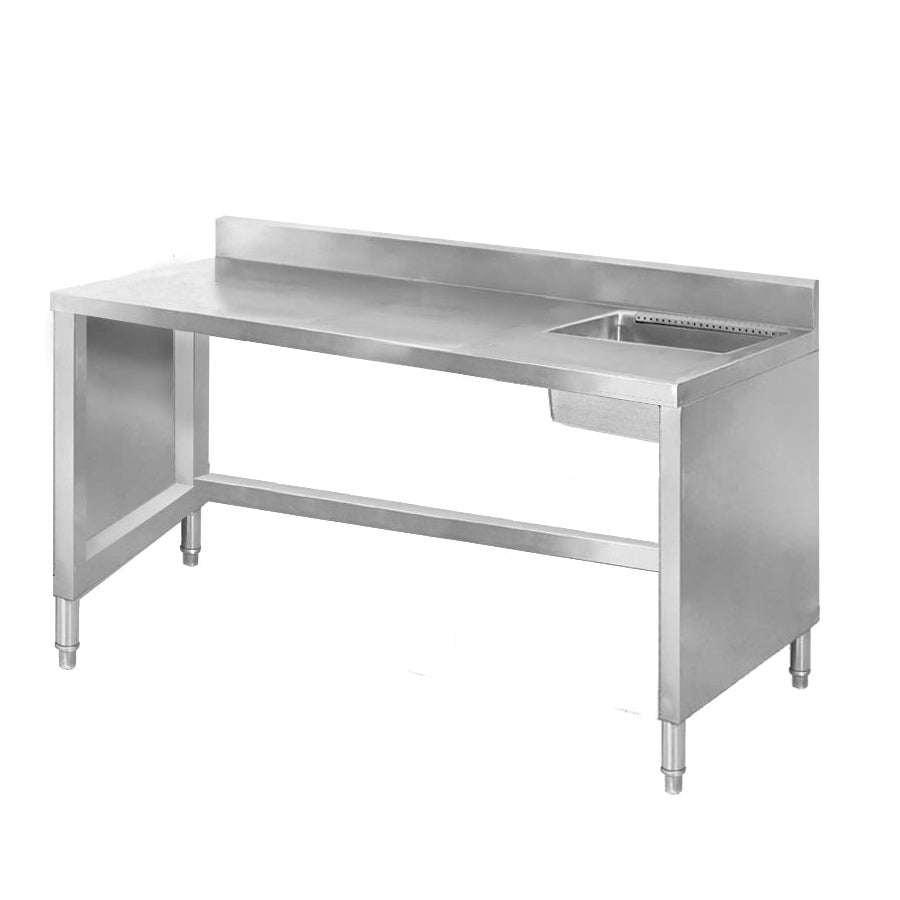

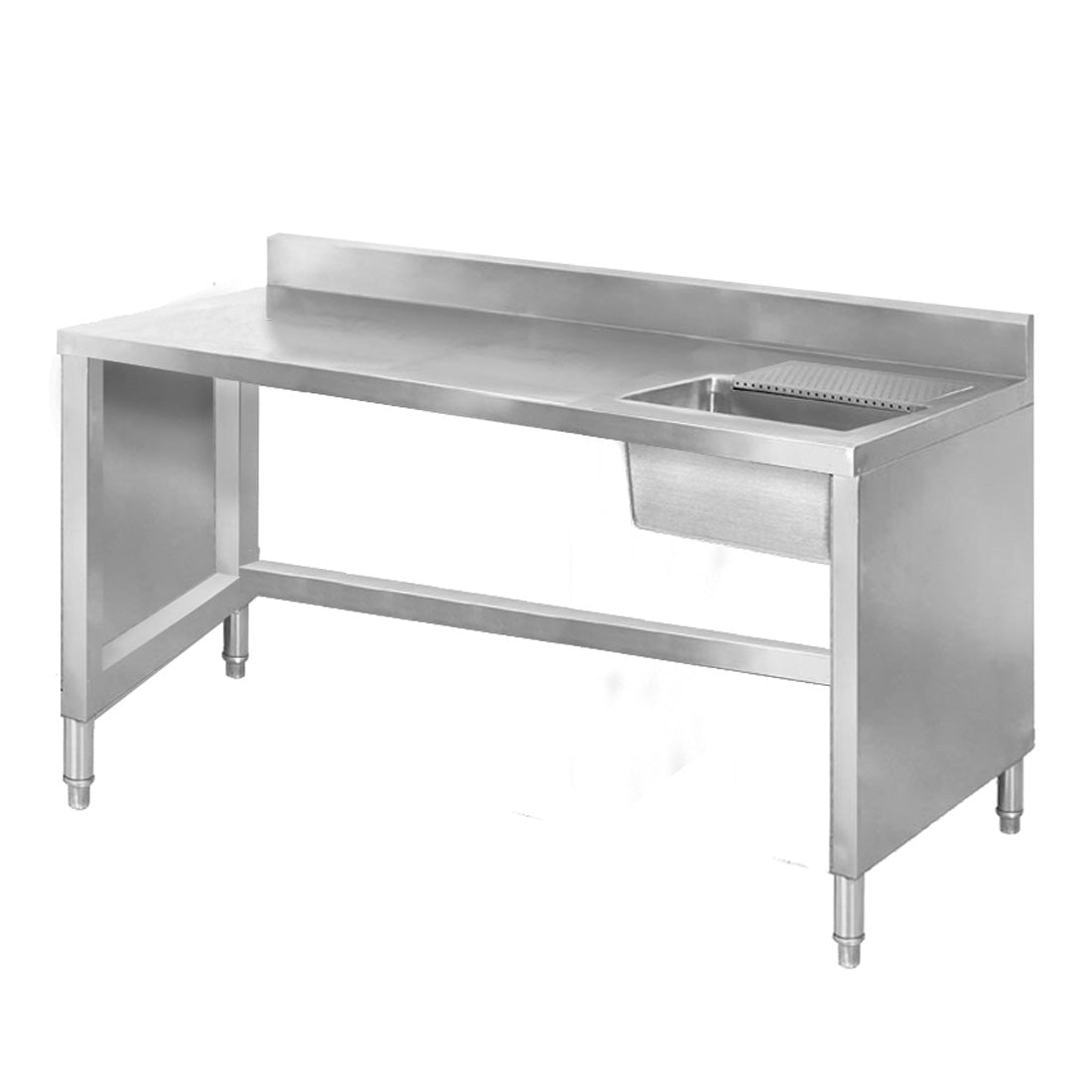

Modular Systems Sink Work Bench With Splashback 1400Mm SSB6-1400R

Sink Work bench with splashback 1400mm SSB6-1400R

Robust stainless steel top 1.2mm 304 grade

900 mm high

Adjustbale Legs

Hygienic & easy to clean

Free optional leg brace instead of pot shelf, please specify leg brace on order if required

• Bowl size 410mmW×310D×200H; 90 mm Ø drain hole

• 600 mm deep × 900 mm high

• Specially designed for quick & simple assembly

• Comes with instruction manual & tools

• Supplied flat-packed for ease of transport

• 4 legs per bench - 2100 & 2400 mm wide benches have 6 legs

• 1.2 mm S/S

• 15 mm wet edge

• Centre bowl positioning

• Bowls are fully welded, polished inside & out

• 90 mm Ø drain hole


Splashbacks

• Stainless Steel backed • 150 mm high; 30 mm thick

• Bevelled • fully enclosed


Legs

• 1.2 mm S/S; 42 mm Ø

• Fully adjustable S/S polished disc feet that match the legs perfectly

• Castor kits available (lockable)


Benchtops

• 1.2 mm material; SUS304 (18/8)

• Lined with XPS board, 15 mm thick & S/S panel

• Special S/S ‘U’ channel reinforcements under

• Ripple Surface

- As the bench size increases so does the number of channels
Pot Undershelves

• 1.2mm S/S (18/8)

• Outer frame tubes: 38 Ø 1.2 mm tube

• Inner tubes: 25 Ø 1 mm tube with 40 mm spacing
