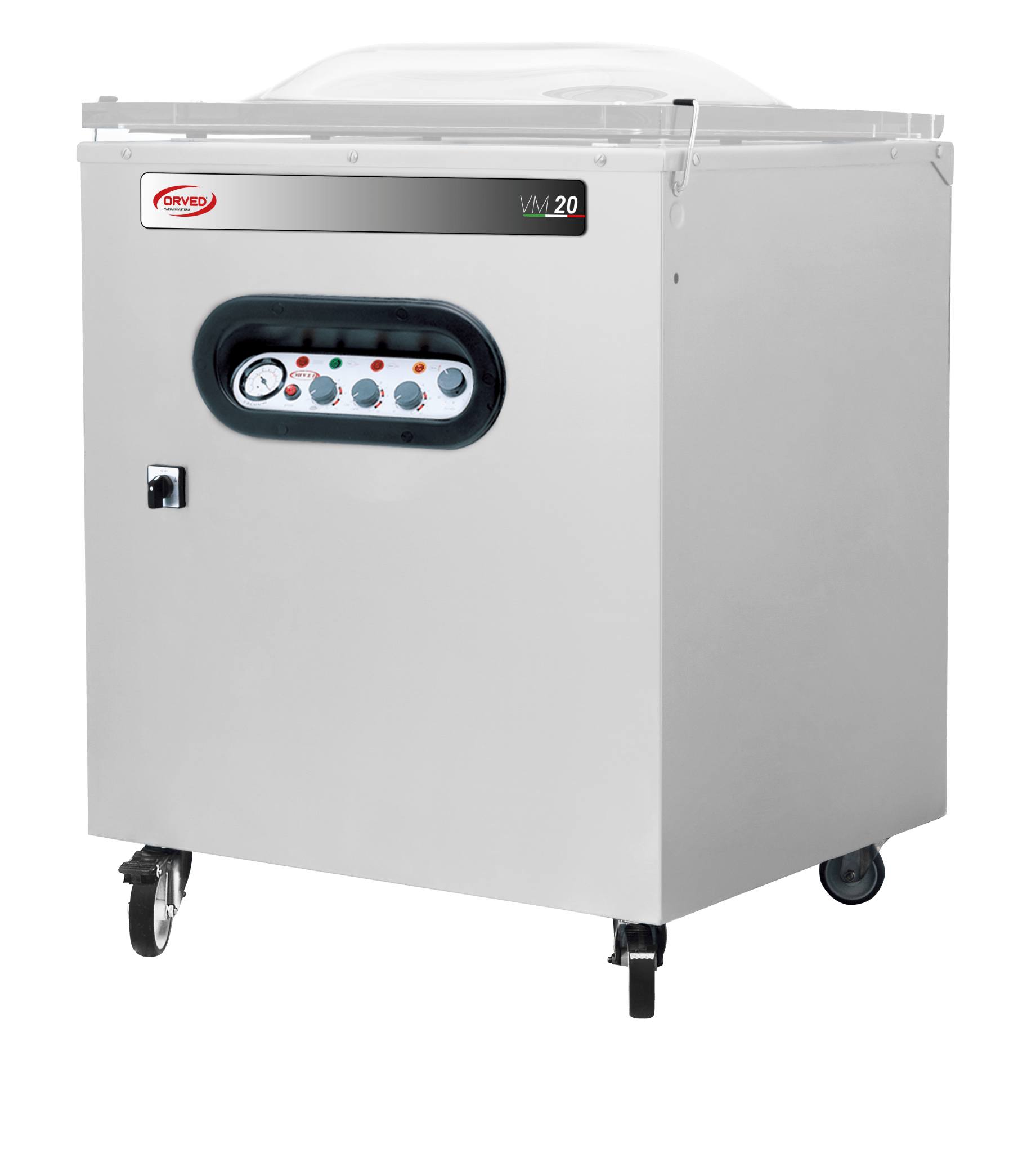

Orved Vacuum Sealer Vm20

The Orved VMO0020 is a chamber vacuum sealer with a 60 m3/h pump, a 650 x 535 x 200 mm chamber and a 2 x 505mm or 2 x 620mm (dual bars) sealing bar. A chamber machine evacuates the whole chamber rather than the bag mouth, so it handles liquids and runs on plain flat pouches.

Why operators choose the ICE-VMO0020

• 60 m3/h pump — Across the Orved chamber range the pump steps 4, 8, 16, 20 and 60 m3/h — that figure, not the chamber size, is what sets cycle time. Pump displacement is what determines how fast a cycle completes and how deep a vacuum you reach
• Chamber 650 x 535 x 200 mm — the internal envelope; measure your largest pouch flat against it
• 2 x 505mm or 2 x 620mm (dual bars) sealing bar — the maximum bag width you can seal in one pass
• Handles liquids — the whole reason to buy a chamber machine over a channel sealer. Stocks, marinades and sous-vide in liquid are all in scope
• Runs on flat pouches — cheaper per unit than the channel bags an external sealer needs, which is where a chamber machine pays for itself in volume
• Supplied without a plug — it must be hard-wired by a licensed electrician. This is a 400 V three-phase machine, not a plug-in unit. Budget the electrical work and check you have three-phase available before you order
• 60 m3/h pump — three times the next machine in the range and fifteen times the Evox 25. This is production equipment
• Dual sealing bars — two seals per cycle, in either 2 x 505 mm or 2 x 620 mm. That is what doubles throughput rather than just making the chamber bigger
• Gas flush and soft air both standard — MAP is included rather than optional, and soft air returns pressure gently so delicate product is not crushed as the chamber vents
• Floor-standing at 1050 mm high — this is not a benchtop machine; the footprint is 765 x 710 mm

Specifications

Venue suitability

A chamber machine suits butchers, smallgoods producers, caterers and any kitchen running sous-vide or portioning wet product. The 60 m3/h pump, dual seal bars and standard gas flush make this a production machine for smallgoods manufacturers and high-volume butchers.

See the full chamber vacuum sealers range or browse every Orved model we carry.

Installation & delivery

This machine is supplied without a plug and must be hard-wired by a licensed electrician — it runs on 400 V three phase at 1.5 kW. Confirm you have three-phase supply at the installation point before ordering, and budget the electrical work. Dimensions are recorded width x height x depth: 765 x 1050 x 710 mm — at 1050 mm high this is floor-standing, not benchtop. Our data records no weight; on a machine this size, ask us about delivery access.

Warranty terms are per product — see our warranty information page.

Frequently asked questions

Q: Can I just plug this in?

No. It is supplied without a plug and must be installed by a licensed electrician. It runs on 400 V three phase at 1.5 kW, so you need three-phase supply at the location and a switchboard connection. Confirm both before ordering, and budget the electrical work as part of the purchase - this is the single most important thing to know about this machine.

Q: How much faster is it than the rest of the range?

Substantially. The pump is 60 m3/h against 20 on the Idea 41 and High Line 42, 16 on the IDEA 40 and 4 on the Evox 25. Combined with dual sealing bars - two seals per cycle rather than one - it is a different class of machine, built for continuous production rather than prep.

Q: What do the dual bars give me?

Two seals in a single cycle, in either 2 x 505 mm or 2 x 620 mm configuration. On a machine like this the cycle time is dominated by evacuation, so sealing two bags per cycle rather than one is close to doubling output for the same pump work.

Q: What is soft air?

It returns air to the chamber gradually instead of venting it at once. Without it, a delicate product - a soft cheese, a filled pasta, anything with structure - can be crushed as pressure comes back. On this machine it is standard rather than an option.

Q: Is gas flush included?

Yes. The source states gas flush is standard on this model, along with soft air. That is a genuine difference from the Idea 41, which is described as ready to connect to gas rather than supplied with it.
