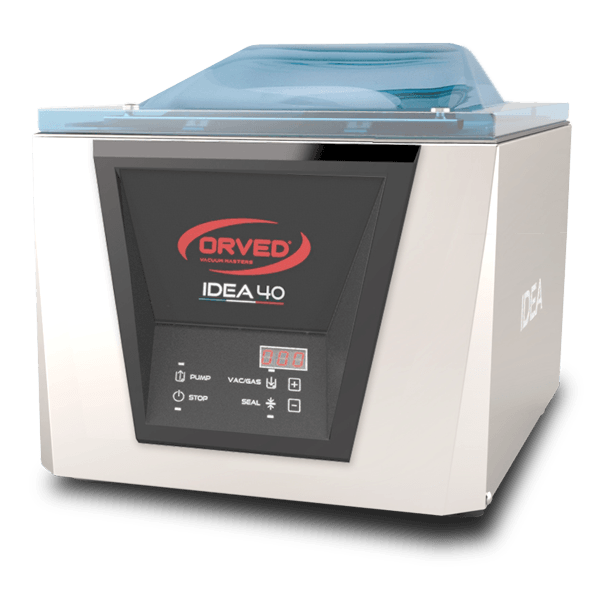

Orved VMO0040 IDEA 40 Vacuum Sealer

The Orved VMO0040 is a chamber vacuum sealer with a 16 m3/h pump, a 438 x 444 x 190 mm chamber and a 410mm sealing bar. A chamber machine evacuates the whole chamber rather than the bag mouth, so it handles liquids and runs on plain flat pouches.

Why operators choose the ICE-VMO0040

• 16 m3/h pump — Across the Orved chamber range the pump steps 4, 8, 16, 20 and 60 m3/h — that figure, not the chamber size, is what sets cycle time. Pump displacement is what determines how fast a cycle completes and how deep a vacuum you reach
• Chamber 438 x 444 x 190 mm — the internal envelope; measure your largest pouch flat against it
• 410mm sealing bar — the maximum bag width you can seal in one pass
• Handles liquids — the whole reason to buy a chamber machine over a channel sealer. Stocks, marinades and sous-vide in liquid are all in scope
• Runs on flat pouches — cheaper per unit than the channel bags an external sealer needs, which is where a chamber machine pays for itself in volume
• 16 m3/h pump — double the IDEA 30 and four times the Evox 25, so a materially shorter cycle under load
• 410 mm sealing bar — takes a much wider bag than the 310 mm IDEA 30
• Smart vacuum sensor — senses the vacuum reached rather than running a timer
• 10 editable programs and a waterproof, scratch-resistant digital panel
• Optional sloping shelf XVMO2073 — sold separately, and a different part number from the IDEA 30's

Specifications

Venue suitability

A chamber machine suits butchers, smallgoods producers, caterers and any kitchen running sous-vide or portioning wet product. The 16 m3/h pump and 410 mm seal bar put this in production territory rather than prep.

See the full chamber vacuum sealers range or browse every Orved model we carry.

Installation & delivery

Plugs into a standard 240 V outlet at 0.8 kW — no electrical work. Dimensions are recorded width x height x depth: 531 x 461 x 600 mm. Our data records no weight. Runs on flat chamber pouches, which are the cheaper consumable.

Warranty terms are per product — see our warranty information page.

Frequently asked questions

Q: How much faster is this than the IDEA 30?

The pump is double the displacement - 16 m3/h against 8 - so it evacuates a comparable load in roughly half the time, and it reaches a deeper vacuum on a large chamber. The chamber is also considerably bigger at 438 x 444 mm against 334 x 347 mm, though the 190 mm internal height is the same.

Q: What bag width will it seal?

Up to the 410 mm sealing bar, laid flat. That is 100 mm more than the IDEA 30.

Q: Is it the same shelf accessory as the IDEA 30?

No, and this catches people out. The IDEA 30 takes the XVMO2072 sloping shelf and this model takes the XVMO2073. Both are sold separately. Order against the model, not the range.

Q: Can it handle liquids?

Yes. A chamber machine evacuates the whole chamber, so there is no differential pulling liquid out of the bag. The optional sloping shelf improves it further.

Q: Does it need special wiring?

No. Standard 240 V outlet at 0.8 kW.
