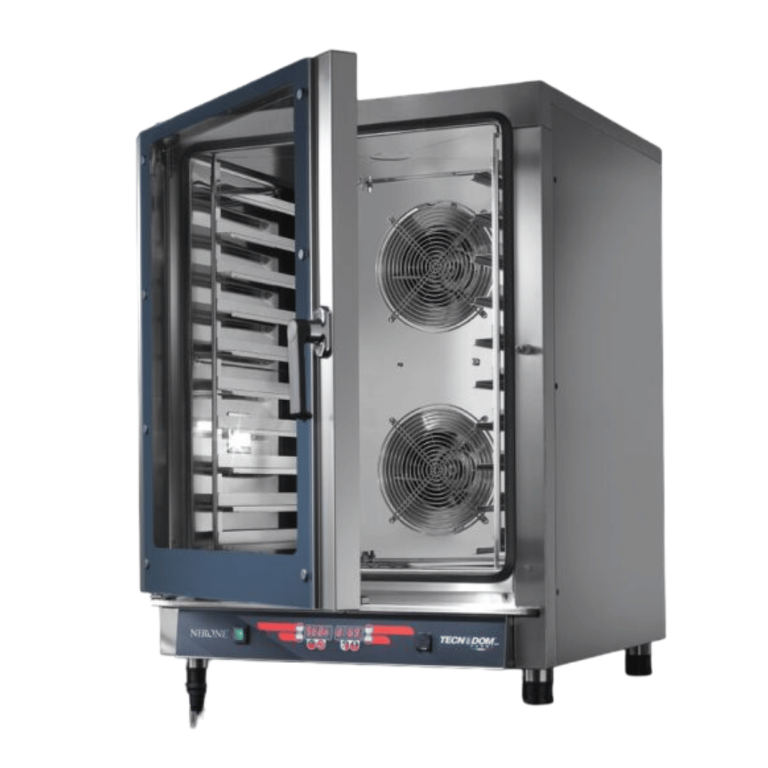

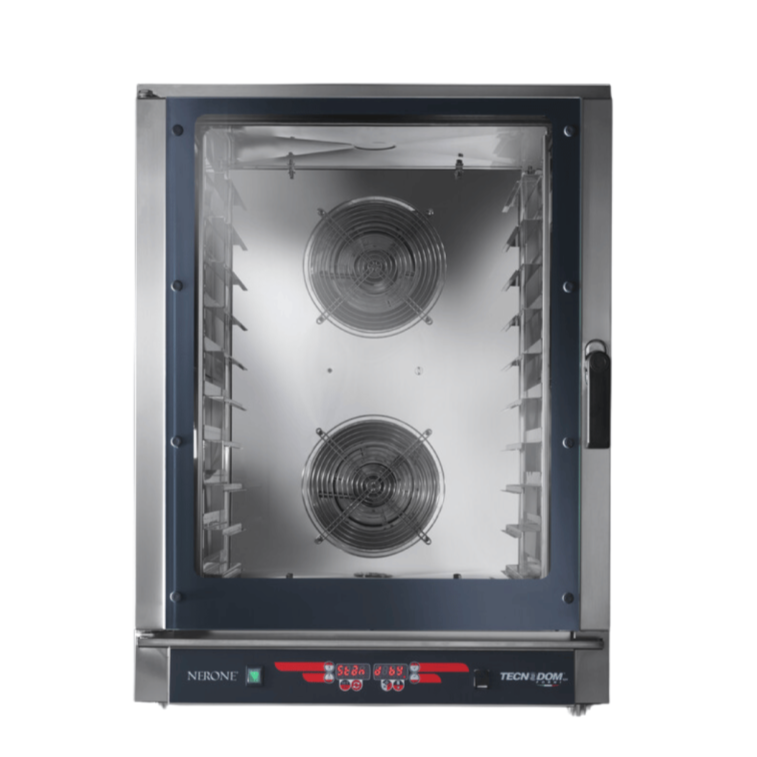

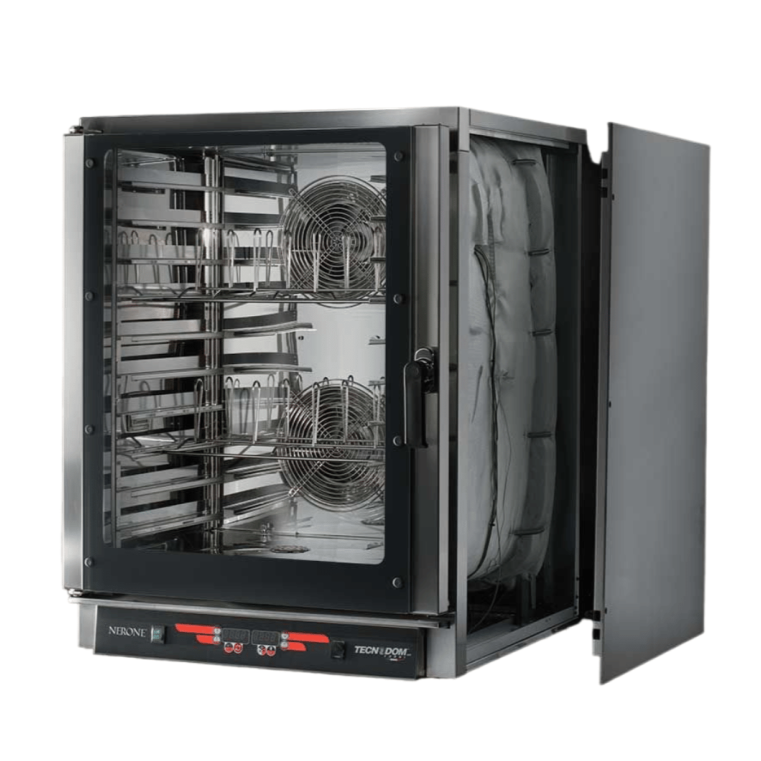

Tecnodom Icarus Digital 10-Tray Combi Oven 600x400mm / GN 1/1 - TD-10NE

The Tecnodom TD-10NE, from the Icarus Nerone series, is a digital 10-tray electric combi oven built for high-throughput kitchens — bakeries, function venues, hotels, aged-care and central-production kitchens. It bakes, roasts and steams across ten GN 1/1 or 600 × 400mm trays, runs a 30-280°C range and draws 12.7kW on a 380-415V 3-phase supply, all from a single footprint.

Why operators choose the TD-10NE

• 10 x GN 1/1 or 600 × 400mm trays (80mm pitch) — high-volume output from one cabinet, taking standard gastronorm and bakery trays.
• Convection with or without water injection — one oven handles dry roasting and baking or steam-assisted cooking as the dish requires.
• 30-280°C digital control — holds the chamber for repeatable results shift after shift, from proving to high-heat roasting.
• 12.7kW on 3-phase power — strong heat recovery to keep pace through peak service.
• 680 × 480 × 840mm chamber — deep, evenly-heated cavity for consistent colour top to bottom.
• Stainless steel construction with glass door — wipe-down hygiene and at-a-glance progress checks.

Specifications

Venue suitability

The TD-10NE suits high-throughput kitchens — bakeries, function venues, hotels, aged-care and central-production kitchens that need batch baking and steam-assisted cooking from one cabinet. Its ten-tray capacity is a step up from the 6-tray TD-6NE in the same series; where floor space or volume is smaller, the TD-6NE covers the same combi modes in a more compact body.

Browse more combi steam ovens or explore the full Tecnodom range.

Installation & delivery

The TD-10NE runs on a 380-415V 3-phase supply, so it must be hard-wired by a licensed electrician — the power cable and 3-phase plug are not included, and grids and pans are supplied separately. Allow clearance around the chamber for door swing, airflow and servicing. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. It is backed by a 1 Year Parts and Labour warranty; see our warranty information for full details.

Frequently asked questions

Q: How many trays does the TD-10NE hold? A: It takes ten trays, either GN 1/1 or 600 × 400mm, spaced at an 80mm pitch.

Q: Is the TD-10NE a true combi oven? A: Yes. It can run with or without a water-injection system, so it handles both dry convection cooking and steam-assisted cooking.

Q: What power supply does the TD-10NE need? A: It draws 12.7kW on a 380-415V 3+N 50Hz supply, so a 3-phase connection hard-wired by a licensed electrician is required.

Q: What temperature range does it cover? A: The digital control holds the chamber anywhere from 30°C to 280°C, suiting proving, baking, roasting and steaming.

Q: Are trays and pans included? A: No. Grids and pans are not included, and neither is the power cable or 3-phase plug.

Q: What warranty does the TD-10NE come with? A: The TD-10NE is covered by a 1 Year Parts and Labour warranty.
