Tecnodom Icarus 7-Tray Digital Combi Oven 600x400mm / GN 1/1 - TD-7NE
Regular price
$6,791.00
Regular price
Sale price
$6,791.00 +GST
-15%
$7,990.00
Get Extra 11% OFF on Tecnodom! Use coupon:
EXTRA11
Discover a lower price? Contact our team for a deal
Apply for Equipment Finance with Silver Chef
Get approval in under 5 minutes Apply Now
Fast Delivery
Best Price
Australia-wide delivery
Couldn't load pickup availability
Open here

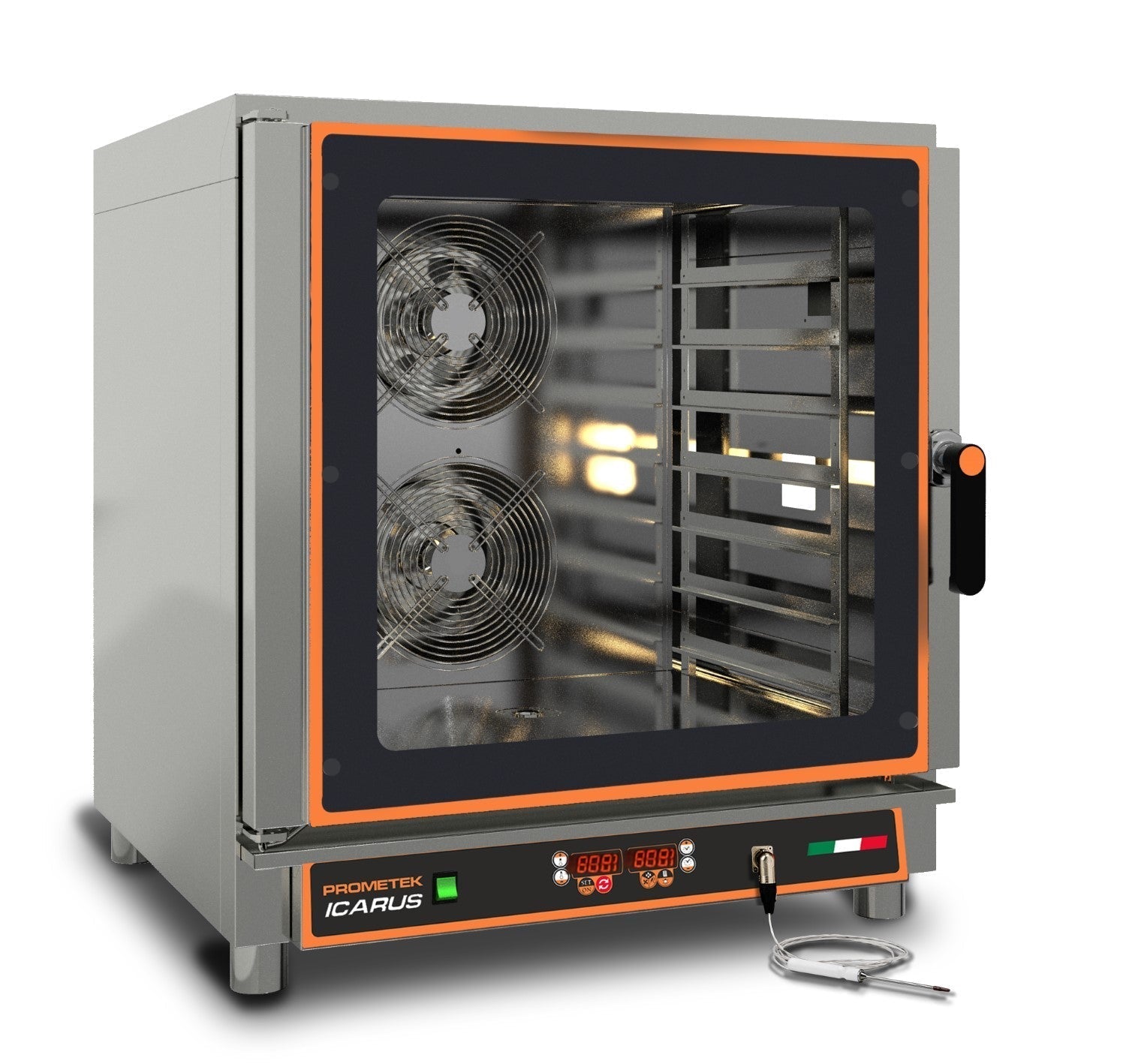

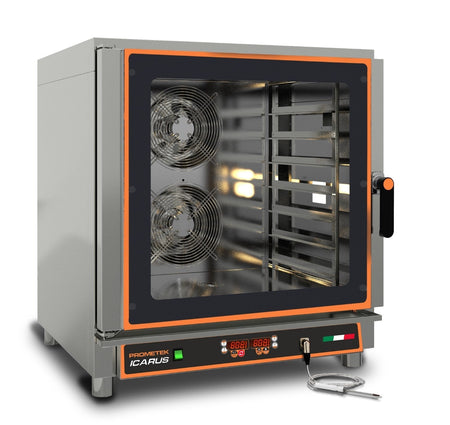

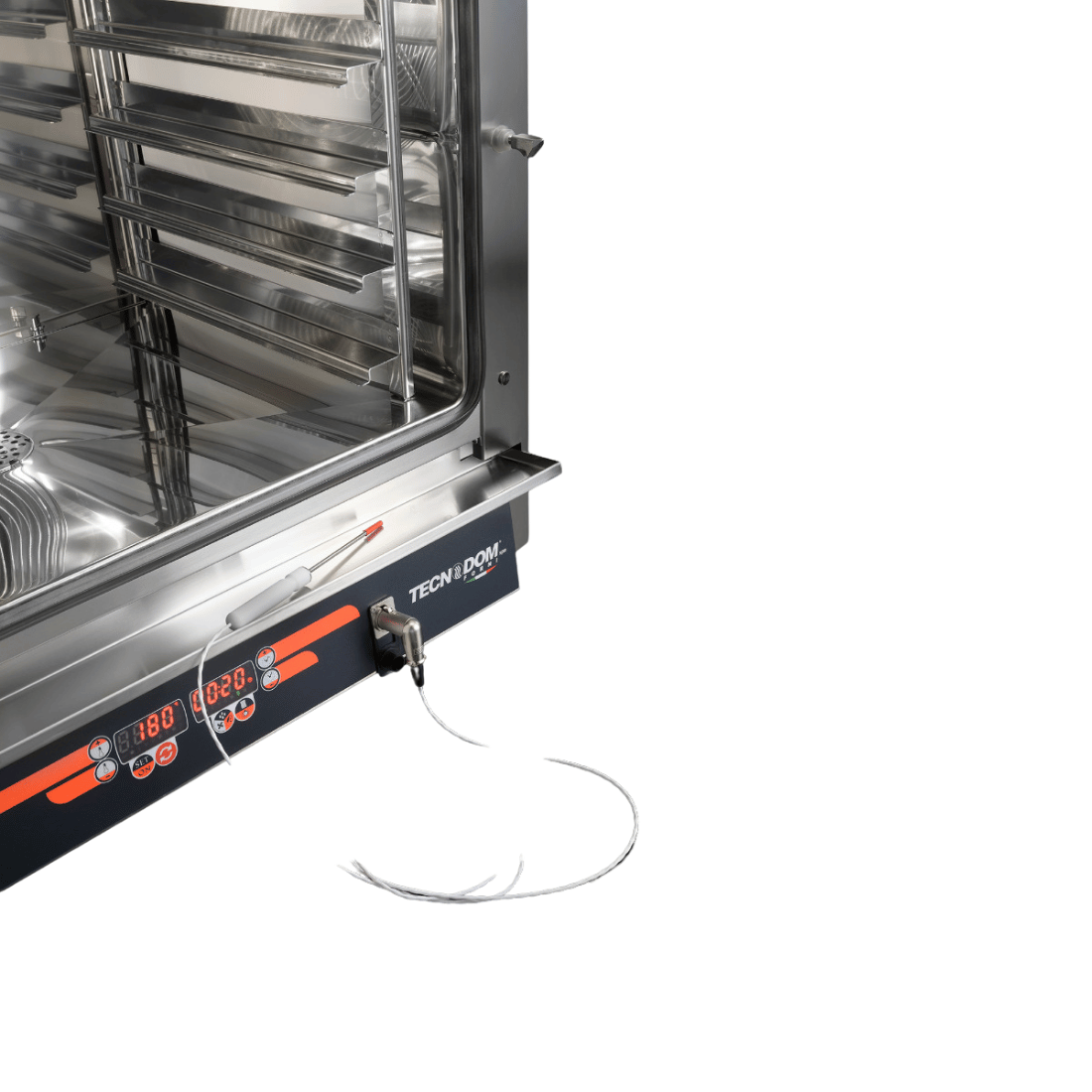

Tecnodom Icarus TD-7NE is a 7-tray electric digital combi oven built for high-output commercial kitchens. It takes 7 x 600x400mm trays or GN 1/1 pans on an 80mm pitch, and runs with or without water injection for combined convection and steam cooking across roasting, baking, steaming and regeneration.
Part of Tecnodom's Nerone/Icarus range, the TD-7NE pairs a digital control panel with a +30°C to +280°C temperature range and 10.7 kW of electric power, giving consistent results for busy service. Browse the full combi steam ovens range or see more from Tecnodom.
Specifications
| Brand | Tecnodom |
| Model | TD-7NE |
| Product Type | Combi Oven |
| Capacity | 7 trays (600x400mm or GN 1/1) |
| Tray Pitch | 80 mm |
| Power Type | Electric |
| Total Power | 10.7 kW |
| Voltage | 380-415V 3+N 50Hz |
| Temperature Range | +30°C to +280°C |
| Water Injection | With or without water injection |
| Oven Chamber | 680mm (W) x 520mm (D) x 620mm (H) |
| External Dimensions | 840mm (W) x 870mm (D) x 930mm (H) |
| Packed Dimensions | 880mm (W) x 995mm (D) x 1080mm (H) |
| Net Weight | 105 kg |
| Control | Digital (1 knob) |
| Warranty | 1 Year Parts and Labour |
Key Features
- 7-tray capacity: 7 x 600x400mm trays or GN 1/1 pans, 80mm pitch
- Digital control with combined convection and steam cooking
- Operates with or without a water injection system
- +30°C to +280°C temperature range
- 10.7 kW electric, 380-415V 3+N 50Hz
- Stainless steel construction with glass door and twin fans
- Grids/pans and 3-phase plug/power cable not included
Warranty: Backed by 1 Year Parts and Labour. Warranty terms vary by product — see our warranty information page for full details.
Finance: Flexible equipment finance is available through SilverChef, with fast approvals to help you fit out your kitchen sooner.
Frequently Asked Questions
How many trays does the Tecnodom TD-7NE hold?
It holds 7 trays, taking either 600x400mm trays or GN 1/1 pans on an 80mm pitch.
Is the TD-7NE gas or electric?
It is a fully electric combi oven, rated at 10.7 kW and running on 380-415V 3+N 50Hz.
Does the TD-7NE use steam?
Yes. It is a combi oven that can operate with or without a water injection system, combining convection and steam cooking.
What temperature range does it reach?
The digital control gives a temperature range of +30°C to +280°C.
Are trays and a power plug included?
No. Grids and pans are not included, and the power cable or 3-phase plug is not supplied with the oven.
- SKU TD-7NE
- Product Dimensions 840(W) x 870(D) x 930(H)mm
- Packed Dimensions 880(W) x 995(D) x 1080(H)mm
- Warranty
