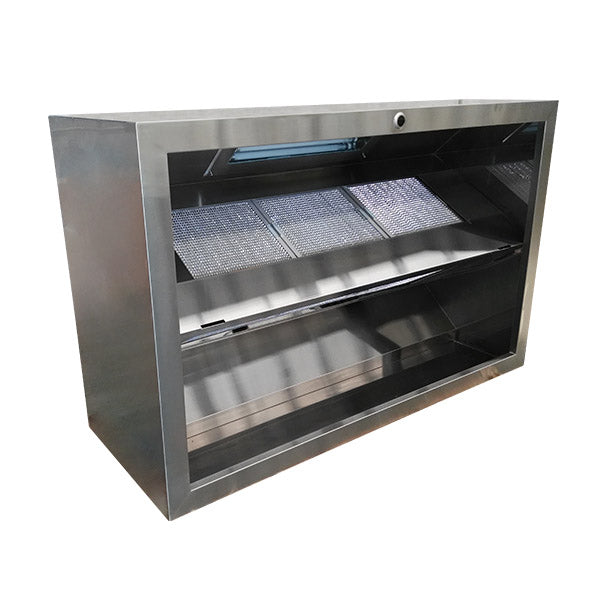

SimcoHood Asian Type SHA Series Exhaust Canopy 1600 X 1150 mm SHA1600

The SimcoHood SHA1600 is the Asian-restaurant series canopy at 1600 x 1150 mm — noticeably deeper than the standard SH series, which is what a wok range needs, because a wok throws heat and fume forward rather than straight up. Stainless steel with fully welded corners, a tapered plenum higher at the front, a removable grease drain tray and honeycomb filters included. Fans and ducting are not included — those come from whoever fabricates and installs your system.

Why operators choose the SHA1600-SM

• 1150 mm deep, not the standard 1000 mm — the extra depth is the whole point of the Asian series: a wok burner pushes fume and heat forward, and a shallower canopy lets it escape past the front edge
• Stainless steel throughout with fully welded corners — only the top face is galvanised steel, so every surface a cleaner touches is stainless
• Complies with Australian Standard 1668 — the ventilation standard your certifier will ask about, so it is not a question mark at inspection
• Tapered plenum, higher at the front — grease runs back rather than collecting at the leading edge, which is where it drips onto the line
• Removable grease drain tray — comes out for washing instead of being scraped in place
• Honeycomb filters included — 381 x 457 x 50 mm standard-size filters, supplied with every hood, with no dividers between them
• Vapour-proof LED lights behind a toughened glass panel — rated for the steam and grease directly under it, and bright enough to actually see the pass
• Standard filter size — 381 x 457 x 50 mm is an off-the-shelf size, so replacements are easy to source and not a proprietary part
• Fans and ducting are NOT included — stated plainly in the product data - they are normally supplied by the fitter or fabricator installing the canopy, so get that into your installer's quote

Specifications

Venue suitability

The SHA1600 is built for a wok line — Asian restaurants, food courts and function kitchens running wok burners, where the standard 1000 mm depth is not enough to capture what a wok throws forward. At 1600 mm wide it covers a two or three-station wok range.

See the full commercial exhaust canopys range or browse every SimcoHood model we carry.

Installation & delivery

A canopy is a fixed installation forming part of a ventilation system. Fans and ducting are not supplied with this canopy and are typically provided by the fitter or fabricator who installs it, so make sure your installer has quoted them. Our product data records the width and depth of this canopy but the height field is empty, so no height is published here. Height matters for your ceiling and for the duct rise, so confirm it with our team before you order.

Frequently asked questions

Q: Are fans and ducting included with the SHA1600?

No. The product data states plainly that fans and ducting are not included; they are typically supplied by the fitter or fabricator who installs your canopy. Budget for them separately and make sure your installer has them in scope.

Q: Why is the Asian series 1150 mm deep instead of 1000 mm?

A wok burner throws heat and fume forward, not straight up, so a shallower canopy lets some of it escape past the front edge. The extra 150 mm of depth is there to capture it.

Q: What size filters does it take, and are they included?

Standard honeycomb filters at 381 x 457 x 50 mm, and the filters are included with every hood. Off-the-shelf size, so replacements are easy to source.

Q: How tall is the canopy?

The height field is empty in our product data, so no figure is published here. Contact our team - you will need it for ceiling clearance and the duct rise.

Q: Does it meet Australian ventilation requirements?

The canopy is built to comply with Australian Standard 1668. Because fans and ducting are not supplied with it, compliance of the finished system rests on the whole installation, which your mechanical contractor and certifier will confirm.

Q: What warranty does the SHA1600-SM come with?

Covered for 2 years on parts and labour. Terms vary by product — see our warranty information page for full details.
