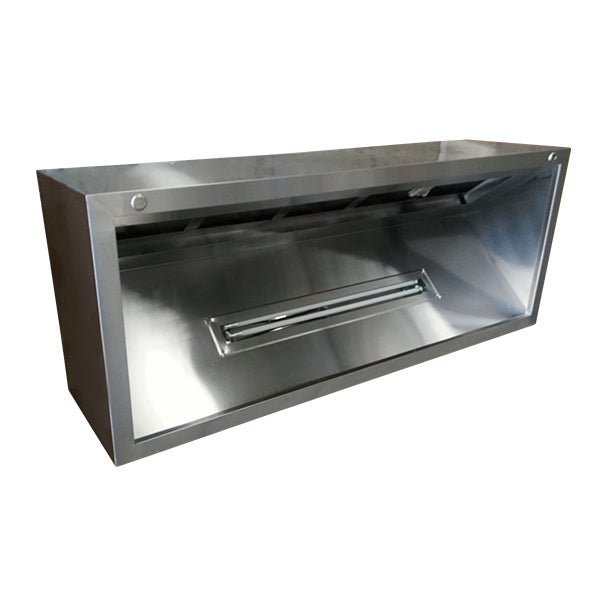

SimcoHood SH Series Exhaust Canopy 1000x1000 mm SH1000

The SimcoHood SH1000 is a 1000 x 1000 mm stainless steel exhaust canopy — the smallest in the SH range, sized for a single appliance or a short bench rather than a cooking line. Fully welded corners, a tapered plenum higher at the front, a removable grease drain tray and honeycomb filters included at the standard 381 x 457 x 50 mm size. It complies with Australian Standard 1668.

Why operators choose the SH1000-SM

• 1000 x 1000 mm - the compact option — sized for one appliance or a short bench, where a 2.8 or 3.6 m canopy would be over-specified and would not fit
• Stainless steel throughout with fully welded corners — only the top face is galvanised steel, so every surface a cleaner touches is stainless
• Complies with Australian Standard 1668 — the ventilation standard your certifier will ask about, so it is not a question mark at inspection
• Tapered plenum, higher at the front — grease runs back rather than collecting at the leading edge, which is where it drips onto the line
• Removable grease drain tray — it comes out for washing instead of being scraped in place
• Honeycomb filters included — 381 x 457 x 50 mm standard-size filters, supplied with every hood, with no dividers between them
• Vapour-proof LED lights behind a toughened glass panel — rated for the steam and grease directly under it, and bright enough to see the pass
• Standard filter size — 381 x 457 x 50 mm is off-the-shelf, so replacements are easy to source and not a proprietary part
• In stock, no build lead time — shipped as a finished unit rather than fabricated to order

Specifications

Venue suitability

The SH1000 suits a single appliance position — a benchtop fryer, a small griddle, a combi oven — in cafes, small restaurants, clubs and canteens. It is the canopy for a short run rather than a full line, and at 1000 mm deep it is sized for a standard-depth bench.

See the full commercial exhaust canopys range or browse every SimcoHood model we carry.

Installation & delivery

A canopy is a fixed installation forming part of a ventilation system, not a standalone appliance. Our product data records the width and depth of this canopy but the height field is empty, so no height is published here. Height matters for your ceiling and the duct rise, so confirm it with our team before you order. Our data also does not record whether a fan and ducting are supplied, and on this type of canopy they are usually provided by the fitter or fabricator, so confirm what is included before you budget the job.

Frequently asked questions

Q: What size filters does the SH1000 take, and are they included?

Standard honeycomb filters at 381 x 457 x 50 mm, included with every hood. It is an off-the-shelf size, so replacements are easy to source.

Q: Does the SH1000 come with a fan and ducting?

Our product data does not record this, and on canopies of this type the fan and ducting are typically supplied by the fitter or fabricator who installs it. Confirm with our team what is included before you order.

Q: How tall is the canopy?

The height field is empty in our product data, so no figure is published here. Contact our team - you will need it for ceiling clearance and the duct rise.

Q: Is a 1000 mm canopy big enough?

It depends what is under it. A 1000 x 1000 mm canopy suits a single appliance position; it is not intended to cover a multi-appliance cooking line. The SH range runs up to 4000 mm wide, so match the canopy to the run you are actually covering.

Q: Does it meet Australian ventilation requirements?

The canopy is built to comply with Australian Standard 1668. Whether the finished installation complies also depends on the fan, ducting, make-up air and the appliances beneath it.

Q: What warranty does the SH1000-SM come with?

Covered for 2 years on parts and labour. Terms vary by product — see our warranty information page for full details.
