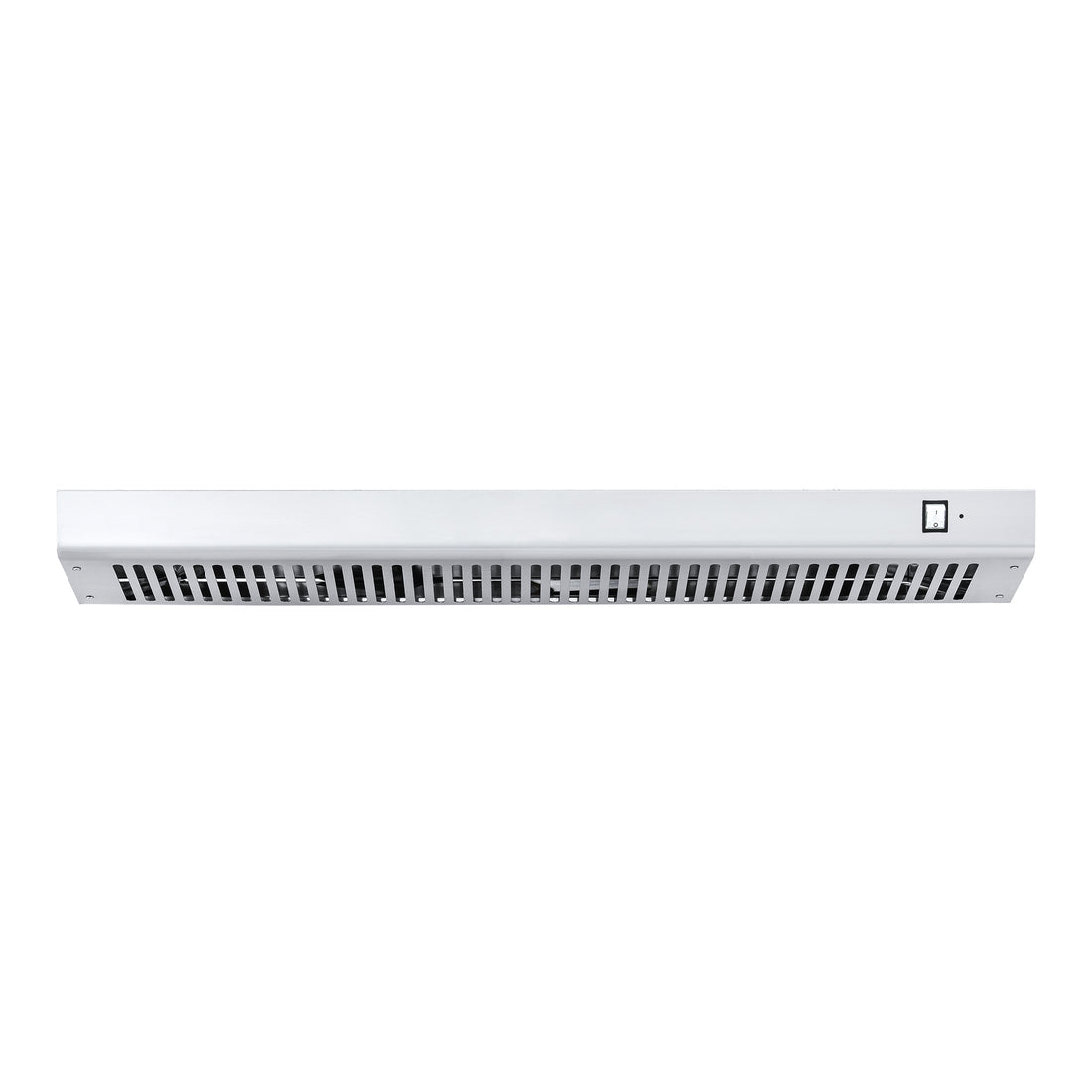

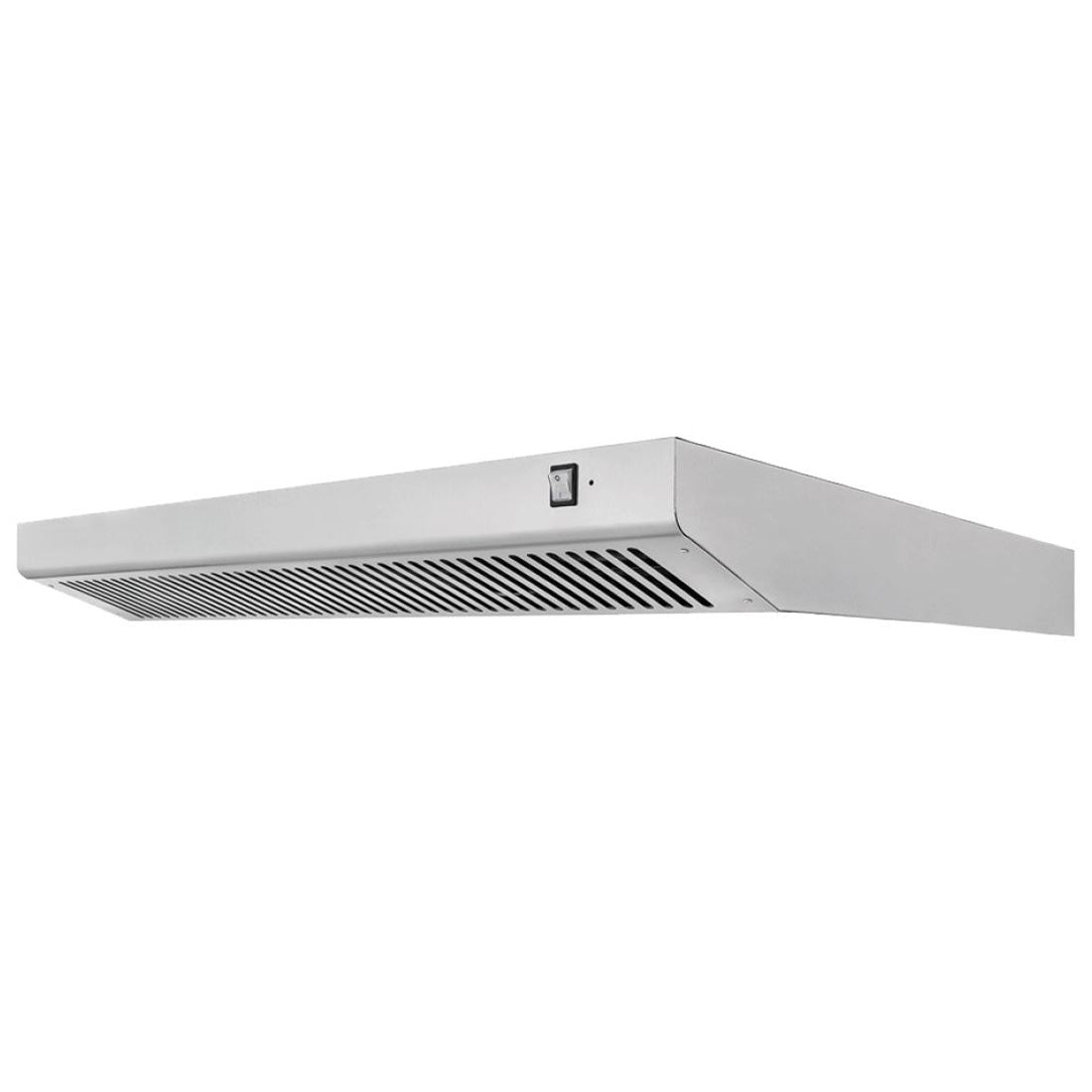

Stainless Steel Hood with Motor and Speed Regulator- KT4-44MS

The Primax KT4-44MS is a stainless steel hood with an integrated motor and speed regulator, moving 400 m3/h. It is made for a specific job: it suits the TP-2 and TP-2-1 pizza ovens and is rated for applications up to a total of 8 kW. That fitment and that limit are the two facts that decide whether it is the right hood for you — both are stated by the manufacturer, and both are easy to get wrong. It draws only 60 W and the proving chamber is not included.

Why operators choose the KT4-44MS

• Suits TP-2 and TP-2-1 pizza ovens — named fitment, which is more than most canopies offer. If your oven is not one of these two, ask us before assuming it fits
• Rated to 8 kW total - check your appliance — the manufacturer's stated limit. Putting more heat under a hood than it is rated for means it cannot clear the air, which is a comfort problem at best and a compliance one at worst
• 400 m3/h with a speed regulator — adjustable extraction rather than one fixed speed - turn it down when you are idling and up under load
• Motor integrated — the motor comes with the hood rather than being a separate purchase and a separate install
• Proving chamber is NOT included — stated explicitly by the manufacturer. If you were expecting a combined oven-and-prover setup, this is the hood only
• 60 W on a standard outlet — the extraction itself costs almost nothing to run
• Stainless steel — the only sensible material above a cooking appliance - it takes the heat, the grease and the degreaser
• Slim at 120 mm high — it adds very little to the overall height of an oven stack, which matters under a low ceiling

Specifications

Venue suitability

The KT4-44MS suits pizzerias, cafes and small kitchens running a TP-2 or TP-2-1 pizza oven where a full extraction canopy is not practical or not justified. It is a matched component rather than a general-purpose canopy — which is its advantage if you have the right oven and its limitation if you do not.

See the full kitchen fitout equipment range or browse every Primax model we carry.

Installation & delivery

It runs from a standard 10 A power point, so no electrical work is required. At 60 W the hood itself is trivial electrically. Two things need confirming before you order, and neither is on this page by accident: that your oven is a TP-2 or TP-2-1, and that the total load beneath it is within the 8 kW rating. Our data does not state whether this hood ducts to outside or recirculates, and that determines what your mechanical contractor and local requirements will accept — so confirm it with us and with them rather than assuming either. At 14 kg it is a one or two-person fit.

Frequently asked questions

Q: Will it fit my oven?

It is stated to suit the TP-2 and TP-2-1 pizza ovens. If you have one of those, this is the matched hood. If you have anything else, ask our team before ordering - a canopy sized and rated for a specific appliance is not a general-purpose fit, and that is precisely why it works well on the ovens it is made for.

Q: What does the 8 kW rating mean for me?

It is the total appliance load the hood is rated to handle. Add up the kilowatts of everything sitting under it - if that exceeds 8 kW, this hood cannot clear the air the appliances produce, and you need a larger extraction solution. It is the figure to check first.

Q: Does it duct outside or recirculate?

Our data does not say, and this is not a detail to guess at: a ducted hood and a recirculating one are different installations with different requirements, and what is acceptable depends on your premises and the appliance beneath. Contact our team to confirm the configuration, and involve your mechanical contractor before committing.

Q: Is a proving chamber included?

No. The manufacturer states explicitly that the proving chamber is not included - this is the hood, motor and speed regulator only. If you want a prover as part of the setup it is a separate purchase.

Q: What does the speed regulator do?

It lets you vary the extraction rate rather than running flat out. Turn it down when the oven is idling to cut noise and heat loss from the room, and up under full load.

Q: What warranty does the KT4-44MS come with?

Covered for 1 year parts and labour. Terms vary by product — see our warranty information page for full details.
