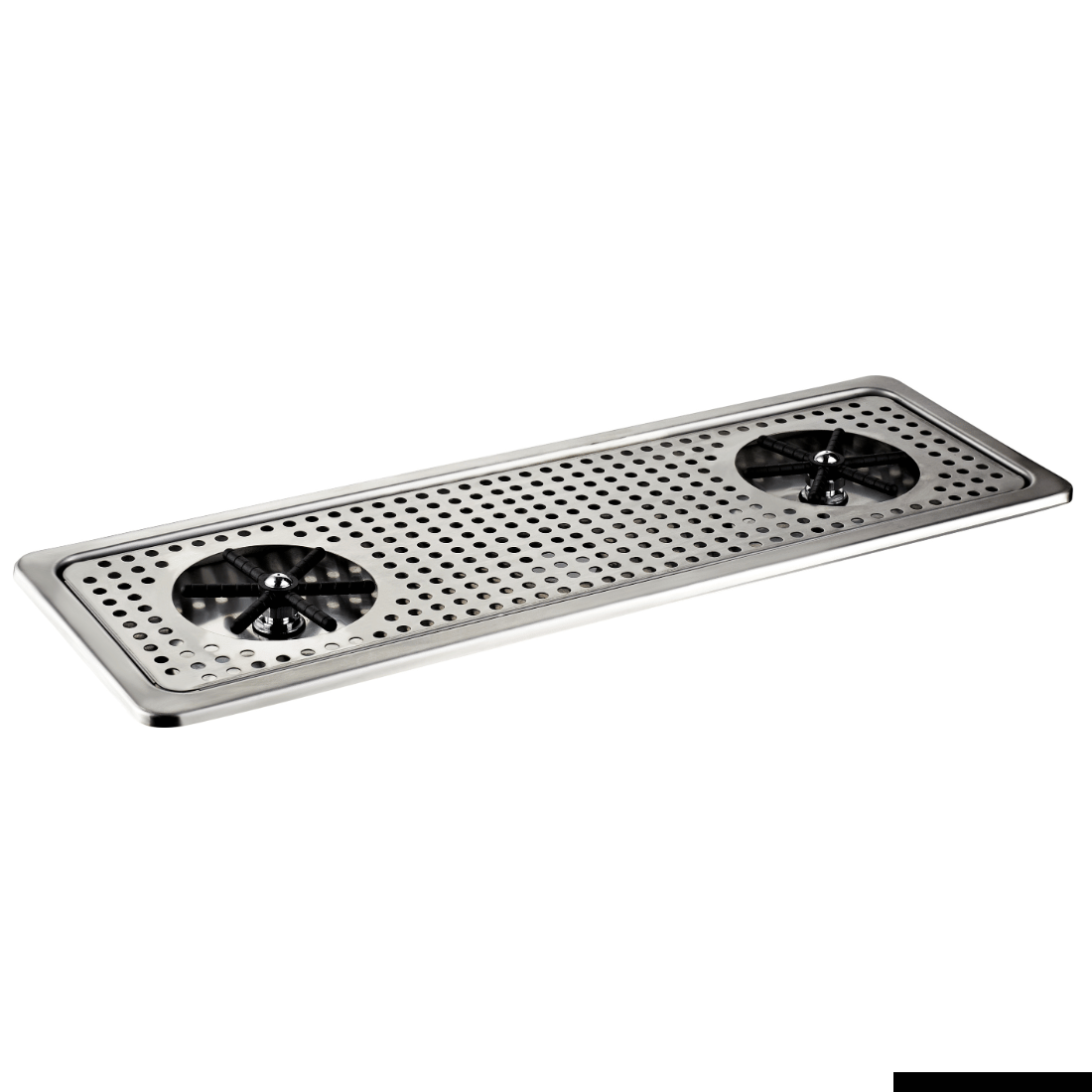

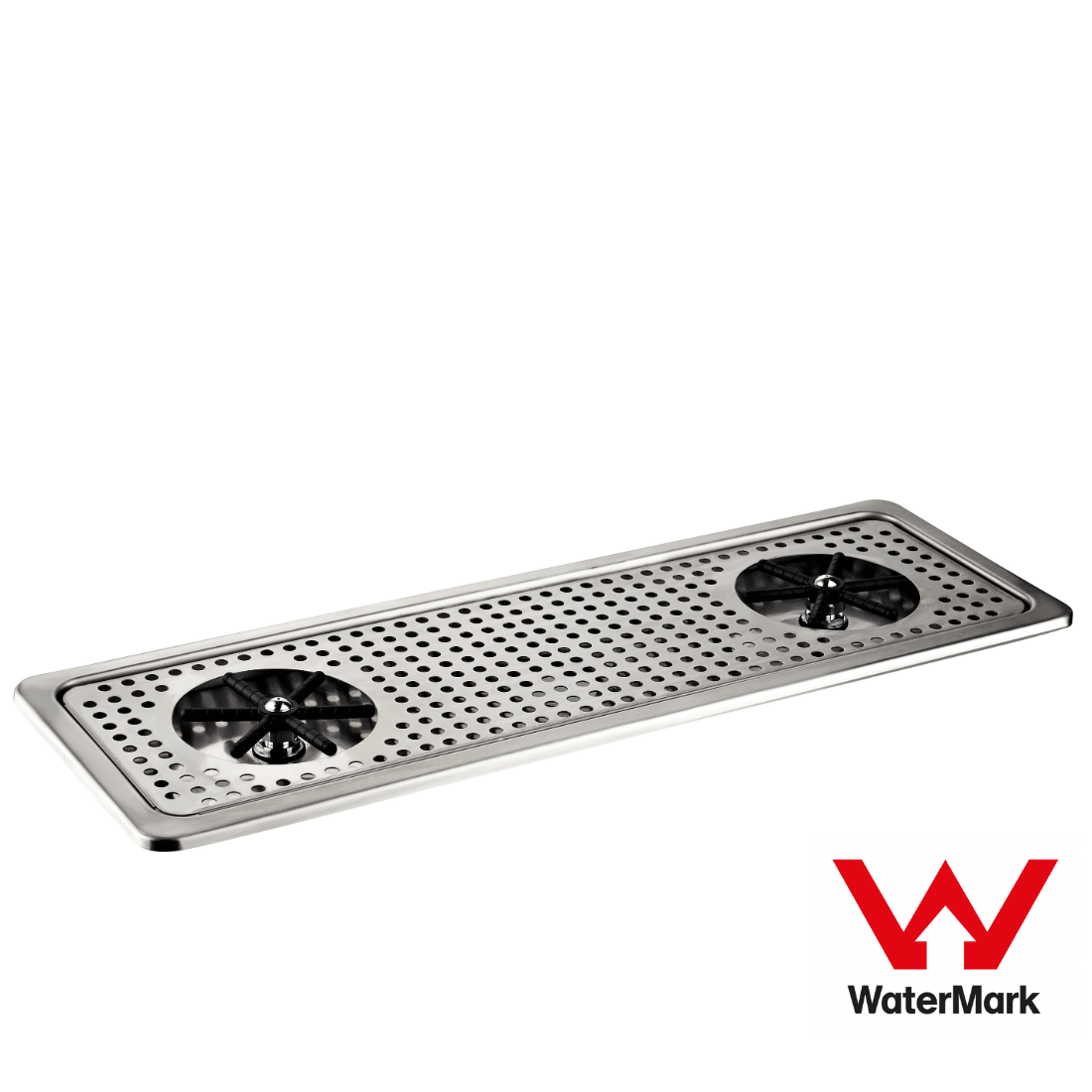

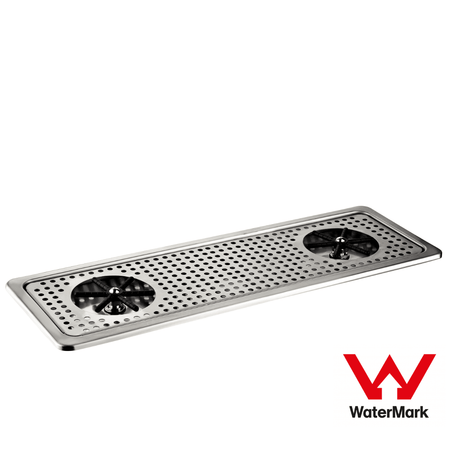

Sunmixer Double Glass Rinsers Counter Top Model T9860-C-DF

The Sunmixer T9860-C-DF is a counter-top glass rinser with two 120 mm rinse heads, one on each side, 395.2 mm apart. It is Watermark certified, built in 304 stainless steel with a drainage tray, rated to 85 °C at a 0.4 MPa safety pressure.

Why operators choose the T9860-C-DF

• A 120 mm rinse head on each side, 395.2 mm apart — two rinse stations on one fitting. The spacing is what decides whether two people can work it at once, and 395 mm is enough separation for that
• Watermark certified — the certification that matters for plumbed fittings in Australia - it is what a plumber and a certifier will look for
• Rated to 85 degrees C working temperature — a rinser plumbed to hot water needs to tolerate it. 85 degrees C is the recorded working limit
• 0.4 MPa safety pressure — about 4 bar. Worth checking against your mains pressure - a site running higher needs a pressure limiting valve, which is a cheap part that prevents an expensive leak
• 304 stainless steel — the food-grade stainless that survives a wet bench and detergent
• G1/2 install connection — standard half-inch, so a plumber can connect it without special parts
• Drainage tray included — the rinse water has somewhere to go rather than pooling on the counter

Specifications

Venue suitability

This rinser suits busier bars and coffee counters where two people work the same station, or where you want a rinse head at each end of a 645 mm run rather than one in the middle. If a single station is enough, the T9860-C is the same fitting with one head.

See the full jug and cup rinsers range or browse every Sunmixer model we carry.

Installation & delivery

It plumbs in on a G1/2 connection — a standard half-inch fitting, so no special parts. Check your mains pressure against the 0.4 MPa safety figure (roughly 4 bar): a site running higher needs a pressure limiting valve, which is inexpensive and prevents a leak that is not. Dimensions are recorded width x depth x height: 645 x 217 x 24 mm, packing at 480 x 700 x 51.66 mm. Our data records no weight.

Warranty terms are per product — see our warranty information page.

Frequently asked questions

Q: What pressure does it need?

The recorded safety pressure is 0.4 MPa, which is about 4 bar. That is a limit rather than a requirement - if your mains runs above it, fit a pressure limiting valve. It is a cheap part and it is far cheaper than a burst fitting behind a bar.

Q: Can it be plumbed to hot water?

It is rated to a working temperature of 85 degrees C, so hot water is within its specification. Whether you want hot depends on what you are rinsing - hot rinses better on milk residue, cold is enough for most glassware.

Q: What connection does the plumber need?

G1/2 - a standard half-inch thread. No adaptors or special parts, which keeps the plumbing job short.

Q: Can two people use it at once?

That is what the 395.2 mm spacing is for - the two heads are far enough apart that two people are not working over each other. If you only need one station, the single-head T9860-C is the same fitting otherwise.

Q: Is it certified for Australian plumbing?

Yes - it is recorded as Watermark certified and ships with the certification sticker. That is the mark a plumber and a certifier look for on a plumbed fitting in Australia, so it is worth knowing before the job is booked.
