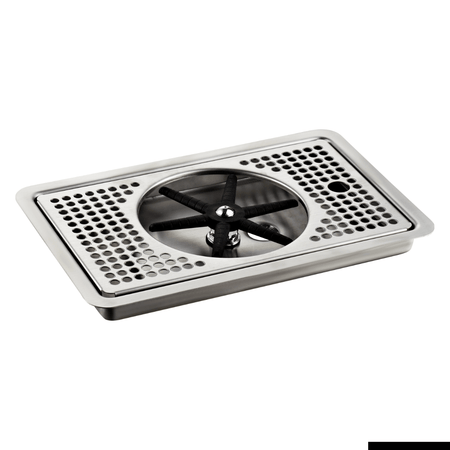

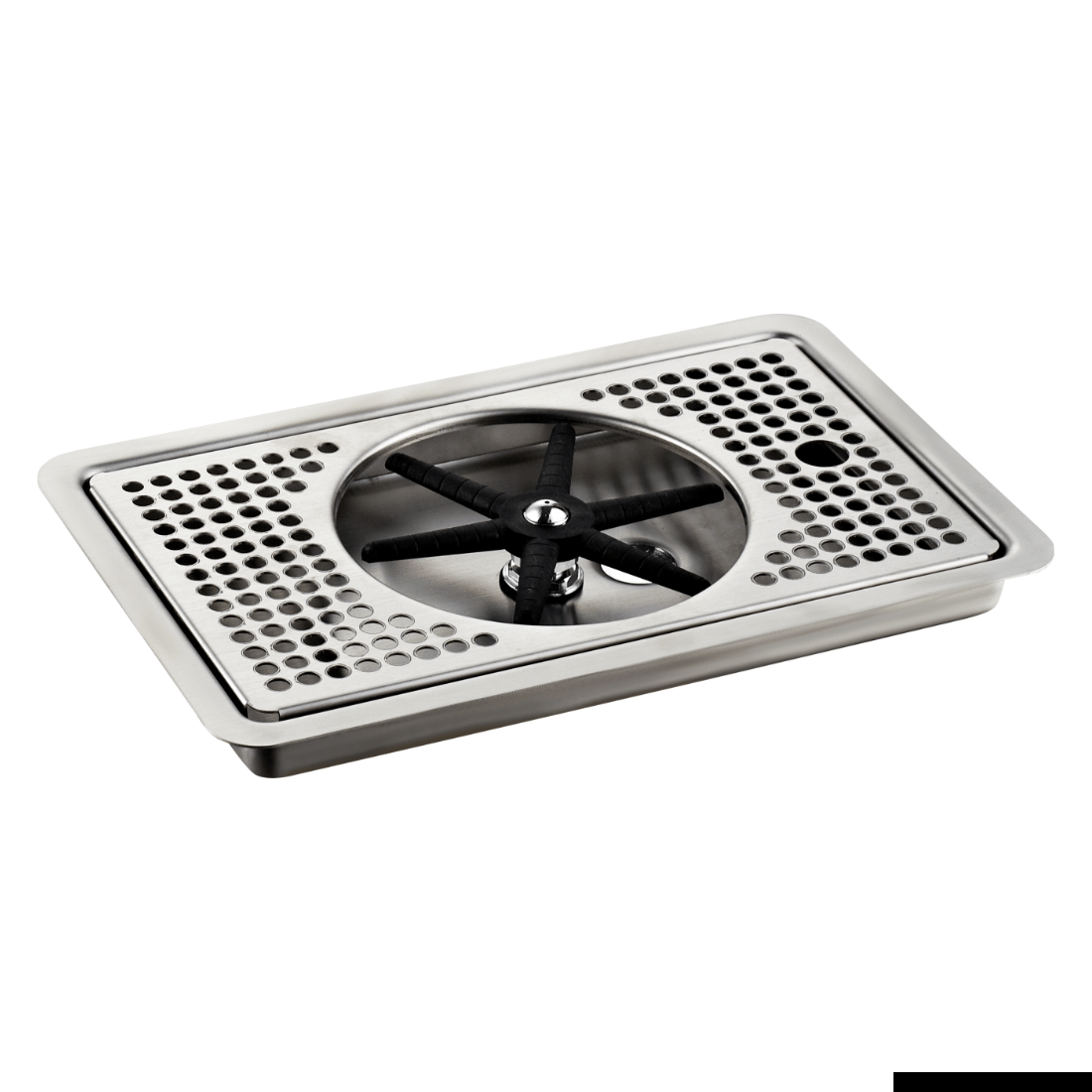

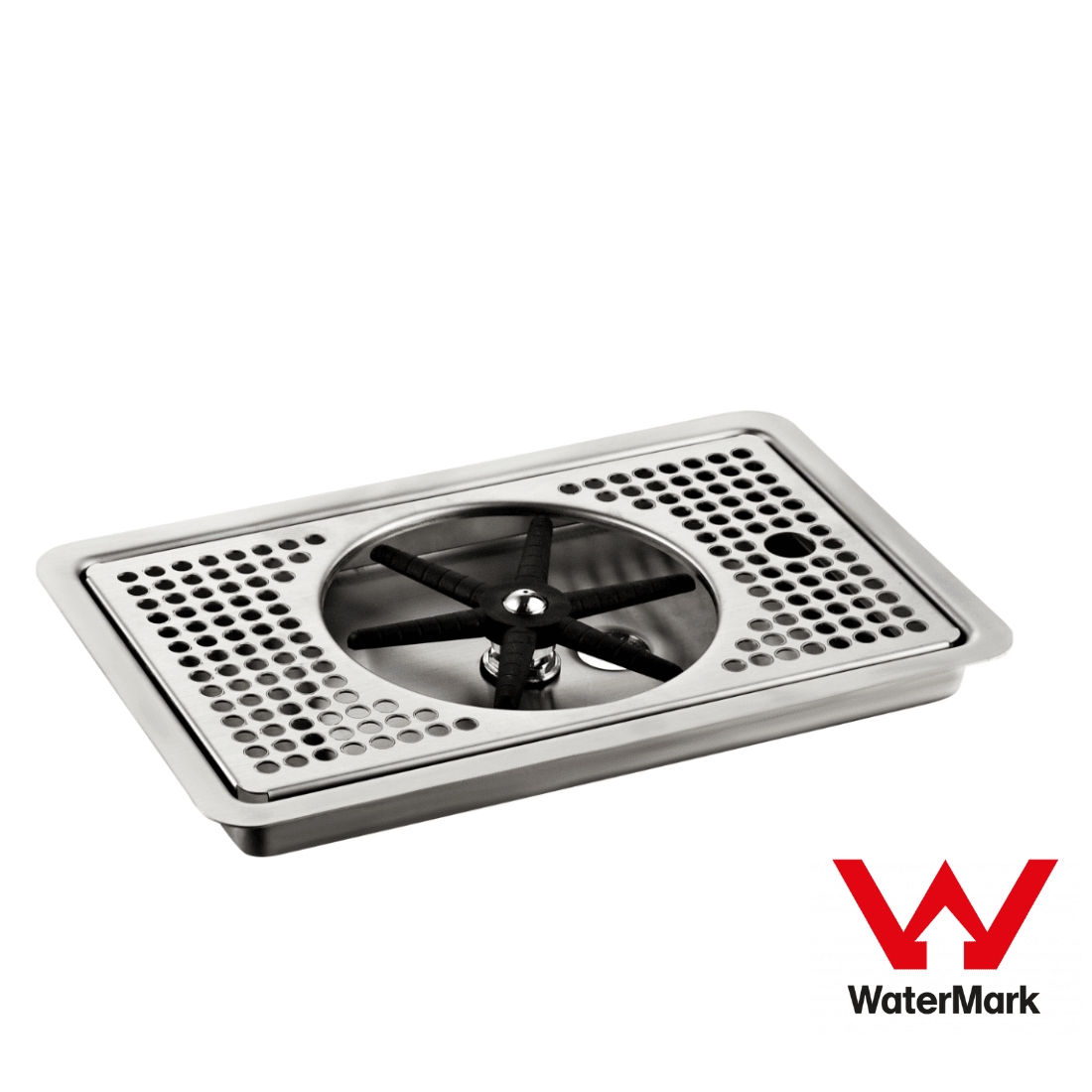

Sunmixer Glass Rinsers Counter Top Model T9860-D

The Sunmixer T9860-D is a counter top glass rinser in 304 stainless steel, with a 150 mm diameter centre rinser and 20 mm drainage holes across the tray. It is WaterMark certified, rated to a working temperature of 85 °C and a safety pressure of 0.4 MPa, and connects via a G1/2 fitting. At 30 mm high it sits almost flush on the counter.

Why operators choose the T9860-D

• WaterMark certified — required for a plumbed fitting in an Australian commercial kitchen - without it the rinser cannot legally be installed
• 304 stainless steel — the grade that survives constant water contact and acidic drink residue without pitting
• 150 mm diameter centre rinser — sized for the base of a glass rather than a cup, so it actually reaches inside
• Rated to 85 degrees C — hot-water rinsing is what removes fat and lipstick residue that cold water leaves behind
• 0.4 MPa safety pressure rating — a stated pressure limit, so your plumber can check it against your mains rather than guessing
• 20 mm drainage holes across the tray — large holes clear quickly instead of pooling, which is what keeps the counter dry
• Two rinse arms at 115.5 mm each — the arm length that determines the spray pattern inside the glass
• Rounded corners — no sharp edge on a fitting people reach over all shift, and easier to wipe
• Only 30 mm high — it sits almost flush, so it does not become an obstacle on a busy bar top

Specifications

Venue suitability

The T9860-D suits bars, cafes, clubs, function venues and dishrooms rinsing glassware between services. A rinser is what stops the first pour tasting of detergent, and at 30 mm high it takes almost no usable counter space.

See the full jug glass rinsers range or browse every Sunmixer model we carry.

Installation & delivery

This is a plumbed fitting, not an appliance — it needs no power, only a water connection via a G1/2 fitting, and it should be installed by a licensed plumber. It is WaterMark certified, which is what allows it to be installed in an Australian commercial kitchen. Check your supply pressure against the 0.4 MPa safety rating, and confirm hot-water availability if you intend to rinse at temperature — it is rated to 85 °C. Our data records no net weight for this fitting.

Frequently asked questions

Q: Does the T9860-D need power?

No. It is a water-only fitting - there is no motor and no electrical connection. It plumbs in via a G1/2 connection and should be fitted by a licensed plumber.

Q: Is it WaterMark certified?

Yes, and it matters: WaterMark certification is what allows a plumbing fitting to be legally installed in Australia. Ask your plumber to keep the certification sticker with your compliance paperwork.

Q: What water pressure does it need?

The stated safety pressure is 0.4 MPa. Have your plumber check that against your mains pressure - a rinser fed above its rating is a leak waiting to happen.

Q: Can it run hot water?

It is rated to a working temperature of 85 degrees C. Hot water is what removes the fat and lipstick residue a cold rinse leaves behind, so if you have hot water at the bar it is worth plumbing to it.

Q: How much counter space does it take?

327 x 207 mm, and only 30 mm high, so it sits almost flush rather than becoming an obstacle behind the bar.

Q: What warranty does the T9860-D come with?

Covered for 12 months, parts only — labour is not included. Terms vary by product — see our warranty information page for full details.
