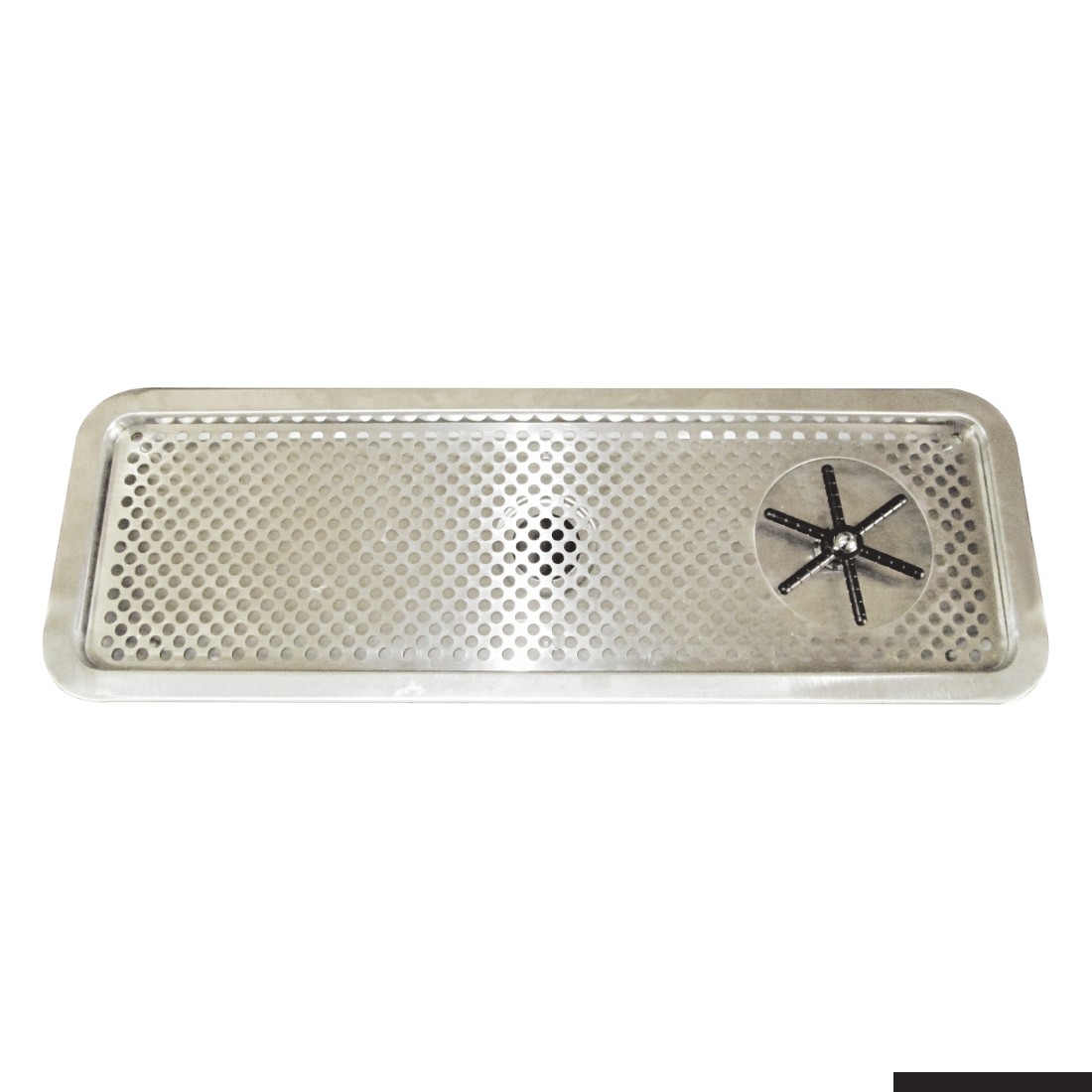

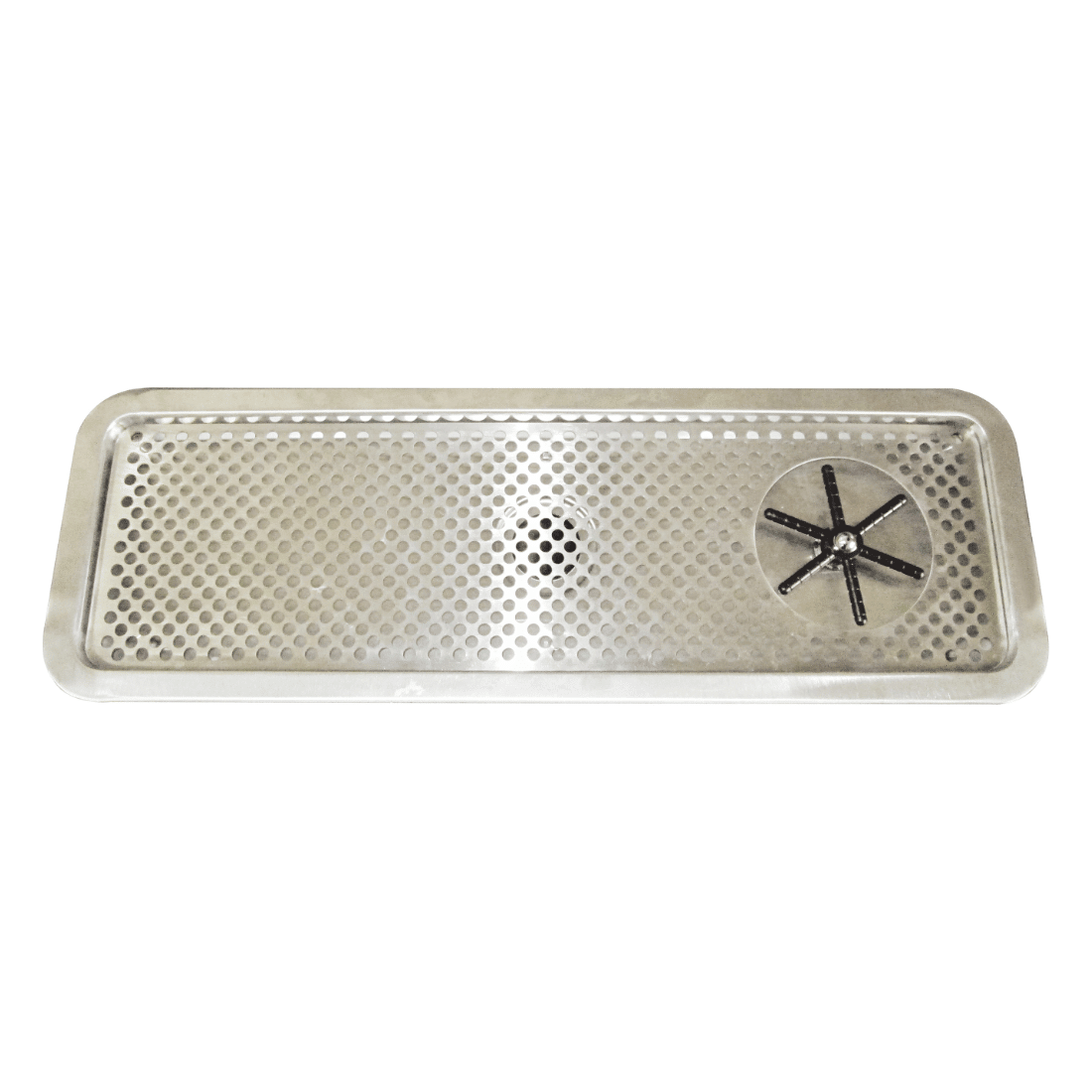

Sunmixer Large Glass Rinsers Counter Top Model T9860-C

The Sunmixer T9860-C is a counter-top glass rinser with a single 120 mm rinse head on the side, built in 304 stainless steel with rounded corners and a drainage tray. It is rated to 85 °C with a 0.4 MPa safety pressure and connects on G1/2.

Why operators choose the T9860-C

• A single 120 mm rinser on the side — one rinse head, mounted to the side of the tray. If you want two, the double version of this model puts a head on each side
• Rated to 85 degrees C working temperature — a rinser plumbed to hot water needs to tolerate it. 85 degrees C is the recorded working limit
• 0.4 MPa safety pressure — about 4 bar. Worth checking against your mains pressure - a site running higher needs a pressure limiting valve, which is a cheap part that prevents an expensive leak
• 304 stainless steel — the food-grade stainless that survives a wet bench and detergent
• G1/2 install connection — standard half-inch, so a plumber can connect it without special parts
• Drainage tray included — the rinse water has somewhere to go rather than pooling on the counter

Specifications

Venue suitability

This rinser suits bars, cafes and coffee counters rinsing glassware or jugs between uses. At 645 mm wide it runs along the back of a bench; if you want a rinse head at each end, the double version of the same model is the one to look at.

See the full jug and cup rinsers range or browse every Sunmixer model we carry.

Installation & delivery

It plumbs in on a G1/2 connection — a standard half-inch fitting, so no special parts. Check your mains pressure against the 0.4 MPa safety figure (roughly 4 bar): a site running higher needs a pressure limiting valve, which is inexpensive and prevents a leak that is not. Dimensions are recorded width x depth x height: 645 x 217 x 25 mm, packing at 480 x 700 x 51.66 mm. Our data records no weight.

Warranty terms are per product — see our warranty information page.

Frequently asked questions

Q: What pressure does it need?

The recorded safety pressure is 0.4 MPa, which is about 4 bar. That is a limit rather than a requirement - if your mains runs above it, fit a pressure limiting valve. It is a cheap part and it is far cheaper than a burst fitting behind a bar.

Q: Can it be plumbed to hot water?

It is rated to a working temperature of 85 degrees C, so hot water is within its specification. Whether you want hot depends on what you are rinsing - hot rinses better on milk residue, cold is enough for most glassware.

Q: What connection does the plumber need?

G1/2 - a standard half-inch thread. No adaptors or special parts, which keeps the plumbing job short.

Q: How does it differ from the double version?

Rinse heads. This model has one 120 mm head on the side; the T9860-C-DF has a head on each side, 395.2 mm apart. Both are 645 x 217 mm in the same 304 stainless with the same pressure and temperature ratings, so the choice is simply whether one station or two suits how your bar works.

Q: What are the rounded corners for?

Practicality rather than looks. A counter-top fitting on a wet bar gets knocked and wiped constantly; rounded corners are easier to clean around and less likely to catch. The double version's specification does not mention them.
