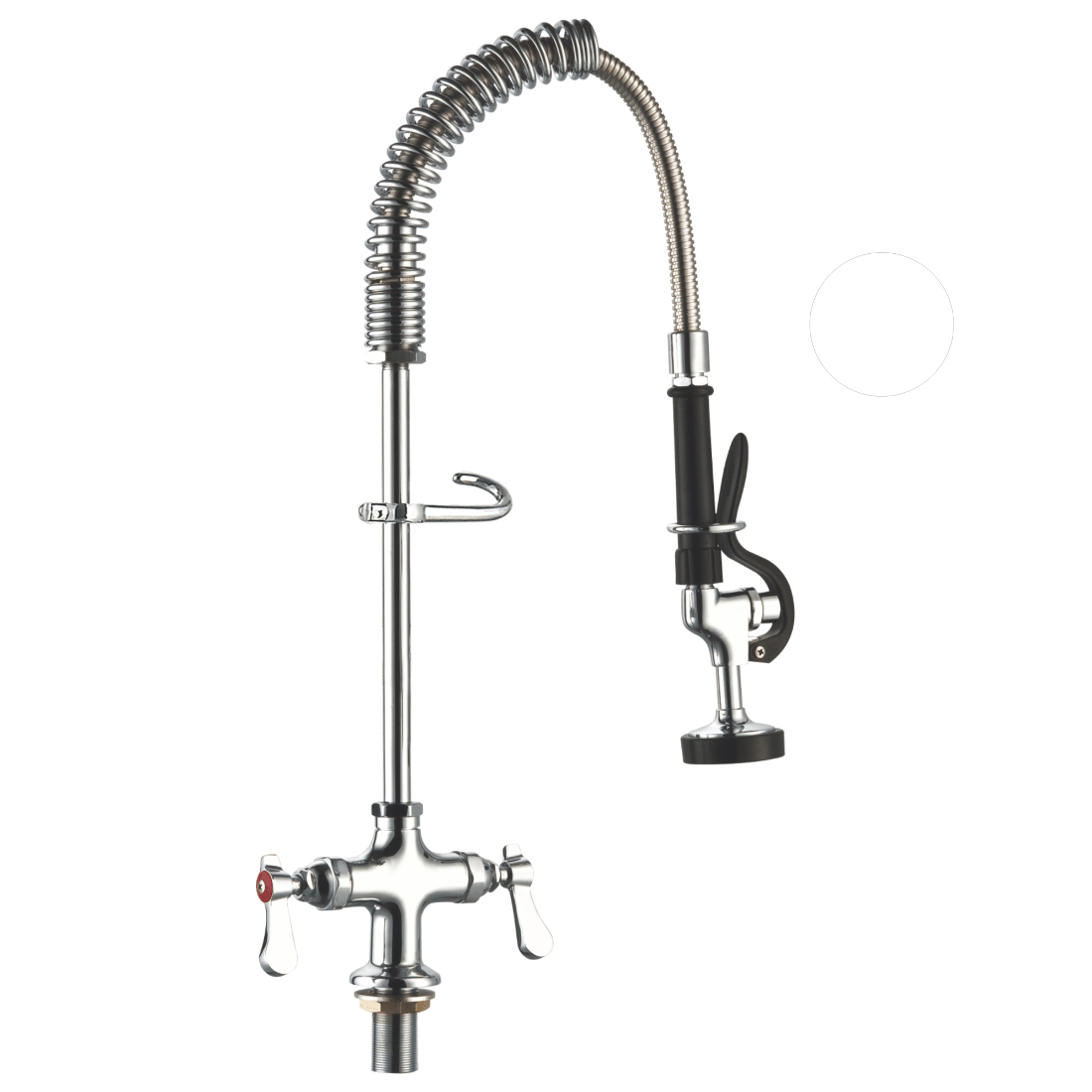

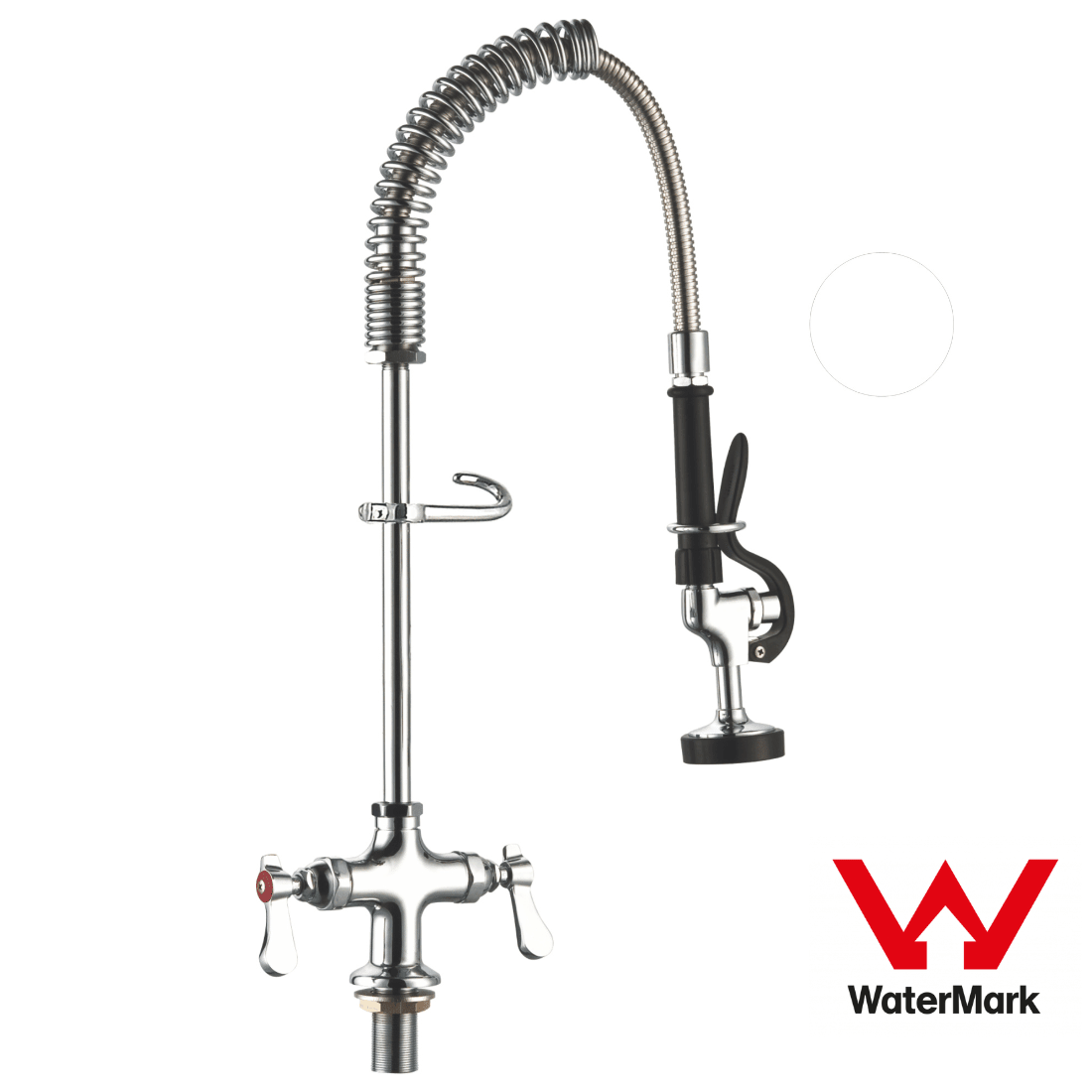

Sunmixer Mini Pre Rinse Unit with 180mm Riser and 560mm Hose T98001MN-1

The Sunmixer T98001MN-1 is a deck-mounted mini pre-rinse unit with a 180 mm (7 inch) riser and a 560 mm (22 inch) flexible stainless steel hose. It is WaterMark certified with a WELS 3-star water efficiency rating, and its spray valve conforms to ANSI/ASTM F2324-03. A built-in check valve prevents cross-flow, and it connects to both hot and cold water.

Why operators choose the T98001MN-1

• WaterMark certified — the certification your plumber and your certifier will ask for - without it the fitting cannot legally be installed in an Australian commercial kitchen
• WELS 3-star water efficiency — pre-rinse spray taps are among the heaviest water users in a kitchen, so the star rating is a real operating cost, not a sticker
• Check valve prevents cross-flow — it stops water being drawn back from the hose into the supply, which is a genuine contamination risk on a spray fitting
• 180 mm riser - the mini configuration — a compact riser for benches where a full-height pre-rinse would foul overhead shelving or a canopy
• 560 mm flexible stainless steel hose — enough reach to work across a sink without the length getting in the way at a compact station
• Spray valve conforms to ANSI/ASTM F2324-03 — an independent performance standard for pre-rinse spray valves, covering flow and cleanability rather than just fit
• Spring body with a finger hook — the hose returns itself to position and the spray head hangs where you left it
• Connects to both hot and cold — so it works as a rinse station rather than only a cold flush
• Heavy-duty construction — this is a fitting that gets pulled on hundreds of times a day

Specifications

Venue suitability

The T98001MN-1 suits food service kitchens, restaurants, hotels and cafes needing a pre-rinse station at a compact sink. The 180 mm riser is the reason to choose it over the taller units in the range — it fits under shelving and canopies that a full-height pre-rinse would foul.

See the full pre rinse spray taps range or browse every Sunmixer model we carry.

Installation & delivery

This is a plumbed fitting, deck-mounted, connecting to both hot and cold supplies. It is WaterMark certified, which is what allows it to be installed in an Australian commercial kitchen — have it fitted by a licensed plumber. Check the 180 mm riser height against your bench and anything above it before ordering; the range includes taller risers and longer hoses if you need more reach.

Frequently asked questions

Q: Is the T98001MN-1 WaterMark certified?

Yes, and it matters: WaterMark certification is what allows a plumbing fitting to be legally installed in Australia. It also carries a WELS 3-star water efficiency rating and its spray valve conforms to ANSI/ASTM F2324-03.

Q: What is the difference between this and the other units in the range?

Riser height and hose length. This is the mini configuration - a 180 mm riser with a 560 mm hose. Other units in the range run a 510 mm riser and an 1118 mm hose, and some add a swing faucet. Choose on the clearance you have above the bench.

Q: Does it prevent cross-contamination of the water supply?

It includes a check valve, which stops water being drawn back from the hose into the supply. On a spray fitting that sits in a dirty sink, that is a real protection rather than a formality.

Q: Can it run hot water?

Yes - it connects to both hot and cold supplies.

Q: Why does the WELS rating matter on a tap?

Pre-rinse spray taps are among the heaviest water users in a commercial kitchen because they run constantly through service. A 3-star rating is an ongoing saving on both water and the energy used to heat it.

Q: What warranty does the T98001MN-1 come with?

Covered for 2 years, parts only — labour is not included. Terms vary by product — see our warranty information page for full details.
