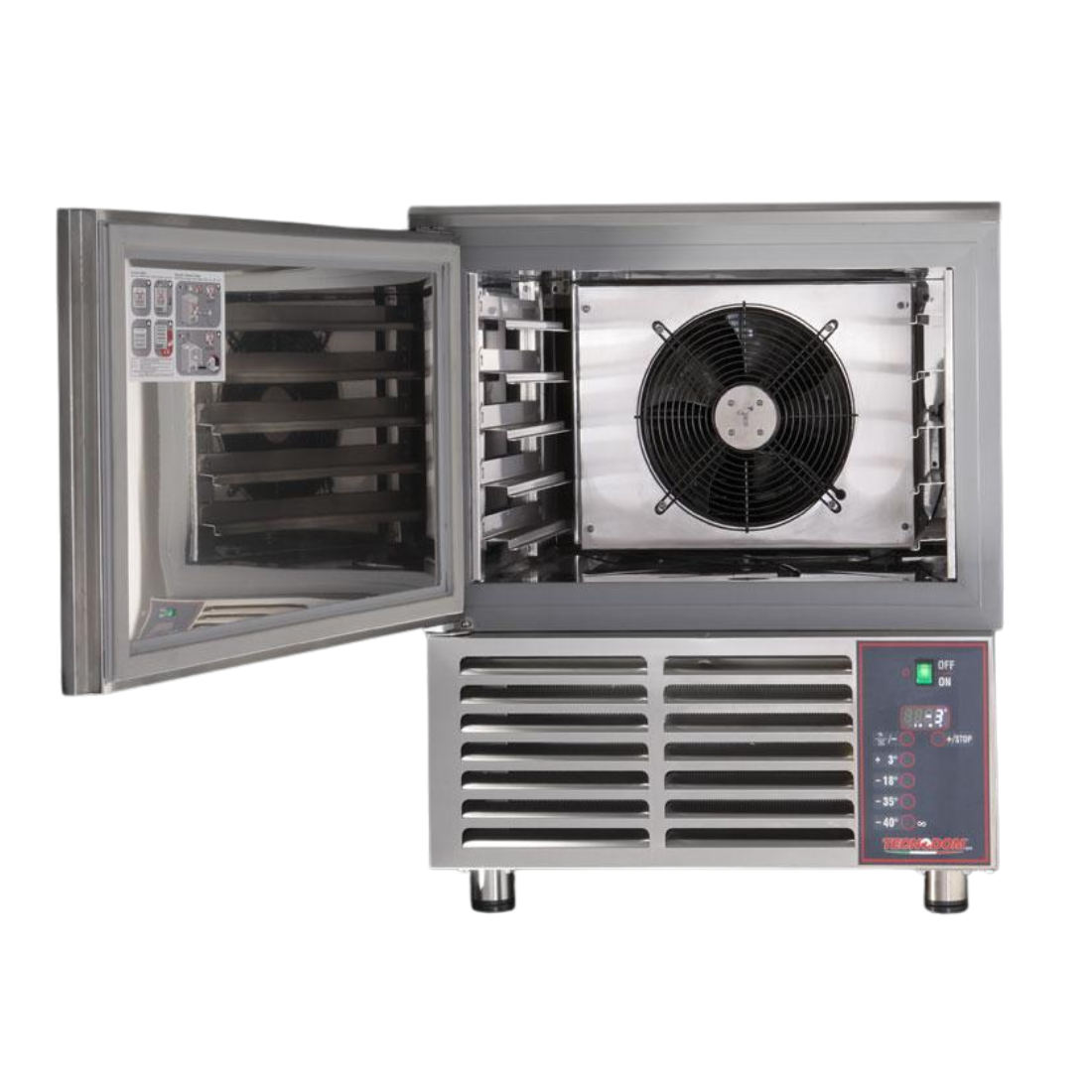

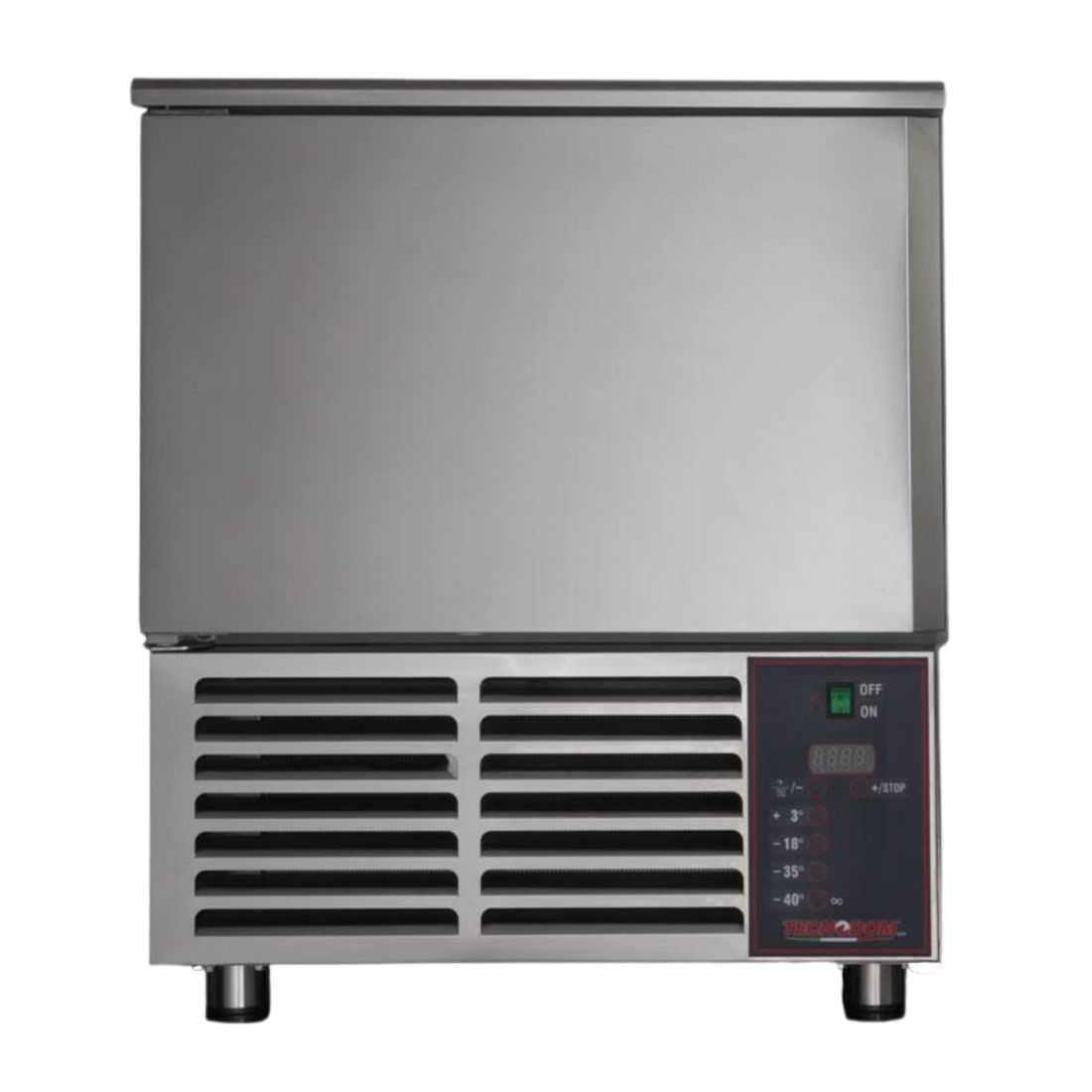

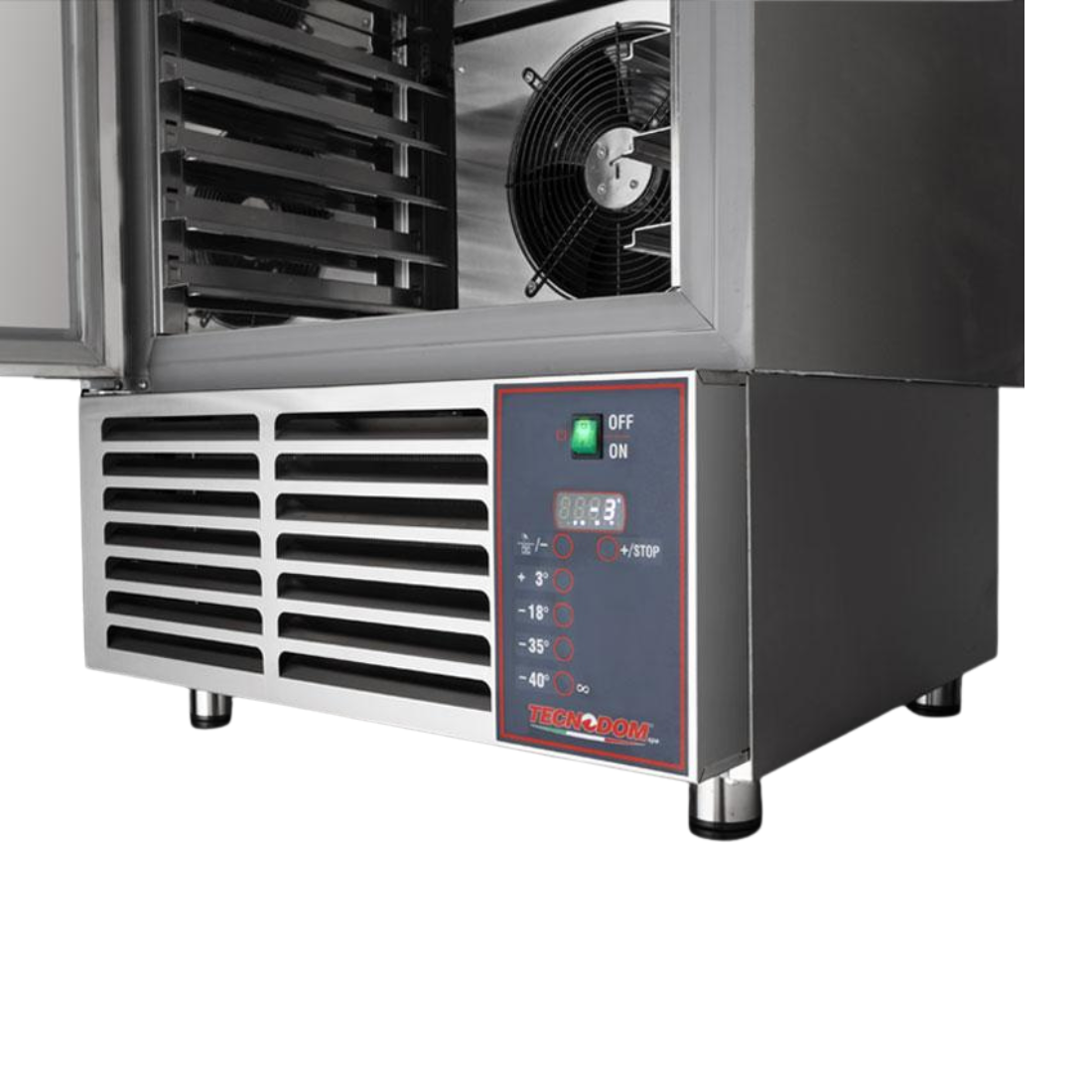

Tecnodom 5-Tray Blast Chiller and Shock Freezer DO5EA

The Tecnodom DO5EA is a 5-tray blast chiller and shock freezer that takes cooked food from +65 to +3 degrees C, or down to -40 degrees C to shock freeze. It is built to HACCP specification and runs on R290, a low global-warming-potential refrigerant (GWP 3). A core probe and digital control run the cycle by food temperature rather than by timer.

Why operators choose the DO5EA

• +65 to +3 degrees C, or down to -40 - blast chilling and shock freezing are the effective ways to get cooked food through the danger zone quickly, holding quality, colour and aroma

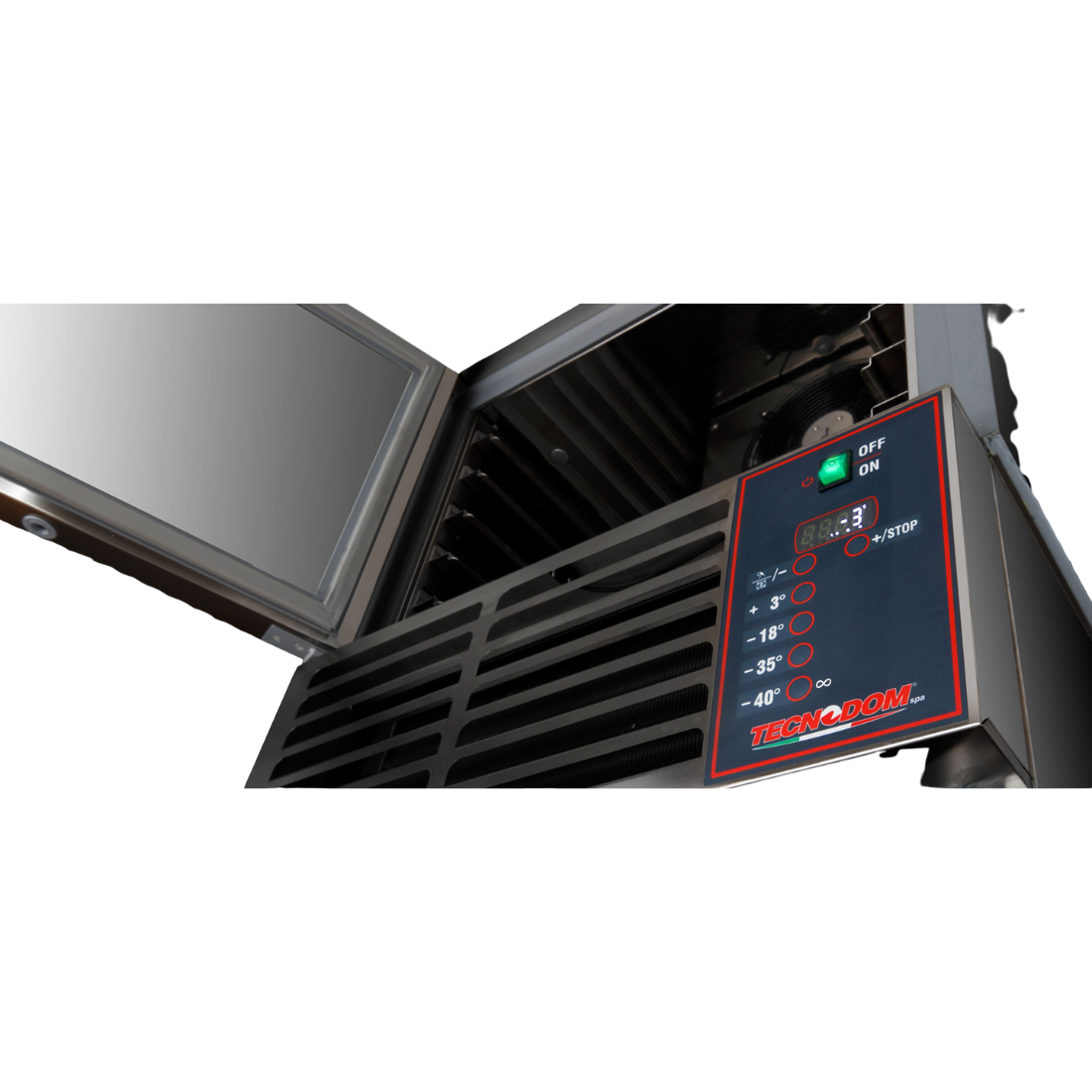

• Core probe and digital control - the cycle runs to the food's own core temperature, which is what HACCP record-keeping needs
• R290 refrigerant, GWP 3 - a low global-warming-potential hydrocarbon refrigerant
• Tropicalised, Climate Class 4 - rated to keep working in a hot kitchen rather than derating
• Ventilated cooling and open-door defrost - no resistors or hot gas for defrost, and self-evaporating drainage so there is no condensate tray to empty
• 60 mm CFC-free polyurethane insulation - with rounded internal corners and a stainless interior and exterior, on a galvanised steel base
• Universal GN1/1 runners - takes standard gastronorm grids; the door is self-closing on a magnetic gasket with the hinges on the LEFT

Specifications

Venue suitability

For kitchens that cook ahead and need to get product through the danger zone fast - catering, function venues, ready-meal production and any operation keeping HACCP records. The 5-tray size suits a single-section production kitchen. It needs clear air around it and a 10 A outlet within reach.

See the full blast chiller range.

Installation & delivery

The unit stands on adjustable stainless steel feet with 60-80 mm of travel, which is why two heights are recorded: 890 mm with the feet down and 910 mm at full extension. Allow for the taller figure and for a level floor. It runs on 240 V drawing 1292 W and the manufacturer specifies a 10 A outlet; have a licensed electrician confirm the circuit. The door is self-closing with the hinges on the LEFT, so check the swing against your layout before siting it. At 92 kg net it is not a one-person reposition.

Warranty terms vary by product - see our warranty information page for full details.

Frequently asked questions

Q: What can the DO5EA do?

It blast chills cooked food from +65 to +3 degrees C and shock freezes down to -40 degrees C, on 5 GN1/1 trays.

Q: Why are two heights listed?

The feet are adjustable through 60-80 mm, so the unit measures 890 mm with them down and 910 mm at full extension. Plan against the taller figure.

Q: What refrigerant does it use?

R290, a hydrocarbon refrigerant with a global warming potential of 3.

Q: Which way does the door open?

The door is self-closing on a magnetic gasket with the hinges on the LEFT. Check that against your bench layout before ordering.

Q: What power supply does it need?

240 V, 1292 W, and the manufacturer specifies a 10 A outlet. Have a licensed electrician confirm the circuit.

Q: What warranty applies?

2 years parts and labour. Warranty terms vary by product - see our warranty information page for full details.
