Tecnodom By Fhe Series Mr Corner Deli Display W/ Storage & Castors TDMR-E

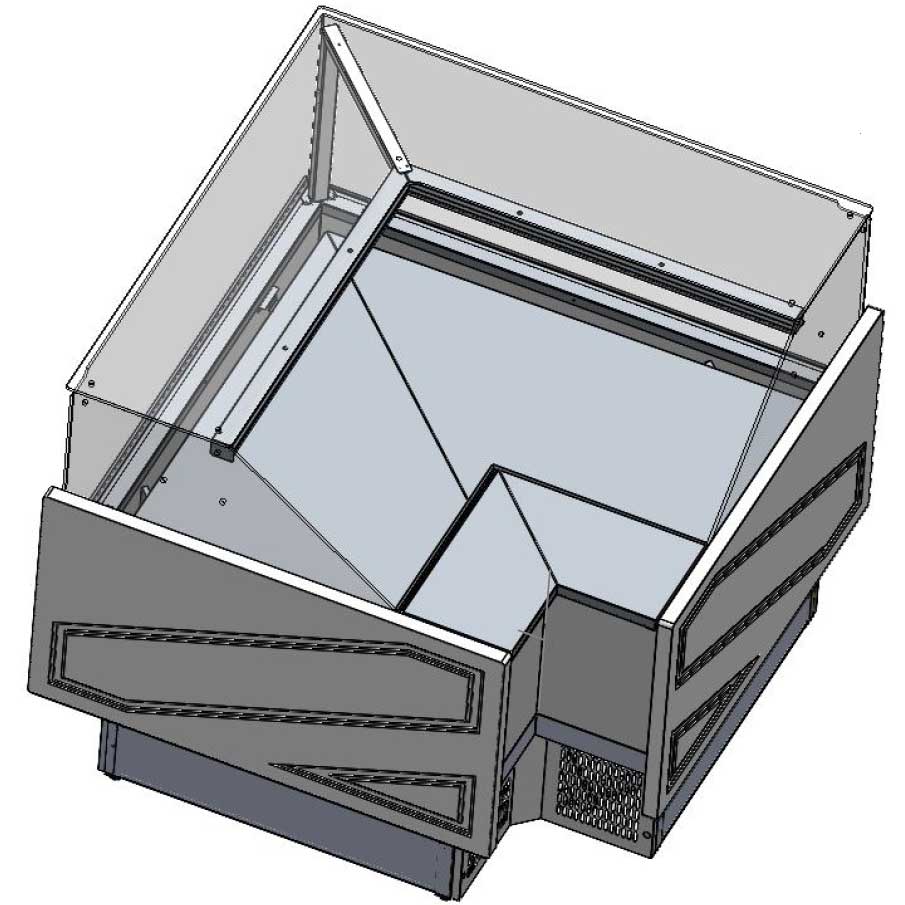

The Tecnodom TDMR-E is a black corner deli display from the Serie MR9.5 range that turns two straight serve-over runs into a continuous L-shaped counter, built to merchandise poultry, meat and deli lines in butchers, delis, supermarkets and busy cafes. On a 1468 × 1468 mm corner footprint it holds the deck at 0–4°C behind front-opening tempered glass and a flat panoramic top glass, with high-impact LED lighting, a SUS304 stainless steel work surface and a 1.54 m² display.

Why operators choose the TDMR-E

• 90° corner design — joins two Serie MR runs into a gap-free L-shaped serve-over counter.
• Black finish — matches the black Serie MR cabinets for a continuous fit-out.
• 0–4°C holding temperature — keeps fresh meat and deli product at safe display temps.
• 1.54 m² display area — turns dead corner space into active merchandising surface.
• 1468 × 1468 mm footprint — a square corner module sized to align with the straight cabinets.
• Front-opening tempered glass — flat panoramic top glass and easy-clean access.
• High-impact LED lighting — bright, even illumination that lifts product appeal.
• 2-year parts & labour warranty — commercial-grade cover backed nationally.

Specifications

Venue suitability

The TDMR-E suits butchers, delis, supermarkets and busy cafes running an L-shaped or wrap-around serve-over layout, where it links two straight Serie MR cabinets—such as the 2000mm TDMR-0920 or the 2480mm TDMR-0925—around a 90° corner so the display run continues without a gap. It is a corner module rather than a standalone counter, so pair it with at least one straight cabinet.

Browse more deli display fridges or explore the full Tecnodom range.

Installation & delivery

The TDMR-E is a self-contained unit that runs from a standard 240V single-phase 10A outlet and rolls into position on its castors—no plumbing required. It is rated for ambient conditions up to 25°C / 60% RH, so keep it clear of direct heat sources and allow airflow around the condenser. Packed dimensions are 1295 × 1110 × 1620 mm and it weighs 180 kg net, so plan for a trolley and two-person placement. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. Warranty is 2 years parts & labour; see our warranty information for full details.

Frequently asked questions

Q: Is the TDMR-E a corner unit? A: Yes—it is a 90° corner deli display that joins two straight serve-over runs into a continuous L-shaped counter.

Q: What temperature does the TDMR-E hold? A: It runs at 0–4°C, suitable for displaying fresh poultry, meat and deli product.

Q: What is the footprint of the TDMR-E? A: It measures 1468 × 1468 × 1230 mm (W×D×H) and weighs 180 kg net.

Q: Which units does the TDMR-E connect? A: It links Serie MR serve-over cabinets such as the TDMR-0920 and TDMR-0925 around a corner so the display run continues without a gap.

Q: Does the TDMR-E need special power or plumbing? A: No—it draws 1.54kW at 10A from a standard 240V single-phase 10A outlet, and no plumbing is required.

Q: What warranty does the TDMR-E come with? A: It is covered by 2 years parts & labour.
