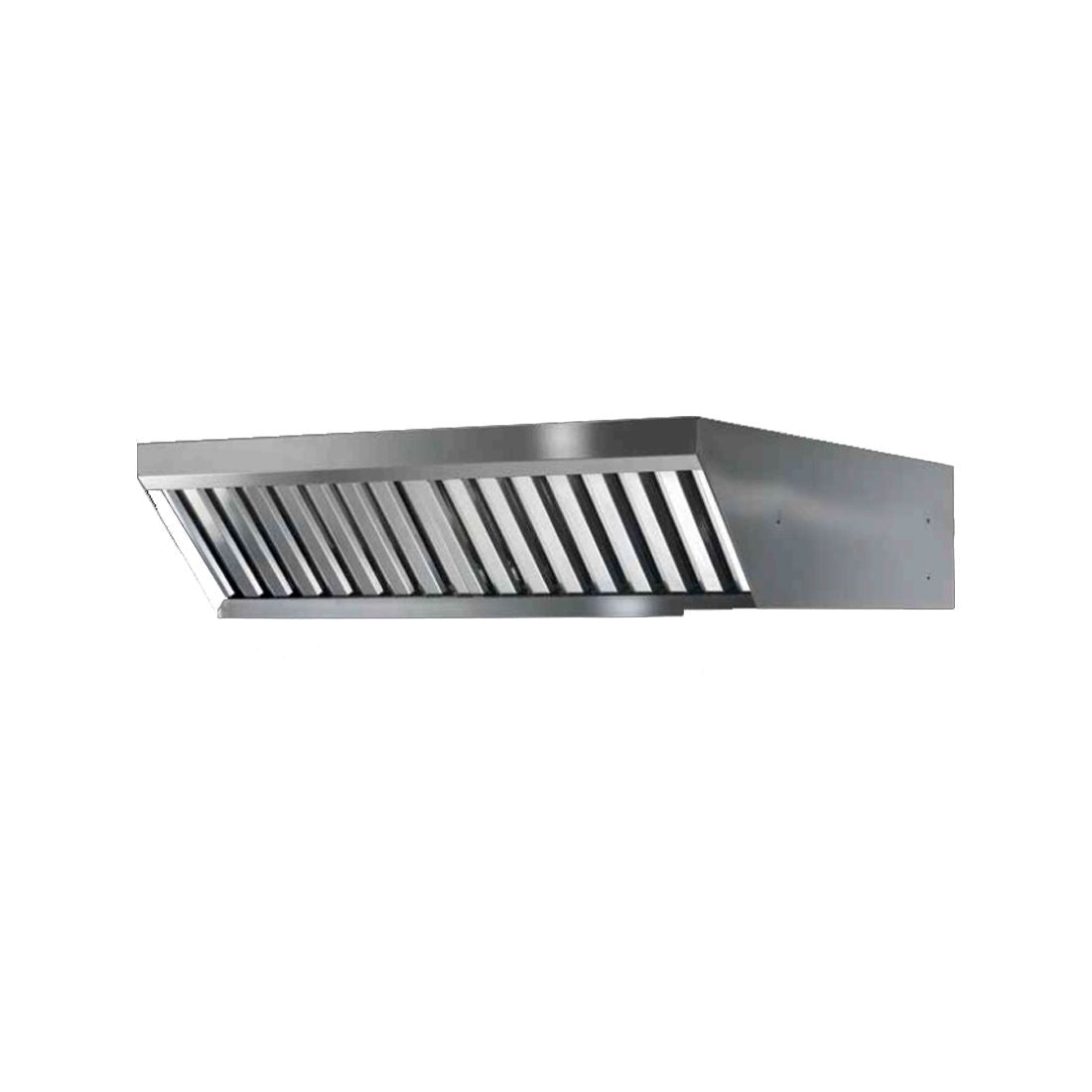

TECNODOM by FHE Steamless Canopy For Tdc Tecnodom Oven Range TD-FECL

The Tecnodom TD-FECL is a steamless condensation canopy built to sit over the Tecnodom TDC-5VH and TDC-10VH oven range, drawing off cooking fumes and condensing steam so a full extraction canopy is not always required overhead. It integrates with the oven's controls, runs on a standard 240V 10A supply and measures 920 × 1005 × 300mm.

Why operators choose the TD-FECL

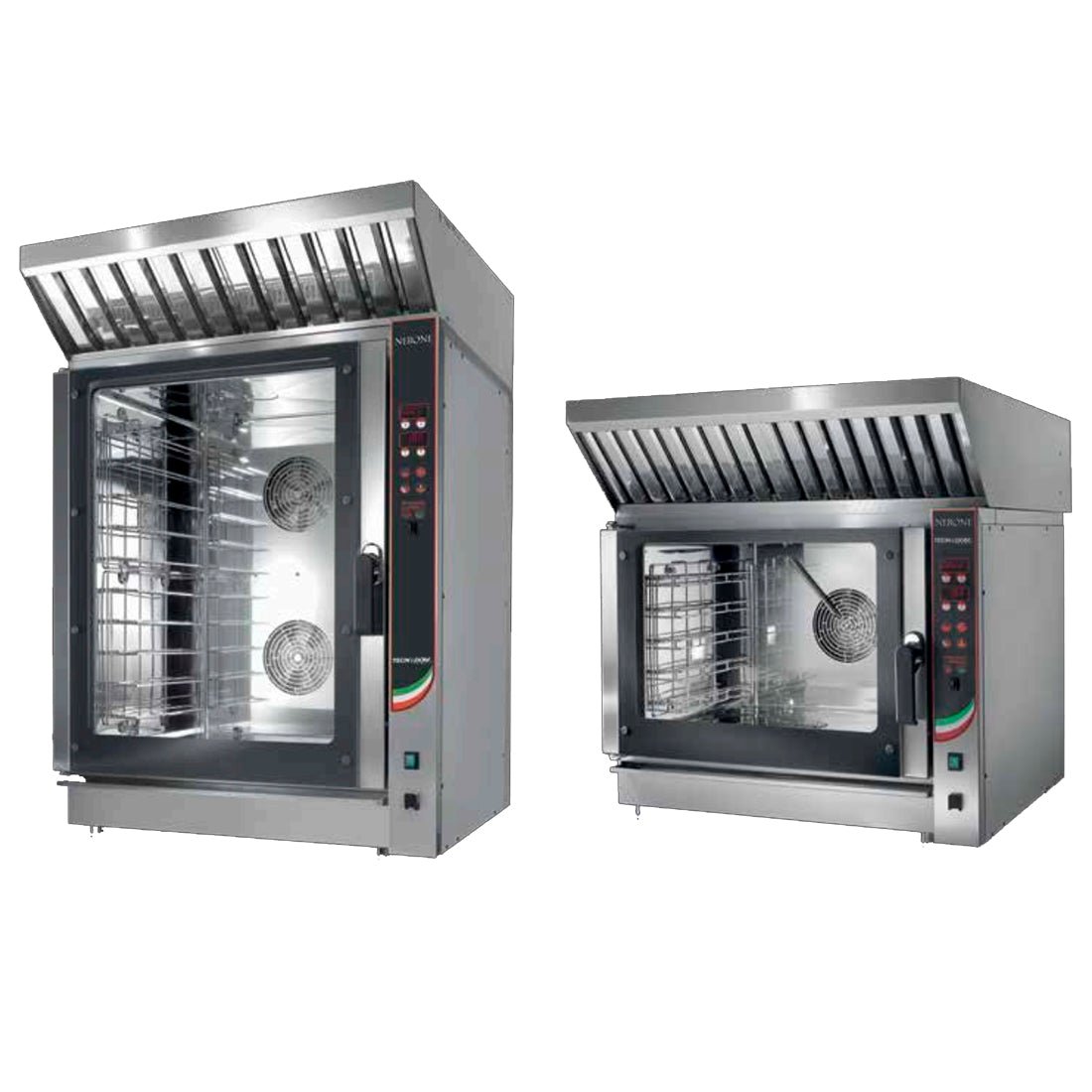

• Model-matched fit for TDC-5VH and TDC-10VH — sized specifically for the Tecnodom TDC oven range, including superimposed (stacked) oven setups.
• Integrated steam condenser — condenses cooking steam at the source to reduce moisture release into the kitchen.
• Oven-linked operation — extraction runs in step with the oven, ramping to maximum speed when the door is open, with a visual alarm on the oven display.
• Adjustable extraction speed — tune airflow to the cooking load.

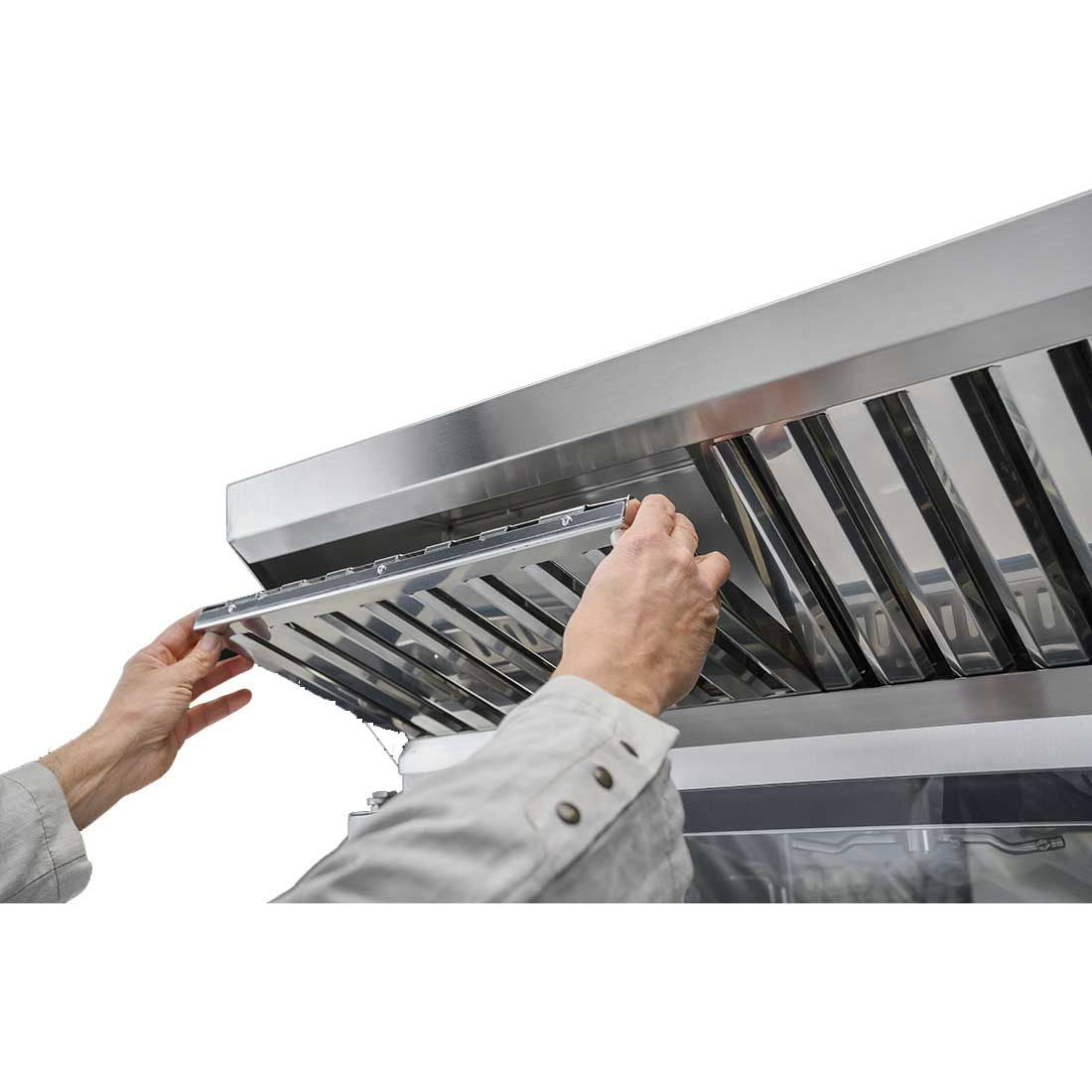

• Removable filters and drainer — lift out for fast, thorough cleaning.
• Easy-to-clean ventilator — keeps servicing simple in a busy kitchen.
• 240V 10A plug-in — a low 250W draw on a standard single-phase outlet.

Specifications

Venue suitability

The TD-FECL suits cafes, bakeries, delis and commercial kitchens running a Tecnodom TDC-5VH or TDC-10VH oven that want steam condensed and fumes drawn off at the oven rather than committing to a full overhead extraction canopy. It is a model-specific accessory, so it is not suited to other ovens outside the TDC range it is built for.

Browse more commercial exhaust canopies or explore the full Tecnodom range.

Installation & delivery

The TD-FECL mounts above the matching TDC oven, connects to a 3/4" male water inlet and plugs into a standard 240V 10A single-phase outlet at 250W — no three-phase supply is required. It vents through a 120mm fumes outlet, so allow for ducting or clearance to suit the installation. It packs to 1100 × 1000 × 400 mm for transport. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. It is backed by a 1 Year Parts and Labour warranty; see our warranty information for full details.

Frequently asked questions

Q: What ovens does the TD-FECL fit? A: It is built for the Tecnodom TDC-5VH and TDC-10VH ovens, including superimposed (stacked) oven setups.

Q: Does the TD-FECL replace a kitchen extraction canopy? A: It condenses steam and draws fumes off at the oven through a 120mm outlet; whether a separate extraction canopy is still needed depends on your local ventilation requirements.

Q: What power and water connections does it need? A: It plugs into a standard 240V 10A single-phase outlet at 250W and connects to a 3/4" male water inlet.

Q: How does the TD-FECL operate? A: Extraction runs in step with the oven at an adjustable speed, ramping to maximum when the door is open, with a visual alarm shown on the oven display.

Q: Is it easy to clean? A: Yes. The filters and drainer are removable and the ventilator is designed for easy cleaning.

Q: What warranty does the TD-FECL come with? A: The TD-FECL is covered by a 1 Year Parts and Labour warranty.
