TECNODOM by FHE Vulcano Supermarket 2 Door Display TDVB80-CA-125

The Tecnodom TDVB80-CA-125 is a two-door refrigerated glass-door supermarket display from the Vulcano range, built to merchandise chilled drinks, dairy and grab-and-go lines in supermarkets, convenience stores, delis and service stations. It holds 0 to +4°C across a 2.54 m² display area behind two 620 mm hinged glass doors, runs on a built-in condensing unit, and measures 1330 × 765 × 2130 mm.

Why operators choose the TDVB80-CA-125

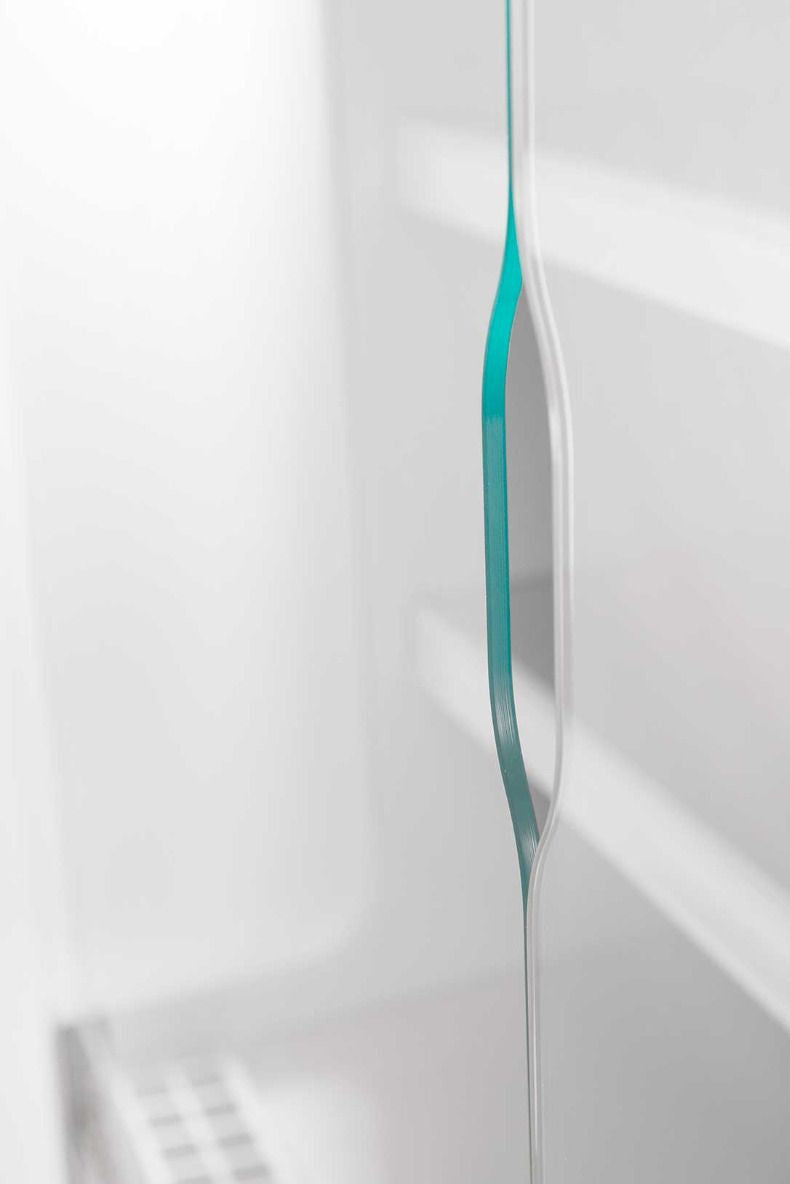

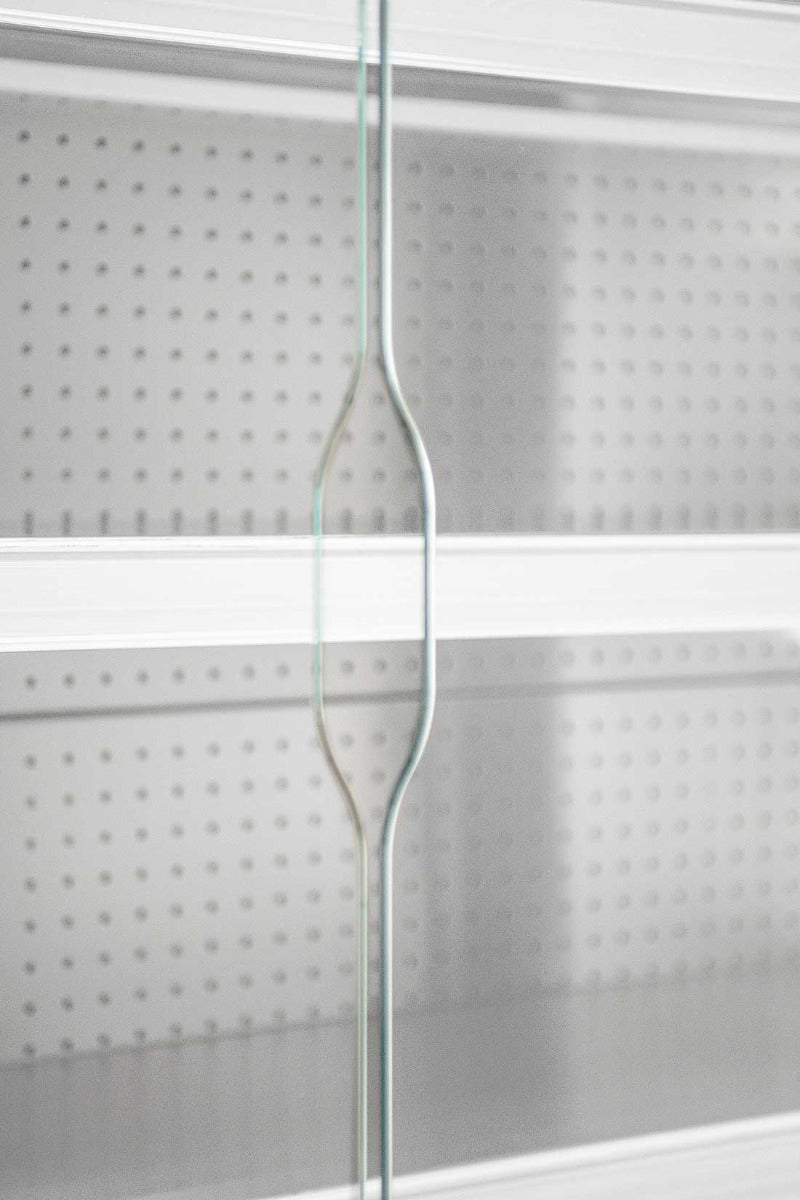

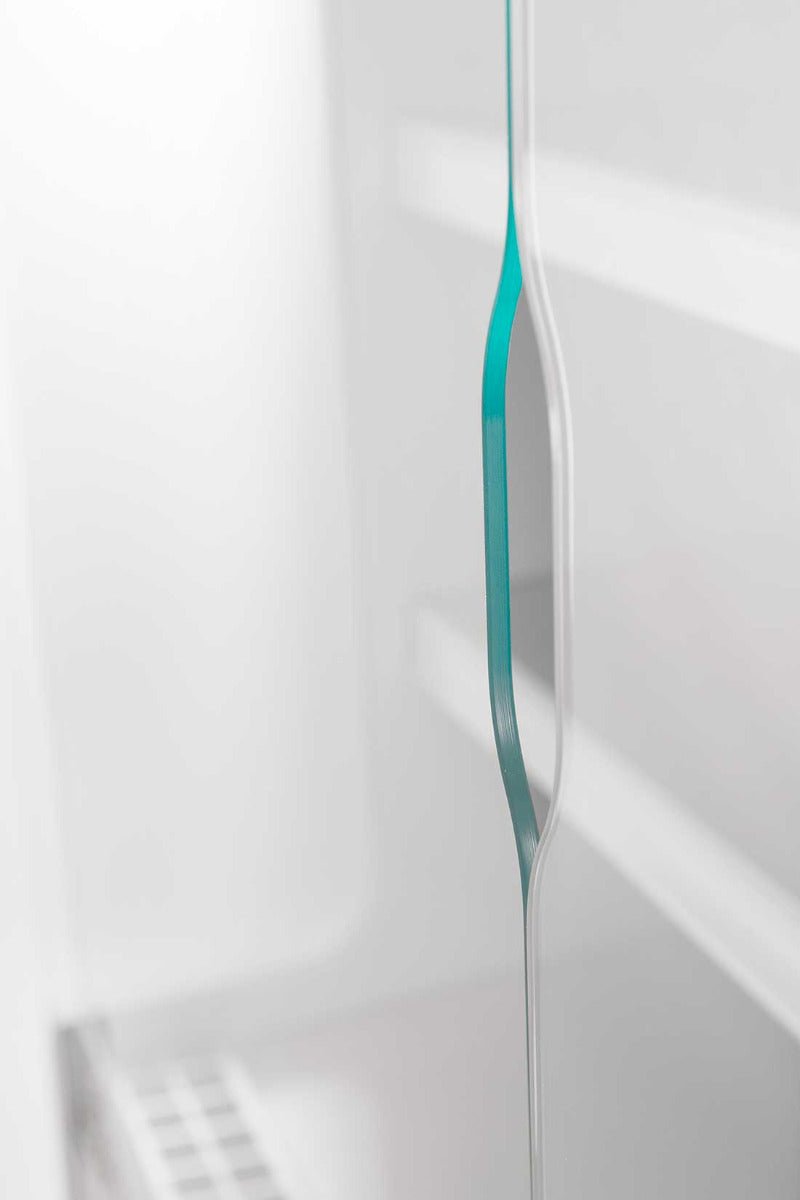

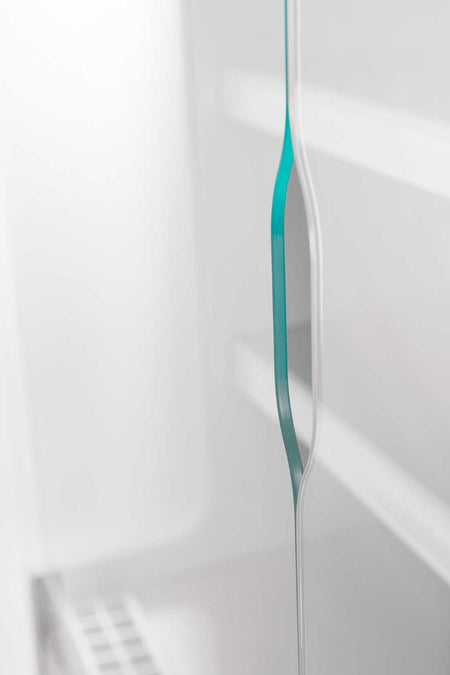

• 2.54 m² glass-door display — two 620 mm hinged glass doors merchandise chilled stock while holding temperature.
• 0 to +4°C ventilated cooling — fan-forced airflow keeps drinks and dairy evenly chilled.
• Built-in condensing unit — self-contained plug-in design with no remote pack to install.
• Automatic water evaporation — a stainless steel serpentine evaporates condensate for lower maintenance.
• Top ceiling LED lighting — bright, even illumination across every shelf.
• Climate Class 4 rated — holds temperature in ambient conditions up to 30°C and 55% RH.
• Mobile on castors — rolls out for cleaning and floor resets.
• 2-year parts and labour warranty — commercial-grade cover.

Specifications

Venue suitability

The TDVB80-CA-125 suits supermarkets, convenience stores, delis and service stations that need a compact two-door chilled wall for drinks, dairy and packaged grab-and-go lines. Within the Vulcano TDVB80 range, step up to the three-door TDVB80-CA-187 (3.79 m²) or four-door TDVB80-CA-250 (5.06 m²) when you need more merchandising width.

Browse more commercial open display fridges or explore the full Tecnodom range.

Installation & delivery

The TDVB80-CA-125 is a self-contained plug-in unit, so no remote refrigeration pack is needed. It draws 1830W plus a 1000W tundish heater across two 10 Amp circuits, so provide two outlets, and connect the tundish drain on installation. It is rated Climate Class 4 for ambient conditions up to 30°C. Packed dimensions are 880 × 1440 × 2210 mm. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. It is covered by a 2-year parts and labour warranty; see our warranty information for full details.

Frequently asked questions

Q: How much display space does the TDVB80-CA-125 offer? A: It provides 2.54 m² of refrigerated display behind two 620 mm hinged glass doors.

Q: What temperature range does the TDVB80-CA-125 hold? A: It runs at 0 to +4°C using a ventilated, fan-forced cooling system, suited to chilled drinks, dairy and grab-and-go lines.

Q: What power supply does the TDVB80-CA-125 need? A: It draws 1830W plus a 1000W tundish heater across two 10 Amp circuits, so two outlets are required.

Q: Does the TDVB80-CA-125 need a drain? A: Yes. It uses automatic water evaporation but requires a tundish drain connection on installation.

Q: What are the dimensions of the TDVB80-CA-125? A: It measures 1330 × 765 × 2130 mm (W×D×H) and weighs 210 kg net.

Q: What warranty does the TDVB80-CA-125 come with? A: It is covered by a 2-year parts and labour warranty.
