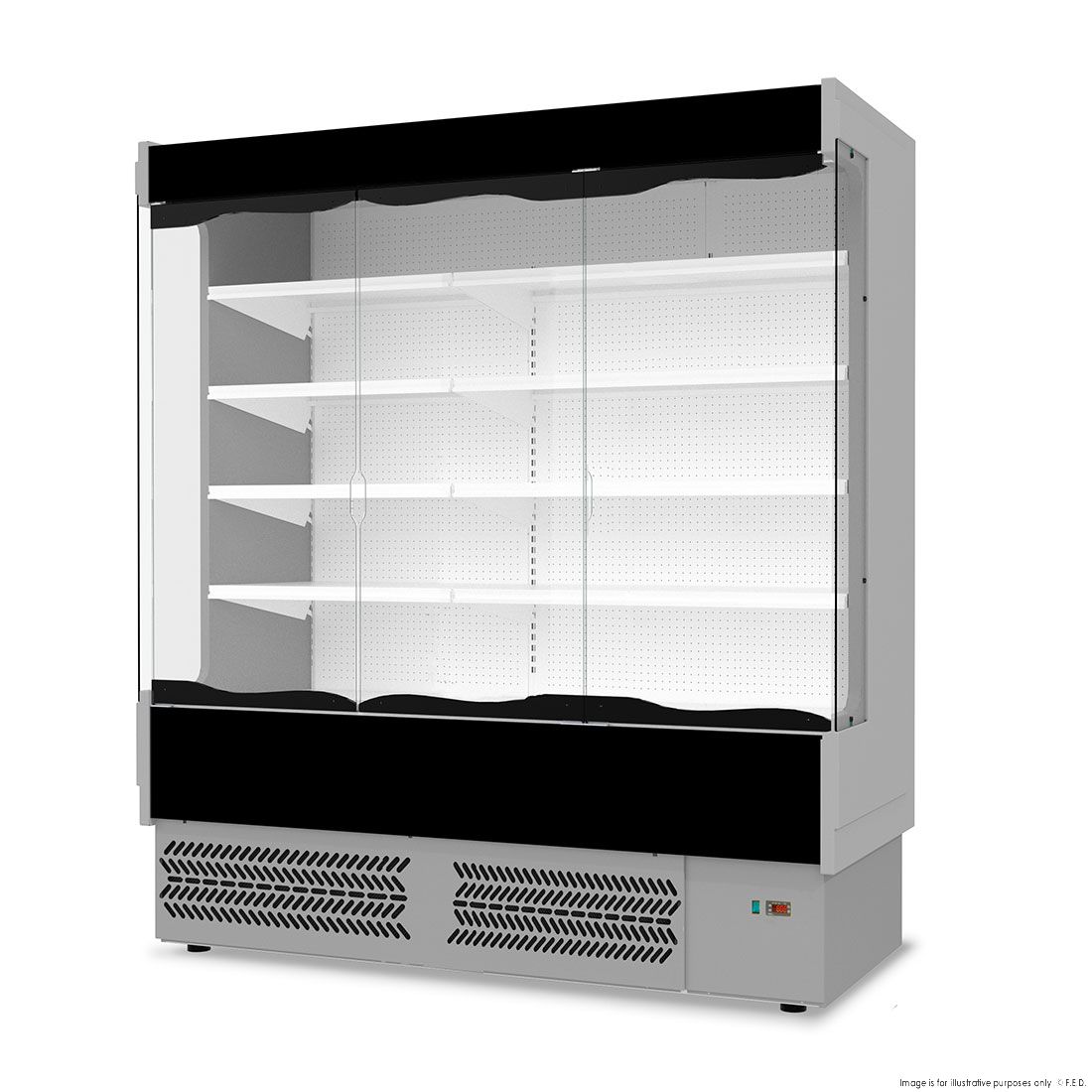

TECNODOM by FHE Vulcano Supermarket 3 Door Open Display TDVB80-CA-187

The Tecnodom TDVB80-CA-187 is a three-door refrigerated glass-door supermarket display from the Vulcano range, built to merchandise chilled drinks, dairy and grab-and-go lines in supermarkets, convenience stores, delis and service stations. It holds 0 to +4°C across a 3.79 m² display area behind three 620 mm hinged glass doors, runs on a built-in condensing unit, and measures 1955 × 765 × 2130 mm.

Why operators choose the TDVB80-CA-187

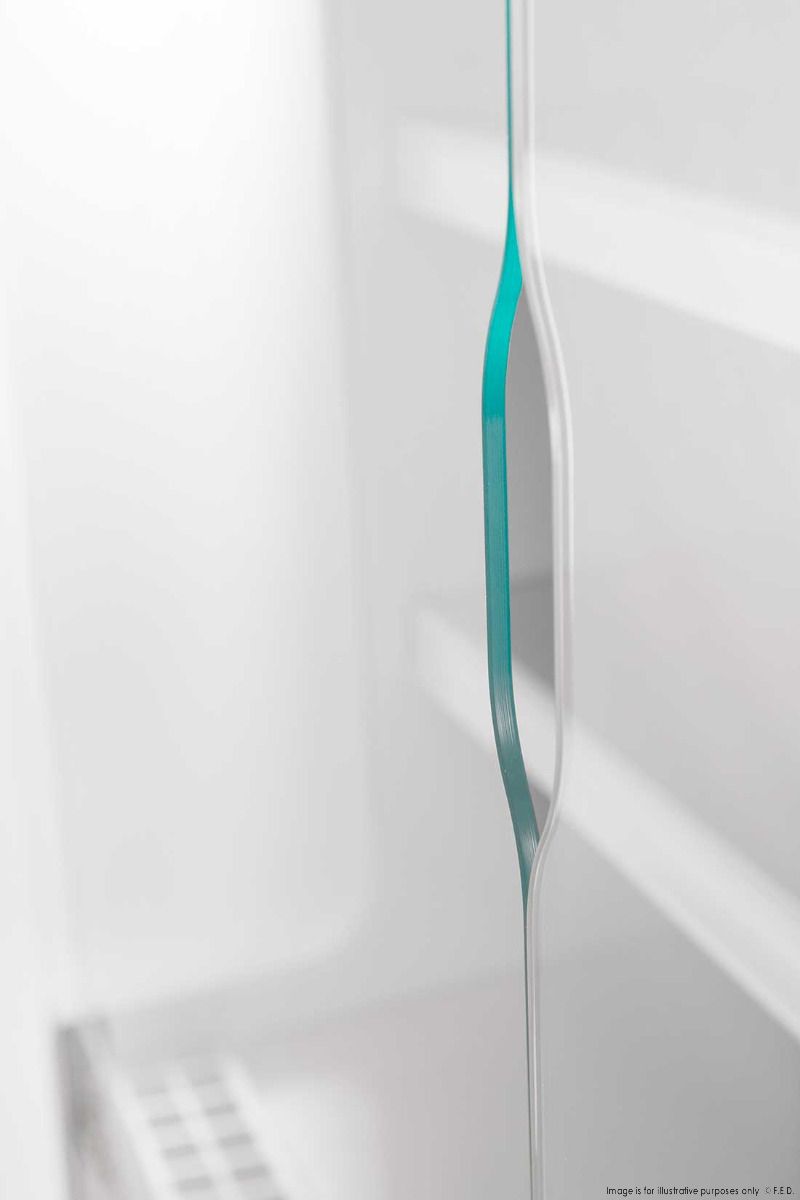

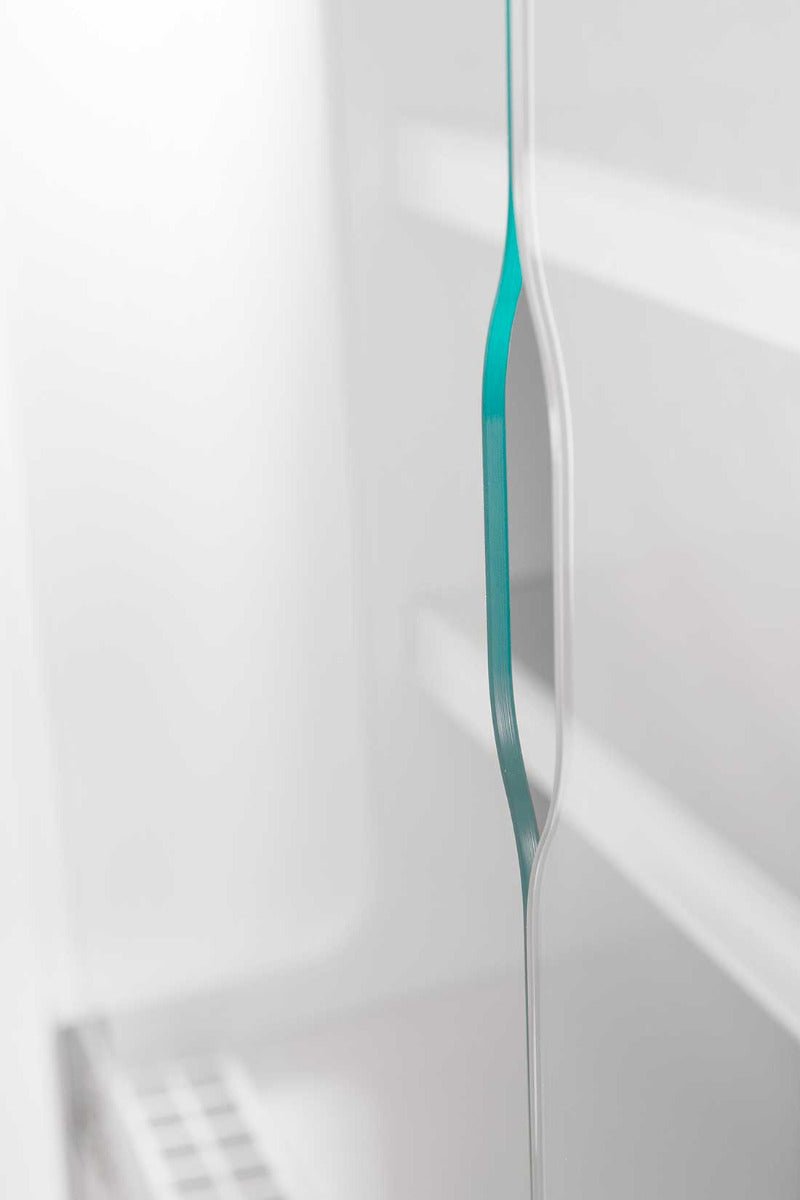

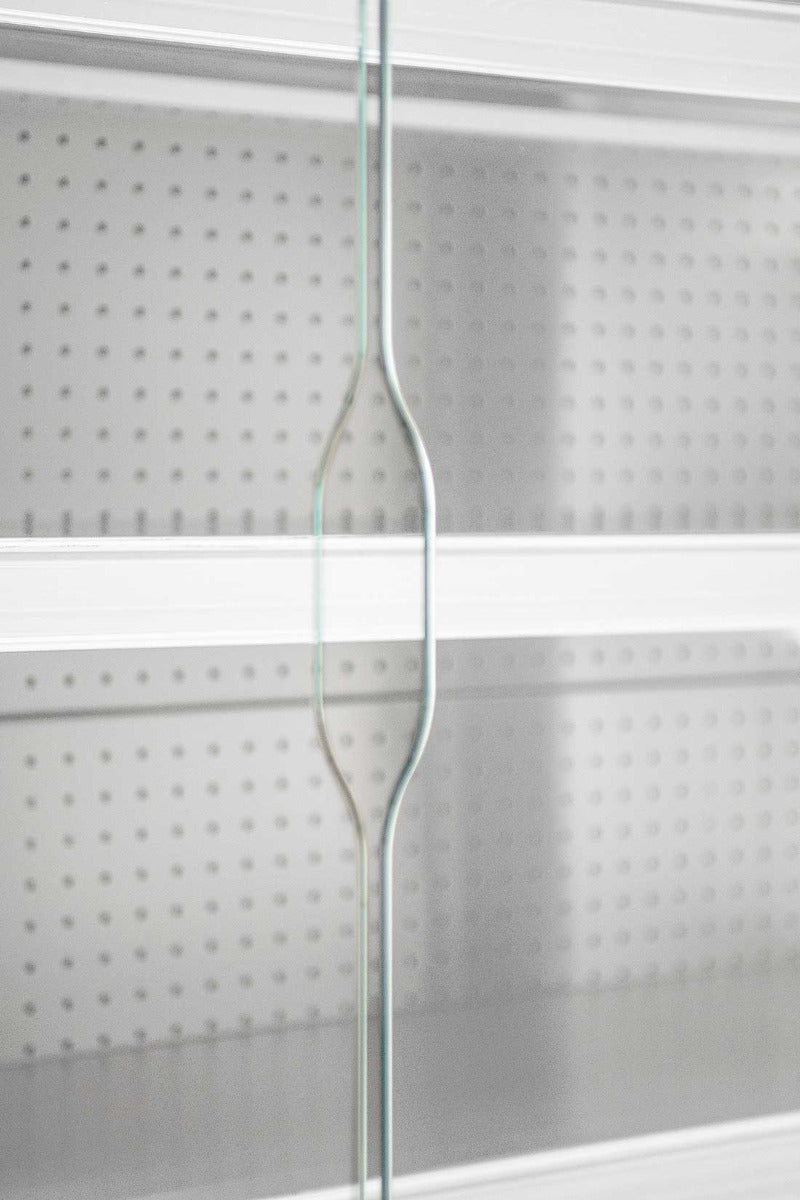

• 3.79 m² glass-door display — three 620 mm hinged glass doors merchandise more chilled stock while holding temperature.
• 0 to +4°C ventilated cooling — fan-forced airflow keeps drinks and dairy evenly chilled.
• Built-in condensing unit — self-contained plug-in design with no remote pack to install.
• Automatic water evaporation — a stainless steel serpentine evaporates condensate for lower maintenance.

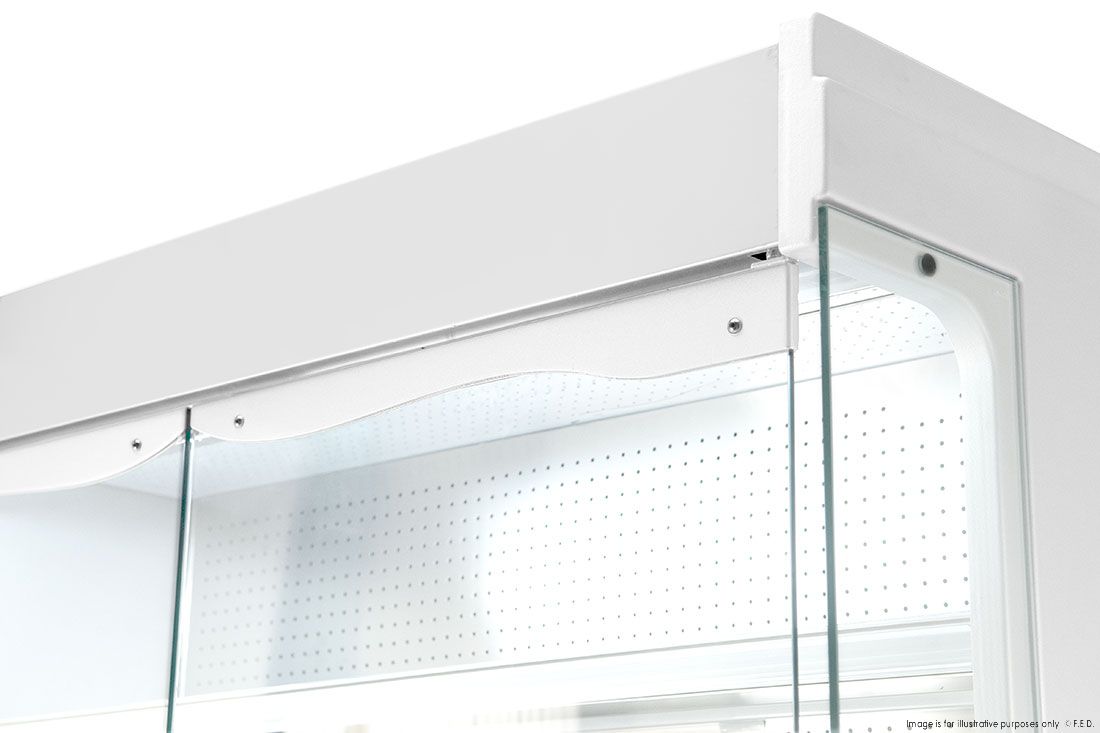

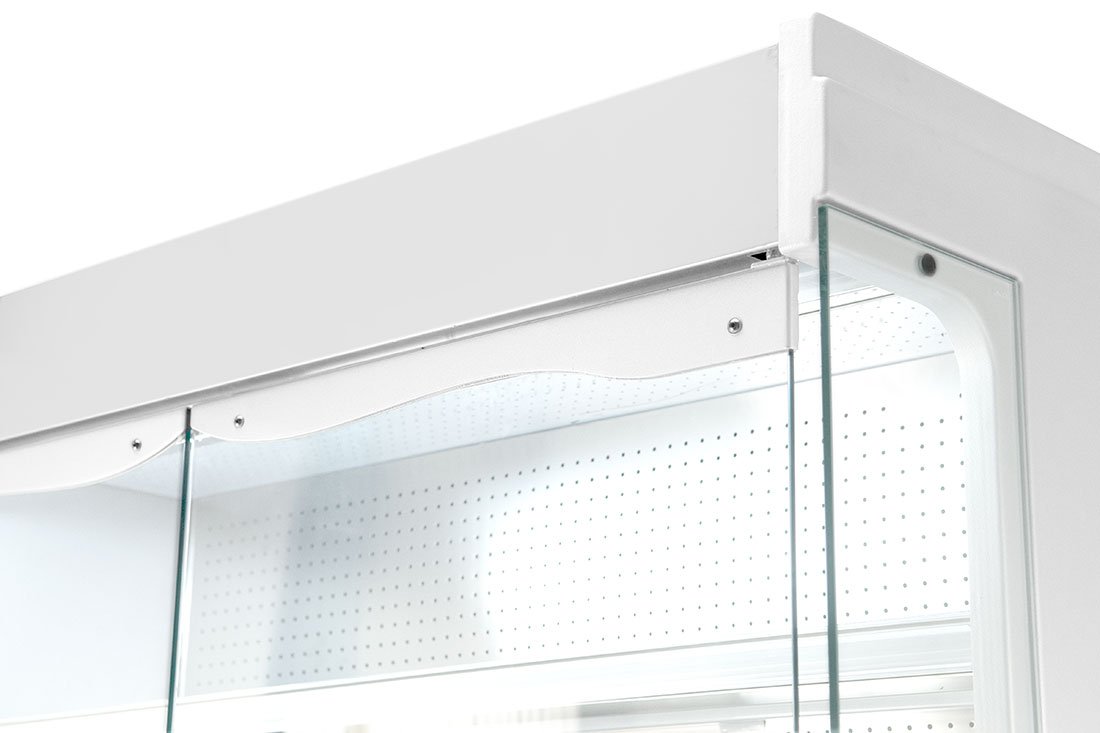

• Top ceiling LED lighting — bright, even illumination across every shelf.
• Climate Class 4 rated — holds temperature in ambient conditions up to 30°C and 55% RH.
• Mobile on castors — rolls out for cleaning and floor resets.
• 2-year parts and labour warranty — commercial-grade cover.

Specifications

Venue suitability

The TDVB80-CA-187 suits supermarkets, convenience stores, delis and service stations that need a mid-width three-door chilled wall for drinks, dairy and packaged grab-and-go lines. Within the Vulcano TDVB80 range, step down to the two-door TDVB80-CA-125 (2.54 m²) for tighter floors or up to the four-door TDVB80-CA-250 (5.06 m²) for a full chilled aisle.

Browse more commercial open display fridges or explore the full Tecnodom range.

Installation & delivery

The TDVB80-CA-187 is a self-contained plug-in unit, so no remote refrigeration pack is needed. It draws 3100W plus a 1000W tundish heater across one 15 Amp and one 10 Amp circuit, so provide both outlets (a licensed electrician should wire the 15 Amp supply), and connect the tundish drain on installation. It is rated Climate Class 4 for ambient conditions up to 30°C. Packed dimensions are 880 × 2070 × 2210 mm. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. It is covered by a 2-year parts and labour warranty; see our warranty information for full details.

Frequently asked questions

Q: How much display space does the TDVB80-CA-187 offer? A: It provides 3.79 m² of refrigerated display behind three 620 mm hinged glass doors.

Q: What temperature range does the TDVB80-CA-187 hold? A: It runs at 0 to +4°C using a ventilated, fan-forced cooling system, suited to chilled drinks, dairy and grab-and-go lines.

Q: What power supply does the TDVB80-CA-187 need? A: It draws 3100W plus a 1000W tundish heater across one 15 Amp and one 10 Amp circuit, so both outlets are required.

Q: Does the TDVB80-CA-187 need a drain? A: Yes. It uses automatic water evaporation but requires a tundish drain connection on installation.

Q: What are the dimensions of the TDVB80-CA-187? A: It measures 1955 × 765 × 2130 mm (W×D×H) and weighs 280 kg net.

Q: What warranty does the TDVB80-CA-187 come with? A: It is covered by a 2-year parts and labour warranty.
