TECNODOM by FHE Vulcano Supermarket 4 Door Open Display TDVB80-CA-250

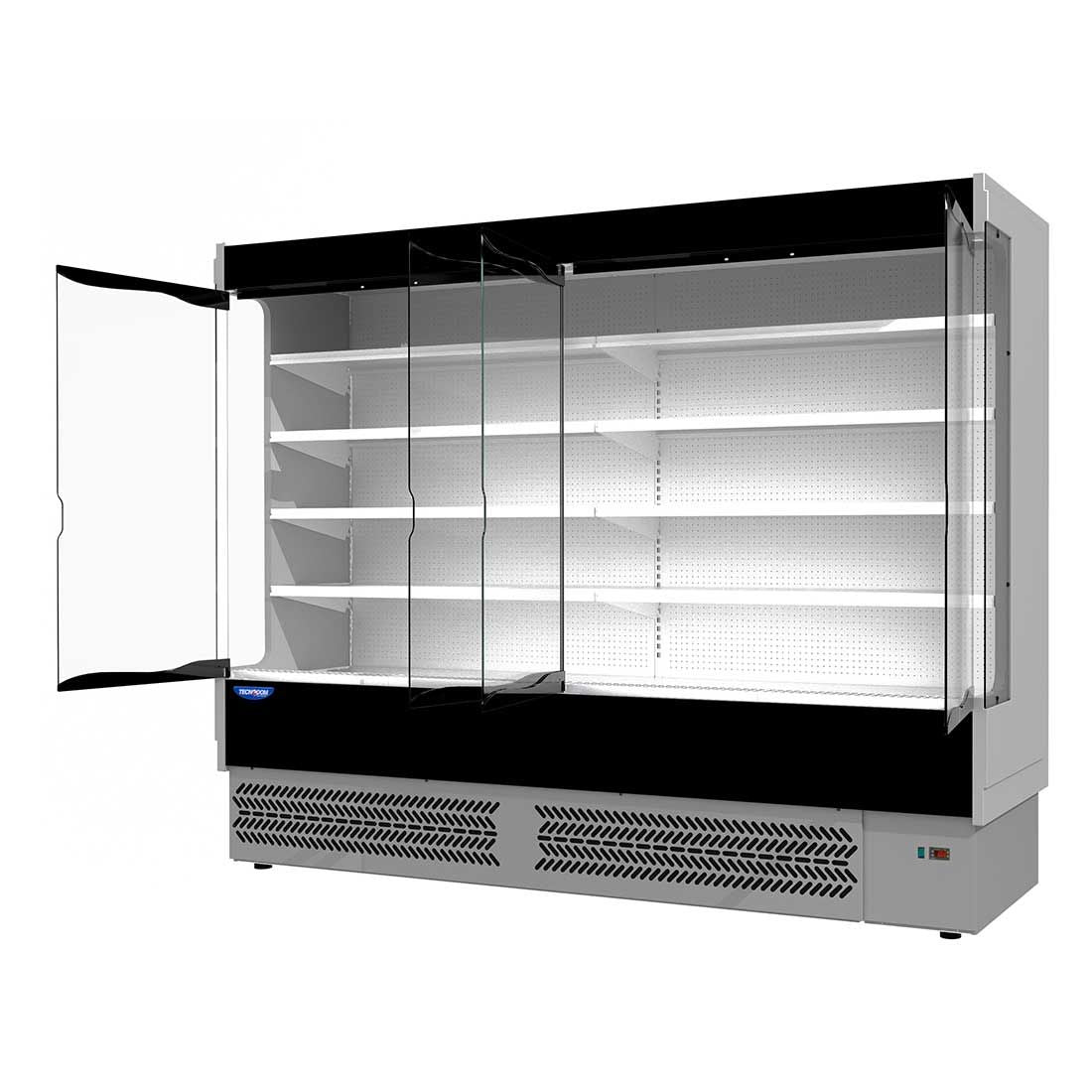

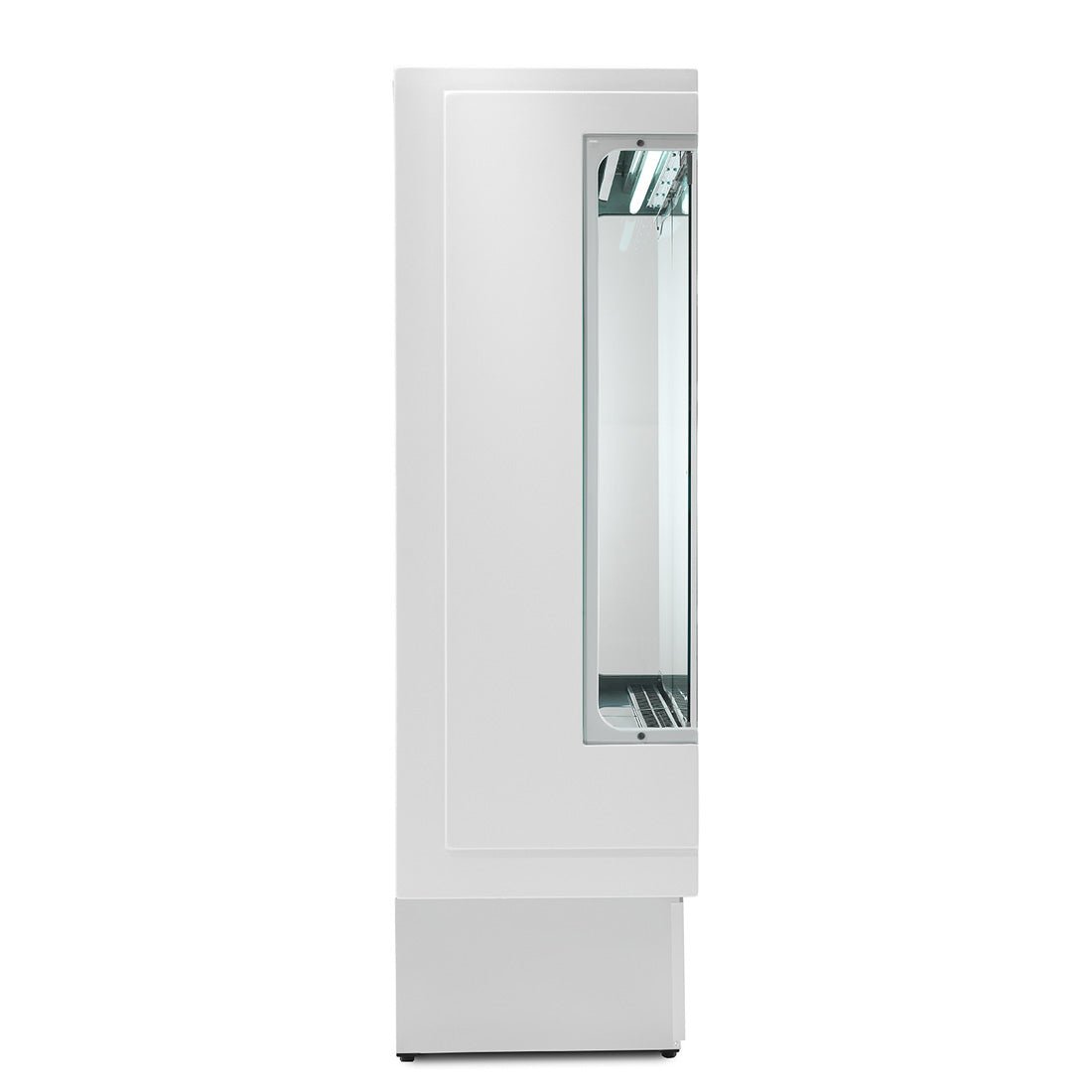

The Tecnodom TDVB80-CA-250 is a four-door refrigerated glass-door supermarket display from the Vulcano range, built to merchandise chilled drinks, dairy and grab-and-go lines in supermarkets, convenience stores, delis and service stations. It holds 0 to +4°C across a 5.06 m² display area behind four 620 mm hinged glass doors, runs on a built-in condensing unit, and measures 2580 × 765 × 2130 mm.

Why operators choose the TDVB80-CA-250

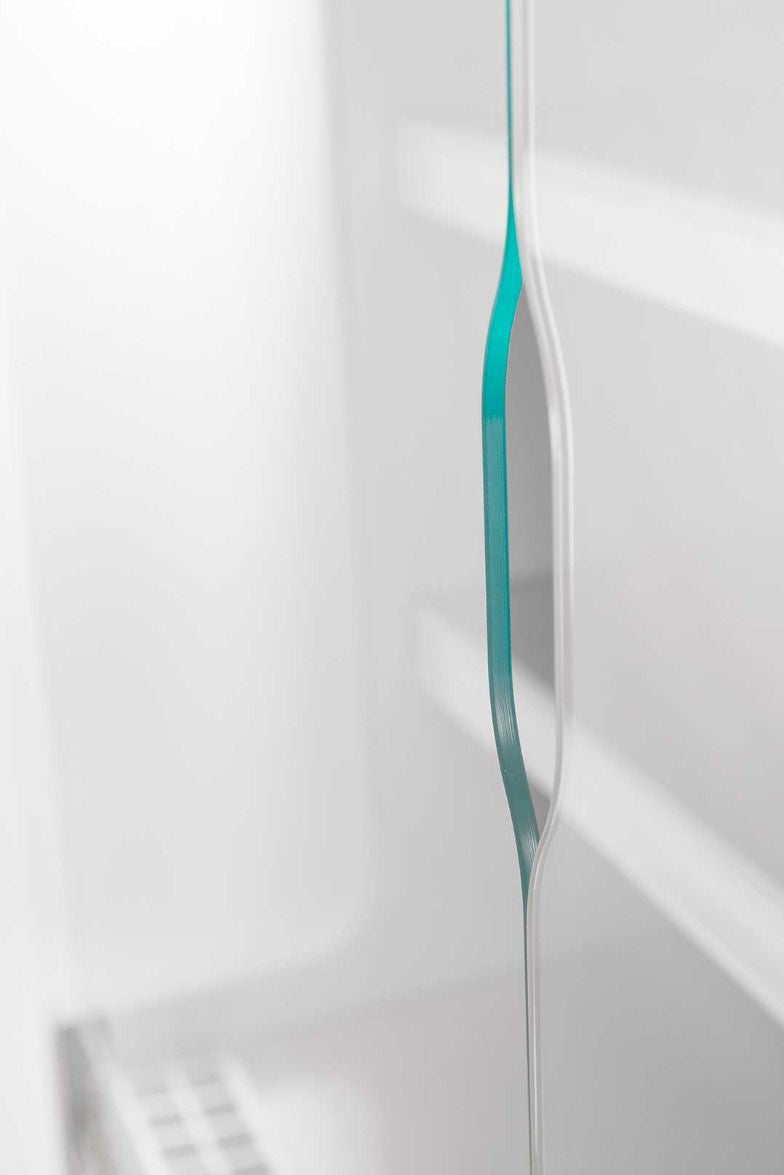

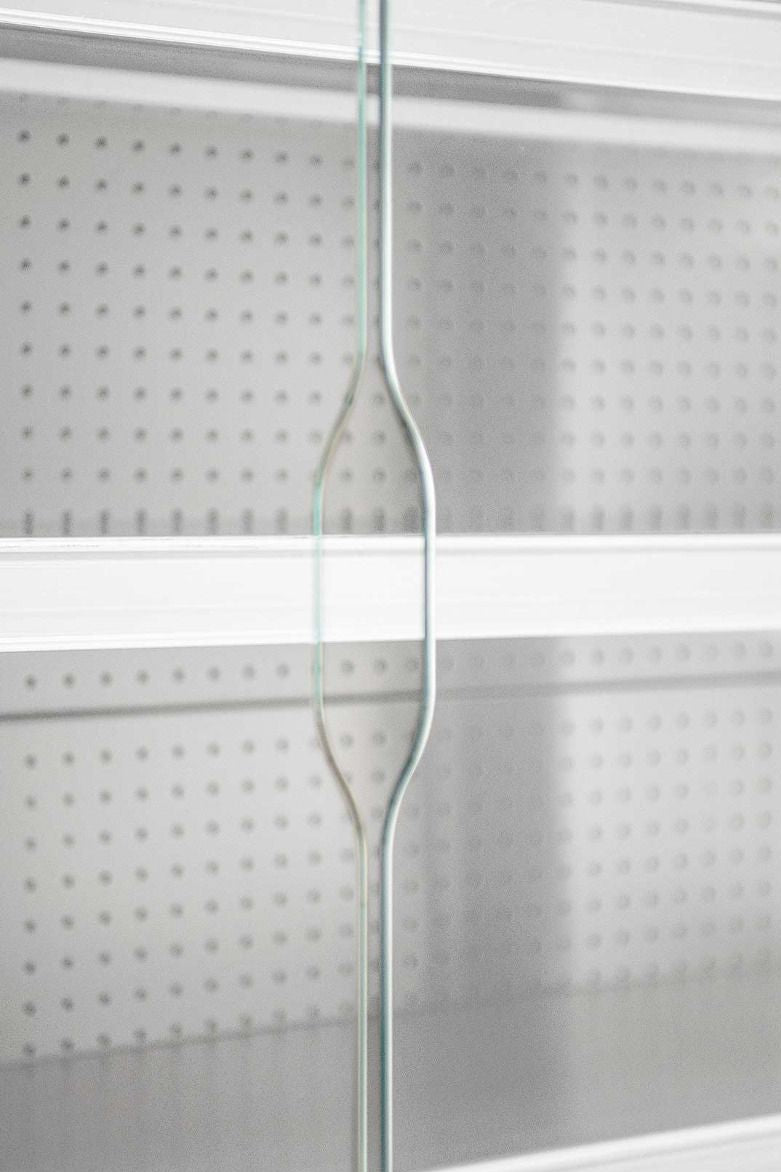

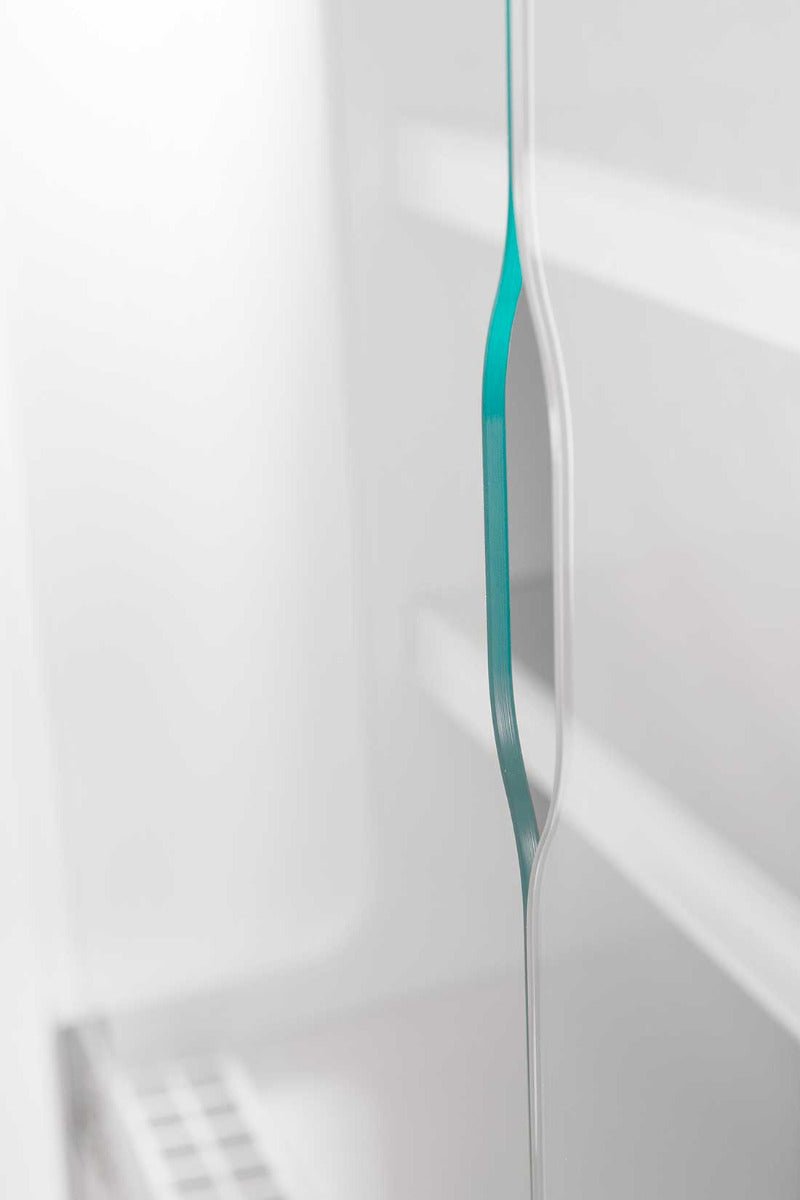

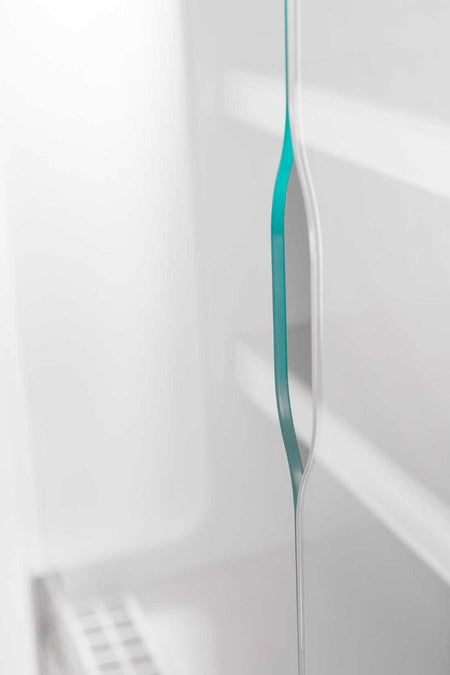

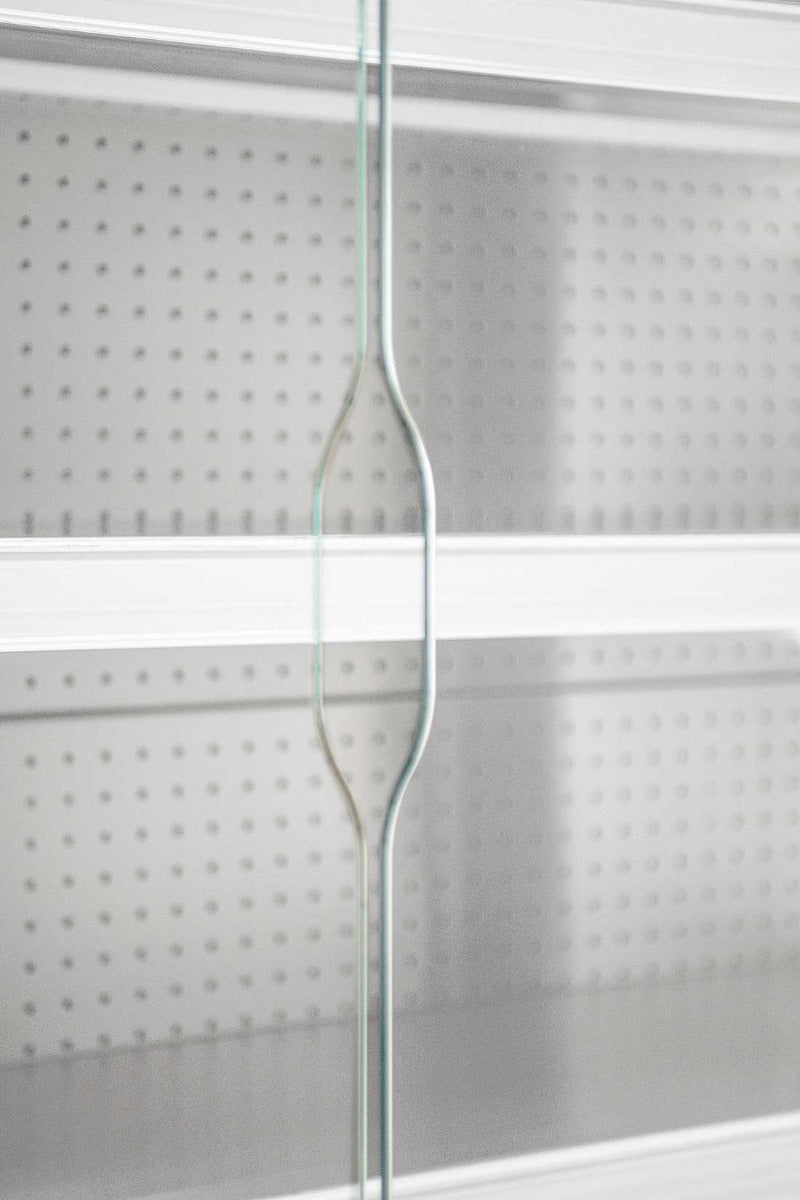

• 5.06 m² glass-door display — four 620 mm hinged glass doors deliver a full chilled aisle while holding temperature.
• 0 to +4°C ventilated cooling — fan-forced airflow keeps drinks and dairy evenly chilled.
• Built-in condensing unit — self-contained plug-in design with no remote pack to install.
• Automatic water evaporation — a stainless steel serpentine evaporates condensate for lower maintenance.
• Top ceiling LED lighting — bright, even illumination across every shelf.
• Climate Class 4 rated — holds temperature in ambient conditions up to 30°C and 55% RH.
• Mobile on castors — rolls out for cleaning and floor resets.
• 2-year parts and labour warranty — commercial-grade cover.

Specifications

Venue suitability

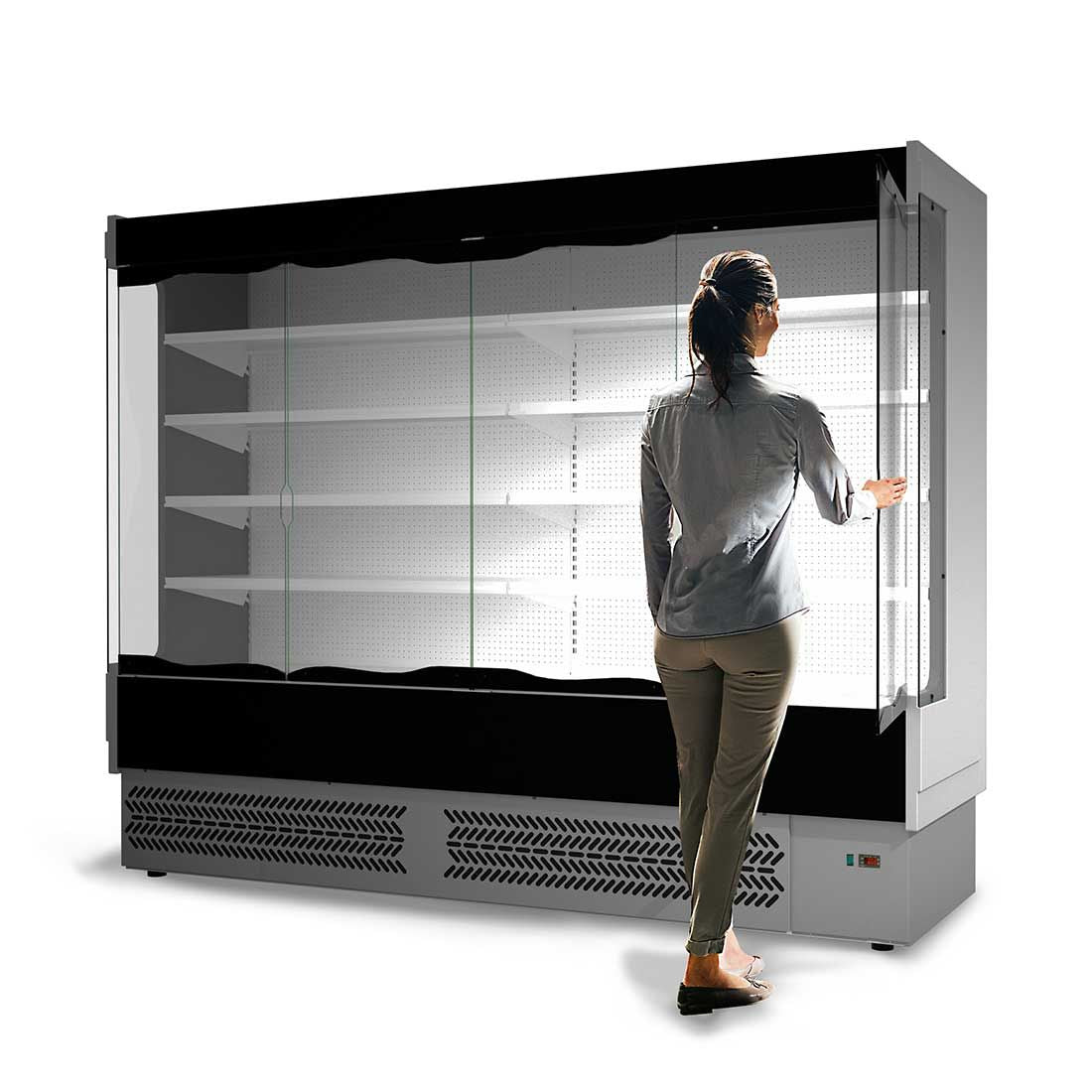

The TDVB80-CA-250 suits supermarkets, convenience stores and larger service stations that need a full four-door chilled aisle for drinks, dairy and packaged grab-and-go lines. Within the Vulcano TDVB80 range, step down to the three-door TDVB80-CA-187 (3.79 m²) or two-door TDVB80-CA-125 (2.54 m²) where floor space is tighter.

Browse more commercial open display fridges or explore the full Tecnodom range.

Installation & delivery

The TDVB80-CA-250 is a self-contained plug-in unit, so no remote refrigeration pack is needed. It draws 4330W plus a 1000W tundish heater across one 20 Amp and one 10 Amp circuit, so provide both outlets (a licensed electrician should wire the 20 Amp supply), and connect the tundish drain on installation. It is rated Climate Class 4 for ambient conditions up to 30°C. Packed dimensions are 880 × 2690 × 2210 mm. Dispatched from our Sydney HQ with partner warehouses in Melbourne, Brisbane, Adelaide and Perth for faster delivery Australia-wide. It is covered by a 2-year parts and labour warranty; see our warranty information for full details.

Frequently asked questions

Q: How much display space does the TDVB80-CA-250 offer? A: It provides 5.06 m² of refrigerated display behind four 620 mm hinged glass doors.

Q: What temperature range does the TDVB80-CA-250 hold? A: It runs at 0 to +4°C using a ventilated, fan-forced cooling system, suited to chilled drinks, dairy and grab-and-go lines.

Q: What power supply does the TDVB80-CA-250 need? A: It draws 4330W plus a 1000W tundish heater across one 20 Amp and one 10 Amp circuit, so both outlets are required.

Q: Does the TDVB80-CA-250 need a drain? A: Yes. It uses automatic water evaporation but requires a tundish drain connection on installation.

Q: What are the dimensions of the TDVB80-CA-250? A: It measures 2580 × 765 × 2130 mm (W×D×H) and weighs 400 kg net.

Q: What warranty does the TDVB80-CA-250 come with? A: It is covered by a 2-year parts and labour warranty.
